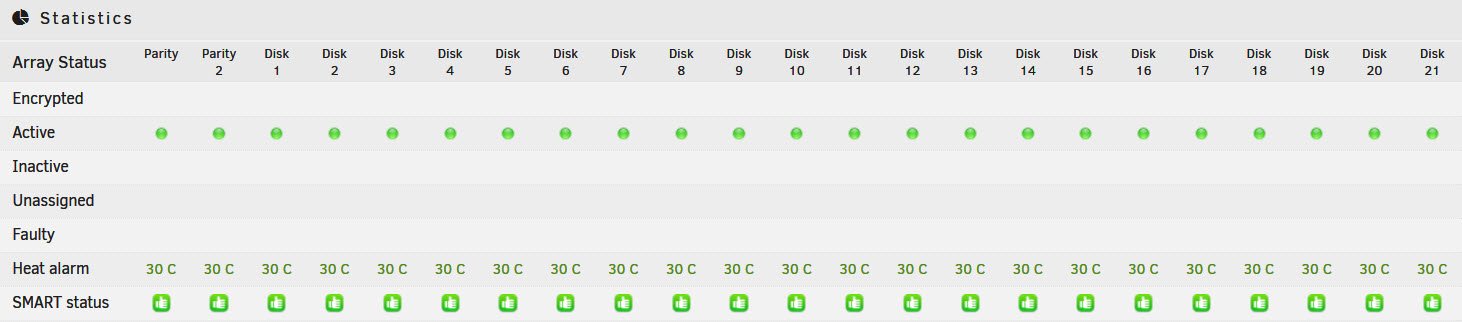

April 16, 20188 yr On 4/11/2018 at 1:41 AM, bonienl said: The temperatures displayed on the Main page and Dashboard page get their information from SMART reports generated by emhttp. Can you post such a smart report? These reports are located in the folder /var/local/emhttp/smart. I can show you from my system. Here are two RAID0 disks in my array. This always says the same thing. Temps are not right. root@tower:/var/local/emhttp/smart# cat parity smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.14.16-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === Current Drive Temperature: 30 C Drive Trip Temperature: 25 C Manufactured in week 30 of year 2002 Specified cycle count over device lifetime: 4278190080 Accumulated start-stop cycles: 256 Elements in grown defect list: 0 root@tower:/var/local/emhttp/smart# cat disk7 smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.14.16-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === Current Drive Temperature: 30 C Drive Trip Temperature: 25 C Manufactured in week 30 of year 2002 Specified cycle count over device lifetime: 4278190080 Accumulated start-stop cycles: 256 Elements in grown defect list: 0
April 19, 20188 yr Sorry for the late reply, I was traveling for work. Smart reports for disk2 / sdc root@STORAGE2:~# cat /var/local/emhttp/smart/disk2 smartctl 6.6 2017-11-05 r4594 [x86_64-linux-4.14.26-unRAID] (local build) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === Current Drive Temperature: 30 C Drive Trip Temperature: 25 C Manufactured in week 30 of year 2002 Specified cycle count over device lifetime: 4278190080 Accumulated start-stop cycles: 256 Elements in grown defect list: 0 root@STORAGE2:~# cat /var/local/emhttp/smart/sdc smartctl 6.6 2017-11-05 r4594 [x86_64-linux-4.14.26-unRAID] (local build) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Vendor: Seagate Product: ST6000NM0024-1HT Revision: R001 User Capacity: 6,001,175,126,016 bytes [6.00 TB] Logical block size: 512 bytes Rotation Rate: 10000 rpm Logical Unit id: 0x001b4d2098b5fe62 Serial number: Z4D0L2P4 Device type: disk Transport protocol: Fibre channel (FCP-2) Local Time is: Thu Apr 12 19:37:58 2018 EDT SMART support is: Available - device has SMART capability. SMART support is: Enabled Temperature Warning: Disabled or Not Supported === START OF READ SMART DATA SECTION === Current Drive Temperature: 30 C Drive Trip Temperature: 25 C Manufactured in week 30 of year 2002 Specified cycle count over device lifetime: 4278190080 Accumulated start-stop cycles: 256 Elements in grown defect list: 0
April 20, 20188 yr I can confirm the same data even the same manufacturing date and specified device lifetime and accumulated start stop cycles from my Samsung 204UI 2TB drive. In fact all my drives report the same information. Wonder where it is picking this up from?? This is an ARC1260 16 port version on bios 1.49 I also have another 24 port version ARC 1280 but it isn't installed at the moment.... unRaid 6.5 rc5 on this server still. Edited April 20, 20188 yr by tr0910
October 2, 20187 yr Author Just got the latest 6.6.1 and saw that there were a few smart updates in the previous couple versions...Got me excited thinking my Areca situation may be changed...Noda...🤣 Will emhttp ever support the non standard smart commands enabling dashboard/main reporting of actual temps? Edited October 2, 20187 yr by bsim
May 8, 20197 yr Can someone please tell me were I find the "disk index and device name" so I can add it correctly?
