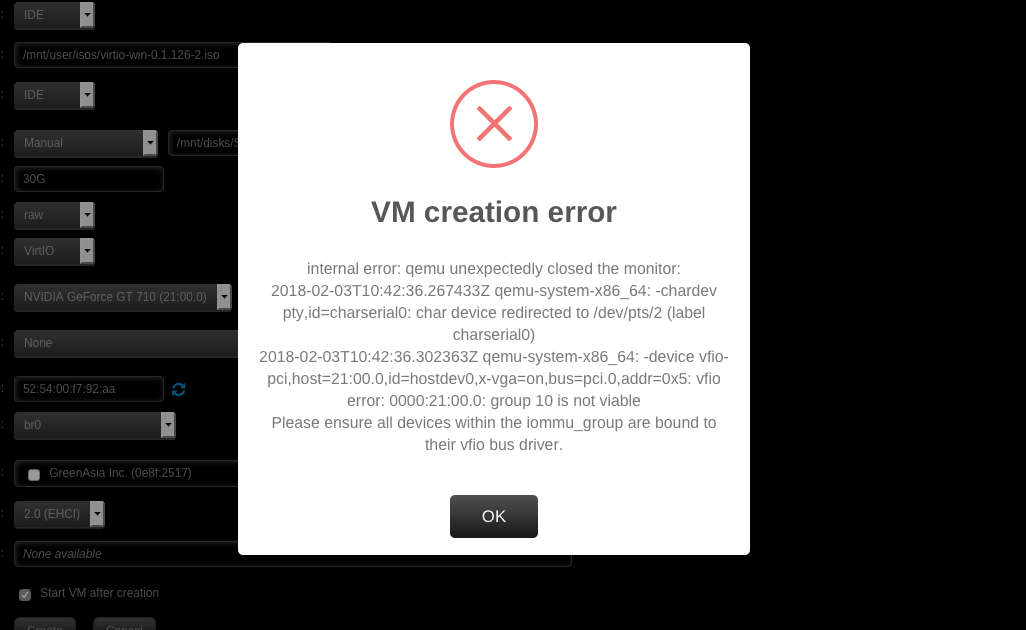

tmoran000 Posted February 3, 2018 Share Posted February 3, 2018 (edited) I am having some issues with creating a VM and using the GPU instead of the VNC graphics. I am getting an error when I try to create the VM when selecting the the GPU. Now to be honest I may be misunderstanding the use of the GPU instead of VNC but let me explain my self incase im wrong When I want to use my VM from my laptop and say there is a video playing I get tremendous glitching. That is with a device on the same network. It does this with all of the VM's I am running. I am under the impression that If I use the GPU for graphics that it will be better. But I have 2 questions. 1 Am I understanding this right and is it possible. I am assuming it is. And 2 once I would have it set up, How would I remote into the VM if VNC is not running and RDP is not set up? Below is my current error on set up when choosing the Nvidia GPU instead of VNC Edited February 4, 2018 by tmoran000 Quote Link to comment
Siwat2545 Posted February 3, 2018 Share Posted February 3, 2018 What processor and chipset are you using ? Quote Link to comment
tmoran000 Posted February 3, 2018 Author Share Posted February 3, 2018 (edited) AMD RYzen 1700x, AM4 Chipset. AMD B350 Board Asus PRIME B350-PLUS Edited February 4, 2018 by tmoran000 Quote Link to comment

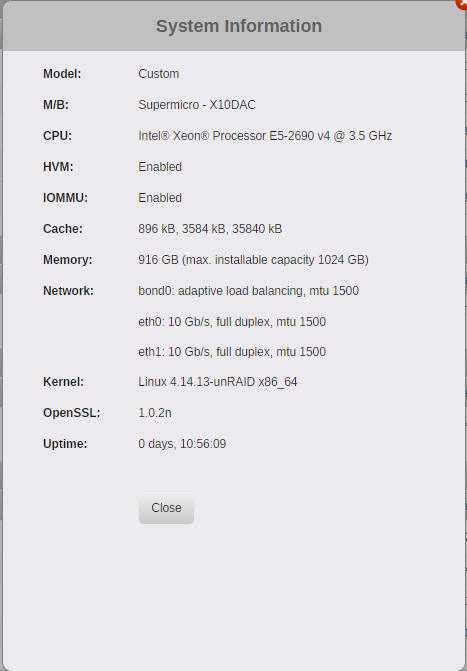

Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 Can you take your INFO screen shot (An example of my server is attached) I need to make sure that you have HVM and IOMMU Enabled Quote Link to comment
SSD Posted February 4, 2018 Share Posted February 4, 2018 11 minutes ago, Siwat2545 said: Can you take your INFO screen shot (An example of my server is attached) I need to make sure that you have HVM and IOMMU Enabled Wow! That is a heck of a lot of ram! 2 Quote Link to comment

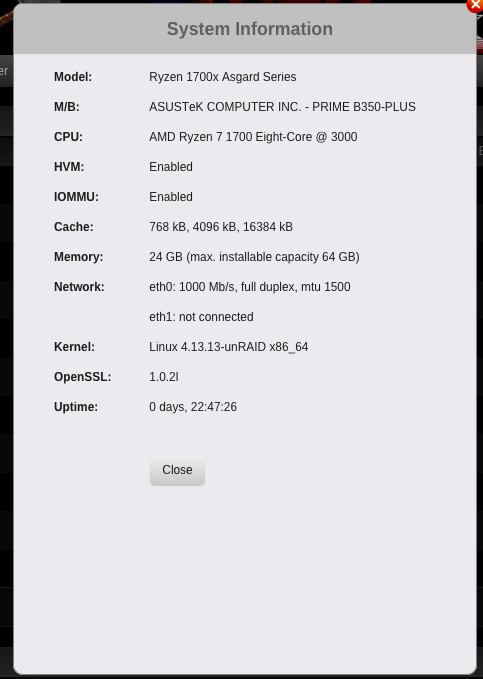

tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 here ya go Quote Link to comment
bonienl Posted February 4, 2018 Share Posted February 4, 2018 4 hours ago, SSD said: Wow! That is a heck of a lot of ram! And a lot of network bandwidth too! Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 28 minutes ago, bonienl said: And a lot of network bandwidth too! Don't believe any of it, It's all Fake news. Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 Assign the nvidia audio drive too Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 (edited) Oh if possible Your sysdev page From the Data it suggested that your graphic card is in the same group as other device if that’s the case you might need to enable ACS iommu overwrite Edited February 4, 2018 by Siwat2545 Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 19 minutes ago, Siwat2545 said: Assign the nvidia audio drive too I assigned it and got the same error. Looking for the Sysdev page you are asking for Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 here is the System Device page, Hope this is what you were looking for System Devices PCI Devices and IOMMU Groups IOMMU group 0: [1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 1: [1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 2: [1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 3: [1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 4: [1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 5: [1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 6: [1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B [1022:145a] 26:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a [1022:1456] 26:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor [1022:145c] 26:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller IOMMU group 7: [1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B [1022:1455] 27:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455 [1022:7901] 27:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) [1022:1457] 27:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller IOMMU group 8: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 9: [1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric Device 18h Function 6 [1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 IOMMU group 10: [1022:43bb] 03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset USB 3.1 xHCI Controller (rev 02) [1022:43b7] 03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset SATA Controller (rev 02) [1022:43b2] 03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b2 (rev 02) [1022:43b4] 1d:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [10ec:8168] 1e:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15) [1b21:1080] 1f:00.0 PCI bridge: ASMedia Technology Inc. ASM1083/1085 PCIe to PCI Bridge (rev 04) [10de:128b] 21:00.0 VGA compatible controller: NVIDIA Corporation GK208B [GeForce GT 710] (rev a1) [10de:0e0f] 21:00.1 Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1) [8086:10d3] 23:00.0 Ethernet controller: Intel Corporation 82574L Gigabit Network Connection IOMMU group 11: [1b4b:9235] 25:00.0 SATA controller: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller (rev 11) CPU Thread Pairings Pair 1: cpu 0 / cpu 1 Pair 2: cpu 2 / cpu 3 Pair 3: cpu 4 / cpu 5 Pair 4: cpu 6 / cpu 7 Pair 5: cpu 8 / cpu 9 Pair 6: cpu 10 / cpu 11 Pair 7: cpu 12 / cpu 13 Pair 8: cpu 14 / cpu 15 USB Devices Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 001 Device 002: ID 0e8f:2517 GreenAsia Inc. Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 004 Device 002: ID 154b:0095 PNY SCSI Devices [0:0:0:0] disk PNY USB 3.0 FD 1.00 /dev/sda 31.9GB [1:0:0:0] disk ATA WDC WD80EFAX-68L 0A83 /dev/sdb 8.00TB [2:0:0:0] disk ATA TOSHIBA DT01ABA3 ABB0 /dev/sdc 3.00TB [5:0:0:0] disk ATA ST5000DM000-1FK1 CC49 /dev/sdd 5.00TB [6:0:0:0] disk ATA ST5000DM000-1FK1 CC44 /dev/sde 5.00TB [9:0:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdf 6.00TB [10:0:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdg 6.00TB [11:0:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdh 6.00TB [12:0:0:0] disk ATA ST8000AS0002-1NA RT17 /dev/sdi 8.00TB [12:1:0:0] disk ATA SAMSUNG HD204UI 0001 /dev/sdj 2.00TB [12:2:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdk 6.00TB [15:0:0:0] disk ATA ST31000528AS CC3E /dev/sdl 1.00TB [16:0:0:0] disk ATA Samsung SSD 850 3B6Q /dev/sdm 500GB Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 (edited) I see the issue your device is in the same iommu group, Please enable PCIe ACS Override and reboot your system Edited February 4, 2018 by Siwat2545 1 Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 (edited) Checking out how to do that. * Found it, Rebooting Edited February 4, 2018 by tmoran000 Quote Link to comment

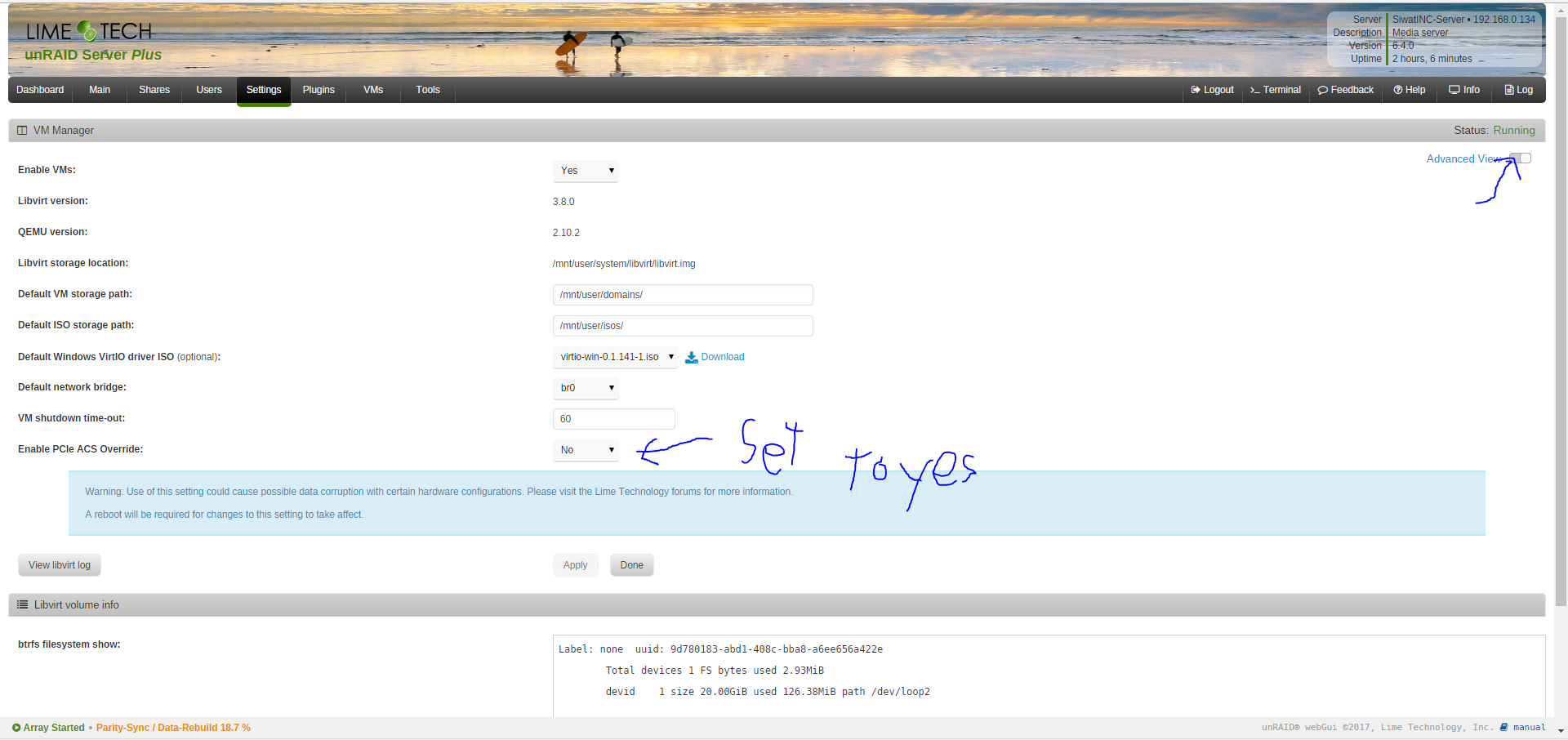

Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 See the picture I just edited in Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 I enabled it. And am Rebooting now. Quote Link to comment

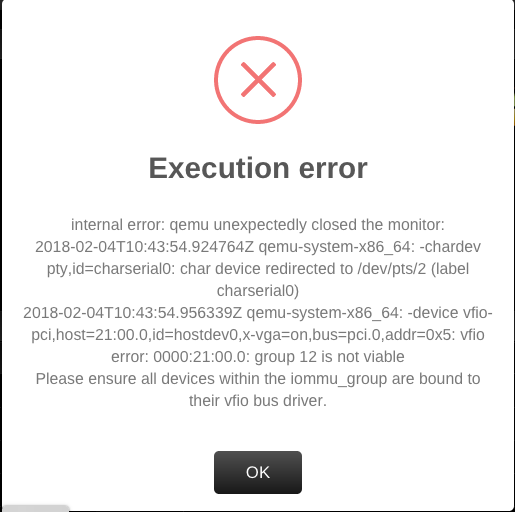

tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 I did so and unfortunately I got the there error when I try to start the VM Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 Can I see the sysdev again please ? Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 (edited) System Devices PCI Devices and IOMMU Groups Warning: Your system has booted with the PCIe ACS Override setting enabled. The below list doesn't not reflect the way IOMMU would naturally group devices. To see natural IOMMU groups for your hardware, go to the VM Settings page and set the PCIe ACS Override setting to No. IOMMU group 0: [1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 1: [1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 2: [1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 3: [1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 4: [1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 5: [1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 6: [1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 7: [1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B IOMMU group 8: [1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 9: [1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B IOMMU group 10: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 11: [1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric Device 18h Function 6 [1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 IOMMU group 12: [1022:43bb] 03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset USB 3.1 xHCI Controller (rev 02) [1022:43b7] 03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset SATA Controller (rev 02) [1022:43b2] 03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b2 (rev 02) [1022:43b4] 1d:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 1d:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [10ec:8168] 1e:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 15) [1b21:1080] 1f:00.0 PCI bridge: ASMedia Technology Inc. ASM1083/1085 PCIe to PCI Bridge (rev 04) [10de:128b] 21:00.0 VGA compatible controller: NVIDIA Corporation GK208B [GeForce GT 710] (rev a1) [10de:0e0f] 21:00.1 Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1) [8086:10d3] 23:00.0 Ethernet controller: Intel Corporation 82574L Gigabit Network Connection IOMMU group 13: [1b4b:9235] 25:00.0 SATA controller: Marvell Technology Group Ltd. 88SE9235 PCIe 2.0 x2 4-port SATA 6 Gb/s Controller (rev 11) IOMMU group 14: [1022:145a] 26:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a [1022:1456] 26:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor [1022:145c] 26:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller IOMMU group 15: [1022:1455] 27:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455 [1022:7901] 27:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) [1022:1457] 27:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller CPU Thread Pairings Pair 1: cpu 0 / cpu 1 Pair 2: cpu 2 / cpu 3 Pair 3: cpu 4 / cpu 5 Pair 4: cpu 6 / cpu 7 Pair 5: cpu 8 / cpu 9 Pair 6: cpu 10 / cpu 11 Pair 7: cpu 12 / cpu 13 Pair 8: cpu 14 / cpu 15 USB Devices Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 001 Device 002: ID 0e8f:2517 GreenAsia Inc. Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 004 Device 002: ID 154b:0095 PNY SCSI Devices [0:0:0:0] disk PNY USB 3.0 FD 1.00 /dev/sda 31.9GB [1:0:0:0] disk ATA WDC WD80EFAX-68L 0A83 /dev/sdb 8.00TB [2:0:0:0] disk ATA TOSHIBA DT01ABA3 ABB0 /dev/sdc 3.00TB [5:0:0:0] disk ATA ST5000DM000-1FK1 CC49 /dev/sdd 5.00TB [6:0:0:0] disk ATA ST5000DM000-1FK1 CC44 /dev/sde 5.00TB [9:0:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdf 6.00TB [10:0:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdg 6.00TB [11:0:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdh 6.00TB [12:0:0:0] disk ATA ST8000AS0002-1NA RT17 /dev/sdi 8.00TB [12:1:0:0] disk ATA SAMSUNG HD204UI 0001 /dev/sdj 2.00TB [12:2:0:0] disk ATA ST6000VN0041-2EL SC61 /dev/sdk 6.00TB [15:0:0:0] disk ATA ST31000528AS CC3E /dev/sdl 1.00TB [16:0:0:0] disk ATA Samsung SSD 850 3B6Q /dev/sdm 500GB Edited February 4, 2018 by tmoran000 Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 (edited) Can I have your syslinux please (Main --> flash --> copy the text) I need to Isolate your GT710 from others device Edited February 4, 2018 by Siwat2545 Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 the configuration is default menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot label unRAID OS GUI Mode kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot unraidsafemode label unRAID OS GUI Safe Mode (no plugins) kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui unraidsafemode label Memtest86+ kernel /memtest hope this is what you were looking for Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 Just now, tmoran000 said: the configuration is default menu.c32 menu title Lime Technology, Inc. prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot label unRAID OS GUI Mode kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui label unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot unraidsafemode label unRAID OS GUI Safe Mode (no plugins) kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui unraidsafemode label Memtest86+ kernel /memtest hope this is what you were looking for Yes, It is, Please wait While I modified it to your configuration needs 1 Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 (edited) Please replace your syslinux with this then click apply and reboot then try again default menu.c32menu title Lime Technology, Inc.prompt 0timeout 50label unRAID OS menu default kernel /bzimage append pcie_acs_override=downstream,multifunction initrd=/bzrootlabel unRAID OS GUI Mode kernel /bzimage append pcie_acs_override=downstream,multifunction initrd=/bzroot,/bzroot-guilabel unRAID OS Safe Mode (no plugins, no GUI) kernel /bzimage append initrd=/bzroot unraidsafemodelabel unRAID OS GUI Safe Mode (no plugins) kernel /bzimage append initrd=/bzroot,/bzroot-gui unraidsafemodelabel Memtest86+ kernel /memtest Edited February 4, 2018 by Siwat2545 Quote Link to comment
tmoran000 Posted February 4, 2018 Author Share Posted February 4, 2018 I Applied it and rebooting now Quote Link to comment
Siwat2545 Posted February 4, 2018 Share Posted February 4, 2018 Sorry NOT YET, I spell multifunction wrong Quote Link to comment
