Container Networking Possibility

jbm715
in Docker Engine

Featured Replies

I currently have an ESXi host with 3 guest VMs: Unraid 5.0, a plex VM, and a 'download all the things' VM with docker containers. I want to get away from ESXi and move to a bare metal install of Unraid 6 and migrate all the containers.

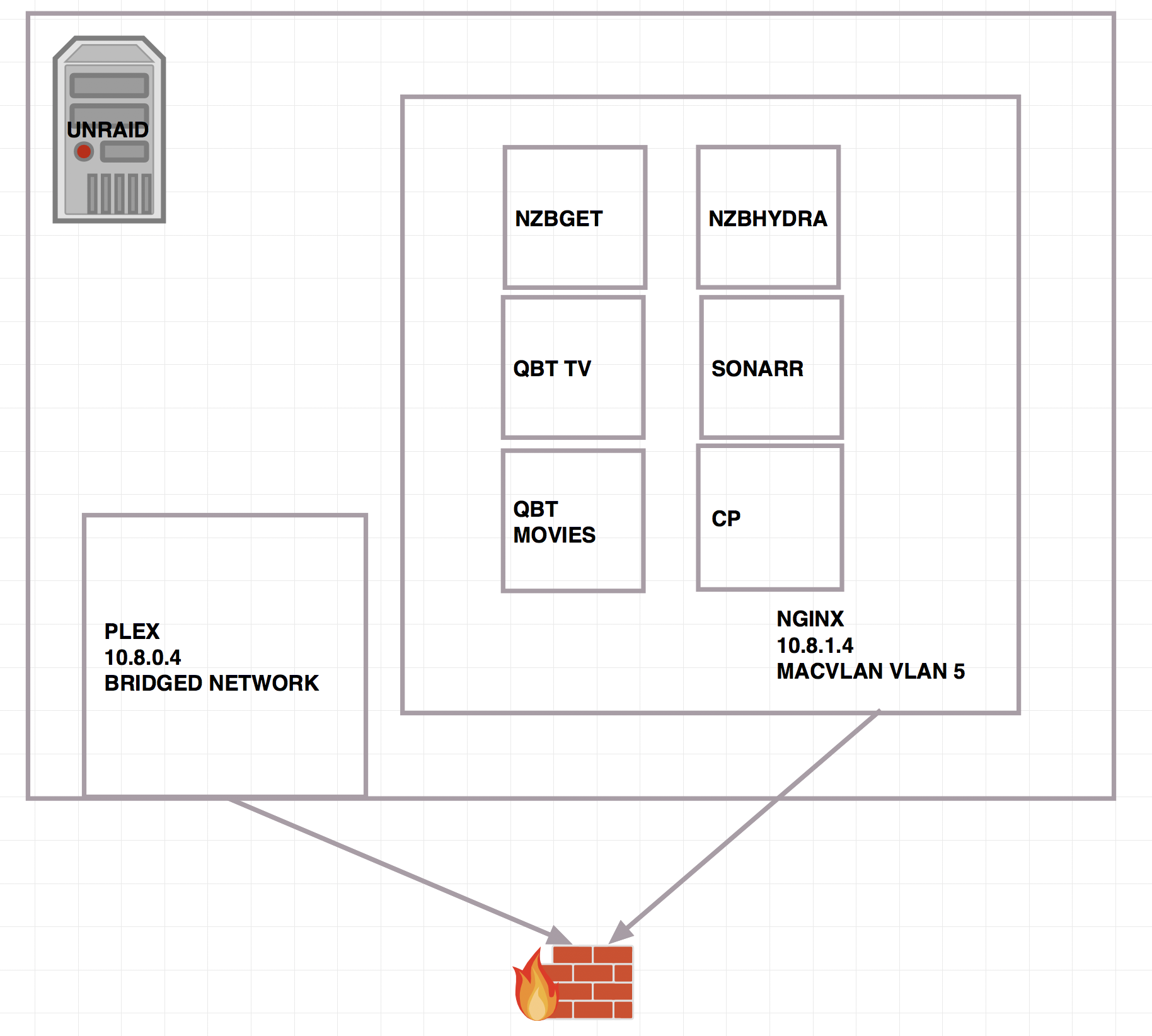

What I want is:



  1.  unraid host with say ip 10.4.0.8
  2. plex container using the default bridged network
  3. nginx reverse proxy with it's own ip using macvlan with vlan id 5 and ip 10.4.1.8
    1. nzbget, sonarr, etc reverse proxied by nginx and using it's net mode



My firewall currently already handles multiple tagged and untagged vlans on a trunk from the ESXi box so I'm good from that standpoint.



My question is: Is this a doable with unraid? I imagine I can't do some of the networking view the UI which is fine as I'm used to dealing with the docker cli.


Edited by jbm715

  • Quote

    The whole setup is possible and purely configurable from the GUI.

    I'm not seeing any immediate issues/gotchas with the setup.

  • Quote
