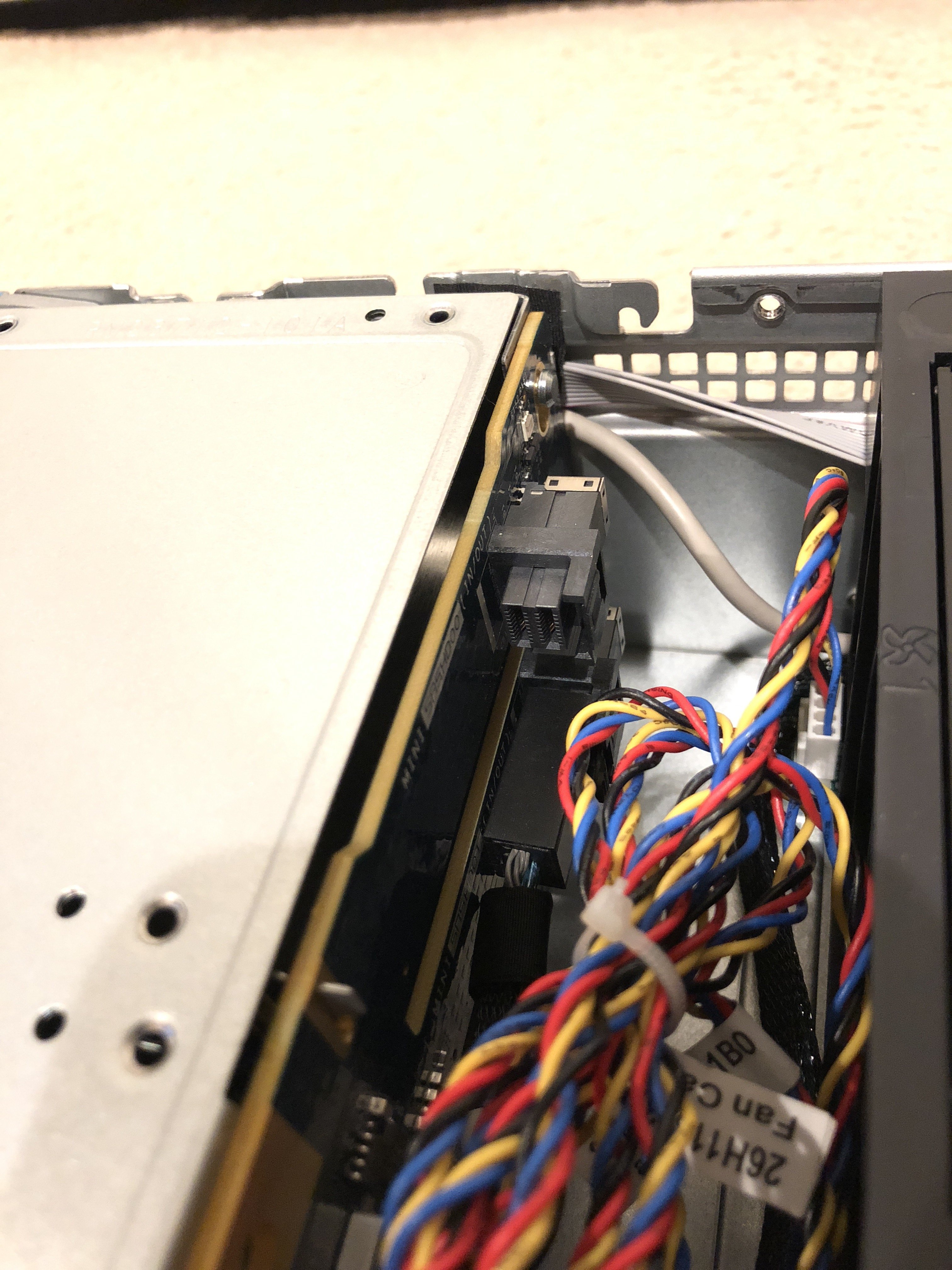

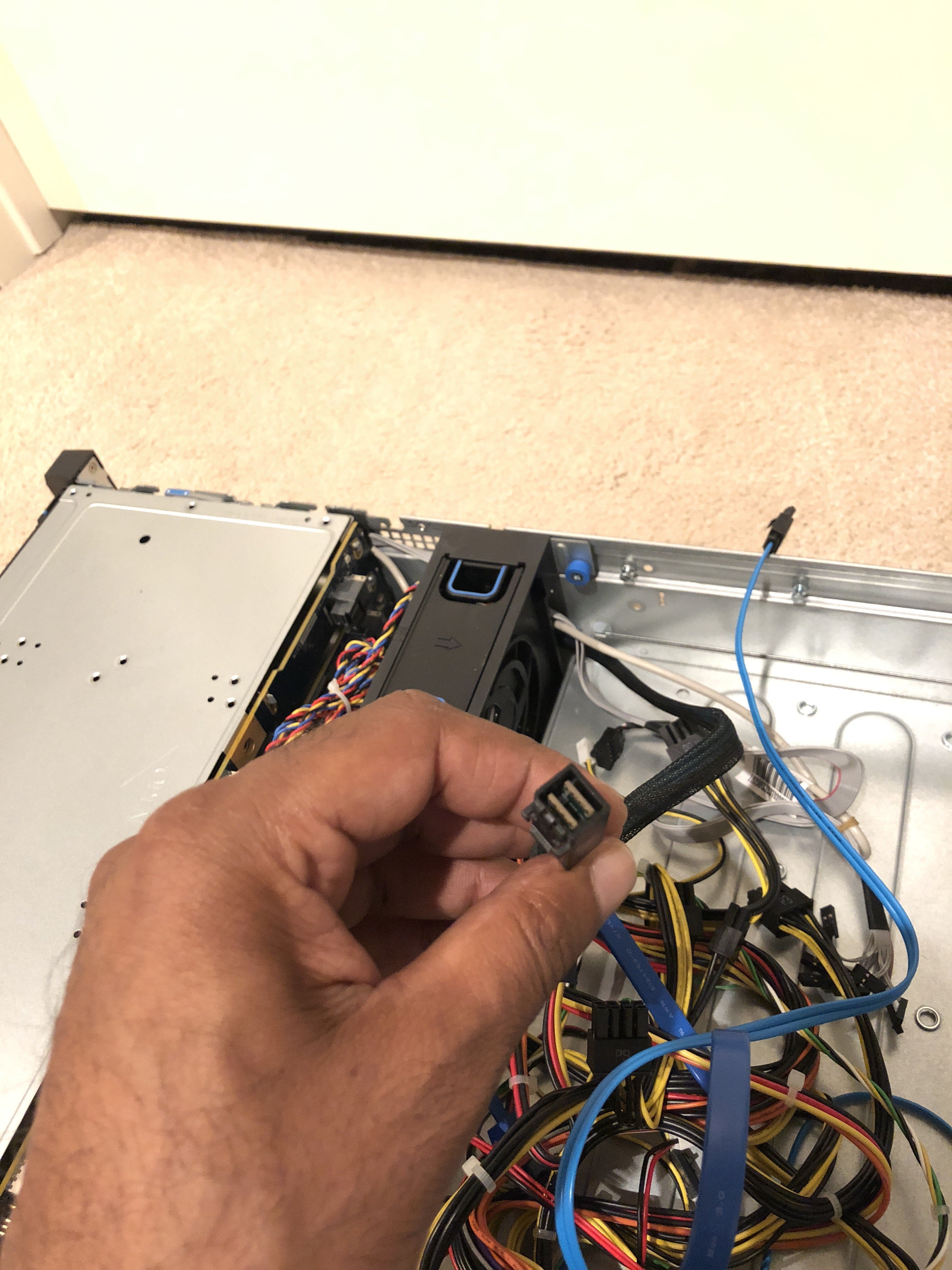

I bought a new Chenbro case.  Excellent quality case.  It has 12 drive slots on a sas backplane.  The back plane has two sas connectors.  Each connector is a mini sas HD connector.  Picture attached.  I ordered two dell perc h310 cards that have a mini sas connector.  I was hoping I can order a mini sas hd to mini sas cable like pictured. How can I make use of all 12 drive slots with two cables????  I thought each cable supports only 4 drives.  Can I get a mini sas hd card to support all 12 drives with unraid?

Edited May 13, 20188 yr by macmann

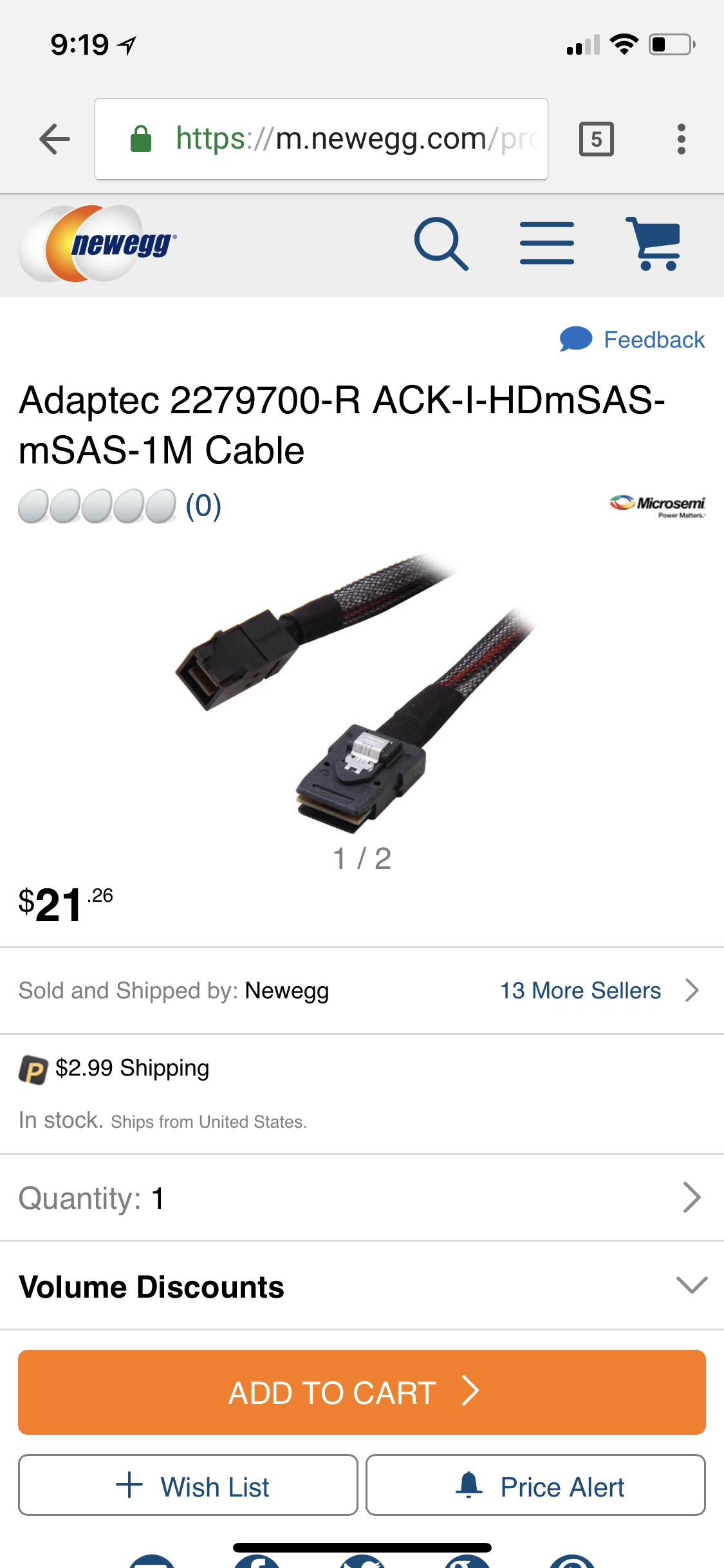

Cable I was hoping to use but backplane has two mini sas hd jacks.

Is there a card that works with unraid that will support mini sas hd ?

Those backplanes have a built in expander, you just need to connect one cable to see the 12 disks, connecting both will allow dual link or redundancy, depending on the backplane.

2 hours ago, johnnie.black said:

Those backplanes have a built in expander, you just need to connect one cable to see the 12 disks, connecting both will allow dual link or redundancy, depending on the backplane.

Thank you for your answer.
