Docker network br0 not found

[knex666]

Dear Unraid friends,



after I changed IPV6 from manual to automatic and back to set a new IPV6 prefix I have some trouble with the docker daemon. the docker network bridge br0 is not found.



This solution doesnt work:

This works but only manual so its no solution:

Another problem is that even if I add the bridge manualy I have no longer IPV6 support for docker. How do I enable that?

Here are some Log files in hope you have an idea what I am missing.

Thank you very much for your help!



knex



NETWORK ID          NAME                DRIVER              SCOPE
b378007840ea        bridge              bridge              local
4396a2377743        host                host                local
fe99d0c94c1a        none                null                local


SYSLOG

May 23 21:26:58 Tower emhttpd: shcmd (72): /etc/rc.d/rc.docker start
May 23 21:26:58 Tower root: starting dockerd ...
May 23 21:27:00 Tower kernel: ip_tables: (C) 2000-2006 Netfilter Core Team
May 23 21:27:01 Tower avahi-daemon[4875]: Joining mDNS multicast group on interface docker0.IPv4 with address 172.17.0.1.
May 23 21:27:01 Tower avahi-daemon[4875]: New relevant interface docker0.IPv4 for mDNS.
May 23 21:27:01 Tower avahi-daemon[4875]: Registering new address record for 172.17.0.1 on docker0.IPv4.
May 23 21:27:01 Tower kernel: IPv6: ADDRCONF(NETDEV_UP): docker0: link is not ready
May 23 21:27:02 Tower root: PlexMediaServer: started succesfully!
May 23 21:27:02 Tower kernel: docker0: port 1(veth8a2be74) entered blocking state
May 23 21:27:02 Tower kernel: docker0: port 1(veth8a2be74) entered disabled state
May 23 21:27:02 Tower kernel: device veth8a2be74 entered promiscuous mode
May 23 21:27:02 Tower kernel: IPv6: ADDRCONF(NETDEV_UP): veth8a2be74: link is not ready
May 23 21:27:02 Tower kernel: docker0: port 1(veth8a2be74) entered blocking state
May 23 21:27:02 Tower kernel: docker0: port 1(veth8a2be74) entered forwarding state
May 23 21:27:02 Tower kernel: docker0: port 1(veth8a2be74) entered disabled state
May 23 21:27:02 Tower root: ransomware protection:Waiting For deletion of bait files to complete
May 23 21:27:03 Tower kernel: eth0: renamed from veth5d4c11f
May 23 21:27:03 Tower kernel: IPv6: ADDRCONF(NETDEV_CHANGE): veth8a2be74: link becomes ready
May 23 21:27:03 Tower kernel: docker0: port 1(veth8a2be74) entered blocking state
May 23 21:27:03 Tower kernel: docker0: port 1(veth8a2be74) entered forwarding state
May 23 21:27:03 Tower kernel: IPv6: ADDRCONF(NETDEV_CHANGE): docker0: link becomes ready
May 23 21:27:03 Tower root: Syncthing: started succesfully!
May 23 21:27:03 Tower root: Apache-PHP: Error response from daemon: network br0 not found
[...]
May 23 21:38:26 Tower kernel: ICMPv6: RA: ndisc_router_discovery failed to add default route


DOCKER LOG

time="2018-05-23T21:26:58.589502270+02:00" level=info msg="libcontainerd: new containerd process, pid: 5266"
time="2018-05-23T21:26:59.595261685+02:00" level=warning msg="failed to rename /var/lib/docker/tmp for background deletion: rename /var/lib/docker/tmp /var/lib/docker/tmp-old: file exists. Deleting synchronously"
time="2018-05-23T21:27:00.124443825+02:00" level=info msg="Graph migration to content-addressability took 0.00 seconds"
time="2018-05-23T21:27:00.126637246+02:00" level=info msg="Loading containers: start."
time="2018-05-23T21:27:01.262055309+02:00" level=info msg="Default bridge (docker0) is assigned with an IP address 172.17.0.0/16. Daemon option --bip can be used to set a preferred IP address"
time="2018-05-23T21:27:01.505945583+02:00" level=info msg="Loading containers: done."
time="2018-05-23T21:27:01.545042584+02:00" level=info msg="Docker daemon" commit=19e2cf6 graphdriver(s)=btrfs version=17.09.1-ce
time="2018-05-23T21:27:01.545367072+02:00" level=info msg="Daemon has completed initialization"
time="2018-05-23T21:27:01.572737312+02:00" level=info msg="API listen on /var/run/docker.sock"
time="2018-05-23T21:27:03.780694952+02:00" level=warning msg="error locating sandbox id 40944dfe64cf6f48e18e990667bc5d92e3ec22888ab1c5a365ced89794146c24: sandbox 40944dfe64cf6f48e18e990667bc5d92e3ec22888ab1c5a365ced89794146c24 not found"
time="2018-05-23T21:27:04.013273796+02:00" level=warning msg="error locating sandbox id 695ab82c7612bd9603dd85deccdf1542e151d48764848d23809e486f0127b0a0: sandbox 695ab82c7612bd9603dd85deccdf1542e151d48764848d23809e486f0127b0a0 not found"
time="2018-05-23T21:27:04.292309807+02:00" level=warning msg="error locating sandbox id 6d1e9a30379896183cfad18a0d8d89fe14958443f22348d5e89352c71d582ece: sandbox 6d1e9a30379896183cfad18a0d8d89fe14958443f22348d5e89352c71d582ece not found"
time="2018-05-23T21:27:06.366061564+02:00" level=warning msg="error locating sandbox id 2018ea0d077badb52aee8a0c9449b1f52268928341f04f6436b1649fb61c2370: sandbox 2018ea0d077badb52aee8a0c9449b1f52268928341f04f6436b1649fb61c2370 not found"
time="2018-05-23T21:27:06.617131849+02:00" level=warning msg="error locating sandbox id 73720497c2dd9865ac7dfcefcddf94d15475bc5275c01eb963b80c8f07b8ac8b: sandbox 73720497c2dd9865ac7dfcefcddf94d15475bc5275c01eb963b80c8f07b8ac8b not found"
time="2018-05-23T21:27:06.935379281+02:00" level=warning msg="error locating sandbox id 5c93028677973e15132db96eae3941fcc802baa53fd2c839a9ac9d9b8bded4b1: sandbox 5c93028677973e15132db96eae3941fcc802baa53fd2c839a9ac9d9b8bded4b1 not found"
time="2018-05-23T21:31:42.064763217+02:00" level=warning msg="macvlan driver does not support port exposures"
time="2018-05-23T21:31:48.513407442+02:00" level=warning msg="macvlan driver does not support port exposures"
time="2018-05-23T21:31:51.796461342+02:00" level=warning msg="macvlan driver does not support port exposures"
time="2018-05-23T21:31:54.955261754+02:00" level=warning msg="macvlan driver does not support port exposures"



Edited May 23, 2018 by knex666

[bonienl]

br0 is not created because there is some conflict in the network settings.

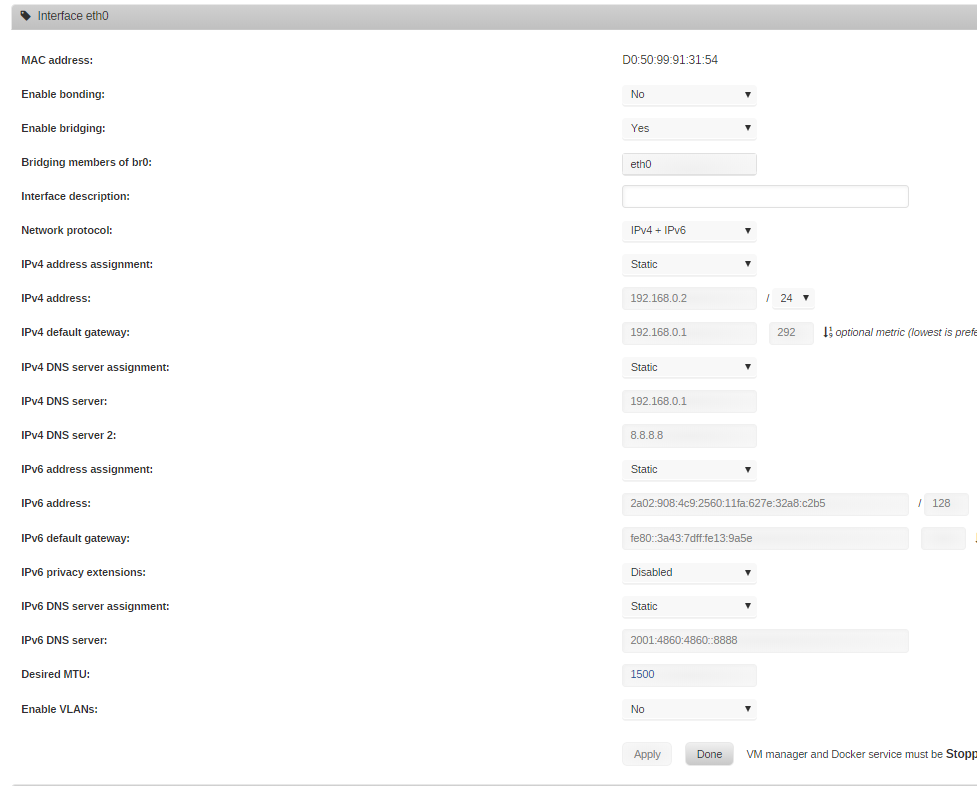

Can you post a screenshot of your network settings.

[knex666]

Thanks!



Hope that will make you find the mistake.



[bonienl]

Your IPv6 address is wrongly set as a single host address (/128), it has to be defined as a subnet range (usually /64, check also your router settings).

[knex666]

Yay after setting it so some static IPV6 with 64 prefix everythink works fine again, THANKS!!!
