[SOLVED] Kernel bug after transferring files for 10 minutes

Pengy
in General Support

Featured Replies

Jun 22 07:27:09 MikuServer kernel: ------------[ cut here ]------------
Jun 22 07:27:09 MikuServer kernel: kernel BUG at fs/buffer.c:3431!
Jun 22 07:27:09 MikuServer kernel: invalid opcode: 0000 [#1] SMP PTI
Jun 22 07:27:09 MikuServer kernel: Modules linked in: xfs md_mod e1000e igb ptp pps_core i2c_algo_bit x86_pkg_temp_thermal intel_powerclamp coretemp kvm_intel kvm crct10dif_pclmul crc32_pclmul crc32c_intel ghash_clmulni_intel pcbc aesni_intel aes_x86_64 crypto_simd glue_helper cryptd wmi_bmof intel_cstate intel_uncore intel_rapl_perf i2c_i801 i2c_core nvme ahci mpt3sas libahci nvme_core raid_class scsi_transport_sas wmi video thermal fan backlight button acpi_pad [last unloaded: pps_core]
Jun 22 07:27:09 MikuServer kernel: CPU: 1 PID: 778 Comm: kswapd0 Not tainted 4.14.49-unRAID #1
Jun 22 07:27:09 MikuServer kernel: Hardware name: Gigabyte Technology Co., Ltd. H370 WIFI/H370N WIFI-CF, BIOS F3 02/13/2018
Jun 22 07:27:09 MikuServer kernel: task: ffff88045c02aa00 task.stack: ffffc90001a54000
Jun 22 07:27:09 MikuServer kernel: RIP: 0010:free_buffer_head+0xd/0x3f
Jun 22 07:27:09 MikuServer kernel: RSP: 0018:ffffc90001a57b88 EFLAGS: 00010206
Jun 22 07:27:09 MikuServer kernel: RAX: ffef88026549fe18 RBX: ffff88026549fdd0 RCX: ffffea000d72d0c0
Jun 22 07:27:09 MikuServer kernel: RDX: ffff88026549fe18 RSI: ffffc90001a57b90 RDI: ffff88026549fdd0
Jun 22 07:27:09 MikuServer kernel: RBP: ffff880288864348 R08: ffffea000d72d0c0 R09: ffff88026549fdd0
Jun 22 07:27:09 MikuServer kernel: R10: ffff88026549fdd0 R11: ffffea000d72d0c0 R12: 0000000000000001
Jun 22 07:27:09 MikuServer kernel: R13: ffff8802888642c8 R14: ffffc90001a57ca8 R15: ffffea000d72d0e0
Jun 22 07:27:09 MikuServer kernel: FS:  0000000000000000(0000) GS:ffff88046f480000(0000) knlGS:0000000000000000
Jun 22 07:27:09 MikuServer kernel: CS:  0010 DS: 0000 ES: 0000 CR0: 0000000080050033
Jun 22 07:27:09 MikuServer kernel: CR2: 00001488efa9fc60 CR3: 0000000001c0a005 CR4: 00000000003606e0
Jun 22 07:27:09 MikuServer kernel: Call Trace:
Jun 22 07:27:09 MikuServer kernel: try_to_free_buffers+0x9d/0xaf
Jun 22 07:27:09 MikuServer kernel: xfs_vm_releasepage+0x4b/0x4e [xfs]
Jun 22 07:27:09 MikuServer kernel: shrink_page_list+0x7cf/0xaa2
Jun 22 07:27:09 MikuServer kernel: shrink_inactive_list+0x268/0x3f0
Jun 22 07:27:09 MikuServer kernel: shrink_node_memcg+0x4cb/0x687
Jun 22 07:27:09 MikuServer kernel: ? shrink_node+0xce/0x29b
Jun 22 07:27:09 MikuServer kernel: shrink_node+0xce/0x29b
Jun 22 07:27:09 MikuServer kernel: kswapd+0x43c/0x564
Jun 22 07:27:09 MikuServer kernel: ? __switch_to+0xd4/0x2e8
Jun 22 07:27:09 MikuServer kernel: ? mem_cgroup_shrink_node+0x89/0x89
Jun 22 07:27:09 MikuServer kernel: kthread+0x111/0x119
Jun 22 07:27:09 MikuServer kernel: ? kthread_create_on_node+0x3a/0x3a
Jun 22 07:27:09 MikuServer kernel: ? call_usermodehelper_exec_async+0x121/0x128
Jun 22 07:27:09 MikuServer kernel: ret_from_fork+0x35/0x40
Jun 22 07:27:09 MikuServer kernel: Code: 0f c1 15 a4 00 ed 7e 81 fa ff 0f 00 00 7e 0d 48 89 04 24 e8 5b ff ff ff 48 8b 04 245a c3 48 8b 47 48 48 8d 57 48 48 39 c2 74 02 <0f> 0b 48 89 fe 48 8b 3d f0 4e b5 00 e8 2e 06 fc ff 65 ff 0d 64
Jun 22 07:27:09 MikuServer kernel: RIP: free_buffer_head+0xd/0x3f RSP: ffffc90001a57b88
Jun 22 07:27:09 MikuServer kernel: ---[ end trace d089eb21f4d110c2 ]---
Jun 22 07:27:13 MikuServer kernel: ------------[ cut here ]------------
Jun 22 07:27:13 MikuServer kernel: kernel BUG at fs/buffer.c:3431!
Jun 22 07:27:13 MikuServer kernel: invalid opcode: 0000 [#2] SMP PTI
Jun 22 07:27:13 MikuServer kernel: Modules linked in: xfs md_mod e1000e igb ptp pps_core i2c_algo_bit x86_pkg_temp_thermal intel_powerclamp coretemp kvm_intel kvm crct10dif_pclmul crc32_pclmul crc32c_intel ghash_clmulni_intel pcbc aesni_intel aes_x86_64 crypto_simd glue_helper cryptd wmi_bmof intel_cstate intel_uncore intel_rapl_perf i2c_i801 i2c_core nvme ahci mpt3sas libahci nvme_core raid_class scsi_transport_sas wmi video thermal fan backlight button acpi_pad [last unloaded: pps_core]
Jun 22 07:27:13 MikuServer kernel: CPU: 3 PID: 35 Comm: kworker/u8:2 Tainted: G      D         4.14.49-unRAID #1
Jun 22 07:27:13 MikuServer kernel: Hardware name: Gigabyte Technology Co., Ltd. H370 WIFI/H370N WIFI-CF, BIOS F3 02/13/2018
Jun 22 07:27:13 MikuServer kernel: Workqueue: writeback wb_workfn (flush-9:1)
Jun 22 07:27:13 MikuServer kernel: task: ffff88045ca79c00 task.stack: ffffc90001a14000
Jun 22 07:27:13 MikuServer kernel: RIP: 0010:free_buffer_head+0xd/0x3f
Jun 22 07:27:13 MikuServer kernel: RSP: 0018:ffffc90001a17338 EFLAGS: 00010206
Jun 22 07:27:13 MikuServer kernel: RAX: ffef88026569fe18 RBX: ffff88026569fdd0 RCX: ffffea000ca5f940
Jun 22 07:27:13 MikuServer kernel: RDX: ffff88026569fe18 RSI: ffffc90001a17340 RDI: ffff88026569fdd0
Jun 22 07:27:13 MikuServer kernel: RBP: ffff8801083b5248 R08: ffffea000ca5f940 R09: ffff88026569fdd0
Jun 22 07:27:13 MikuServer kernel: R10: ffff88026569fdd0 R11: ffffea000ca5f940 R12: 0000000000000001
Jun 22 07:27:13 MikuServer kernel: R13: ffff8801083b51c8 R14: ffffc90001a17458 R15: ffffea000ca5f960
Jun 22 07:27:13 MikuServer kernel: FS:  0000000000000000(0000) GS:ffff88046f580000(0000) knlGS:0000000000000000
Jun 22 07:27:13 MikuServer kernel: CS:  0010 DS: 0000 ES: 0000 CR0: 0000000080050033
Jun 22 07:27:13 MikuServer kernel: CR2: 0000148fd686bc60 CR3: 0000000001c0a005 CR4: 00000000003606e0
Jun 22 07:27:13 MikuServer kernel: Call Trace:
Jun 22 07:27:13 MikuServer kernel: try_to_free_buffers+0x9d/0xaf
Jun 22 07:27:13 MikuServer kernel: xfs_vm_releasepage+0x4b/0x4e [xfs]
Jun 22 07:27:13 MikuServer kernel: shrink_page_list+0x7cf/0xaa2
Jun 22 07:27:13 MikuServer kernel: shrink_inactive_list+0x268/0x3f0
Jun 22 07:27:13 MikuServer kernel: shrink_node_memcg+0x4cb/0x687
Jun 22 07:27:13 MikuServer kernel: ? __compaction_suitable.part.4+0x5f/0x71
Jun 22 07:27:13 MikuServer kernel: ? __compaction_suitable.part.4+0x5f/0x71
Jun 22 07:27:13 MikuServer kernel: ? compact_zone+0x4a/0x533
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x30/0x60
Jun 22 07:27:13 MikuServer kernel: ? shrink_node+0xce/0x29b
Jun 22 07:27:13 MikuServer kernel: shrink_node+0xce/0x29b
Jun 22 07:27:13 MikuServer kernel: do_try_to_free_pages+0x17b/0x29e
Jun 22 07:27:13 MikuServer kernel: try_to_free_pages+0xac/0xb2
Jun 22 07:27:13 MikuServer kernel: __alloc_pages_nodemask+0x60d/0xb31
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x30/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x30/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x24/0x60
Jun 22 07:27:13 MikuServer kernel: ? __switch_to_asm+0x30/0x60
Jun 22 07:27:13 MikuServer kernel: new_slab+0x14a/0x3ec
Jun 22 07:27:13 MikuServer kernel: ___slab_alloc+0x233/0x48d
Jun 22 07:27:13 MikuServer kernel: ? mempool_alloc+0x51/0x125
Jun 22 07:27:13 MikuServer kernel: ? mempool_alloc+0x51/0x125
Jun 22 07:27:13 MikuServer kernel: ? wait_woken+0x68/0x68
Jun 22 07:27:13 MikuServer kernel: ? __slab_alloc+0x17/0x29
Jun 22 07:27:13 MikuServer kernel: __slab_alloc+0x17/0x29
Jun 22 07:27:13 MikuServer kernel: kmem_cache_alloc+0xb2/0xe8
Jun 22 07:27:13 MikuServer kernel: mempool_alloc+0x51/0x125
Jun 22 07:27:13 MikuServer kernel: ? mempool_alloc+0x51/0x125
Jun 22 07:27:13 MikuServer kernel: ? generic_make_request+0xef/0x232
Jun 22 07:27:13 MikuServer kernel: bvec_alloc+0x83/0xc2
Jun 22 07:27:13 MikuServer kernel: bio_alloc_bioset+0x106/0x185
Jun 22 07:27:13 MikuServer kernel: xfs_add_to_ioend+0x124/0x219 [xfs]
Jun 22 07:27:13 MikuServer kernel: xfs_do_writepage+0x346/0x483 [xfs]
Jun 22 07:27:13 MikuServer kernel: ? clear_page_dirty_for_io+0x161/0x19f
Jun 22 07:27:13 MikuServer kernel: write_cache_pages+0x25f/0x326
Jun 22 07:27:13 MikuServer kernel: ? xfs_add_to_ioend+0x219/0x219 [xfs]
Jun 22 07:27:13 MikuServer kernel: xfs_vm_writepages+0x50/0x6f [xfs]
Jun 22 07:27:13 MikuServer kernel: do_writepages+0x28/0x51
Jun 22 07:27:13 MikuServer kernel: __writeback_single_inode+0x2a/0x150
Jun 22 07:27:13 MikuServer kernel: writeback_sb_inodes+0x1c9/0x351
Jun 22 07:27:13 MikuServer kernel: __writeback_inodes_wb+0x63/0x9a
Jun 22 07:27:13 MikuServer kernel: wb_writeback+0x10f/0x198
Jun 22 07:27:13 MikuServer kernel: ? wb_workfn+0x144/0x1e3
Jun 22 07:27:13 MikuServer kernel: wb_workfn+0x144/0x1e3
Jun 22 07:27:13 MikuServer kernel: process_one_work+0x155/0x237
Jun 22 07:27:13 MikuServer kernel: ? rescuer_thread+0x275/0x275
Jun 22 07:27:13 MikuServer kernel: worker_thread+0x1d5/0x2ad
Jun 22 07:27:13 MikuServer kernel: kthread+0x111/0x119
Jun 22 07:27:13 MikuServer kernel: ? kthread_create_on_node+0x3a/0x3a
Jun 22 07:27:13 MikuServer kernel: ? call_usermodehelper_exec_async+0x121/0x128
Jun 22 07:27:13 MikuServer kernel: ? kthread_create_on_node+0x3a/0x3a
Jun 22 07:27:13 MikuServer kernel: ret_from_fork+0x35/0x40
Jun 22 07:27:13 MikuServer kernel: Code: 0f c1 15 a4 00 ed 7e 81 fa ff 0f 00 00 7e 0d 48 89 04 24 e8 5b ff ff ff 48 8b 04 245a c3 48 8b 47 48 48 8d 57 48 48 39 c2 74 02 <0f> 0b 48 89 fe 48 8b 3d f0 4e b5 00 e8 2e 06 fc ff 65 ff 0d 64
Jun 22 07:27:13 MikuServer kernel: RIP: free_buffer_head+0xd/0x3f RSP: ffffc90001a17338
Jun 22 07:27:13 MikuServer kernel: ---[ end trace d089eb21f4d110c3 ]---

I'm running into an issue where about 10 minutes after I start a transfer from another machine, it completely stops and I'm not able to connect to the SMB share anymore. The above are the logs that are printed out when it happens.



root@MikuServer:/var/log# free -h
              total        used        free      shared  buff/cache   available
Mem:            15G        186M        274M        466M         15G         14G
Swap:            0B          0B          0B

It seems like memory is still being used by the cache? (Shouldn't this be flushed to disk)

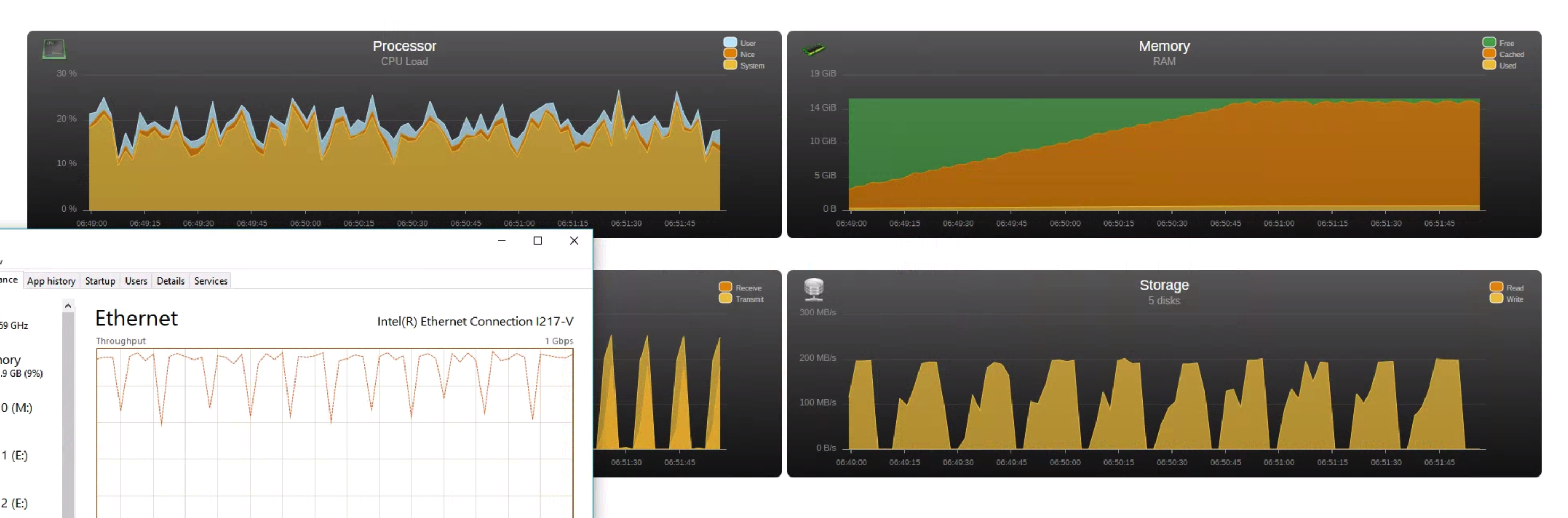

The above are transfer statistics for the first few minutes.



If I try to stop the array, it gets stuck unmounting /mnt/user and I'm unable to kill the smbd thats holding files open on that path. Any information would be appreciated.

Hardware Specs:

Intel i3 8100
16gb DDR4
GIGABYTE H370N

Dell H310



Disks:
3x 6TB WD Red Pro
512GB Samsung 970 PRO (NVME)
256GB Samsung 860 PRO (SATA)

All in a SilverStone DS380B

Edited by Pengy

  • Quote
    • Author

    I figured out the problem. I should have ran memtest as a part of my general debugging step for any kernel issue, but I didn't. One of my sticks was bad and I took it out and everything is fine now.

  • Quote
    • Pengy changed the title to [SOLVED] Kernel bug after transferring files for 10 minutes
