So I am somewhat new to unraid, but so far I love it.  I re-purposed an old desktop just under a year ago and use it for media (plex streaming from my movie collection mostly) and backup of old stuff, not a continuous backup.  I don't turn it on all that often since I don't need to, so it sits idle for days / weeks at a time.



Watched a movie with the GF last night and forgot to turn it off after, woke up this AM to a faulty drive.  No idea what caused this, can anyone lend some insight?



I've had to rebuild 2 or 3 times before, because I was stupid and shut it down while transferring and lost power (and my old UPS was not enough to handle it shutting down properly), but this one I have no idea about.  Thanks!

illmatic-diagnostics-20180625-0653.zip

Disk1 SMART is not in the diagnostics. Check connections and post diagnostics again.

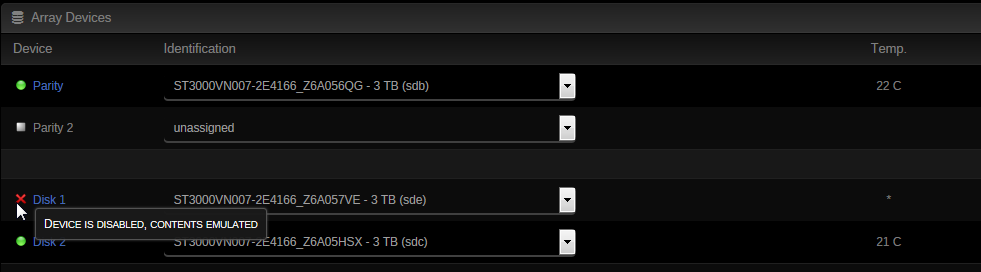

Disk 1 is the disk that failed obviously.  I checked the connections but it's still down, however it spit out DISK1 SMART, so that's attached.



Should I go through the process of rebuilding the array, or wait?  Thanks

illmatic-diagnostics-20180625-1926.zip

SMART looks fine but it's still having ATA errors, most likely a connection problem or a controller issue, Marvell controllers are not recommended and can cause these:



Jun 25 19:26:05 illmatic kernel: ata10.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jun 25 19:26:05 illmatic kernel: ata10.00: failed command: SMART
Jun 25 19:26:05 illmatic kernel: ata10.00: cmd b0/d5:01:e1:4f:c2/00:00:00:00:00/00 tag 18 pio 512 in
Jun 25 19:26:05 illmatic kernel:         res 40/00:01:00:4f:c2/00:00:00:00:00/00 Emask 0x4 (timeout)
Jun 25 19:26:05 illmatic kernel: ata10.00: status: { DRDY }
Jun 25 19:26:05 illmatic kernel: ata10: hard resetting link
Jun 25 19:26:06 illmatic kernel: ata10: SATA link up 6.0 Gbps (SStatus 133 SControl 370)
Jun 25 19:26:06 illmatic kernel: ata10.00: NCQ Send/Recv Log not supported
Jun 25 19:26:06 illmatic kernel: ata10.00: NCQ Send/Recv Log not supported
Jun 25 19:26:06 illmatic kernel: ata10.00: configured for UDMA/133
Jun 25 19:26:06 illmatic kernel: ata10: EH complete
Jun 25 19:27:07 illmatic kernel: ata10.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jun 25 19:27:07 illmatic kernel: ata10.00: failed command: SMART
Jun 25 19:27:07 illmatic kernel: ata10.00: cmd b0/d6:01:e0:4f:c2/00:00:00:00:00/00 tag 13 pio 512 out
Jun 25 19:27:07 illmatic kernel:         res 40/00:01:03:00:00/00:00:00:00:00/00 Emask 0x4 (timeout)
Jun 25 19:27:07 illmatic kernel: ata10.00: status: { DRDY }
Jun 25 19:27:07 illmatic kernel: ata10: hard resetting link
Jun 25 19:27:07 illmatic kernel: ata10: SATA link up 6.0 Gbps (SStatus 133 SControl 370)
Jun 25 19:27:07 illmatic kernel: ata10.00: NCQ Send/Recv Log not supported
Jun 25 19:27:07 illmatic kernel: ata10.00: NCQ Send/Recv Log not supported
Jun 25 19:27:07 illmatic kernel: ata10.00: configured for UDMA/133
Jun 25 19:27:07 illmatic kernel: ata10: EH complete
Jun 25 19:28:12 illmatic kernel: ata10.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jun 25 19:28:12 illmatic kernel: ata10.00: failed command: SMART
Jun 25 19:28:12 illmatic kernel: ata10.00: cmd b0/d6:01:e0:4f:c2/00:00:00:00:00/00 tag 16 pio 512 out
Jun 25 19:28:12 illmatic kernel:         res 40/00:01:00:4f:c2/00:00:00:00:00/00 Emask 0x4 (timeout)
Jun 25 19:28:12 illmatic kernel: ata10.00: status: { DRDY }
Jun 25 19:28:12 illmatic kernel: ata10: hard resetting link
Jun 25 19:28:13 illmatic kernel: ata10: SATA link up 6.0 Gbps (SStatus 133 SControl 370)
Jun 25 19:28:13 illmatic kernel: ata10.00: NCQ Send/Recv Log not supported
Jun 25 19:28:13 illmatic kernel: ata10.00: NCQ Send/Recv Log not supported
Jun 25 19:28:13 illmatic kernel: ata10.00: configured for UDMA/133
Jun 25 19:28:13 illmatic kernel: ata10: EH complete



Thanks, looking back at the specs for this ancient mobo, it has 2x Marvell SATA 6Gs/s ports and 6x Intel SATA 3Gb/s ports.  Two of my HDDs are plugged into the Marvell ports.



I'm assuming it may work for awhile if I rebuild the array, but is likely to crash again unless I switch them to all Non-Marvell ports?



Can I simply swap the 2 cables that are plugged into the Marvell ports into the unused non-Marvell ports and rebuild the array, or will switching SATA ports screw things up?





1 minute ago, miggity said:

Can I simply swap the 2 cables that are plugged into the Marvell ports into the unused non-Marvell ports and rebuild the array,

Yes

Thanks, rebuilding now.  Guess this is more motivation for me to do a proper cheap server build instead of using almost 10 year old hardware with nice HDDs...
