Mentox Posted August 8, 2018 Share Posted August 8, 2018 After setting up my unRAID server and having everything working I started to migrate my data. While copying 150GB of data it stopped halfway saying it ran out of space. I`ve got the following setup: A single pool with: 1x 4TB HDD 2x 500GB SSD (will be replaced after migration) A cache pool with: 1x 128GB NVMe (will be replaced after migration) 1x 500GB SSD The share has the allocation method "High-water" and cache disk is set to yes. The solution was to manually run the mover and the copy continued. But should it not be that when the cache gets filled up it starts writing data to the main pool? Quote Link to comment
JorgeB Posted August 8, 2018 Share Posted August 8, 2018 4 minutes ago, Mentox said: But should it not be that when the cache gets filled up it starts writing data to the main pool? Yes, as long as the minimum free space is correctly set for that share and for the cache, but note that a pool with 2 different size devices reports the wrong free space. Also, there's no point in using the cache pool for the initial data migration, you can and should enable turbo write. 1 Quote Link to comment
trurl Posted August 8, 2018 Share Posted August 8, 2018 There are a couple of things you might have missed in your setup. If you are using the default btrfs raid1 for the cache pool, then you only have 128GB total cache space, since it must mirror everything on 2 devices so you only get the capacity of the smallest. https://lime-technology.com/forums/topic/46802-faq-for-unraid-v6/?tab=comments#comment-480420 Also, if you don't set a Minimum Free space for cache, then it will run out of space. unRAID has no way to know how large a file will become when it begins to write it. If a disk has more than Minimum Free, unRAID can choose it to begin writing the file. Then if the file gets too large you get out of space. If a disk has less than Minimum Free remaining unRAID will choose a different disk (in this case, on the array) to begin the write. So, you should set Minimum Free to larger than the largest file you expect to write. Minimum Free for cache is in Settings - Global Share Settings. There is also a Minimum Free setting in each User Share which works similarly. If a disk has less than Minimum Free, unRAID will choose a different disk. 1 Quote Link to comment
Mentox Posted August 8, 2018 Author Share Posted August 8, 2018 41 minutes ago, johnnie.black said: Yes, as long as the minimum free space is correctly set for that share and for the cache, but note that a pool with 2 different size devices reports the wrong free space. Also, there's no point in using the cache pool for the initial data migration, you can and should enable turbo write. The reason I enabled cache was to have it setup and tested in the way I will eventually run it. Is Turbo write not for when you have more than 2 disks? I did read the post from RobJ about it. 40 minutes ago, trurl said: There are a couple of things you might have missed in your setup. If you are using the default btrfs raid1 for the cache pool, then you only have 128GB total cache space, since it must mirror everything on 2 devices so you only get the capacity of the smallest. https://lime-technology.com/forums/topic/46802-faq-for-unraid-v6/?tab=comments#comment-480420 Also, if you don't set a Minimum Free space for cache, then it will run out of space. unRAID has no way to know how large a file will become when it begins to write it. If a disk has more than Minimum Free, unRAID can choose it to begin writing the file. Then if the file gets too large you get out of space. If a disk has less than Minimum Free remaining unRAID will choose a different disk (in this case, on the array) to begin the write. So, you should set Minimum Free to larger than the largest file you expect to write. Minimum Free for cache is in Settings - Global Share Settings. There is also a Minimum Free setting in each User Share which works similarly. If a disk has less than Minimum Free, unRAID will choose a different disk. Makes sense, I was under the impression that the cache was a bit more transparant but from what I understand now is that it is more like a separate volume. I have set the Minimum Free to 10GB and will test it again once the current job finished. Both thanks a lot for the fast and detailed responses! Quote Link to comment
JorgeB Posted August 8, 2018 Share Posted August 8, 2018 12 minutes ago, Mentox said: Is Turbo write not for when you have more than 2 disks? Yes, and only if there's parity, not quite clear on your current array config on the OP 1 hour ago, Mentox said: A single pool with: 1x 4TB HDD 2x 500GB SSD Is the 4TB disk parity? Quote Link to comment
Mentox Posted August 8, 2018 Author Share Posted August 8, 2018 Yes the 4TB is parity, once I am happy with unRAID I will replace the SSDs with 4TB HDDs and then use the SSDs for cache. Current: 1x 4TB HDD Parity 2x 500GB SSD Data 1x 128GB NVMe Cache 1x 500GB SSD Cache Eventually: 1x 4TB HDD Parity 2x 4TB HDD Data 2x 500GB SSD Cache Quote Link to comment
Mentox Posted August 8, 2018 Author Share Posted August 8, 2018 Interesting behaviour, I did configure the Minimum Free to 10GB and it still shows the same error but I can now click on retry and it continues. Had this message around 8 times. I will need to read a bit more on how it exactly works. Quote Link to comment
trurl Posted August 8, 2018 Share Posted August 8, 2018 34 minutes ago, Mentox said: Interesting behaviour, I did configure the Minimum Free to 10GB and it still shows the same error but I can now click on retry and it continues. Had this message around 8 times. I will need to read a bit more on how it exactly works. Are you copying to a User Share or are you copying directly to cache? unRAID only decides where to put things for User Shares. If you are going directly to disk it doesn't decide anything. And it only overflows to the array when you are copying to a User Share and the User Share is set to Use cache Yes or Prefer. https://lime-technology.com/forums/topic/46802-faq-for-unraid-v6/?page=2#comment-537383 Quote Link to comment

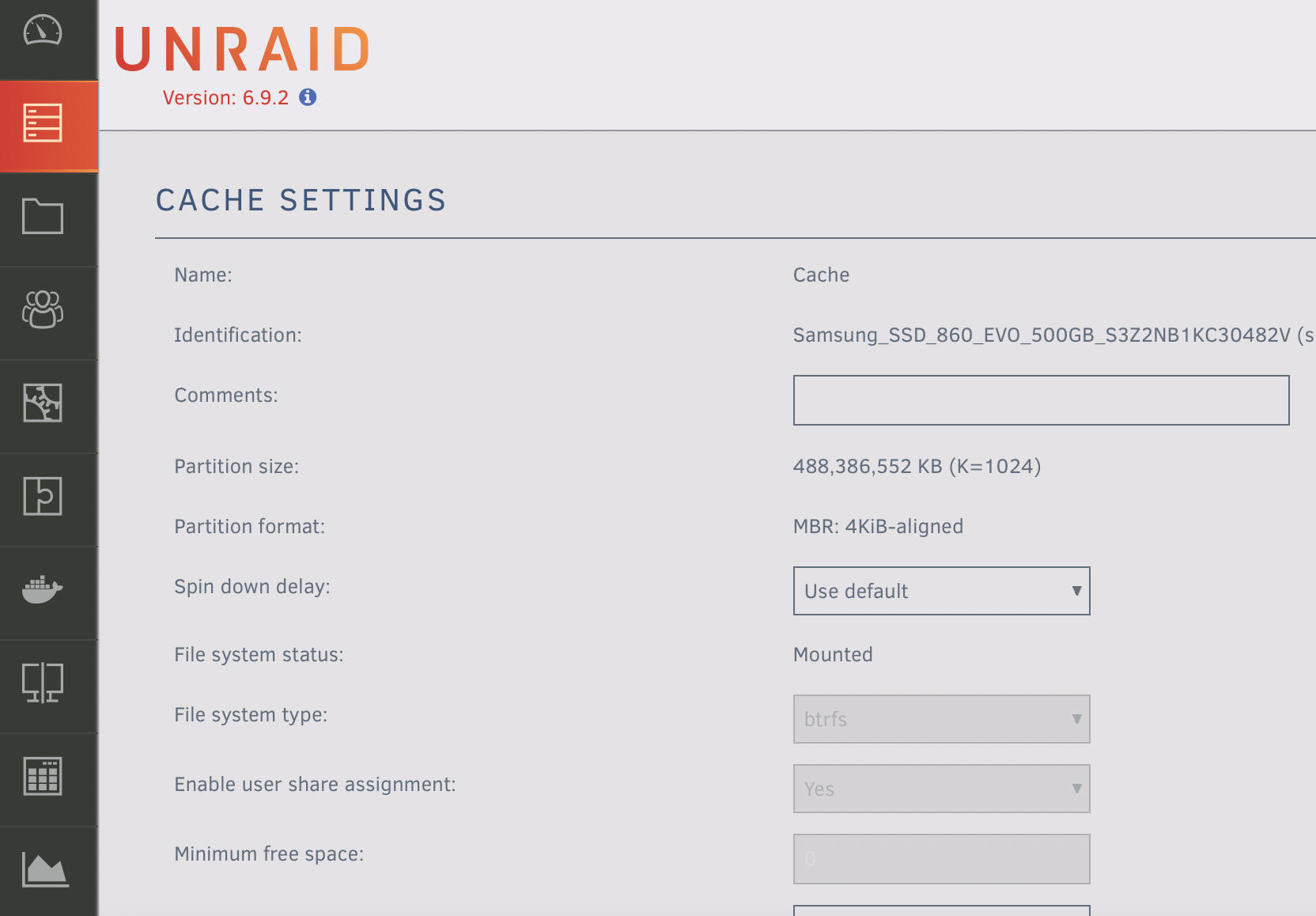

Maciej Posted April 25, 2021 Share Posted April 25, 2021 Can't change minimum free disk space in cache. After stopping the array form is still inactive :(. Quote Link to comment
JorgeB Posted April 26, 2021 Share Posted April 26, 2021 15 hours ago, Maciej said: After stopping the array form is still inactive :(. That screenshot shows that cache is still mounted, array can't be stopped. Quote Link to comment
Mentox Posted August 3, 2021 Author Share Posted August 3, 2021 In case anyone runs into the same issue I figured out my original problem. If you set the free space to 10GB, then copy a file of 50GB while there is, for example, 30GB left it will copy to your cache. Unraid does not check the file size before copying so make sure you set the free space to what you expect your biggest file will be. Quote Link to comment
trurl Posted August 3, 2021 Share Posted August 3, 2021 1 hour ago, Mentox said: Unraid does not check the file size before copying In the general case, it has no way to know how large a file will become when it chooses a disk for it. Set Minimum Free for cache (or any other pool) to larger than the largest file you expect to write to it. Each user share also has a Minimum Free setting. If a disk has less than Minimum, Unraid will choose another disk. Also, note that Includes/Excludes or Split Level can still force Unraid to choose a disk that has less than Minimum. Quote Link to comment
