[solved] Windows 10 VM add CDROM xml


Recommended Posts

I'm trying to have a windows vm as my daily driver.
I can't find the video or forum link I found months ago that showed how to add a cdrom by editing the xml ( or by any other simple way).


IOMMU group 26:    [1b4b:9172] 09:00.0 SATA controller: Marvell Technology Group Ltd. 88SE9172 SATA 6Gb/s Controller (rev 11)

SCSI Devices
[9:0:0:0]    cd/dvd  HL-DT-ST DVDRAM GH22NS50  TN03  /dev/sr0



I have the drive connected with a sata pcie 4 port card and is listed as a scsi device.



Can someone please advise me of the next steps



Thanks

Edited by ksculland
[solved]
Link to comment
  • 2 weeks later...

https://www.reddit.com/r/unRAID/comments/49isga/optical_drive_passthrough/



I found this reddit post.



So the answer is edit you windows VM xml, find where it says <devices> then insert the xml from below:

<controller type='scsi' index='0' model='virtio-scsi'/>
    <hostdev mode='subsystem' type='scsi'>
      <source>
        <adapter name='scsi_host5'/>
        <address type='scsi' bus='0' target='0' unit='0'/>
      </source>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </hostdev>



SCSI Devices (found under Tools => System Devices)
[9:0:0:0]    cd/dvd  HL-DT-ST DVDRAM GH22NS50  TN03  /dev/sr0



Since my cdrom is listed as [9:0:0:0]

scsi_host5 needs to be change to scsi_host9



Then save and launch your vm.

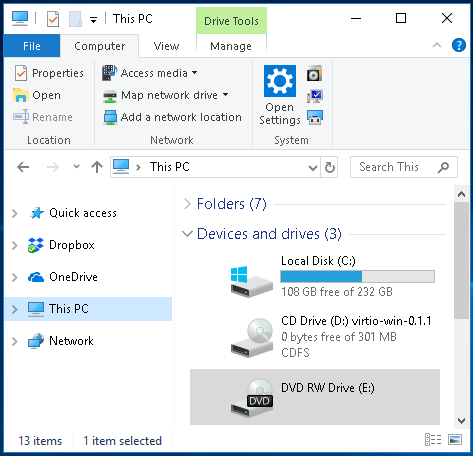

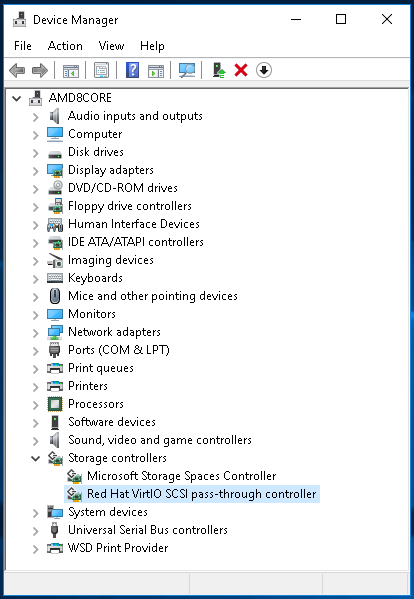

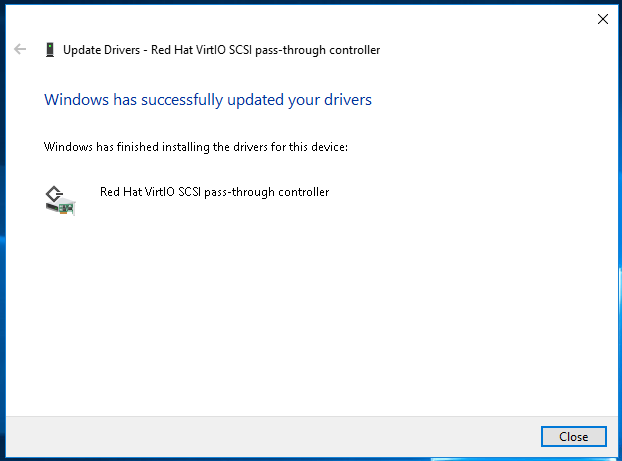

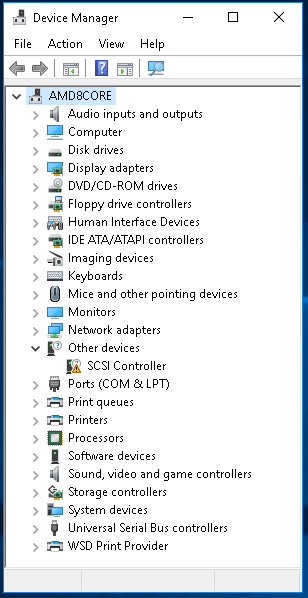

Go to device manager, you should now have a new device, SCSI Controller, update its driver by pointing it to the virtio-win. Once completed, your cdrom device will now be usable.



1392734676_DeviceManagerSCSI.PNG.331e2fc6072d843b89858fcba19129d9.PNG421644454_SCSIUpdated.PNG.5e1be878b37cf836d9bf3bba6209ca41.PNG1166339712_DeviceManagerSCSI-after.PNG.5b1c9a78e5431be76842169d9d37ac37.PNGCDROM.PNG.d0b35b98c1d2b18c0809153f80f7e8c7.PNG

Link to comment
