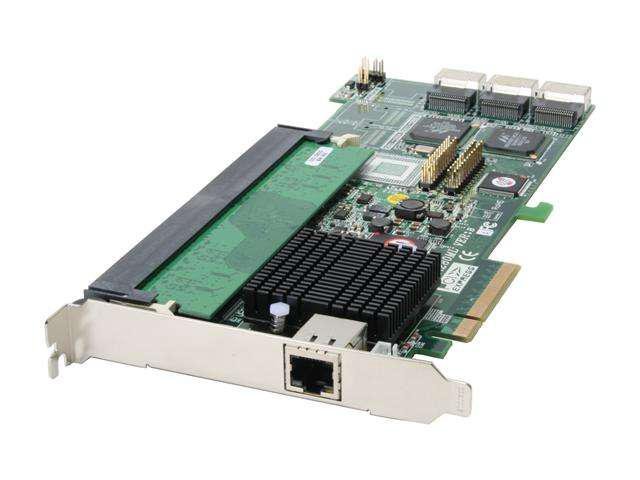

[SOLD] Areca 12-Port SATA II 3Gb/s PCIe x8 RAID Controller Card ARC-1231ML


Recommended Posts

This is gone. No longer available.

Unraid is unable to read proper temps & SMART values but the card does work and runs at full speed. Had it in my unRaid tower for years. It will work fine in Windows, etc., just has some limitations in unRaid.



Free to good home. You just pay for shipping via PayPal. If you're interested, PM me your shipping address and I will give you the total.



The bare card only. No original box, cables or software. Pulled from my home file server. I bought it used in 2015 (69.95). No problems gave lots of reliable service. Needed more ports so replaced with a larger card.

Intel 800MHz 81341 I/O processor
One DIMM socket with default 256MB of DDR2-533 SDRAM with ECC protection, Upgrade to 2GB. An ECC or non-ECC SDRAM module using X8 or X16 chip organization
Write-through or write-back cache support
Support up to 12 SATA II drives (compat with SATA 3)
Multi-adapter support for large storage requirements
BIOS boot support for greater fault tolerance
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Intel RAID 6 Engine to support extreme performance RAID 6
NVRAM for RAID event & transaction log
Redundant flash image for adapter availability

RAID Features:
RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD
Multiple RAID selection
Array roaming
Online RAID level/stripe size migration
Online RAID capacity expansion and RAID level migration simultaneously
Online Volume set growth
Instant availability and background initialization
Automatic drive insertion/removal detection and rebuild
Greater than 2TB per volume set
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
Support spin down drives when not in use to extend service life (MAID)
Support NTP protocol to synchronize RAID controller clock over on-board Ethernet port

Monitors/Indicators:
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer
SMTP support email notification
SNMP support for remote notification
I2C Enclosure management ready
Server chassis features the 36-ckt Mini-SAS connector (SFF-8087) on its SAS backplanes

RAID Management:
Field-upgradeable firmware in flash ROM
In-Band Manager
Hot key boot-up McBIOS RAID manager via BIOS
API library for customer to write its monitor utility
Support Command Line Interface (CLI)
Browser-based management utility via ArcHttp Proxy Server
Single Admin Portal (SAP) monitor utility
Out-of-Band Manager


Edited by interwebtech
