October 19, 20187 yr Hi guys, Hopefully this is something simple for you. I took out my GTX 1060 for another project, originally it was used on a VM passthroughed. I've since removed it and thought changing to VNC would be sufficient to start it and have access but I have this error,any ideas please? Thanks
October 20, 20187 yr Author <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Win10-Game</name> <uuid>64af1713-66ec-a989-f732-a5ad44584c23</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>33554432</memory> <currentMemory unit='KiB'>33554432</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>12</vcpu> <cputune> <vcpupin vcpu='0' cpuset='3'/> <vcpupin vcpu='1' cpuset='19'/> <vcpupin vcpu='2' cpuset='4'/> <vcpupin vcpu='3' cpuset='20'/> <vcpupin vcpu='4' cpuset='5'/> <vcpupin vcpu='5' cpuset='21'/> <vcpupin vcpu='6' cpuset='6'/> <vcpupin vcpu='7' cpuset='22'/> <vcpupin vcpu='8' cpuset='7'/> <vcpupin vcpu='9' cpuset='23'/> <vcpupin vcpu='10' cpuset='8'/> <vcpupin vcpu='11' cpuset='24'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-3.0'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/64af1713-66ec-a989-f732-a5ad44584c23_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='6' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source dev='/dev/disk/by-id/ata-LITEONIT_LCS-256M6S_2.5_7mm_256GB_TW0XFJWX5508535R0932'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source dev='/dev/disk/by-id/ata-WDC_WD5002ABYS-02B1B0_WD-WCASY9127385'/> <target dev='hdd' bus='sata'/> <address type='drive' controller='0' bus='0' target='0' unit='3'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:31:94:83'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='fr-ch'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> <seclabel type='dynamic' model='dac' relabel='yes'/> </domain>
October 20, 20187 yr The GPU is still there. You can remove the part from the xml. Can you take a screenshot of the vm template and post it?

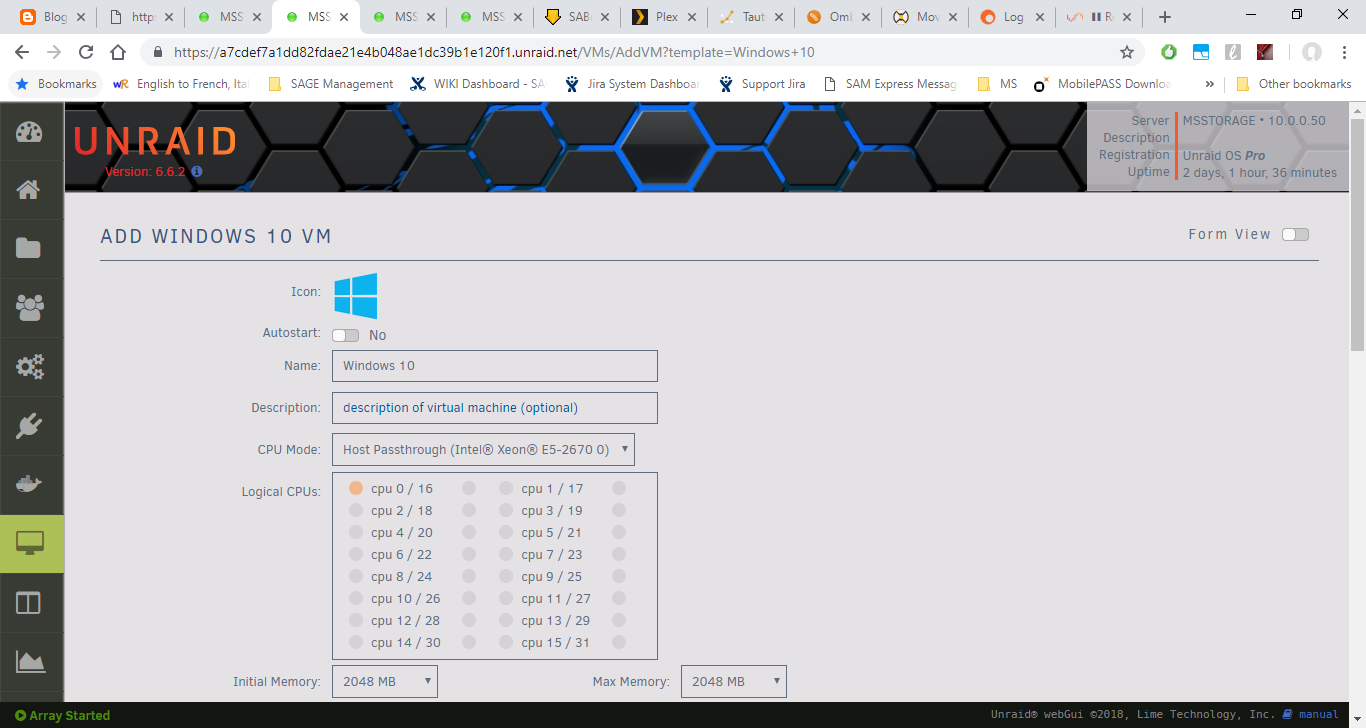

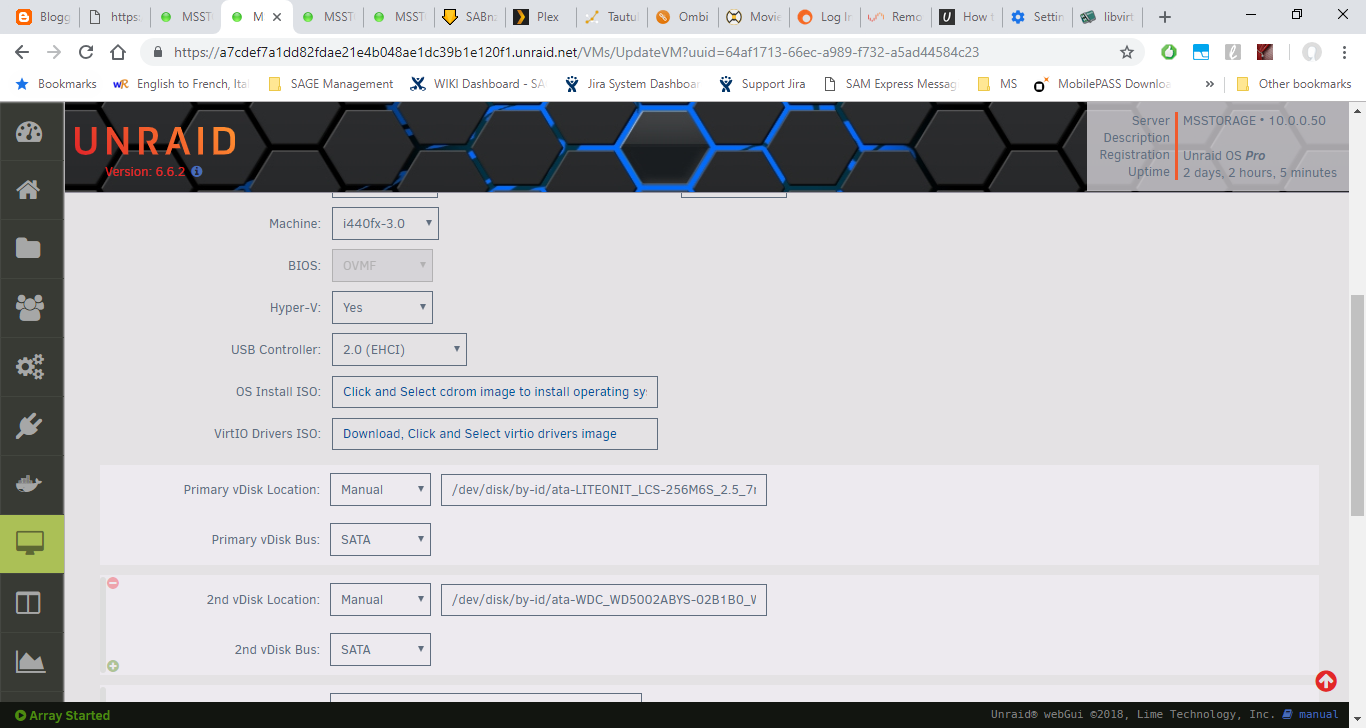

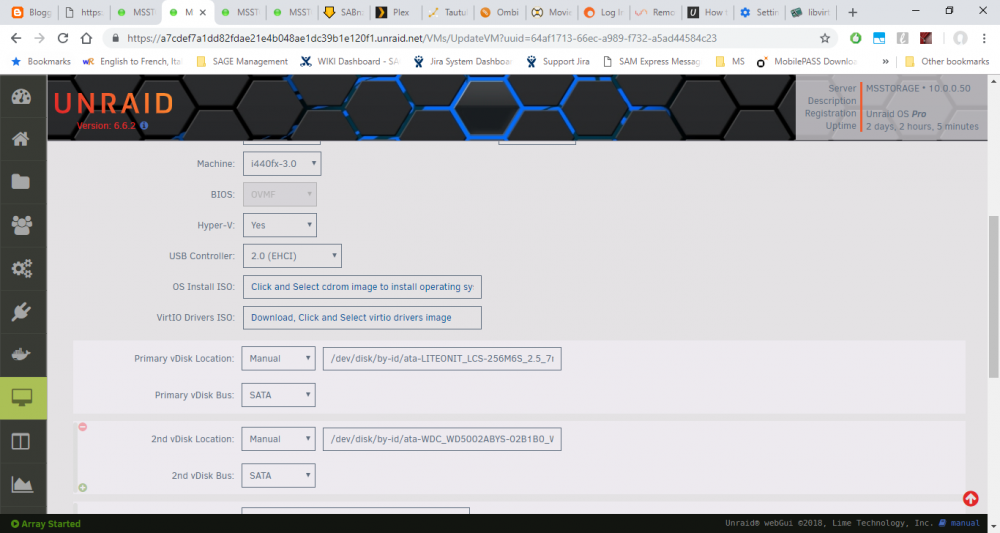

October 20, 20187 yr Author 7 minutes ago, saarg said: The GPU is still there. You can remove the part from the xml. Can you take a screenshot of the vm template and post it? Quote I'm assuming that you mean this as I have nothing else for Windows 10.
October 20, 20187 yr Author 9 minutes ago, saarg said: The GPU is still there. You can remove the part from the xml. Can you take a screenshot of the vm template and post it? Also forgive me but which part should I remove? I searched for "GPU" and found nothing. Thanks

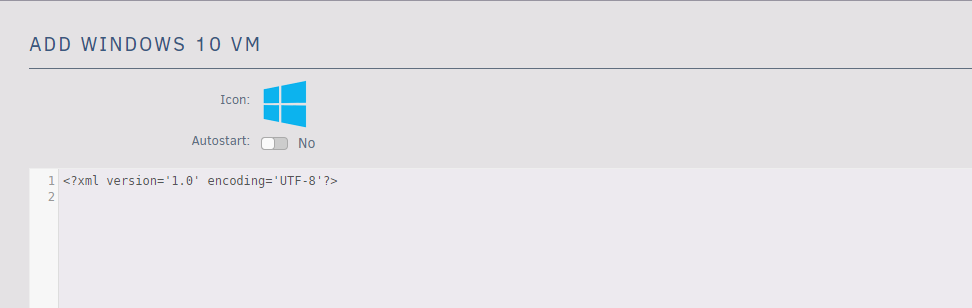

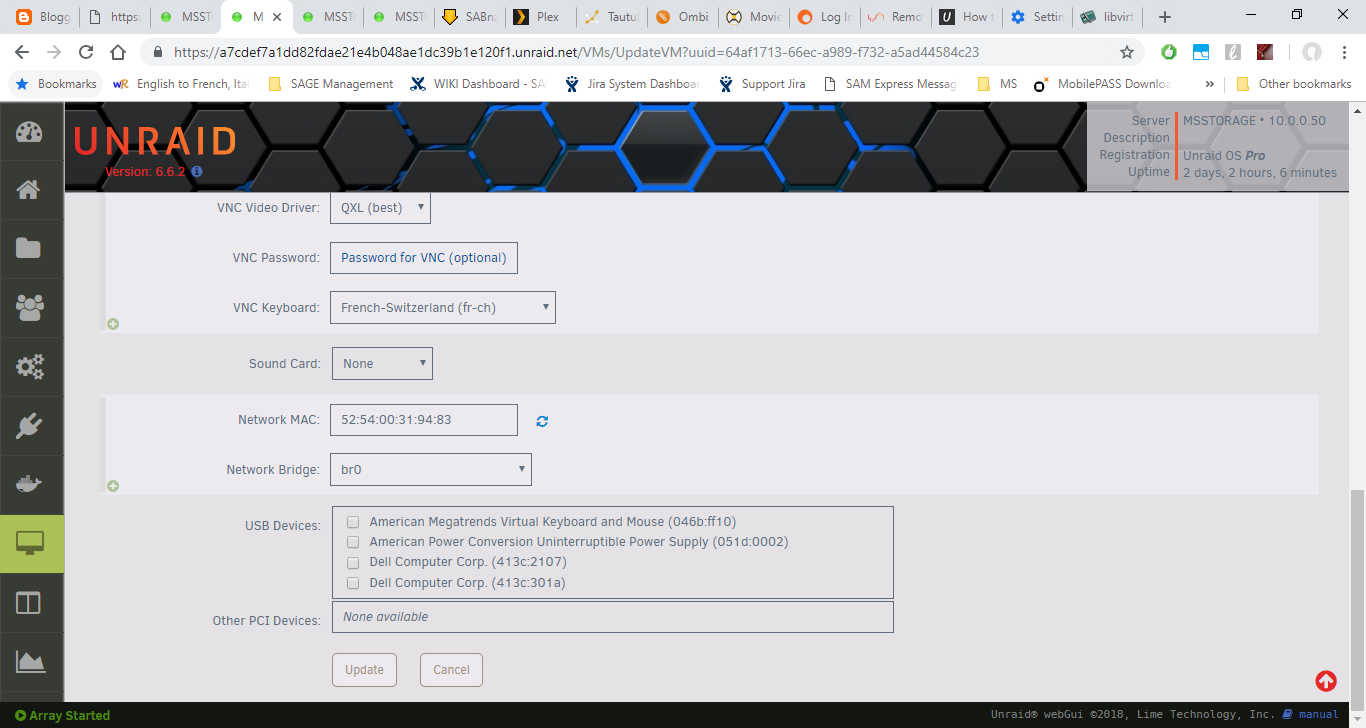

October 21, 20187 yr You remove the hostdev tags for the 0x05 bus. That is not the screenshot of the template. That is of the xml, but your xml is also missing. Switch off xml view and post a new screenshot.
October 21, 20187 yr This might be a bug. Either report it or delete the hostdev tags for the devices in xml mode. On phone, so can't paste what you need to remove.
October 21, 20187 yr Author 7 minutes ago, saarg said: This might be a bug. Either report it or delete the hostdev tags for the devices in xml mode. On phone, so can't paste what you need to remove. Thanks a lot for your advice so far, if you could post when you get a moment that'd be great, I made many mistakes deleting the wrong tags.
October 22, 20187 yr 22 hours ago, footballmad said: Thanks a lot for your advice so far, if you could post when you get a moment that'd be great, I made many mistakes deleting the wrong tags. No access to a computer until Friday I'm afraid.
October 22, 20187 yr Author 6 minutes ago, saarg said: No access to a computer until Friday I'm afraid. Thanks anyway mate.
October 23, 20187 yr I might be wrong, but I think saarg was saying to take out this part of XML: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> I'm no expert, but that looks like your old video card and is the bus giving you trouble.
October 25, 20187 yr Author On 10/23/2018 at 9:27 PM, Jcloud said: I might be wrong, but I think saarg was saying to take out this part of XML: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> I'm no expert, but that looks like your old video card and is the bus giving you trouble. More expert than i am, that worked, thanks a lot to you both.
