Guide: How To Use Rclone To Mount Cloud Drives And Play Files

Featured Replies

Often the forums adds invisible character to command that you copy. Paste it on notepad and copy it again.

  • Replies 3.4k
  • Views 633.4k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • I just came across an issue after restarting my server where mergefs wasn't installing. After some investigation it seems the latest build from mergerfs does not work properly and I solved the problem

  • Key elements of my rclone mount command: rclone mount \ --allow-other \ --buffer-size 256M \ --dir-cache-time 720h \ --drive-chunk-size 512M \ --log-level INFO \ --vfs-read-chunk-size

  • Multiple mounts, one upload and one tidy-up script.   @watchmeexplode5 did some testing and performance gets worse as you get closer to the 400k mark, so you'll need to do something like bel

Posted Images

Ok, I was prompted to add "--allow-non-empty" so I did that. But it has been running for 30min now and I don't see any files in any of the mount_folders. If I look at the google console drive api there are a couple of hundred requests that increment very slowly like one every 5 sec.



The only thing I noticed that have changed is that I have a crypt folder now on my google drive with a single file in it

On 7/31/2019 at 2:09 PM, DZMM said:

you could try reducing the number of uploads and checkers in the upload script to reduce ram usage.  An extra 8GB might do the trick, but you might need to change some of the buffer settings in the mount command if you anticipate having a lot of concurrent streams

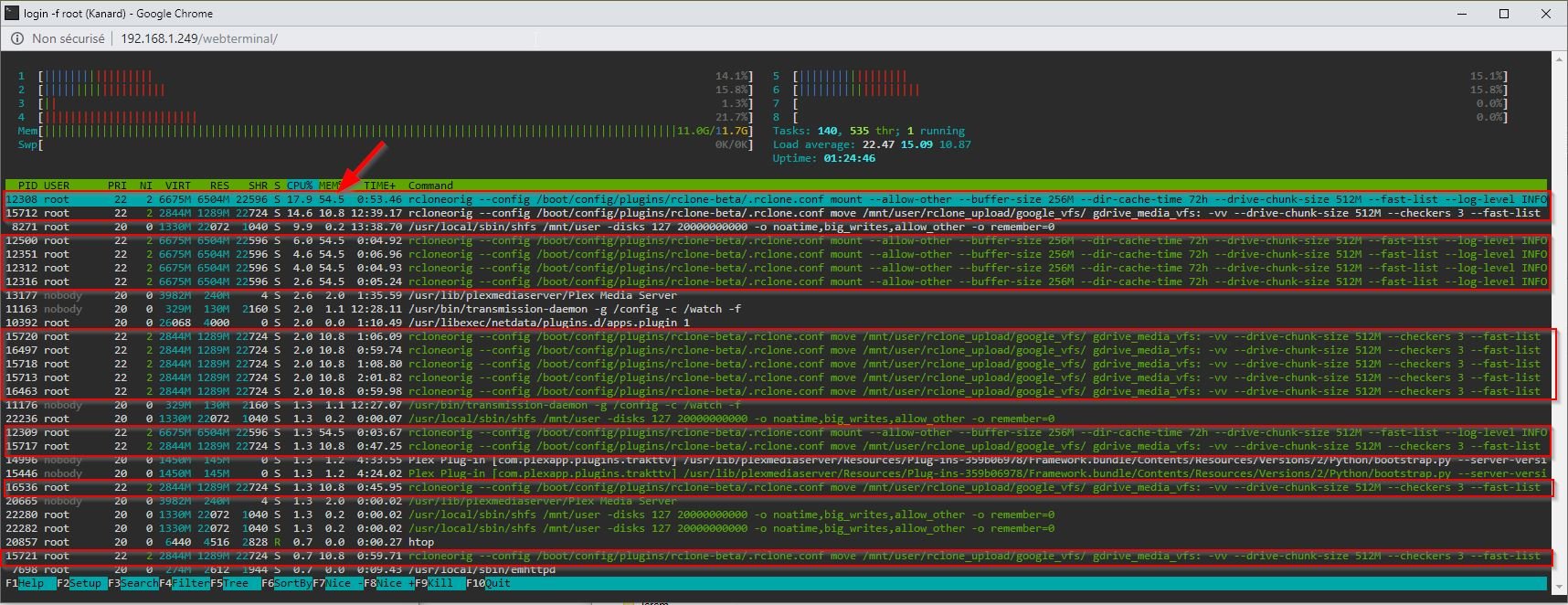

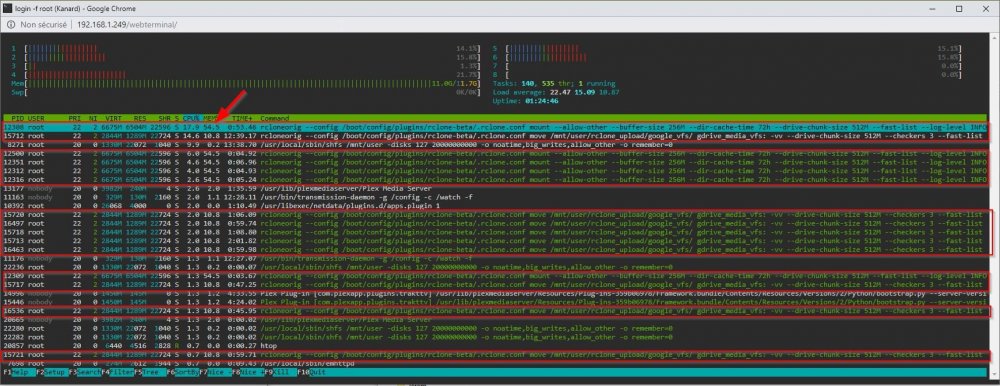

I think there is an issue with Rclone: I saw in live the dismount issue and saw this:

rclone had multiple processes using 100% of available memory. Then it crashes and I have to use the unmount script before the being able to remount.



1226689252_2019-08-0121_28_29-mount_rclone.thumb.jpg.4ce3e7b70f50f7a21e864a06e7328649.jpg



Is there any possible explanation?

Thanks

On 8/1/2019 at 9:37 PM, yendi said:

I think there is an issue with Rclone: I saw in live the dismount issue and saw this:

rclone had multiple processes using 100% of available memory. Then it crashes and I have to use the unmount script before the being able to remount.



1226689252_2019-08-0121_28_29-mount_rclone.thumb.jpg.4ce3e7b70f50f7a21e864a06e7328649.jpg



Is there any possible explanation?

Thanks

So with the help of rclone guys I might have found the issue:



I have 12 gb of ram and when I upload + all the services running on unRAID i am using about 8.5 of the ram.

When Plex is doing the thumbnails it seems that it consume all remaining ram for the job: it consume some ram for Plex itself + the --buffer-size 256 * number of opened files. Apparently its 4-5 files simultaneously.



I lowered the buffer-size variable to 128mb and I have not seen the issue since 24h.



Hope it helps someone who would face this issue !

I have a strange problem if I use rclone mount to mount a google drive folder it gets created correctly and I see all the files on my google drive. I can read and write to the share without problems using a file-browser on unraid. But whenever I add the mount to a docker-container I can't write to it. Does anyone know how to solve this?

Sounds like you aren't mounting it as RW.  I don't have any issues.



Post a screenshot of the folder mapping.

7 hours ago, sauso said:

Sounds like you aren't mounting it as RW.  I don't have any issues.



Post a screenshot of the folder mapping.

But I can read and write to it with no problems when using a filebrowser on unraid, it is just when trying to write to the share when it is mounted in a docker container that it fails.

How do you give the docker access to the share? Can you share that screenshot.

The "LadingZone" path is a local path on the drive and it works. But the google drive path does not seam to allow writes. I can see 0 byte tmp-files and empty folders being created on my google drive but no actual files gets created.



Maybe that's stupid could this come from the mounting script executing AFTER the docker mount?

3 minutes ago, yendi said:

Maybe that's stupid could this come from the mounting script executing AFTER the docker mount?

No, I have been manually starting the docker-containers after the script

  • Author
1 hour ago, Cliff said:

The "LadingZone" path is a local path on the drive and it works. But the google drive path does not seam to allow writes. I can see 0 byte tmp-files and empty folders being created on my google drive but no actual files gets created.



you are mounting rclone at /mnt/disks - for host path 2 have you selected r/w slave?

Yes, I have tried everything. Right now it is mounted as r/w slave

1 hour ago, Cliff said:

Yes, I have tried everything. Right now it is mounted as r/w slave

What is the docker you are using? And what happens when you restart the docker. Is it working then?

9 hours ago, Kaizac said:

What is the docker you are using? And what happens when you restart the docker. Is it working then?

I am using the Syncthing docker container. I have tried restarting both the docker-container and the server multiple times without change. I also tried moving the mountpoint between different disks and tried modifying the mount-script. But I noticed a strange thing today. I changed the remote folder to a new folder on google drive, and this time folders where created again but also some small files like jpeg-thumbnails and .nfo files. But no "big" files where created

1 hour ago, Cliff said:

I am using the Syncthing docker container. I have tried restarting both the docker-container and the server multiple times without change. I also tried moving the mountpoint between different disks and tried modifying the mount-script. But I noticed a strange thing today. I changed the remote folder to a new folder on google drive, and this time folders where created again but also some small files like jpeg-thumbnails and .nfo files. But no "big" files where created

So how is your rclone set up? Can you post your rclone config? Just remove the tokens and such.

15 minutes ago, Kaizac said:

So how is your rclone set up? Can you post your rclone config? Just remove the tokens and such.

Here is my rclone config. But as I think I said earlier, I can read/write to the mount without problem if I use the Cloud Commander app


Edited by Cliff

  • Author
39 minutes ago, Cliff said:

Here is my rclone config. But as I think I said earlier, I can read/write to the mount without problem if I use the Cloud Commander app


Have you tried mounting at mnt/user instead of /mnt/disks ?  I've had problems with /mnt/disks in the past.



Also, what about other dockers - do they work ok?

1 minute ago, DZMM said:

Have you tried mounting at mnt/user instead of /mnt/disks ?  I've had problems with /mnt/disks in the past.



Also, what about other dockers - do they work ok?

yes I have tried /mnt/disks too. The Cloud Commander docker works and is able to read/write to the mount. But I dont know how that works as that container mounts "/" and then you browse using the web-ui

10 minutes ago, Cliff said:

yes I have tried /mnt/disks too. The Cloud Commander docker works and is able to read/write to the mount. But I dont know how that works as that container mounts "/" and then you browse using the web-ui

Have you tried another docker like Radarr to see if you can write files there? Syncthing doesn't work with browsing through the ui. So you have to put exact paths. So in your case you start with /google.

20 minutes ago, Kaizac said:

Have you tried another docker like Radarr to see if you can write files there? Syncthing doesn't work with browsing through the ui. So you have to put exact paths. So in your case you start with /google.

yes, I have tried mounting /google and even /google/<some other folder on the drive>. As the google drive is already mounted I can browse and select the folder from the docker-settings. And when syncing I see that folders and files are created on google drive, but the problem is that only folders and very small files 0-~5kb are created

Just now, Cliff said:

yes, I have tried mounting /google and even /google/<some other folder on the drive>. As the google drive is already mounted I can browse and select the folder from the docker-settings. And when syncing I see that folders and files are created on google drive, but the problem is that only folders and very small files 0-~5kb are created

Then it's a syncthing issue as far as I can tell. You should test with an other docker.

4 hours ago, Cliff said:

I am using the Syncthing docker container. I have tried restarting both the docker-container and the server multiple times without change. I also tried moving the mountpoint between different disks and tried modifying the mount-script. But I noticed a strange thing today. I changed the remote folder to a new folder on google drive, and this time folders where created again but also some small files like jpeg-thumbnails and .nfo files. But no "big" files where created

Oh dear, don't use Syncthing directly on the mount. It's a rather long explanation as to why it doesn't work but just trust me, it won't work.

Sometimes files start to disappear on the local unionfs mount, they are still in the cloud. I have to unmount/remount unionfs for things to show back up.. Anyway to fix this?



I changed the buffer size to 32MB.. will see how it goes.

Edited by mestep

On 8/4/2019 at 5:31 AM, yendi said:

So with the help of rclone guys I might have found the issue:



I have 12 gb of ram and when I upload + all the services running on unRAID i am using about 8.5 of the ram.

When Plex is doing the thumbnails it seems that it consume all remaining ram for the job: it consume some ram for Plex itself + the --buffer-size 256 * number of opened files. Apparently its 4-5 files simultaneously.



I lowered the buffer-size variable to 128mb and I have not seen the issue since 24h.



Hope it helps someone who would face this issue !

Thankyou so much, i have only 10GB of ram currently and was seeing rclone crashes in unraid and out of memory issues. Im upgrading to 16GB tommorow
