13 hours ago, limetech said:

13 hours ago, johnnie.black said:

Usually when it doesn't mount with the array it doesn't mount on it's own, at least I tried a couple of times with other users and it never did, they had to use -L.

Agreed, at least this is how OP can try it.

I have canceled the xfs_repair -L command and tried to mount the drive  i get following msg:



root@GRIG:/dev# mount /dev/md2 /tmp/t
mount: /tmp/t: wrong fs type, bad option, bad superblock on /dev/md2, missing codepage or helper program, or other error.





Try running xfs_repair again, if the same happens best bet is to ask for help on the xfs mailing list, xfs_repair should always finish, with more or less data loss, it should never get stuck.

Hello Everyone,



in the morning after i stopped the stalled xfs_repair-L and was trying the below method as suggested by @limetech but the mounting did not succeed as informed by @johnnie.black so i installed a spare disk of 1TB which Unraid didn't accept as its capacity was less than original disk.... then i reinstalled the original 4TB disk with the Corrupted FS and was about to format it leadind to data loss.......

16 hours ago, limetech said:

Another approach might be to set disk2 to 'No device' thus disabling it.  Now you have two copies of the file system to experiment with: the actual disk itself, and the reconstructed disk.  If this were really irreplaceable data on the device, I would be inclined to also assign a new device to disk2 and start data-rebuild.  Now we have 3 copies of the data.

I had almost lost hope to get any data back...... but a miracle happened i ran xfs_repair -v one last time  without -l or -n and xfs_repair was successful i just lost 1 folder(i checked the lost+found folder but cannot find it) other data seems to be there im still cross checking.



I have attached final summary of the successful xfs_repair and my diagnostics.



I have following queries:



1. why is the disk2 is still showing that the contents are emulated.

2. should i start the parity sync??

3. will the parity sync affect data on other disks ??

4. what steps can be taken to avoid this?

5. i still need support for  below error kindly advise



Thank you for your superb support guys especially.  @johnnie.black @limetech @trurl

Disk2 xfs_repair_summary.txt

grig-diagnostics-20181108-1346.zip

Edited November 8, 20187 yr by pg93

why is the disk2 is still showing that the contents are emulated.

I can't see when since it happened before last reboot, but at some point disk2 got disable (or you disable it), it started rebuilding at array start but you've canceled it, start rebuilding again and let it finish.





25 minutes ago, johnnie.black said:

ome point disk2 got disable (or you disable it)

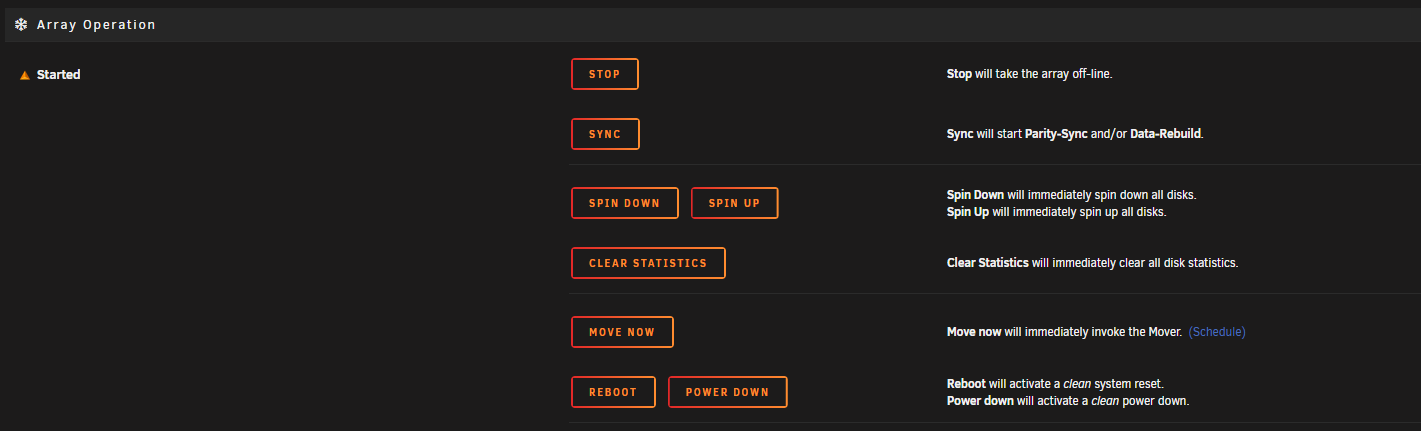

I tried to remove the disk and install spare old disk to rebuild data, the main page now shows as below



 should i start the sync?? will it affect recovered data or data on other disks??

Edited November 8, 20187 yr by pg93

Start the sync, data on disk2 will be the same as now
