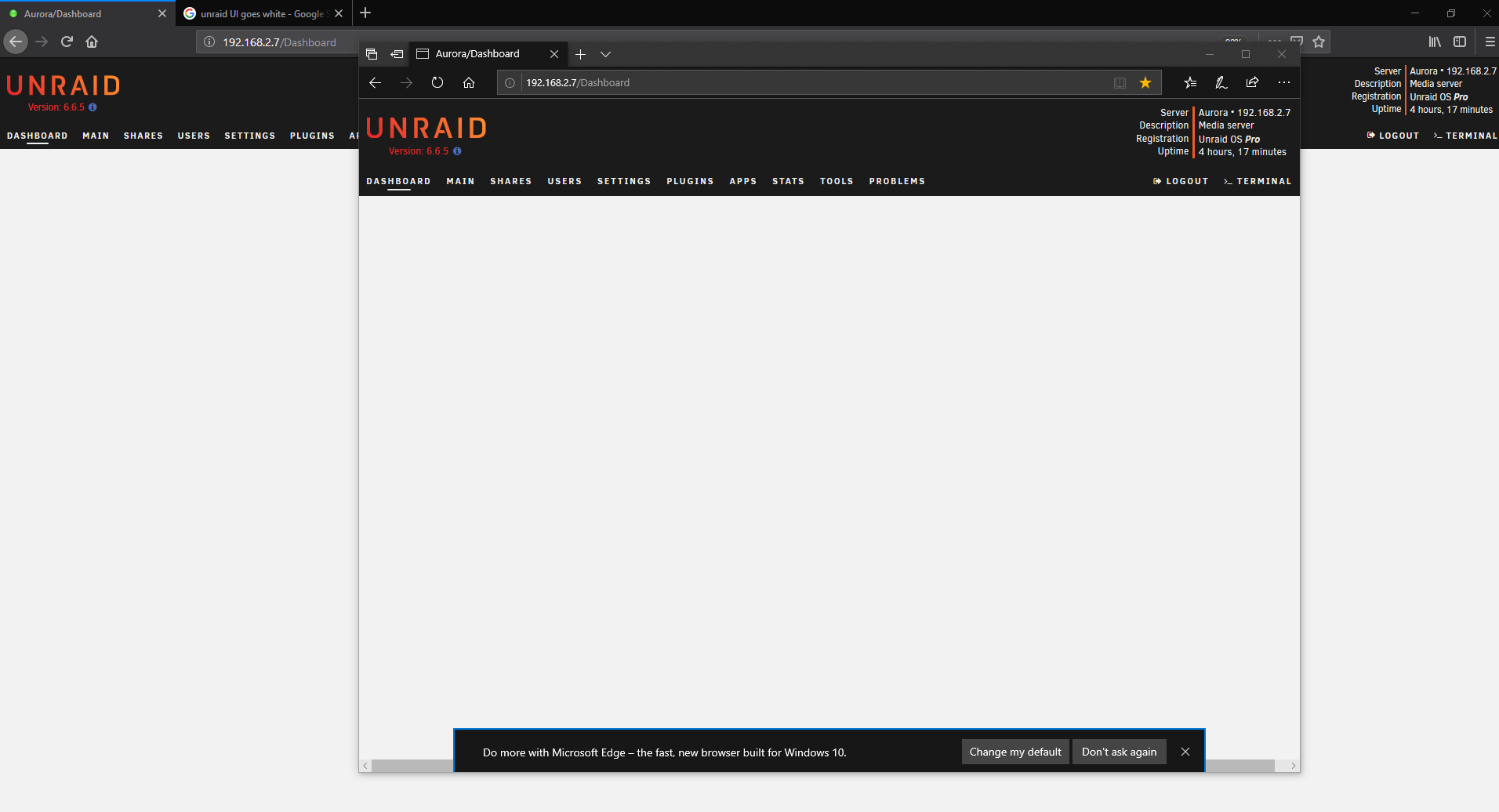

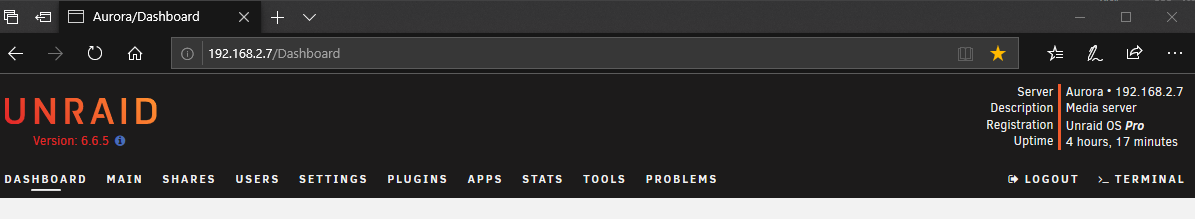

So I added a new HDD 3 Days ago, Cleared it, and formatted it no problem. Updated UnRaid on Monday (5 Days ago), and Now an hour after boot it gives me a completely white Frame under the Navigation Bar on all Browsers (tested on FF, Edge, Chrome, and Opera) and on all OSes (Tested on Windows, Ubuntu, MacOS, and even UnRaid GUI mode). I have only been able to reboot VIA Shell command "reboot". Once it boots it seems fine for an hour or so then goes back to this white frame that you see in the screen shot. I want to look at the SYSLOG but Im not sure where UnRaid stores it on the File Table. Any Help would be greatly appreciated!



Please note ALL Navigational Panels (Dashboard, Main, Shares, Users, Settings, Plugins, Apps, Stats, Tools, and Problems) all have this issue, I am unable to navigate anywhere or do anything with UnRaid other than terminal.







EDIT: I found a post to get me to the Logs, using

cat /var/log/syslog

This led me to a lengthy log consisting of the same error on repeat.

Nov 25 06:52:30 Aurora emhttpd: Starting services...
Nov 25 06:52:30 Aurora kernel: fat__get_entry: 118 callbacks suppressed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30552) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30553) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30554) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30555) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30556) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30557) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30558) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30559) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30560) failed
Nov 25 06:52:30 Aurora kernel: FAT-fs (sda1): Directory bread(block 30561) failed
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Blackhole.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Cold-Storage-Games.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Downloads.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Games.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/HBComplete.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/HBwatched.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/OwnCloud.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Photography.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/Ripped.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/appdata.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/docker.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/domains.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/hassio.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/isos.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/media.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/nzbapps.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/plex.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/steamcache.cfg
Nov 25 06:52:31 Aurora emhttpd: error: put_config_idx, 609: No such file or directory (2): fopen: /boot/config/shares/system.cfg

Doing a little searching led me to find this thread

https://forums.unraid.net/topic/56481-directory-breadblock-8199-failed-is-this-a-usb-stick-failure-whats-the-best-approach-for-correcting-this/



Which is basicly giving a USB Error. Whether its the USB drive or the USB Port its Plugged into is yet tbd. Im Attempting to reboot via "reboot" again, then shutting down when it comes up, then I will relocat the USB to the rear IO panel. Currently its plugged into a Front Panel USB 2.0 Port.  Will Keep this post updated with progress.

Edited November 25, 20187 yr by Mr.N3rd
new devolpments / Grammer issues

Sounds like you are on the right track.

Update: I moved the USB Stick to a Port on the Mobo. Checked the Logs and All seems fine. Now I have another Issue with my HDD but I think the Drive has become faulty, I bought it off Ebay knowing the risk of DOA, Im in contact with seller to verify if he can send another one out.



This is the error Im Getting:



Nov 25 13:47:39 Aurora kernel: mdcmd (42): spindown 5
Nov 25 13:47:39 Aurora emhttpd: error: mdcmd, 2639: Input/output error (5): write
Nov 25 13:47:39 Aurora kernel: md: do_drive_cmd: disk5: ATA_OP e0 ioctl error: -5
Nov 25 13:47:40 Aurora kernel: mdcmd (43): spindown 5
Nov 25 13:47:40 Aurora emhttpd: error: mdcmd, 2639: Input/output error (5): write
Nov 25 13:47:40 Aurora kernel: md: do_drive_cmd: disk5: ATA_OP e0 ioctl error: -5
Nov 25 13:47:41 Aurora kernel: mdcmd (44): spindown 5
Nov 25 13:47:41 Aurora emhttpd: error: mdcmd, 2639: Input/output error (5): write
Nov 25 13:47:41 Aurora kernel: md: do_drive_cmd: disk5: ATA_OP e0 ioctl error: -5



13 minutes ago, Mr.N3rd said:

Update: I moved the USB Stick to a Port on the Mobo. Checked the Logs and All seems fine. Now I have another Issue with my HDD but I think the Drive has become faulty, I bought it off Ebay knowing the risk of DOA, Im in contact with seller to verify if he can send another one out.



This is the error Im Getting:



Nov 25 13:47:39 Aurora kernel: mdcmd (42): spindown 5
Nov 25 13:47:39 Aurora emhttpd: error: mdcmd, 2639: Input/output error (5): write
Nov 25 13:47:39 Aurora kernel: md: do_drive_cmd: disk5: ATA_OP e0 ioctl error: -5
Nov 25 13:47:40 Aurora kernel: mdcmd (43): spindown 5
Nov 25 13:47:40 Aurora emhttpd: error: mdcmd, 2639: Input/output error (5): write
Nov 25 13:47:40 Aurora kernel: md: do_drive_cmd: disk5: ATA_OP e0 ioctl error: -5
Nov 25 13:47:41 Aurora kernel: mdcmd (44): spindown 5
Nov 25 13:47:41 Aurora emhttpd: error: mdcmd, 2639: Input/output error (5): write
Nov 25 13:47:41 Aurora kernel: md: do_drive_cmd: disk5: ATA_OP e0 ioctl error: -5



Syslog snippets are seldom sufficient.



Tools - Diagnostics, attach complete zip to your next post.

aurora-diagnostics-20181125-1615.zip

SAS drives don't spindown with Unraid, it's a known issue, you can ignore those syslog entries, or disable spindown for that drive and any other SAS drives so the log isn't spammed with that.





Edited November 26, 20187 yr by johnnie.black
