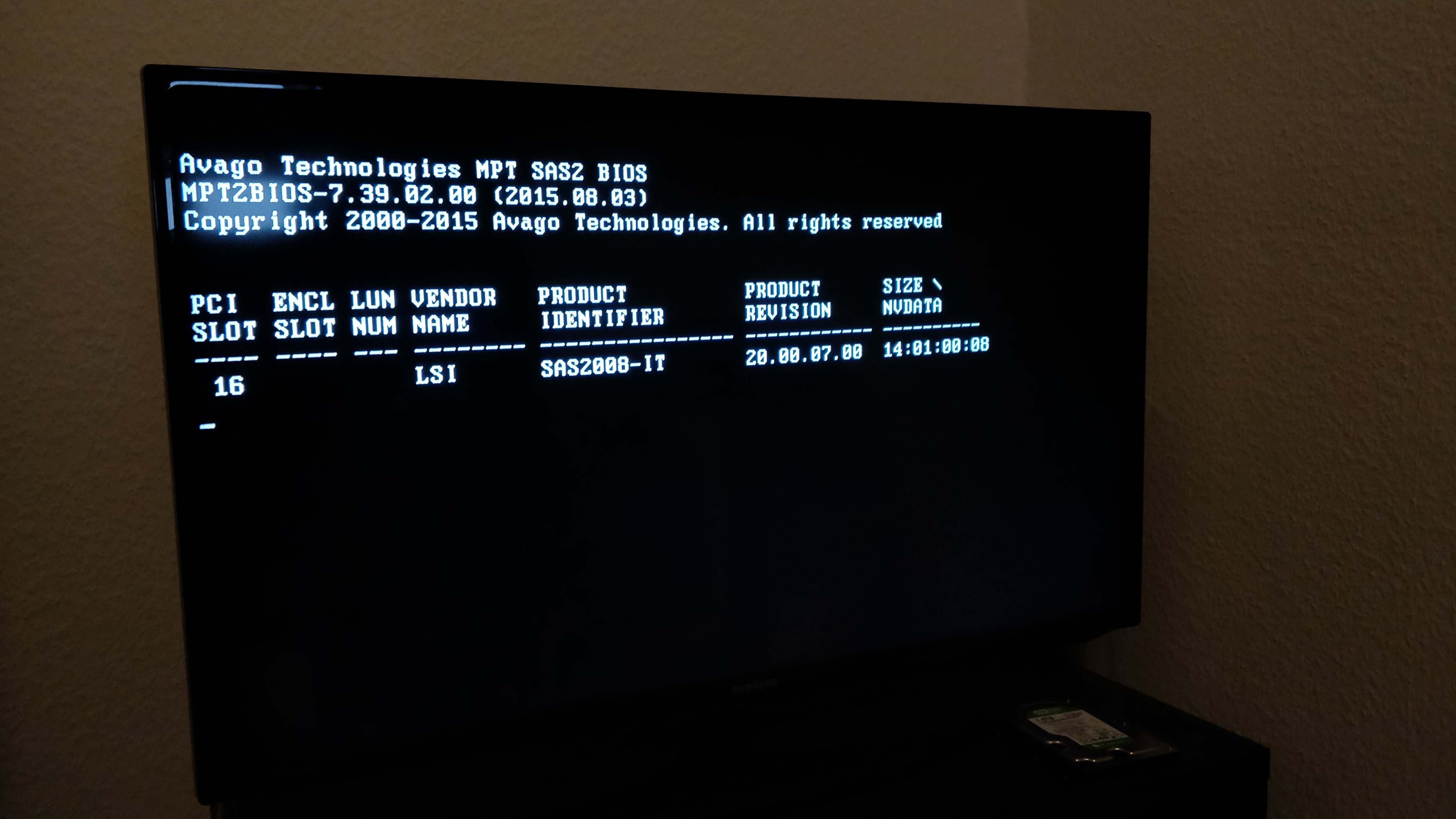

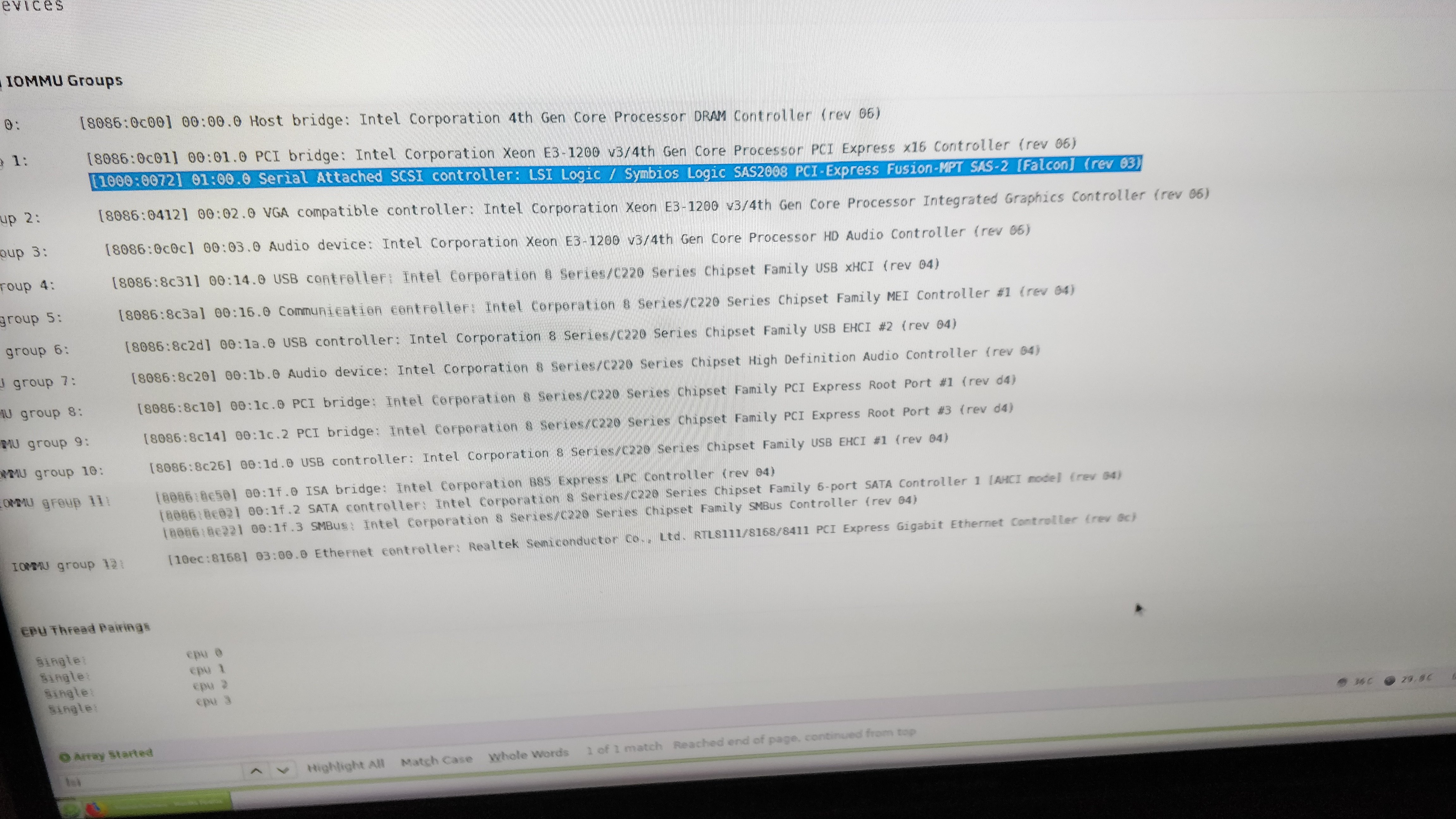

December 6, 20187 yr Hi, I just bought a Dell H310 off eBay and it came flashed to LSI IT mode (SAS2008, v. 20.00.07.00). I have connected two drives to it, but they don't appear in "Unassigned devices" - using these cables: Mini SAS 36P SFF-8087 to 4 SATA 7 Pin Pin out 2 WL. The card does seem to be registered in UnRaidas the LSI SAS2008. What can I do to make the drives available?
December 6, 20187 yr From the ebay description Quote Discrete to SFF-8087 (Reverse breakout) cable Connector on Case Backplane End: 1 x 36-pin - SFF-8087. Connector on Raid Controller or Motherboard End: 4 x 7-pin - SATA You want forward breakout cables. Look the same, but wired differently Edited December 6, 20187 yr by Squid
December 6, 20187 yr Author 31 minutes ago, Squid said: From the ebay description You want forward breakout cables. Look the same, but wired differently Shoot... Hadn't seen that note until now. Will order new cables and see if it solves the issue - thanks for the quick reply.
March 7, 20197 yr Any updates to this? I have a similar issue, except that some of the drives are being seen, some aren't. I was able to get UnRaid setup in my office yesterday. Moved it to my house and 5 of 7 devices aren't being seen! I'm running a Dell R710 with the H310 and the drives are all connected to the backplane. disk 1 - 5TB Seagate - parity drive - Seen by UnRaid disk 2 - 2TB Seagate SSHD - storage - NOT seen by UnRaid disk 3 - 2TB Seagate SSHD - storage - NOT seen by UnRaid disk 4 - 2TB Seagate SSHD - storage - NOT seen by UnRaid disk 5 - 2TB Seagate SSHD - storage - NOT seen by UnRaid disk 6 - 2TB Seagate SSHD - storage - NOT seen by UnRaid disk 7 - 120GB Intel SSD - cache - Seen by UnRaid Edited March 7, 20197 yr by RickEntrench
March 7, 20197 yr 47 minutes ago, RickEntrench said: Any updates to this? The OP had a cable problem, likely not the same as you, please post the diagnostics: Tools -> Diagnostics
March 7, 20197 yr Author Hi, Yes, after I bought the right cable, the drives were detected. I just tried the same 2x1TB drives I had laying, and they connected just fine - so haven't had all 8 drives connected at once, but they should work.
March 7, 20197 yr 5 minutes ago, RickEntrench said: Thanks. tower-diagnostics-20190307-1057.zip The other devices were initially detected but then stopped responding and were dropped after several attemps, if I had to guess it looks like some compatibility problem between those Firecuda drives and the LSI (or the Dell and the LSI but that seems not so likely since the other model disk and SSD work).
March 7, 20197 yr I had just put the H310 in IT mode for this new UnRaid server. It did not give me any errors or issues putting it in IT mode nor finding the drives when I started UnRaid the first time. Everything went so smoothly. I thought maybe a cable came loose, but then the two working drives wouldn't work either. I'm at a loss...
March 8, 20197 yr I took the drives out one at a time (while powered down) and cleared them on another computer. Booted the UnRaid and it saw them and as I went to add them... the 5 drives disappeared again...

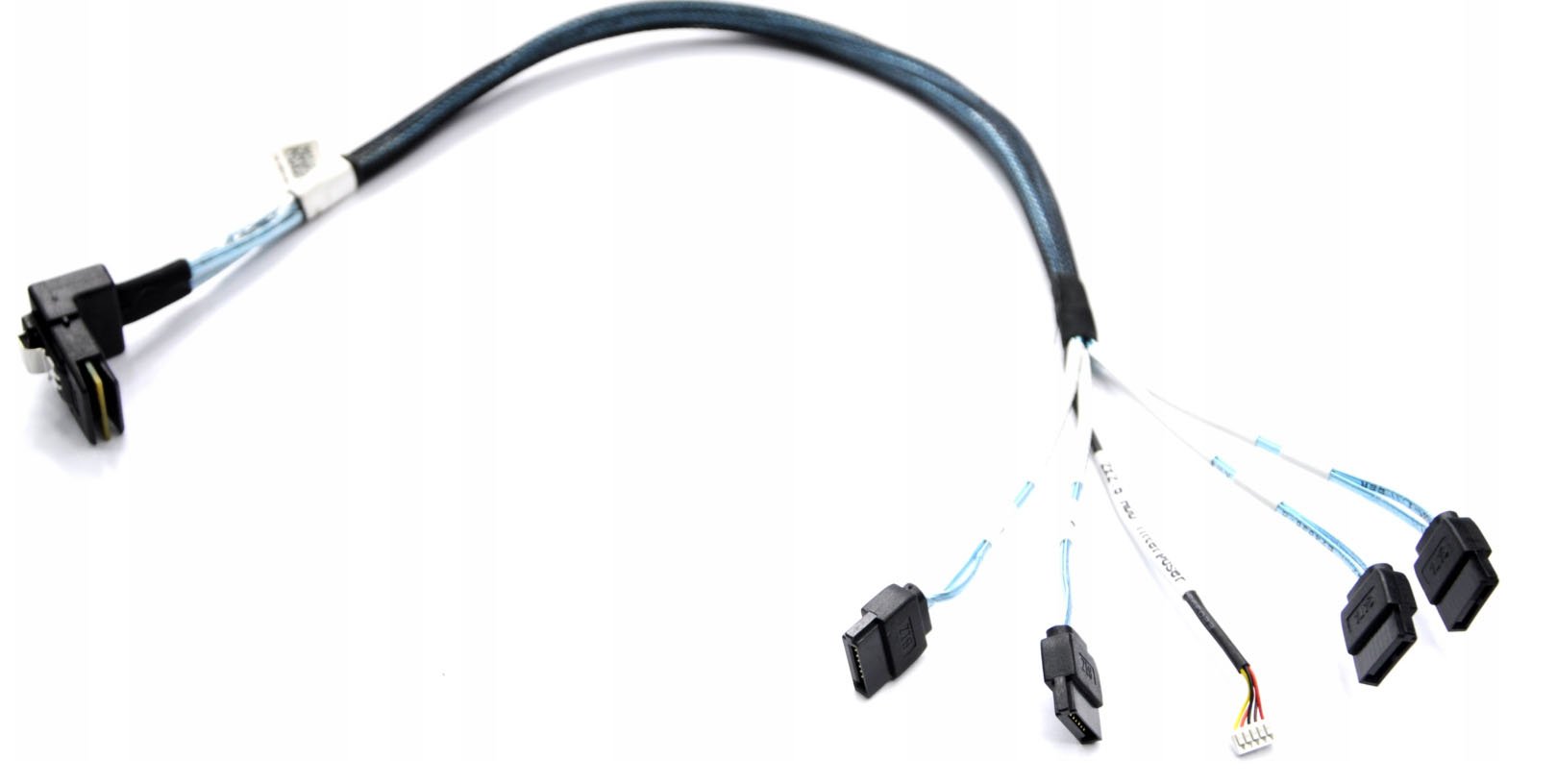

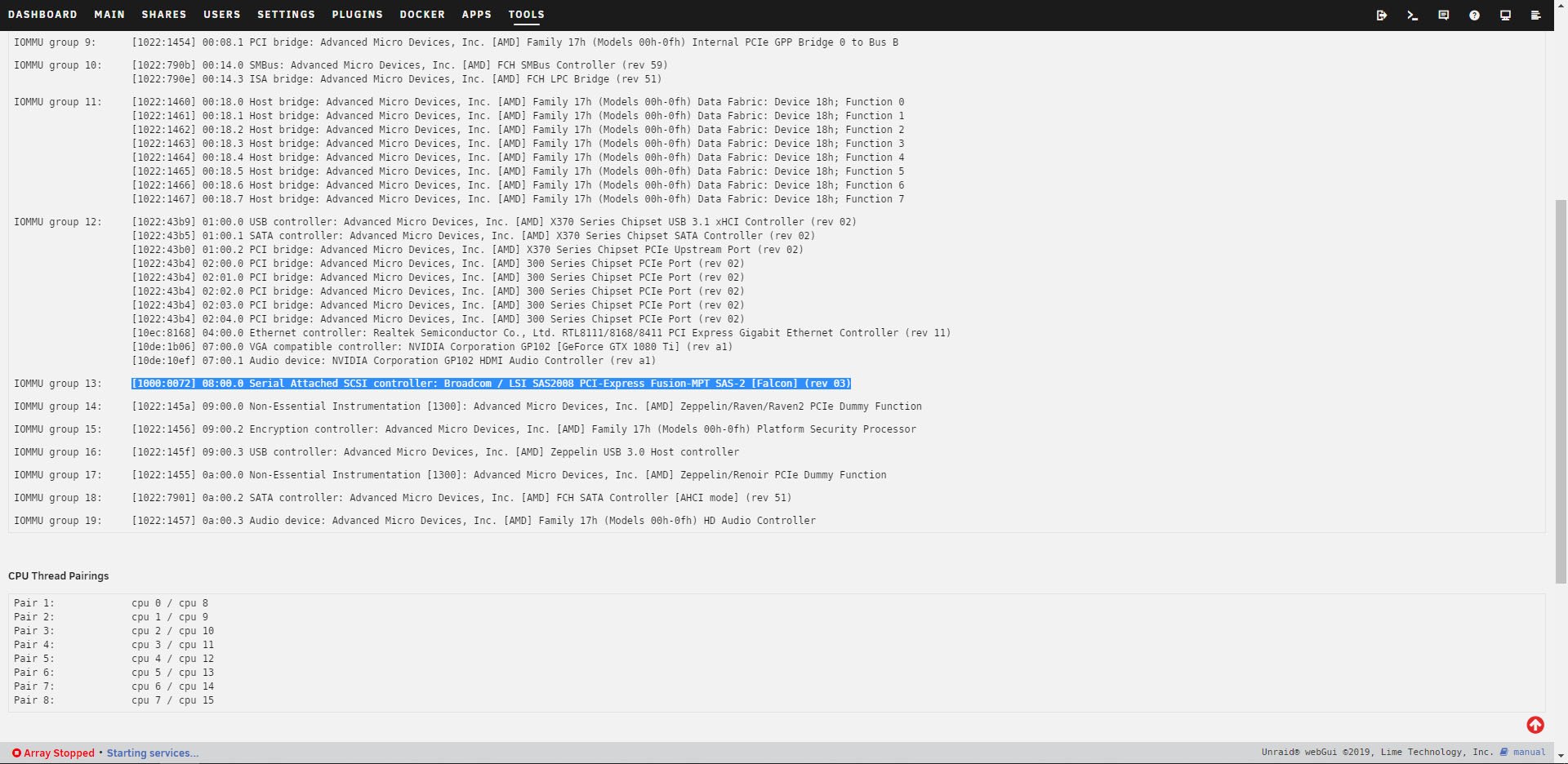

November 28, 20196 yr I also have a problem of drives not being detected with H310 in IT mode. I don't know how to distinguish if I have the right cables. Here on the picture is the cable I have. Do I have wrong cables?
November 28, 20196 yr Sometimes you have to do the tape mod: http://yannickdekoeijer.blogspot.com/2012/04/modding-dell-perc-6-sas-raidcontroller.html
November 28, 20196 yr 33 minutes ago, ashman70 said: Sometimes you have to do the tape mod: http://yannickdekoeijer.blogspot.com/2012/04/modding-dell-perc-6-sas-raidcontroller.html Thank you. I've just tried it - didn't help
November 28, 20196 yr Do I have wrong cables?Hard to tell from just a picture. You need forward breakout cables. Forward and reverse breakout look the same.On my H310 I had to tape pins 5-6 for drives to be recognized. Since you have tried that perhaps the cables are the issue. Can you find a description of them to verify that they are forward breakout?Sent from my iPhone using Tapatalk
November 28, 20196 yr 1 minute ago, Hoopster said: Hard to tell from just a picture. You need forward breakout cables. Forward and reverse breakout look the same. On my H310 I had to tape pins 5-6 for drives to be recognized. Since you have tried that perhaps the cables are the issue. Can you find a description of them to verify that they are forward breakout? Sent from my iPhone using Tapatalk All it says on the page (https://allegro.pl/oferta/kabel-mini-sas-sff-8087-4-x-sata-35cm-7781095173) is: High quality cable, used for connecting SATA drives to the controller with mini-SAS SFF-8087 36PIN controller.
November 28, 20196 yr I've just ordered this cable, should get it on Monday. Hopefully it will work. https://www.amazon.de/gp/product/B00S7KTVN2/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
December 2, 20196 yr On 11/29/2019 at 12:40 AM, Trylo said: I've just ordered this cable, should get it on Monday. Hopefully it will work. https://www.amazon.de/gp/product/B00S7KTVN2/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 This is the correct cable. After using this one all drives have been detected correctly!
December 2, 20196 yr 1 hour ago, Trylo said: This is the correct cable. After using this one all drives have been detected correctly! 👍 Glad to hear all is working for you with the correct cable.
January 18, 20206 yr Guys sorry start all over, newbee here. So i have no idea about formatting the board into IT mode and i started the thread here : As per the only help i received, i should just remove my unraid pendrive and hard discs on the same server. Mount the dell h310 card then the cable sas to sata and the sata connects to a new hard drive. I ll have to run freedos so then once the setup is done as per the instructions. i ll have to connect the unraid os and drives back. My questions are that will i be losing the parity or anything i might be messing with? because am removing the unraid os and drive cables?
January 18, 20206 yr 5 minutes ago, ThePhotraveller said: Guys sorry start all over, newbee here. So i have no idea about formatting the board into IT mode and i started the thread here : As per the only help i received, i should just remove my unraid pendrive and hard discs on the same server. Mount the dell h310 card then the cable sas to sata and the sata connects to a new hard drive. I ll have to run freedos so then once the setup is done as per the instructions. i ll have to connect the unraid os and drives back. My questions are that will i be losing the parity or anything i might be messing with? because am removing the unraid os and drive cables? You can move drives and Unraid pendrive freely. Unraid should redetect all drives after booting. You should run parity check after this kind of operation. But that has nothing to do with flashing the H310 into IT. When I flashed mine I disconnected all drives and took out Unraid pendrive. All that was connected was the H310 and the USB with firmware.
January 18, 20206 yr 13 minutes ago, Trylo said: You can move drives and Unraid pendrive freely. Unraid should redetect all drives after booting. You should run parity check after this kind of operation. But that has nothing to do with flashing the H310 into IT. When I flashed mine I disconnected all drives and took out Unraid pendrive. All that was connected was the H310 and the USB with firmware. Am actually waiting for the SAS to SATA cable now. But meanwhile i can start configuring the Dell h310 into IT mode? It should work or shall i wait till the cables come so that i can connect and work with a live drive?
January 18, 20206 yr 9 minutes ago, ThePhotraveller said: But meanwhile i can start configuring the Dell h310 into IT mode? You can, no drives should be connected during flashing.
January 18, 20206 yr 51 minutes ago, ThePhotraveller said: Am actually waiting for the SAS to SATA cable now. But meanwhile i can start configuring the Dell h310 into IT mode? It should work or shall i wait till the cables come so that i can connect and work with a live drive? What tee-tee jorge said If you have trouble flashing what helped in my case was rebooting after everystep (not only where it says in the instructions) plus having the right images (I don't know the tutorial you are referring to, but some of the tutorial online have broken tools). I used this: https://we.tl/t-6FkzMZ7wSJ I hope you bought forward breakout cables First time I had no idea there are two types, I bought the cheapest offer I found and it was not working...
January 18, 20206 yr 1 hour ago, Trylo said: What tee-tee jorge said If you have trouble flashing what helped in my case was rebooting after everystep (not only where it says in the instructions) plus having the right images (I don't know the tutorial you are referring to, but some of the tutorial online have broken tools). I used this: https://we.tl/t-6FkzMZ7wSJ I hope you bought forward breakout cables First time I had no idea there are two types, I bought the cheapest offer I found and it was not working... Damn i have order for a cheap one though. Coz thats the only available option me at the moment. But what is that forward breakout thing in the first place. https://www.amazon.in/dp/B013G4EMH8/ref=cm_sw_r_wa_apa_i_v0ViEb3KZ1XYW is the one i have ordered.
January 18, 20206 yr 8 minutes ago, ThePhotraveller said: Damn i have order for a cheap one though. Coz thats the only available option me at the moment. But what is that forward breakout thing in the first place. https://www.amazon.in/dp/B013G4EMH8/ref=cm_sw_r_wa_apa_i_v0ViEb3KZ1XYW is the one i have ordered. There are two types, both look identical. Unfortunately a lot of people selling those don't bother to inform which type they are selling. You won't know until you plug it in This is the one I ordered: https://www.amazon.de/gp/product/B00S7KTVN2/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
