Hello good people,



I got a red X on my disk6 drive running xfs.  Would someone help me to diagnose if the drive is still good?

Have attached the smart report



thanks in advance

tower-smart-20181218-1906.zip

Drive is currently offline, so no SMART report.  Post the diagnostics before you reboot.

Thanks!  But, shoot.  When I restarted the array (not a reboot), it shows the disk is missing and there's no option to run a smart report.

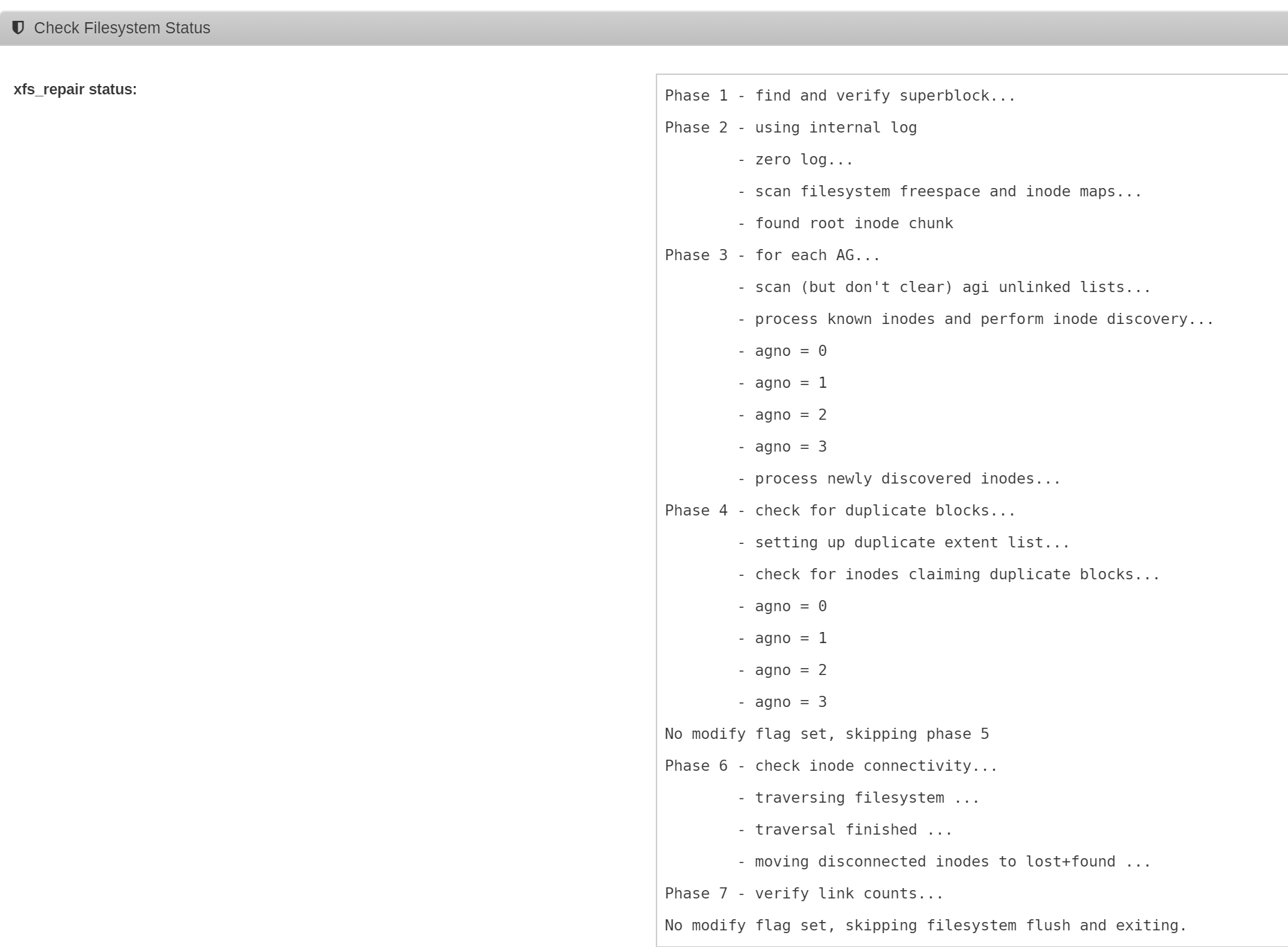

I was able to check filesystem status, but that didn't give me smart report.



I am able to get smart reports on all my other disks, but not this one.

What's the trick?



Here's the current diagnostics if it helps

tower-diagnostics-20181218-2131.zip

13 minutes ago, keyman33 said:

I was able to check filesystem status

That is using the emulated disk.



Disk6 does not appear in those diagnostics. Shutdown, check connnections, try diagnostics again.

ok, thanks. I did that, swapped bays with another disk and and it seemed to recognize it. Right now it's building parity and I got this diagnostic report. still showing emulation on the GUI

tower-diagnostics-20181218-2157.zip

12 hours ago, keyman33 said:

Right now it's building parity

It can't be rebuilding parity. Do you mean it is rebuilding disk6? If you take a look in Main, disk6 should be the one that is getting a lot of writes.
