January 2, 20197 yr So I got a bit of a huge problem every time Parity check runs, my SSD cache drive goes offline. The only way to get it back is a full system restart. Sata cable has been switched. The rest of the array is fully accessible. All my VM's are on my SSD all my docker's are on my SSD.
January 2, 20197 yr Community Expert Sounds like a hardware problem. Possibly just a connection problem due to vibration or something with all disks spinning. Try again but post a diagnostic before starting parity check then another after the problem happens. Tools - Diagnostics, attach complete diagnostics zip file(s) to your next post.

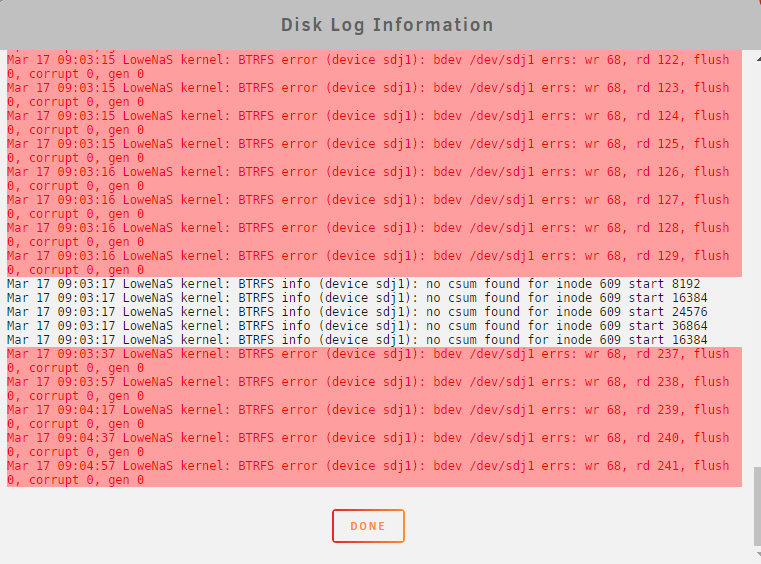

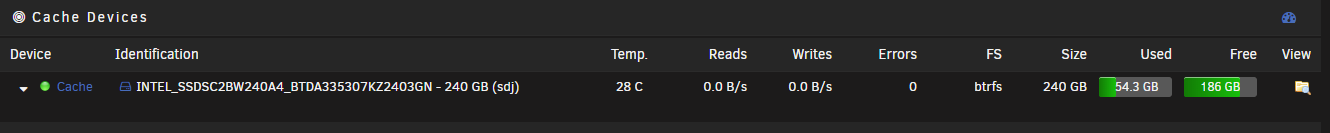

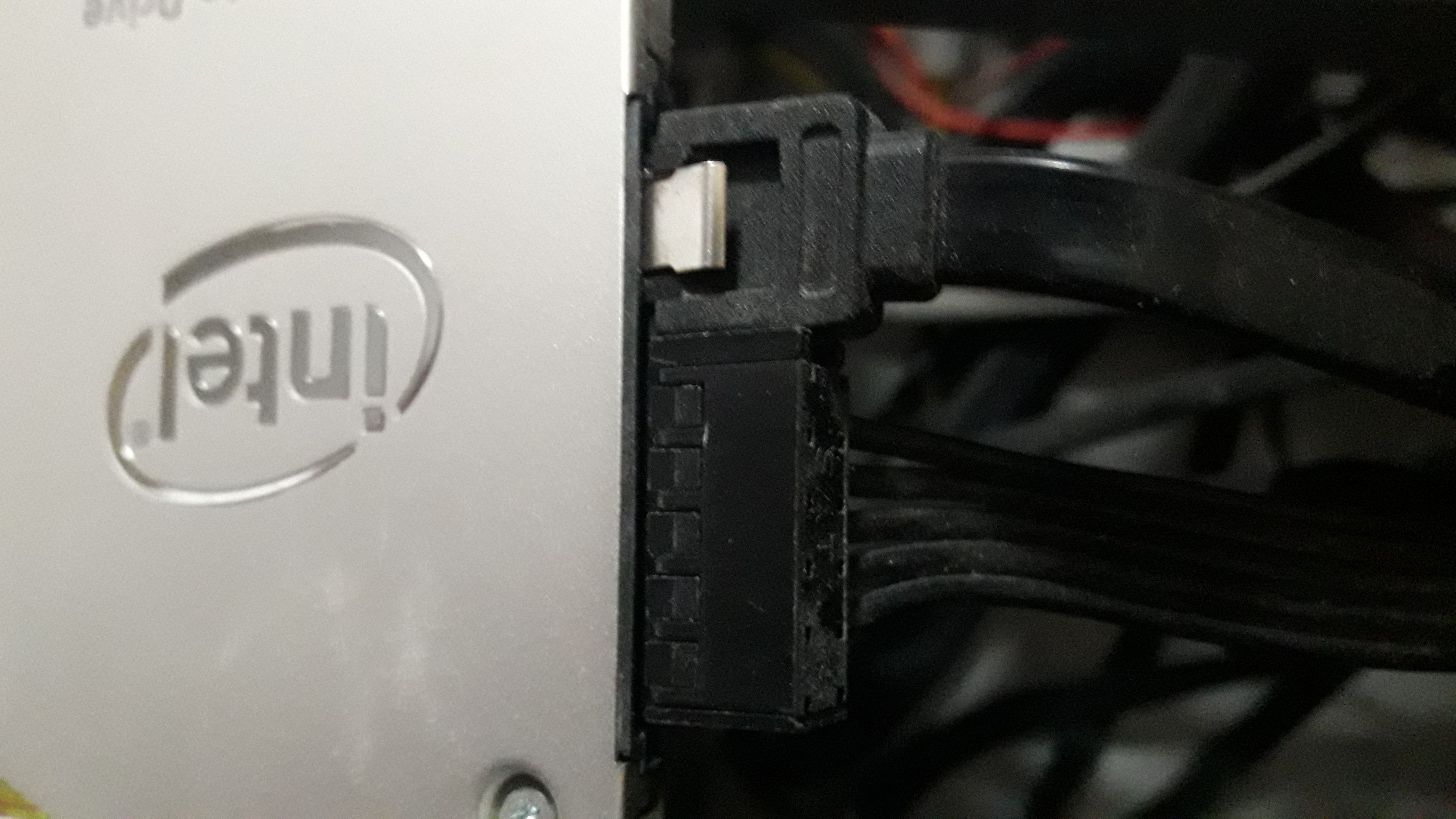

March 17, 20197 yr Author Hi, I have the Diagnostics. Also a few pictures. lowenas-diagnostics-20190317-0844.zip lowenas-diagnostics-20190317-0916-sddoffline.zip
March 17, 20197 yr Community Expert What is the exact model of your power supply? Not related, but why is your system share cache-no and on disk10?
March 17, 20197 yr Community Expert You're having issues with both Marvell controllers, in the case of the SSD it ended up dropping offline, Marvell controllers aren't recommended for Unraid for some time now, recommend you replace both with an 8 port LSI controller.

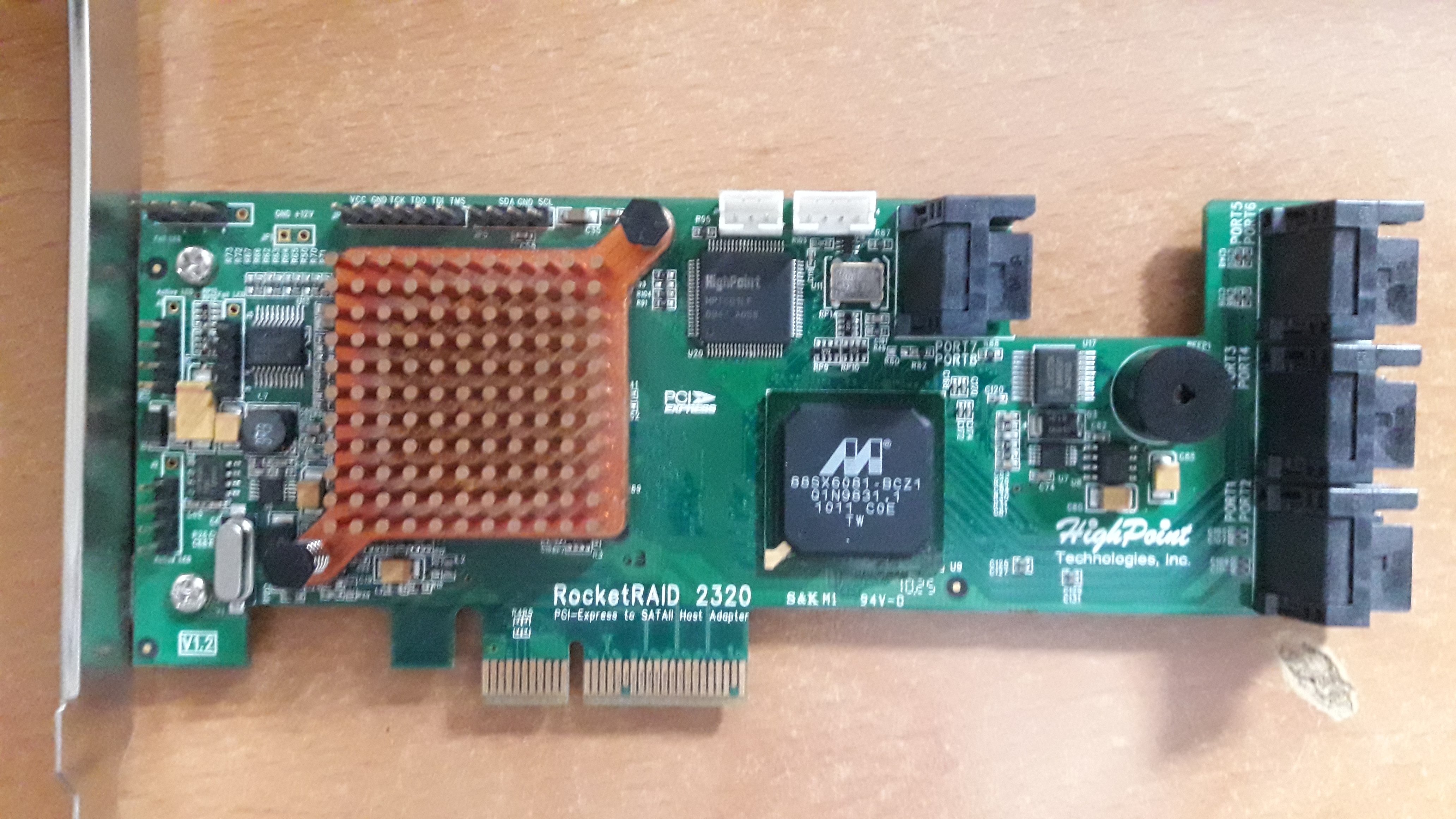

March 17, 20197 yr Author I had no clue Marvell controllers were not supported. Dame it. Time to save up for an 8 port LSI controller. So it has to be either HBA or flashed to HBA so unraid can read the drives correct. I mean i have an old High Point 8 port thats a Marvell controller so it won't work either correct. 450 watt gold rated 80 plus. it draws on my watt meter 100 at idle. up too 200 at first power on. So why only at Parity check does it it go offline ? Not during heavy loads? Is this any good of an LSI card "Genuine LSI 6Gbps SAS HBA LSI 9201-8i 9211-8i P20 IT Mode ZFS FreeNAS unRAID" found this on ebay? Edited March 17, 20197 yr by Cobragt88 added info
March 17, 20197 yr Community Expert 38 minutes ago, Cobragt88 said: 450 watt gold rated 80 plus. That isn't really an answer to my question 1 hour ago, trurl said: What is the exact model of your power supply? but maybe a moot point.
March 17, 20197 yr Author CS Series™ Modular CS450M — 450 Watt 80 PLUS® Gold Certified PSU SKU CP-9020075-NA
March 17, 20197 yr 1 hour ago, Cobragt88 said: So why only at Parity check does it it go offline ? Not during heavy loads? Depends on what you mean by "heavy loads", are all of your drives spinning up / spun up and being used like they are for parity checks?

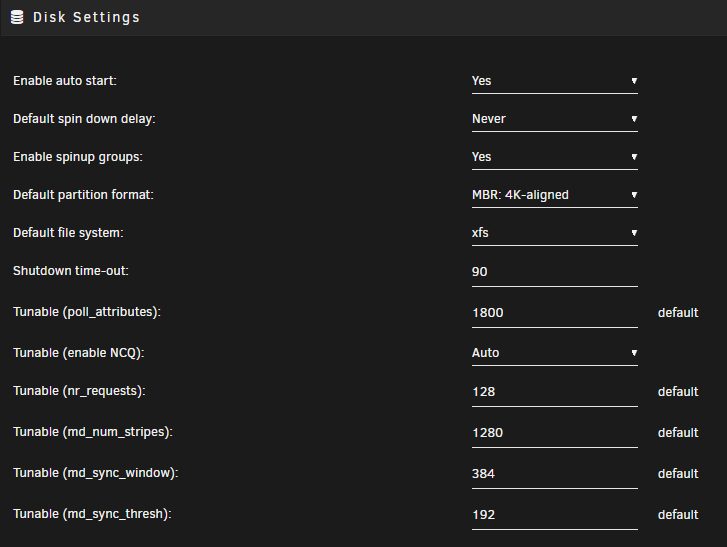

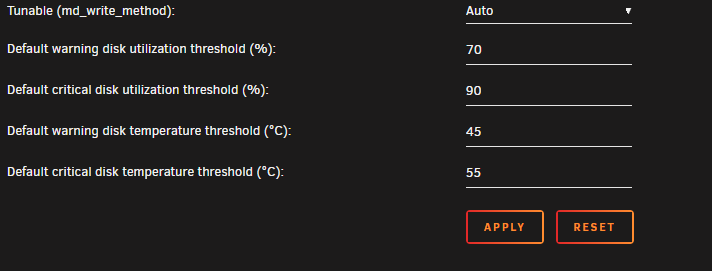

March 17, 20197 yr Author Those are my disk setting. You tell me if there any setting wrong that's minus for auto start Array is out of the box. Oh I don't spin the disks down either Plex has huge problems when the disks are spun down.
March 17, 20197 yr Author 5 hours ago, trurl said: What is the exact model of your power supply? Not related, but why is your system share cache-no and on disk10? Not sure why its on for disk 10. I disabled it on my ssd for troubleshooting as it would drop offline under heavy loads... Marvell controller more than likely dropping it... Waiting to get payed so I can get that LSI card and 2 break out cables.
March 17, 20197 yr Community Expert You want system, appdata, and domains shares to stay on cache so your dockers and VMs won't have their performance impacted by the slower writes to the parity array, and so they won't keep parity and array disk(s) spinning. This should be easy to fix after you get your system stable.
March 29, 20197 yr Author On 3/17/2019 at 5:31 PM, trurl said: You want system, appdata, and domains shares to stay on cache so your dockers and VMs won't have their performance impacted by the slower writes to the parity array, and so they won't keep parity and array disk(s) spinning. This should be easy to fix after you get your system stable. Awaiting my proper raid card to ship from china, once i get it should there be any concern re what drives were on what HBA sata controller card? Or will unraid just see all the drives and continue as nothing has happened?
March 29, 20197 yr Community Expert As long as the replacement card passes through the drive serial numbers unchanged then Unraid will simply pick them up and continue without problems. UnRAID does not worry about how drives are connected - it just goes by their serial numbers. Having said that a screenshot of your setup is always a good idea before making such changes..
April 6, 20197 yr Author Well thought i'd report. I just installed an LSI card flashed into IT mode. It's running Parity currently & has not dropped offline its a few hours into it. Before it would have dropped offline with in minutes.
