Hi there



I installed a sas-9207-4i4e controller (got it for free with the server) in my HP MIcrosserver Gen8 and connected a 3TB hard disk. In ILO I can see the storage controller. In unRAID I don't see a hard disk under unassigned devices.



Do I have to install an additional driver or activate something else? Or can I check at least the drivers somehow?



Note: The HD works if it is connected directly to the SATA port of the server.

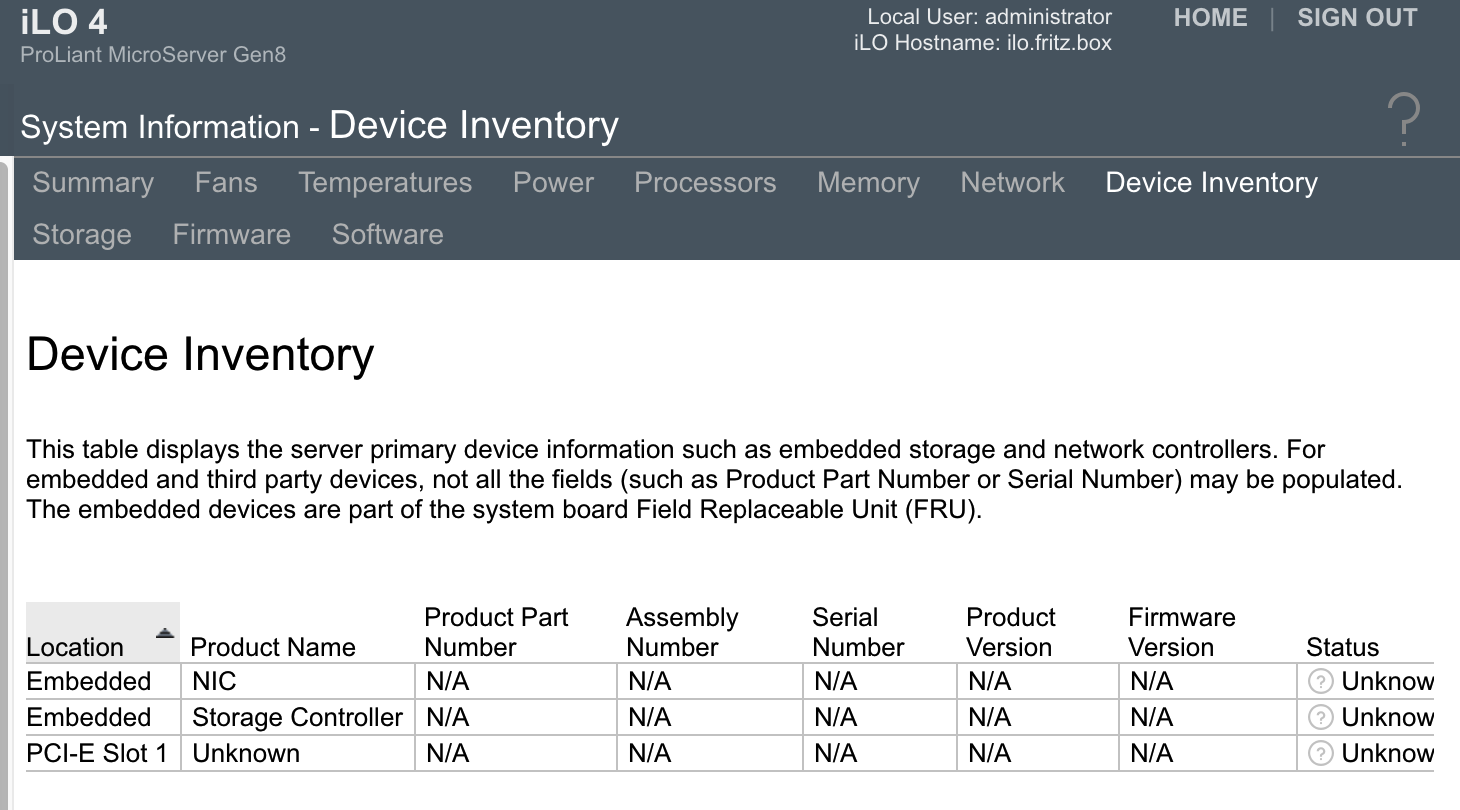

Added config zip screenshot from ILO



Thanks for any advice

gregor



tower-diagnostics-20190207-1552.zip

9207 are plug and play, please post the diagnostics, also make sure you're using the correct breakout cable, you need forward breakout, reverse breakout looks the same but won't work.

Thx for this fast reply.

diagnostic. Zip is attached in thr previous post.

What do you mean with the cables. I connected a "normal" cable. This one https://www.digitec.ch/de/s1/product/3ware-cbl-sff8087ocf-10m-sff-8087-zu-4-x-sata-1m-server-zubehoer-289454

Gesendet von meinem ONEPLUS A5000 mit Tapatalk

It's working! I hadn't plugged the plug all the way into the socket. the click was missing...

Sorry for running around for me and thank you very much.

how can I set the thread to "solved"'



1 minute ago, johnnie.black said:



thanks. I clicked around everywhere but was not holding
