February 11, 20197 yr I've tried running the mover but I'm having a hard time figuring out just what is taking up my space. I have a 250gb SSD and Currently it's at 192GB normally it's around 100-150GB depending what i'm downloading on a given day. I'm just not sure what's taking up space.
February 11, 20197 yr You could try installing the QDirStat Docker. It can give you a good overview of your storage. From the cli you can also use the command "du -sh <target>" on the individual folders on your cache drive to figure it out.
February 11, 20197 yr Author 8 minutes ago, Taddeusz said: You could try installing the QDirStat Docker. It can give you a good overview of your storage. From the cli you can also use the command "du -sh <target>" on the individual folders on your cache drive to figure it out. Thank you, I've downloaded the docker but I'm having trouble locating the cache drive specifically.
February 11, 20197 yr Just now, BSAVAG3 said: Thank you, I've downloaded the docker but I'm having trouble locating the cache drive specifically. On mine /storage is pointing to /mnt/user so change it to /mnt and you should be able to find /mnt/cache
February 11, 20197 yr Community Expert Just go to Tools - Diagnostics and attach the complete diagnostics zip file to your next post. There are probably some details you will have to work through and QDirStat won't give you enough information to know anything except what is on cache. It won't help you fix how things are getting put on cache or why they might be staying on cache.
February 11, 20197 yr Author Also I've been noticing my docker img keeps filling up quickly. I was at the default 20GB then I raised it to 40GB and now I see that's almost full.
February 11, 20197 yr Community Expert 3 minutes ago, BSAVAG3 said: Also I've been noticing my docker img keeps filling up quickly. I was at the default 20GB then I raised it to 40GB and now I see that's almost full. That almost certainly means you have made a mistake somewhere in the configuration of a docker container so that data that should be external to the container is instead being written inside the container.
February 11, 20197 yr Community Expert I haven't had a chance to look at your diagnostics yet. 2 minutes ago, BSAVAG3 said: Also I've been noticing my docker img keeps filling up quickly. I was at the default 20GB then I raised it to 40GB and now I see that's almost full. It should never be necessary to have more than 20G for your docker image. Increasing its size will not fix it, it just makes it take longer to fill it up. You need to fix whatever is filling it up. This is caused by an application that is misconfigured so that it is writing to a path that isn't mapped to Unraid storage. Typical mistakes is not using the same upper/lower case when setting things up, or not putting a '/' character as the first character in a path. What dockers are you using?
February 11, 20197 yr Author The main one I can think of would be Plex, but after looking the only thing I see with logs is under plexpy. It's showing /logs <-- /mnt/cache/appdata/PlexMediaServer/Library/Application Support/Plex Media Server/Logs/ So does this mean that Plex is storing the logs here?
February 11, 20197 yr Community Expert You have a user share, starts with 'D' and ends with 's' (maybe named Downloads?). It is set to cache-prefer. That setting is going to make Unraid write those files to cache, and when mover runs, it will try (prefer) to get any other files for that share moved from the array to cache. So that is the most likely culprit for your cache filling up. Also, your appdata share has some files on disk1. Settings - Docker and disable the docker service. Shares - User Shares and click on that share whose name starts with 'D' and ends with 's', and set it to cache-yes. Main - Array Operations and click Move Now. Wait for it to finish. Shares - User Shares and click the Compute All button at the bottom. Wait (takes a while) for it to produce the result then post a screenshot.
February 11, 20197 yr Community Expert 1 minute ago, BSAVAG3 said: The main one I can think of would be Plex, but after looking the only thing I see with logs is under plexpy. It's showing /logs <-- /mnt/cache/appdata/PlexMediaServer/Library/Application Support/Plex Media Server/Logs/ So does this mean that Plex is storing the logs here? No, that is the volume mappings in the settings for that container. The likely problem will be within an actual application and what paths you have told it to use. It must only use paths that are mapped. Do you have any docker application that downloads anything?
February 11, 20197 yr Author 1 minute ago, trurl said: No, that is the volume mappings in the settings for that container. The likely problem will be within an actual application and what paths you have told it to use. It must only use paths that are mapped. Do you have any docker application that downloads anything? I do not, I just use my VM to download things.
February 11, 20197 yr Community Expert Just follow my instructions above for now. After we get things setup so you aren't filling cache anymore we will recreate that docker image at 20G and try to work through that issue.
February 11, 20197 yr Author 4 minutes ago, trurl said: Just follow my instructions above for now. After we get things setup so you aren't filling cache anymore we will recreate that docker image at 20G and try to work through that issue. OK, moving things now.
February 11, 20197 yr Community Expert Some of appdata is still on disk1. Maybe there wasn't enough room on cache to move it until the Downloads folder got moved off cache. Try running mover again, and then check that page again. Instead of Compute All, you can just click on the Compute... next to the appdata share.
February 11, 20197 yr Author 2 minutes ago, trurl said: Some of appdata is still on disk1. Maybe there wasn't enough room on cache to move it until the Downloads folder got moved off cache. Try running mover again, and then check that page again. Instead of Compute All, you can just click on the Compute... next to the appdata share. When I click on the mover it runs and does nothing. It appears that there is nothing to move. It lets me click Move Now again immediately
February 11, 20197 yr Community Expert Sorry, just checked again, and your appdata share is set to cache-only. Mover will ignore it like that. Set it to cache-prefer and run mover again.

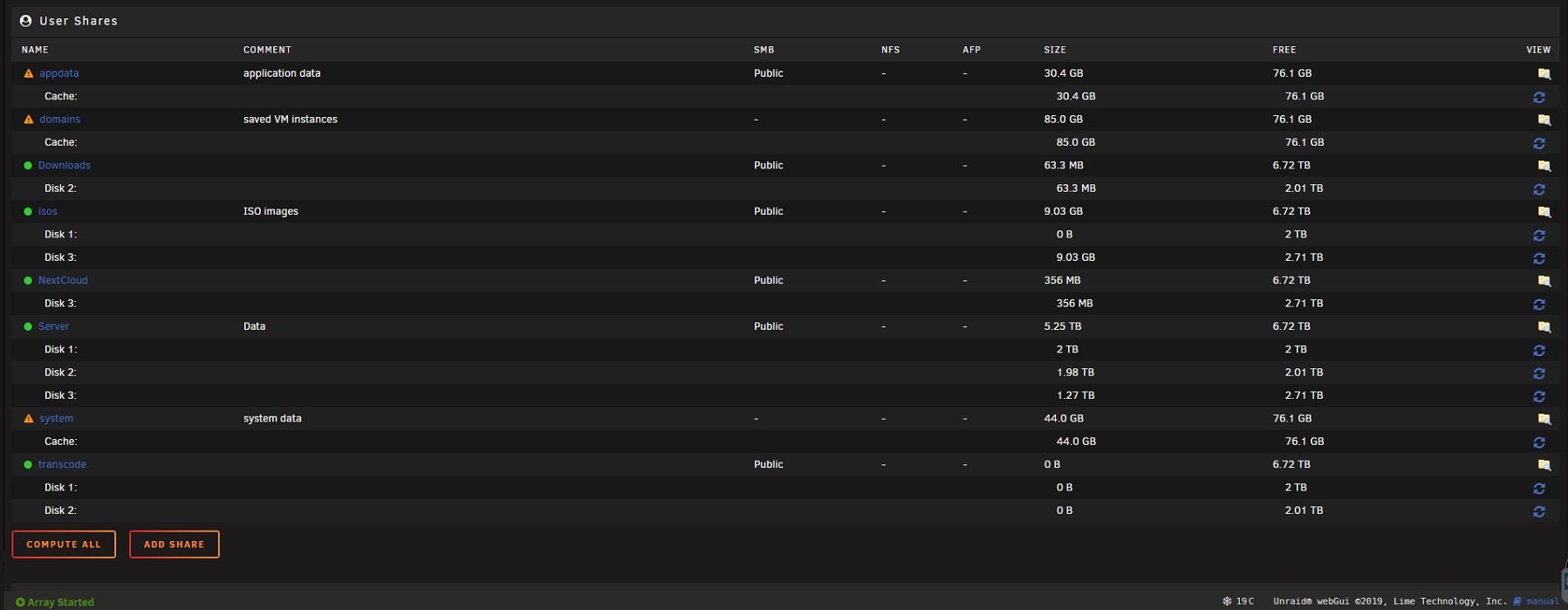

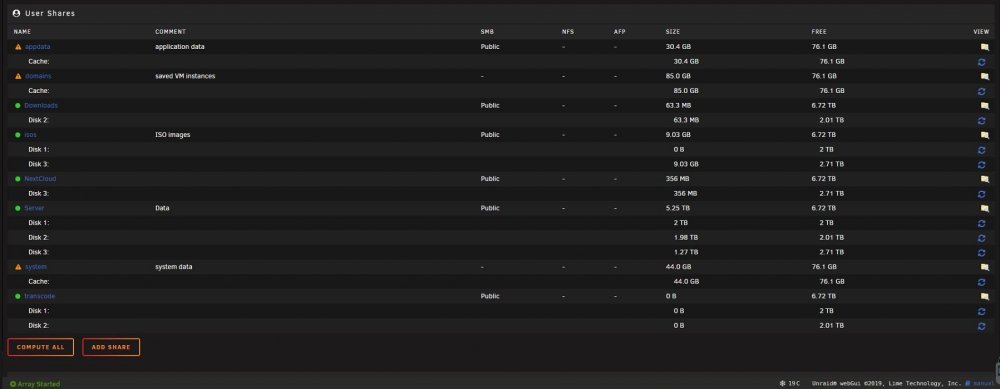

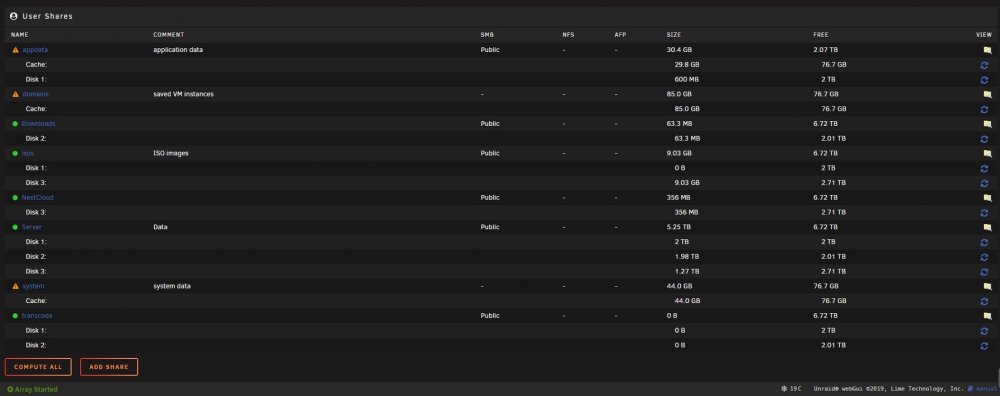

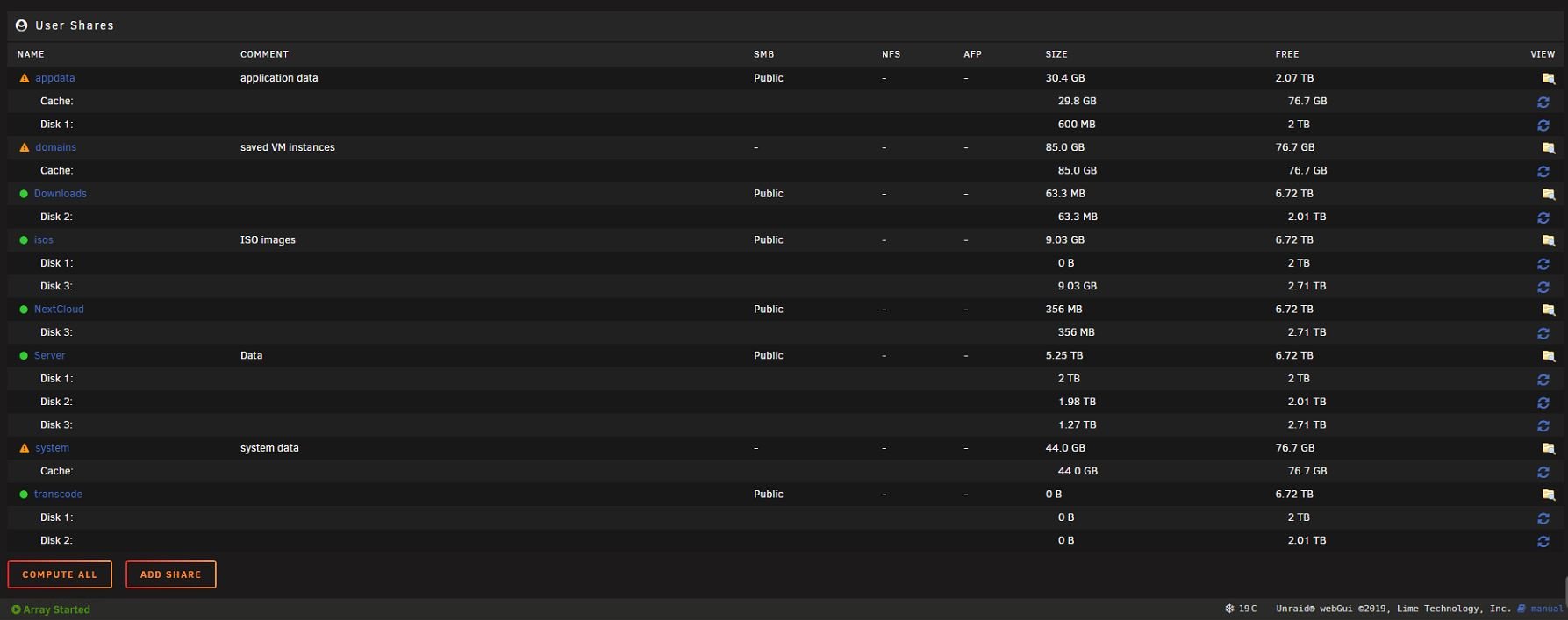

February 11, 20197 yr Author 12 minutes ago, trurl said: Sorry, just checked again, and your appdata share is set to cache-only. Mover will ignore it like that. Set it to cache-prefer and run mover again. Here are the results for after
February 11, 20197 yr Community Expert Looks good. I have to go away for a couple hours. Give us a list of your dockers.

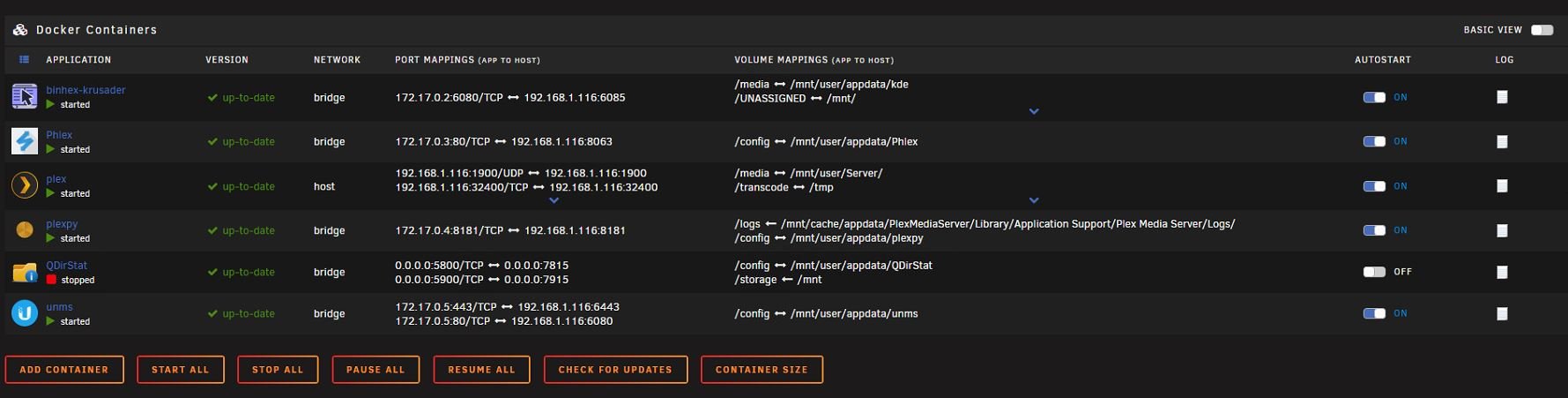

February 11, 20197 yr Author 2 minutes ago, trurl said: Looks good. I have to go away for a couple hours. Give us a list of your dockers. Here is the current dockers I've got installed

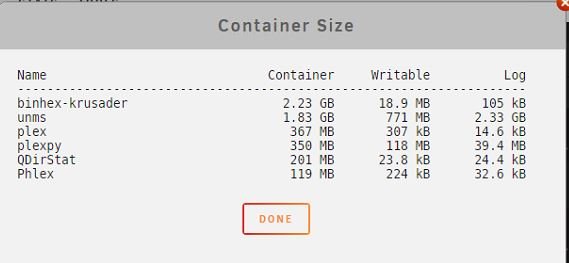

February 11, 20197 yr Community Expert Click on the Container Size button at lower right and post a screenshot.
