Whoami Posted March 18, 2019 Share Posted March 18, 2019 (edited) I'm trying to passthrough my asus xonar phoebus soundcard which is listed as: C-Media Electronics Inc CM8888 [Oxygen Express] for my 2 users 1 cpu, i got a Ryzen 1800x This are the current IOMMMU groups with ASC on Both: IOMMU group 0: [1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 1: [1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 2: [1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 3: [1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 4: [1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 5: [1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 6: [1022:1453] 00:03.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge IOMMU group 7: [1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 8: [1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 9: [1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B IOMMU group 10: [1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge IOMMU group 11: [1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B IOMMU group 12: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 13: [1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6 [1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 IOMMU group 14: [144d:a808] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981 IOMMU group 15: [1022:43b9] 02:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X370 Series Chipset USB 3.1 xHCI Controller (rev 02) IOMMU group 16: [1022:43b5] 02:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X370 Series Chipset SATA Controller (rev 02) IOMMU group 17: [1022:43b0] 02:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X370 Series Chipset PCIe Upstream Port (rev 02) IOMMU group 18: [1022:43b4] 03:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1b21:1343] 04:00.0 USB controller: ASMedia Technology Inc. ASM1143 USB 3.1 Host Controller IOMMU group 19: [1022:43b4] 03:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 20: [1022:43b4] 03:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 21: [1022:43b4] 03:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 22: [1022:43b4] 03:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [13f6:5011] 08:00.0 Audio device: C-Media Electronics Inc CM8888 [Oxygen Express] IOMMU group 23: [1022:43b4] 03:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 24: [1022:43b4] 03:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) IOMMU group 25: [10de:17c8] 0b:00.0 VGA compatible controller: NVIDIA Corporation GM200 [GeForce GTX 980 Ti] (rev a1) IOMMU group 26: [10de:0fb0] 0b:00.1 Audio device: NVIDIA Corporation GM200 High Definition Audio (rev a1) IOMMU group 27: [10de:1b06] 0c:00.0 VGA compatible controller: NVIDIA Corporation GP102 [GeForce GTX 1080 Ti] (rev a1) IOMMU group 28: [10de:10ef] 0c:00.1 Audio device: NVIDIA Corporation GP102 HDMI Audio Controller (rev a1) IOMMU group 29: [1022:145a] 0d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a IOMMU group 30: [1022:1456] 0d:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor IOMMU group 31: [1022:145c] 0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller IOMMU group 32: [1022:1455] 0e:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455 IOMMU group 33: [1022:7901] 0e:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 34: [1022:1457] 0e:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller If i'm correct it should add this to the VM: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> </hostdev> But when i try to start the VM i get the following error: internal error: qemu unexpectedly closed the monitor: 2019-03-18T18:05:47.768641Z qemu-system-x86_64: -device vfio-pci,host=08:00.0,id=hostdev0,bus=pci.0,addr=0x9: vfio error: 0000:08:00.0: failed to add PCI capability 0x11[0x54]@0xac: table & pba overlap, or they don't fit in BARs, or don't align This is the XML i'm using: <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 10 - Suus</name> <uuid>c7f17305-e96c-2786-7fa7-5386e7925fef</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>14680064</memory> <currentMemory unit='KiB'>14680064</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='3'/> <vcpupin vcpu='4' cpuset='4'/> <vcpupin vcpu='5' cpuset='5'/> <vcpupin vcpu='6' cpuset='6'/> <vcpupin vcpu='7' cpuset='7'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-3.0'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/c7f17305-e96c-2786-7fa7-5386e7925fef_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='8' threads='1'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 10 - Suus/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 10 - Suus/vdisk2.img'/> <target dev='hdd' bus='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Windows10_InsiderPreview_Client_x64_en-us_18343.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.160-1.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:2f:bc:bd'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='3'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1b1c'/> <product id='0x1b11'/> </source> <address type='usb' bus='0' port='1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x1b1c'/> <product id='0x1b14'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </memballoon> </devices> </domain> When i'm using the GUI and select the Xonar phoebus which is listed as: C-Media Electronics Inc CM8888 [Oxygen Express] i'm getting the same error: internal error: qemu unexpectedly closed the monitor: 2019-03-18T18:11:51.103569Z qemu-system-x86_64: -device vfio-pci,host=08:00.0,id=hostdev0,bus=pci.0,addr=0x8: vfio error: 0000:08:00.0: failed to add PCI capability 0x11[0x54]@0xac: table & pba overlap, or they don't fit in BARs, or don't align Edited March 22, 2019 by Whoami title edit Quote Link to comment
bastl Posted March 22, 2019 Share Posted March 22, 2019 (edited) On 3/18/2019 at 7:12 PM, Whoami said: IOMMU group 22: [1022:43b4] 03:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [13f6:5011] 08:00.0 Audio device: C-Media Electronics Inc CM8888 [Oxygen Express] @Whoami Your sound device isn't in it's own IOMMU group. You won't be able to pass it through if it's not. The port you have plugged it in is connected via the chipset to the CPU where other devices also connected to. Splitting the devices with the ACS override patch mostly helps a bit but in your case the sound card is still grouped together with one of the PCIe Ports. Try to change to another PCIe slot which isn't connected to the PCH. Edit: What also could help is a updated BIOS version if available. If you're lucky this could fix it. Early days for me on Threadripper the IOMMU groupings were really bad and you couldn't really split them in individual groups with the ACS_patch. A couple BIOS revs. later and this wasn't a issue anymore for me. example without ACS: IOMMU group 13: [1022:43ba] 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02) [1022:43b6] 01:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset SATA Controller (rev 02) [1022:43b1] 01:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset PCIe Bridge (rev 02) [1022:43b4] 02:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 02:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 02:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1022:43b4] 02:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02) [1d6a:d107] 03:00.0 Ethernet controller: Aquantia Corp. AQC107 NBase-T/IEEE 802.3bz Ethernet Controller [AQtion] (rev 02) [8086:1539] 04:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) [8086:24fb] 05:00.0 Network controller: Intel Corporation Dual Band Wireless-AC 3168NGW [Stone Peak] (rev 10) [8086:1539] 06:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) Not possible to pass any of that network devices to a VM. With ACS applied all devices will be split in it's own groups now with an up-to-date BIOS. 1 year ago this looked different. All networking devices were still grouped together and also the SATA and the USB controller showed in one group. Unfortunately i can't provide you a screenshot from back in the days. Edited March 22, 2019 by bastl Quote Link to comment
Whoami Posted March 24, 2019 Author Share Posted March 24, 2019 (edited) @bastl I updated the bios and now with acs overide its in its own IOMMU group ( 27 ) IOMMU group 27: [13f6:5011] 08:00.0 Audio device: C-Media Electronics Inc CM8888 [Oxygen Express] but i still get the following message: internal error: qemu unexpectedly closed the monitor: 2019-03-24T15:59:00.149412Z qemu-system-x86_64: -device vfio-pci,host=08:00.0,id=hostdev0,bus=pci.0,addr=0x8: vfio error: 0000:08:00.0: failed to add PCI capability 0x11[0x54]@0xac: table & pba overlap, or they don't fit in BARs, or don't align Edited March 24, 2019 by Whoami edit Quote Link to comment
bastl Posted March 25, 2019 Share Posted March 25, 2019 If I`'am not wrong, some users get that error on the current stable 6.6 release for some specific controllers on some NVME drives. @limetech added support for them with the RC versions. This will not affect you but maybe Limetech can add this on the list if the next kernel will not add support for this card. Quote Link to comment
Whoami Posted March 25, 2019 Author Share Posted March 25, 2019 @bastl I found that as well yes, would be nice if @limetech could add it to the list if they need any information please let me know, i tried the NEXT version as well but that doesn't work as well so it definitely needs something in the kernel. Quote Link to comment
Whoami Posted March 25, 2019 Author Share Posted March 25, 2019 (edited) If i'm correct is saw on other topics, that the asus DGX works fine, can anyone confirm this? Edited March 25, 2019 by Whoami typo Quote Link to comment
wheelhouse2009 Posted May 9, 2020 Share Posted May 9, 2020 did you ever get the sound card working ? Quote Link to comment
TurkeyPerson Posted July 28, 2020 Share Posted July 28, 2020 (edited) Also have the same error with the same card in 6.8.3 (perhaps a different packaging though): https://www.amazon.ca/gp/product/B00X7B2NY0/ Any updates on this? Anyone got any thoughts? I could return it - but I feel like I'm constantly struggling to get a functioning VM (and I need SPDIF because I have an old receiver). For awhile, I had onboard audio passed through, but it was flaky and eventually just stopped working altogether. tower-diagnostics-20200507-0955.zip Quote IOMMU group 0:[8086:591f] 00:00.0 Host bridge: Intel Corporation Xeon E3-1200 v6/7th Gen Core Processor Host Bridge/DRAM Registers (rev 05) IOMMU group 1:[8086:1901] 00:01.0 PCI bridge: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x16) (rev 05) IOMMU group 2:[8086:1905] 00:01.1 PCI bridge: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x8) (rev 05) IOMMU group 3:[8086:a2af] 00:14.0 USB controller: Intel Corporation 200 Series/Z370 Chipset Family USB 3.0 xHCI Controller IOMMU group 4:[8086:a2ba] 00:16.0 Communication controller: Intel Corporation 200 Series PCH CSME HECI #1 IOMMU group 5:[8086:a282] 00:17.0 SATA controller: Intel Corporation 200 Series PCH SATA controller [AHCI mode] IOMMU group 6:[8086:a2e7] 00:1b.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #17 (rev f0) IOMMU group 7:[8086:a2ed] 00:1b.6 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #23 (rev f0) IOMMU group 8:[8086:a290] 00:1c.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #1 (rev f0) IOMMU group 9:[8086:a291] 00:1c.1 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #2 (rev f0) IOMMU group 10:[8086:a294] 00:1c.4 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #5 (rev f0) IOMMU group 11:[8086:a296] 00:1c.6 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #7 (rev f0) IOMMU group 12:[8086:a298] 00:1d.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #9 (rev f0) IOMMU group 13:[8086:a2c5] 00:1f.0 ISA bridge: Intel Corporation 200 Series PCH LPC Controller (Z270) [8086:a2a1] 00:1f.2 Memory controller: Intel Corporation 200 Series/Z370 Chipset Family Power Management Controller [8086:a2f0] 00:1f.3 Audio device: Intel Corporation 200 Series PCH HD Audio [8086:a2a3] 00:1f.4 SMBus: Intel Corporation 200 Series/Z370 Chipset Family SMBus Controller IOMMU group 14:[8086:15b8] 00:1f.6 Ethernet controller: Intel Corporation Ethernet Connection (2) I219-V IOMMU group 15:[10de:1b81] 01:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX 1070] (rev a1) [10de:10f0] 01:00.1 Audio device: NVIDIA Corporation GP104 High Definition Audio Controller (rev a1) IOMMU group 16:[1912:0014] 02:00.0 USB controller: Renesas Technology Corp. uPD720201 USB 3.0 Host Controller (rev 03) IOMMU group 17:[1987:5007] 03:00.0 Non-Volatile memory controller: Phison Electronics Corporation E7 NVMe Controller (rev 01) IOMMU group 18:[13f6:5011] 04:00.0 Audio device: C-Media Electronics Inc CM8888 [Oxygen Express] IOMMU group 19:[1b4b:9215] 05:00.0 SATA controller: Marvell Technology Group Ltd. Device 9215 (rev 11) IOMMU group 20:[12d8:2304] 06:00.0 PCI bridge: Pericom Semiconductor PI7C9X2G304 EL/SL PCIe2 3-Port/4-Lane Packet Switch (rev 05) IOMMU group 21:[12d8:2304] 07:01.0 PCI bridge: Pericom Semiconductor PI7C9X2G304 EL/SL PCIe2 3-Port/4-Lane Packet Switch (rev 05) IOMMU group 22:[12d8:2304] 07:02.0 PCI bridge: Pericom Semiconductor PI7C9X2G304 EL/SL PCIe2 3-Port/4-Lane Packet Switch (rev 05) IOMMU group 23:[14f1:8880] 08:00.0 Multimedia video controller: Conexant Systems, Inc. CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb (rev 04) IOMMU group 24:[14f1:8880] 09:00.0 Multimedia video controller: Conexant Systems, Inc. CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb (rev 04) IOMMU group 25:[1b21:2142] 0a:00.0 USB controller: ASMedia Technology Inc. ASM2142 USB 3.1 Host Controller IOMMU group 26:[1b21:2142] 0b:00.0 USB controller: ASMedia Technology Inc. ASM2142 USB 3.1 Host Controller Edited July 28, 2020 by TurkeyPerson Attaching some information Quote Link to comment
dmwa Posted December 11, 2020 Share Posted December 11, 2020 Was a solution to this found? My sound card - looks like the same one- is also on its own IOMMU group and I get the same error message. So interested to know if you found a work around. Quote Link to comment
DEOVI Posted March 5, 2022 Share Posted March 5, 2022 (edited) Hey guys, I stumbled on the same issue and was wondering if there was a solution. I did made as far as getting the error out of the way. I found this post on the forums and it cleared the error. MY VM is up now with the sound card enabled on Unraid; detail is that I don't see it within the VM itself. I tried to run the sound card driver and no luck. Atheros AR9280 Wireless Card BAR error - VM Engine (KVM) - Unraid https://forums.unraid.net/topic/120232-atheros-ar9280-wireless-card-bar-error/ Quote In that discussion, some user is reporting it working with the following mod, try to add custom qemu arg at the bottom of your xml, before </domain>. From your picture your pci passthrough should have the alias hostdev1. - ghost82 ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.hostdev1.x-msix-relocation=bar2'/> </qemu:commandline> </domain> If anyone has an update, it would be great. Edited March 5, 2022 by DEOVI Quote Link to comment

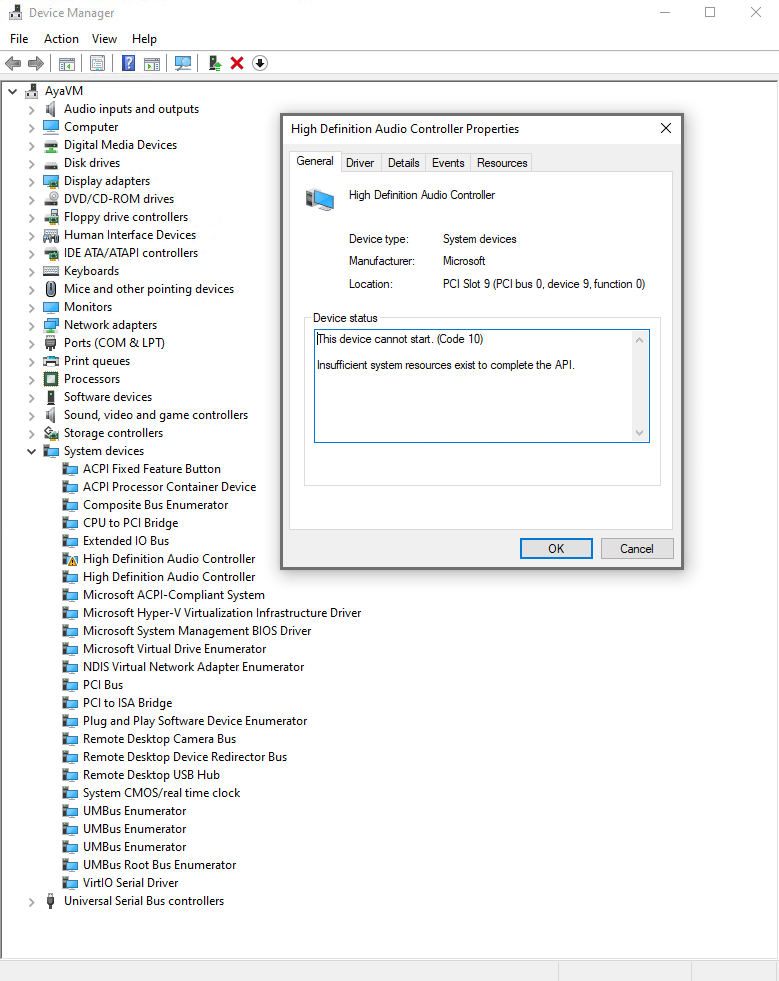

DEOVI Posted March 5, 2022 Share Posted March 5, 2022 1 hour ago, DEOVI said: Hey guys, I stumbled on the same issue and was wondering if there was a solution. I did made as far as getting the error out of the way. I found this post on the forums and it cleared the error. MY VM is up now with the sound card enabled on Unraid; detail is that I don't see it within the VM itself. I tried to run the sound card driver and no luck. Atheros AR9280 Wireless Card BAR error - VM Engine (KVM) - Unraid https://forums.unraid.net/topic/120232-atheros-ar9280-wireless-card-bar-error/ - ghost82 ... ... <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.hostdev1.x-msix-relocation=bar2'/> </qemu:commandline> </domain> If anyone has an update, it would be great. Update: I can confirm as far as this. The sound card is passed but it's not recognized correctly. The installer attempts to locate the device but it's unsuccessful due to it's current state. Here's the XML <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='1' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>Windows 10</name> <uuid>8e8a7f0b-ae27-ccc2-6b85-588cc0651f85</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='9'/> <vcpupin vcpu='2' cpuset='3'/> <vcpupin vcpu='3' cpuset='11'/> <vcpupin vcpu='4' cpuset='5'/> <vcpupin vcpu='5' cpuset='13'/> <vcpupin vcpu='6' cpuset='7'/> <vcpupin vcpu='7' cpuset='15'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-5.1'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='4' threads='2'/> <cache mode='passthrough'/> <feature policy='require' name='topoext'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 10/vdisk1.img' index='3'/> <backingStore/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <alias name='virtio-disk2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Windows/Windows 07072021.iso' index='2'/> <backingStore/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.190-1.iso' index='1'/> <backingStore/> <target dev='hdb' bus='sata'/> <readonly/> <alias name='sata0-0-1'/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </controller> <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> </controller> <controller type='sata' index='0'> <alias name='sata0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:a2:ab:8b'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio-net'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-1-Windows 10/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> <address type='usb' bus='0' port='3'/> </input> <input type='mouse' bus='ps2'> <alias name='input1'/> </input> <input type='keyboard' bus='ps2'> <alias name='input2'/> </input> <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x10' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <rom file='/mnt/user/isos/EVGA.GTX970.4096.140909.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x10' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0d' slot='0x00' function='0x0'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc52b'/> <address bus='1' device='5'/> </source> <alias name='hostdev3'/> <address type='usb' bus='0' port='1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x28de'/> <product id='0x1142'/> <address bus='3' device='3'/> </source> <alias name='hostdev4'/> <address type='usb' bus='0' port='2'/> </hostdev> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> <qemu:commandline> <qemu:arg value='-set'/> <qemu:arg value='device.hostdev2.x-msix-relocation=bar2'/> </qemu:commandline> </domain> Quote Link to comment
dmwa Posted March 8, 2022 Share Posted March 8, 2022 Sorry. I used all the time I was willing to put into getting it to work and went to a USB sound device. That works fine. Still have the sound card and I intend to give it another shot at some point. Quote Link to comment
LordShad0w Posted September 5, 2023 Share Posted September 5, 2023 Late 2023 Bump? Replaced Mobo yesterday and it has a PCI slot that works with my old Asus card so checking if anything ever came of this. CHeers! Quote Link to comment
dmwa Posted September 8, 2023 Share Posted September 8, 2023 No. No luck. The usb sound device is working so sorting out the sound card was low priority to other things I needed to do. Quote Link to comment
