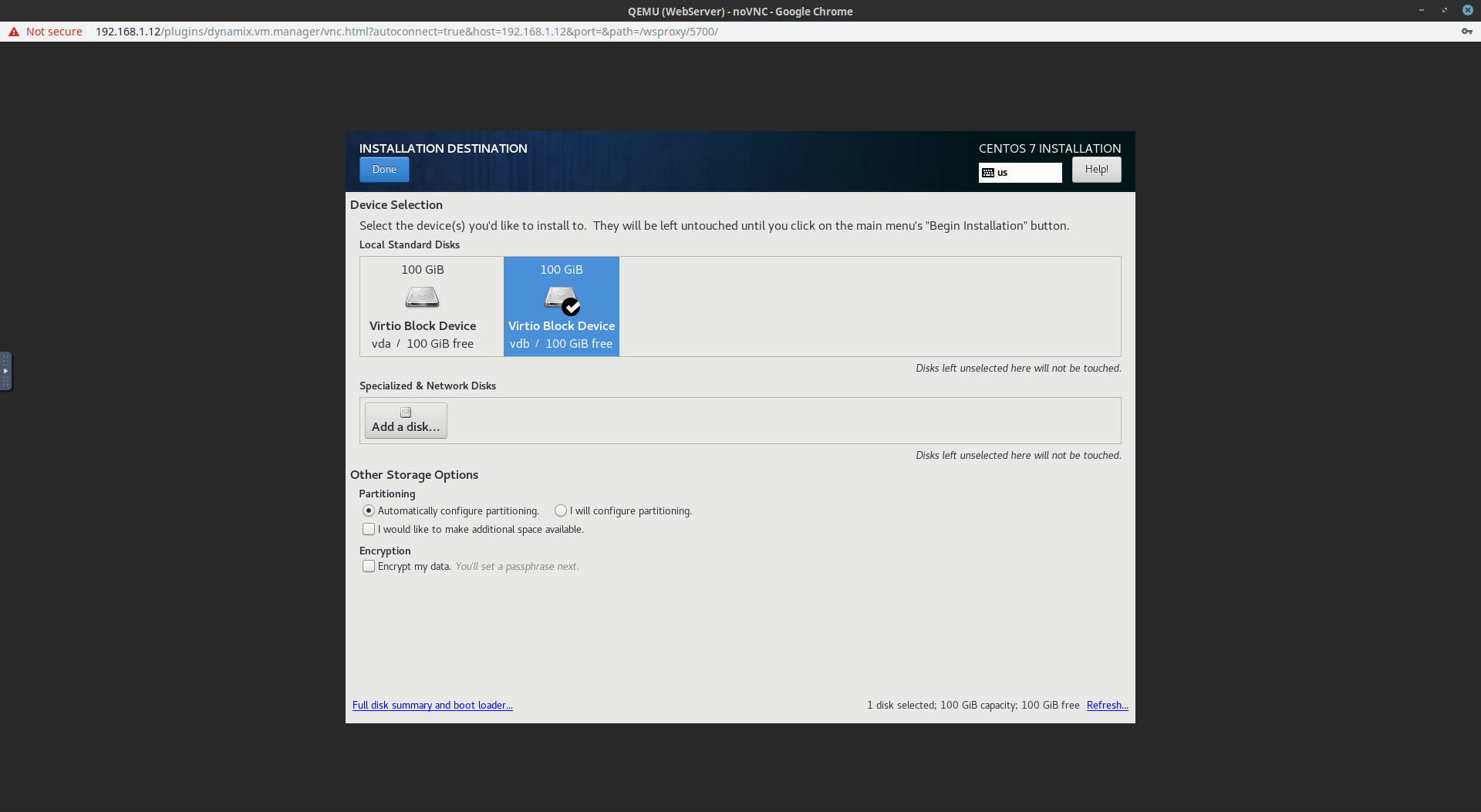

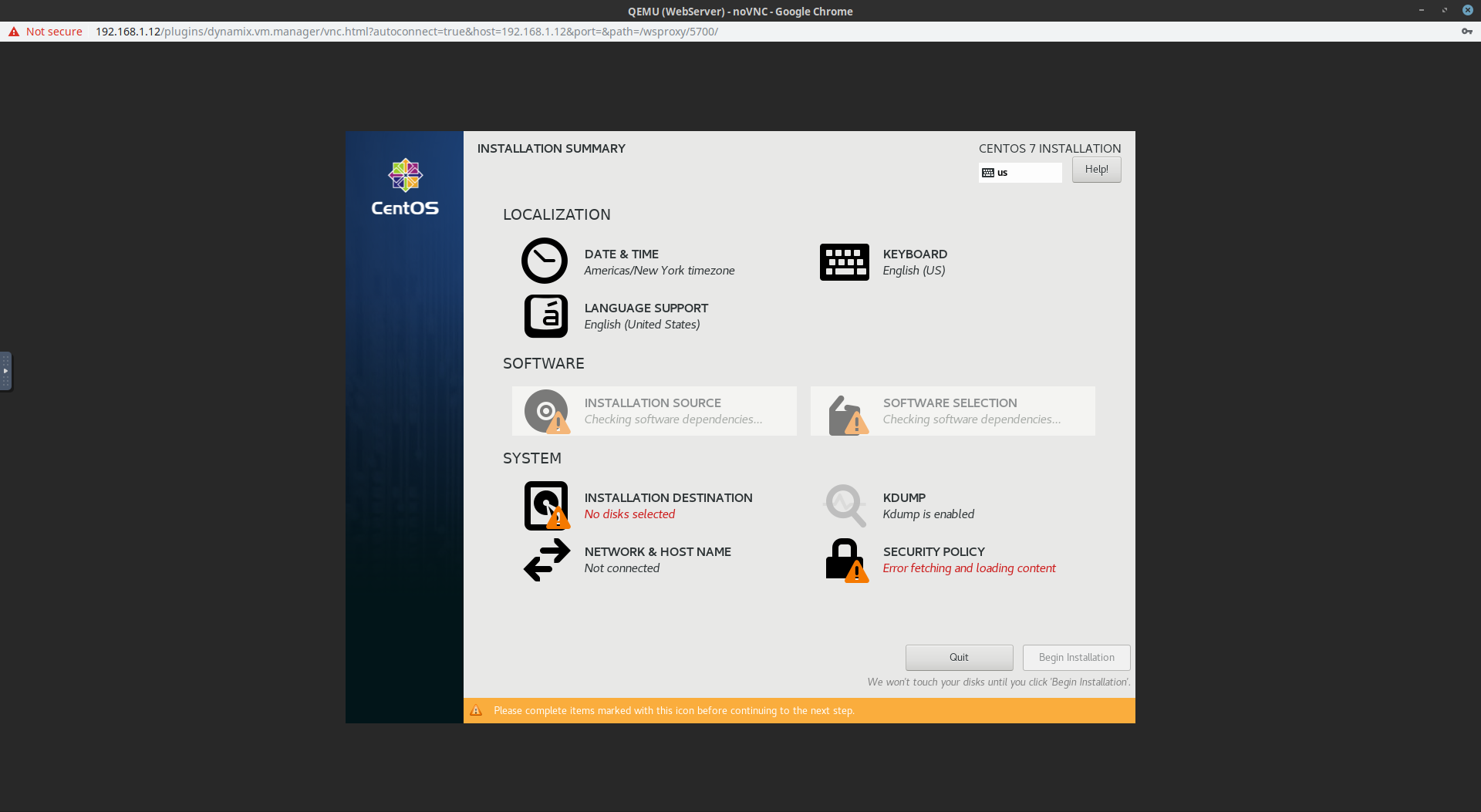

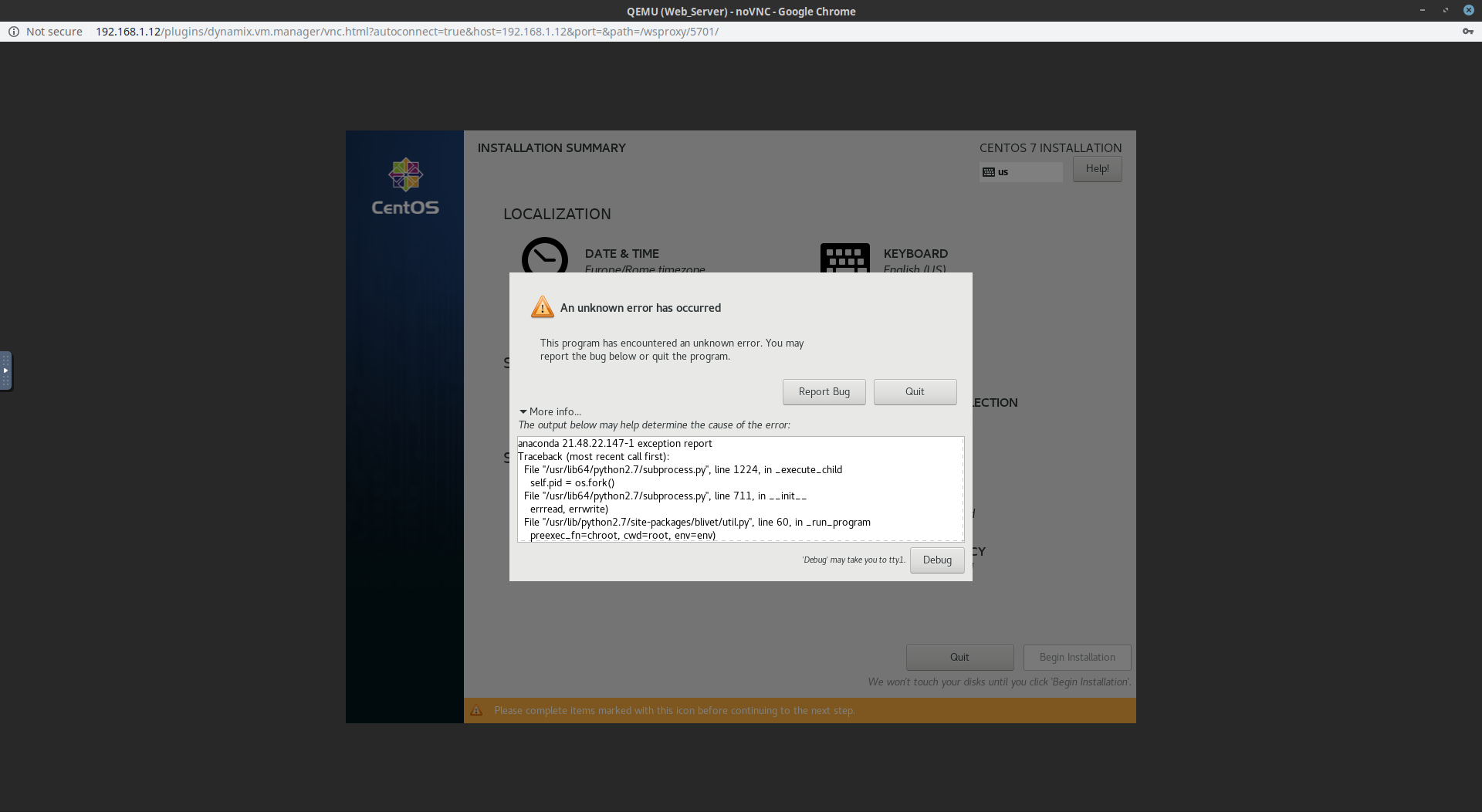

mattcrem Posted March 24, 2019 Share Posted March 24, 2019 Hi all, still new to unraid and getting used to how it works. I'm trying to install a CentOS Vm however it crashes when the first installer page loads. Attached screenshots of what I'm getting. Qemu Logs: 2019-03-24 17:36:15.054+0000: starting up libvirt version: 4.7.0, qemu version: 3.0.0, kernel: 4.18.20-unRAID, hostname: CremonaNas LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=WebServer,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-2-WebServer/master-key.aes -machine pc-q35-3.0,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host -m 8192 -realtime mlock=off -smp 4,sockets=1,cores=4,threads=1 -uuid d3063725-384f-b0c2-6d57-b6b3e56e49fa -no-user-config -nodefaults -chardev socket,id=charmonitor,fd=27,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=utc,driftfix=slew -global kvm-pit.lost_tick_policy=delay -no-hpet -no-shutdown -boot strict=on -device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 -device pcie-root-port,port=0x11,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x1 -device pcie-root-port,port=0x12,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x2 -device pcie-root-port,port=0x13,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x3 -device pcie-root-port,port=0x14,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x4 -device pcie-root-port,port=0x15,chassis=6,id=pci.6,bus=pcie.0,addr=0x2.0x5 -device qemu-xhci,p2=15,p3=15,id=usb,bus=pcie.0,addr=0x7 -device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 -drive file=/mnt/user/domains/WebServer/vdisk1.img,format=raw,if=none,id=drive-virtio-disk2,cache=writeback -device virtio-blk-pci,scsi=off,bus=pci.3,addr=0x0,drive=drive-virtio-disk2,id=virtio-disk2,bootindex=1,write-cache=on -drive file=/mnt/user/domains/WebServer/vdisk2.img,format=raw,if=none,id=drive-virtio-disk3,cache=writeback -device virtio-blk-pci,scsi=off,bus=pci.4,addr=0x0,drive=drive-virtio-disk3,id=virtio-disk3,write-cache=on -drive file=/mnt/user/isos/CentOS-7-x86_64-DVD-1810.iso,format=raw,if=none,id=drive-sata0-0-0,media=cdrom,readonly=on -device ide-cd,bus=ide.0,drive=drive-sata0-0-0,id=sata0-0-0,bootindex=2 -netdev tap,fd=29,id=hostnet0,vhost=on,vhostfd=30 -device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:19:4e:e0,bus=pci.1,addr=0x0 -chardev pty,id=charserial0 -device isa-serial,chardev=charserial0,id=serial0 -chardev socket,id=charchannel0,fd=31,server,nowait -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device usb-tablet,id=input0,bus=usb.0,port=1 -vnc 0.0.0.0:0,websocket=5700,password -k en-us -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 -device virtio-balloon-pci,id=balloon0,bus=pci.5,addr=0x0 -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny -msg timestamp=on 2019-03-24 17:36:15.054+0000: Domain id=2 is tainted: high-privileges 2019-03-24 17:36:15.054+0000: Domain id=2 is tainted: host-cpu 2019-03-24T17:36:15.099478Z qemu-system-x86_64: -chardev pty,id=charserial0: char device redirected to /dev/pts/1 (label charserial0) VM settings: <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='2'> <name>WebServer</name> <uuid>d3063725-384f-b0c2-6d57-b6b3e56e49fa</uuid> <metadata> <vmtemplate xmlns="unraid" name="CentOS" icon="centos.png" os="centos"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>1048576</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='3'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-3.0'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='4' threads='1'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/WebServer/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <alias name='virtio-disk2'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </disk> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/WebServer/vdisk2.img'/> <backingStore/> <target dev='hdd' bus='virtio'/> <alias name='virtio-disk3'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/CentOS-7-x86_64-DVD-1810.iso'/> <backingStore/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <alias name='sata0-0-0'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x10'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x11'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0x12'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0x13'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0x14'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0x15'/> <alias name='pci.6'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/> </controller> <interface type='bridge'> <mac address='52:54:00:19:4e:e0'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/1'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/1'> <source path='/dev/pts/1'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-2-WebServer/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'> <alias name='input1'/> </input> <input type='keyboard' bus='ps2'> <alias name='input2'/> </input> <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <alias name='video0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </memballoon> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> </domain> Is there Something I'm missing? Quote Link to comment
ZeroPhi Posted April 25, 2019 Share Posted April 25, 2019 I am also new to using unraid and I've actually run into the same issue.. ran into your post while searching for information... so far I narrowed it down to being a combination of using the prebuilt CentOS option in unraid and using the bridge network "br0" when building the vm, once you activate the network in the installer, if you go in and out of the installation destination menu it crashes with that unknown error. (Instead of br0 I changed it to virbr0 in the vm settings and it worked fine, but I didn't start the install, I only attempted to reproduce that error.. this wouldn't work for me cause I wanted it to be visible to my main network) I am on unraid 6.6.7 and using the CentOS-7-x86_64-DVD-1810.iso My way around it was to build the vm using the Linux option instead of CentOS in unraid, from there it allowed me to install centos, hope this helps! 1 Quote Link to comment
