[Support] Linuxserver.io - OpenVPN AS


1950 posts in this topic Last Reply

Recommended Posts

7 hours ago, jfrancais said:

Still struggling with this.  Any thoughts?  with my other docker services running on real IP addresses and not accessable from my VPN, it is rendering my VPN largely useless :(



It seems your issue is definitely with openvpn settings since you can access other containers from inside that container. Perhaps you should ask on openvpn forums

Link to post
  • Replies 1.9k
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

I have made un updated video guide for setting up this great container. It covers setting up the container, port forwarding and setting up clients on Windows, macOS Linux (ubuntu Mate) and on cel

PSA. It seems openvpn pushed another broken bin, tagged 2.7.3 I get the same error with it as I did with the previously pulled 2.7.2   While they/us try to figure it out, you can change

Ok, I used to be able to connect to Host network with this before the update....that allowed me to be assigned an IP on my WiFi subnet, which then allowed me to access the UnRAID GUI interface.

Posted Images

On 5/4/2018 at 11:08 PM, aptalca said:



It seems your issue is definitely with openvpn settings since you can access other containers from inside that container. Perhaps you should ask on openvpn forums

I don't think it is an OpenVPN settings issue.  I think it is a problem with the docker bridging.  When openvpn-as is set to use br0, I can connect to VPN, and I can access all my other dockers that use bridging, but can't access the internet or other machines on my network.  When I set openvpn-as to use standard eth0 I can connect to VPN, access internet and other resources, but can't access any of the other docker images that use br0 networking.

Link to post

Might be a very silly question but has anyone ever managed to get this to work on a linux OS ? i recently switched from windows to linux mint 18  and ive tried following the very simple instructions of creating a new connection and tried launching it from the terminal nothing seems to be working for me

Link to post
2 hours ago, jfrancais said:

I don't think it is an OpenVPN settings issue.  I think it is a problem with the docker bridging.  When openvpn-as is set to use br0, I can connect to VPN, and I can access all my other dockers that use bridging, but can't access the internet or other machines on my network.  When I set openvpn-as to use standard eth0 I can connect to VPN, access internet and other resources, but can't access any of the other docker images that use br0 networking.



When you say you set openvpn to use br0, do you mean openvpn is running in bridge mode, on br0, or do you mean it is running in host mode but interface is set to br0?



My openvpn is running in host mode. Interface is set to bond0 (i have eth0 and eth1 bridged under bond0 in unraid settings).



I can connect to all dockers running in host or bridge mode (br0 or user custom bridge) as well as all other machines on the network, including vlans.



Keep in mind that I wouldn't be able to connect to any dockers that have their own ip (macvlan) because docker blocks direct connection between host and macvlan, and openvpn is running on host, but I don't have any that do macvlan that I want to connect to anyway.

Link to post
20 hours ago, aptalca said:



When you say you set openvpn to use br0, do you mean openvpn is running in bridge mode, on br0, or do you mean it is running in host mode but interface is set to br0?



My openvpn is running in host mode. Interface is set to bond0 (i have eth0 and eth1 bridged under bond0 in unraid settings).



I can connect to all dockers running in host or bridge mode (br0 or user custom bridge) as well as all other machines on the network, including vlans.



Keep in mind that I wouldn't be able to connect to any dockers that have their own ip (macvlan) because docker blocks direct connection between host and macvlan, and openvpn is running on host, but I don't have any that do macvlan that I want to connect to anyway.





In the docker settings for openvpn-as I have network type set to br0, fixed ip address set to 192.168.1.56 and INTERFACE variable set to eth0.  With this, VPN clients can connect to my VPN and can access my other docker applications that are also setup on br0 but they cant access the internet or any other part of my LAN.



If I set the docker settings for openvpn-as to have a network type of bridge, VPN clients can still connect, can access the internet and other parts of my LAN but none of the docker images on br0 (which is expected, that is why I'm trying to move the openvpn-as docker to br0).



trouble shooting br0 scenario using:

docker exec -it openvpn-as /bin/bash

and I can curl http://www.limetech.com and get a response and I can curl http://192.168.1.1 (gateway) and http://192.168.1.50 (a docker on br0) and also get results.

But to my connected VPN clients I can't see gateway or external internet.






Link to post
23 hours ago, Sinister said:

Might be a very silly question but has anyone ever managed to get this to work on a linux OS ? i recently switched from windows to linux mint 18  and ive tried following the very simple instructions of creating a new connection and tried launching it from the terminal nothing seems to be working for me



I've had it working on Ubuntu as a client.

Link to post
1 minute ago, CHBMB said:



I've had it working on Ubuntu as a client.

what did you do to set it up ? im fairly new to linux but not a newbie to tech ive tried getting this thing going using the network manager and it just will not connect no matter what it connects if im on windows using the openvpngui or on my android smart phone so what gives here ?

Link to post
2 minutes ago, Sinister said:

what did you do to set it up ? im fairly new to linux but not a newbie to tech ive tried getting this thing going using the network manager and it just will not connect no matter what it connects if im on windows using the openvpngui or on my android smart phone so what gives here ?



Just tried it on Solus as well and it worked fine.....



Download your profile onto your Linux machine, go to network, add VPN, choose option "From file" click add.



You need to be outside your LAN to connect to it though, I use a hotspot on my phone and a 4G connection to test

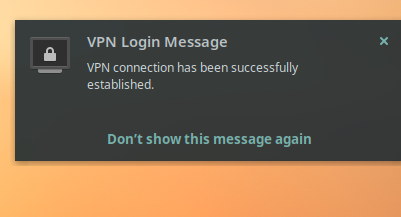

Screenshot from 2018-05-08 22-52-57.png

Link to post
7 minutes ago, CHBMB said:



Just tried it on Solus as well and it worked fine.....



Download your profile onto your Linux machine, go to network, add VPN, choose option "From file" click add.



You need to be outside your LAN to connect to it though, I use a hotspot on my phone and a 4G connection to test

Screenshot from 2018-05-08 22-52-57.png622358937_Screenshotfrom2018-05-0818-00-01.thumb.png.5b635339007e0e2468843a24d18735a4.png

this is what i get when trying to import my client file

Link to post

Looks like a mint issue.  I'll try and boot into a Live Install and see if it works for me.  To be honest, Mint looks nice, but I think Ubuntu is a better distro.



Which version of Mint you using?  Cinnamon or Mate?

Edited by CHBMB
Link to post

cinnamon

5 minutes ago, CHBMB said:

Looks like a mint issue.  I'll try and boot into a Live Install and see if it works for me.  To be honest, Mint looks nice, but I think Ubuntu is a better distro.



Which version of Mint you using?  Cinnamon or Mate?



Link to post
Just now, CHBMB said:



Yeah, can confirm it doesn't work for me either in Mint Cinnamon

ahh ok thought so makes me feel less crazy. does it work in mate? and if so is there strong difference between the two ?



Link to post

I've deleted this container but yet when I look at TOP on the server, it's using anywhere between 30-70% CPU. I've killed the process multiple times and it still keeps coming back. I've also used CA Cleanup Appdata to completely remove the orphaned data. Any suggestions?

Link to post
I've deleted this container but yet when I look at TOP on the server, it's using anywhere between 30-70% CPU. I've killed the process multiple times and it still keeps coming back. I've also used CA Cleanup Appdata to completely remove the orphaned data. Any suggestions?
Probably a docker.img problem. Check out the docker FAQ on how to recreate it.
Link to post
ahh ok thought so makes me feel less crazy. does it work in mate? and if so is there strong difference between the two ?

I've not tried in Mate. I use Solus Budgie.
Just try it booting from a live USB to test
Link to post
19 hours ago, CHBMB said:

I've not tried in Mate. I use Solus Budgie.
Just try it booting from a live USB to test

so here is what i ended up doing i loaded up solus and imported the config file and it worked with no problem i then found the directory where it made the certificates

and then copied them to a usb stick i also made sure to take note of the settings used in the openvpn plugin and copied them exactly. after reinstalling linux mint and i was able to connect both in solus and in linux mint the last hurdle for me now is that i cant connect to any shares or my unraid server. though when i use teamviewer to access my home network and launch the openvpn docker it does show my 1 client as connected am i missing something simple ? to be clear i do connect successfully via vpn but cant access anything on the network

Link to post
4 minutes ago, CHBMB said:

There's a setting somewhere in OpenVPN-AS to allow you to browse the LAN

I believe I already know which one your talking about and it' is enabled by default I just connected through my mobile device and I can access everything with no problem

Link to post
