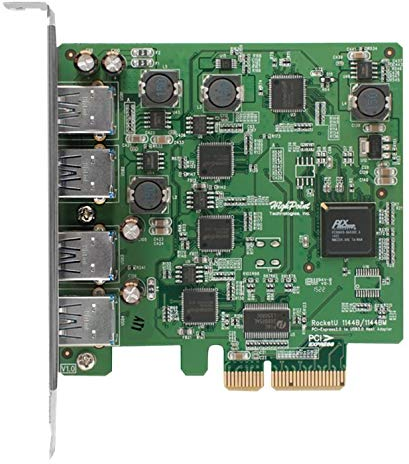

April 16, 20197 yr https://www.amazon.com/gp/product/B015CQ8DCS/ IOMMU Group [10b5:8609] 41:00.0 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) [10b5:8609] 41:00.1 System peripheral: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) [10b5:8609] 42:01.0 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) [10b5:8609] 42:05.0 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) [10b5:8609] 42:07.0 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) [10b5:8609] 42:09.0 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) [1b21:1142] 43:00.0 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller [1b21:1142] 44:00.0 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller [1b21:1142] 45:00.0 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller [1b21:1142] 46:00.0 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller Using pci-stub.ids=1b21:1142 in the syslinix.cfg lets one or more of the 4 controllers to bind to a VM (but not different VM's without the PCIe override being set). I tested thumb drives & had three Brio web cams ingesting at 4K simultaneously without issue. No need to stub 10b5:8609. The card is not compatible with UNRAID's "BIND" via vfio-pci.cfg Edited September 4, 20196 yr by jbartlett
January 18, 20215 yr I'm using this card it works great! However.. I get intermittent disconnecting issues.. every 10-15 min or so. Any suggestions? [Edit] It seems like my issue was more related to a usb extender! There is a fairly rare disconnect now where I loose access to all usb devices to the vm, but a server reboot resolves this (still annoying). The card is working well with the below settings: - I have all 4 usb controllers bound using the VFIO plugin - None of the additional devices that show up for the card are bound - I'm sending two usb controllers to one vm and two to another - I have a powered USB hub connected to the port. - I have PCIe ACS override set to: Multi-function - VFIO allow unsafe interrupts: no Group 60 43:00.010b5:8609 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) Group 61 43:00.110b5:8609 System peripheral: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) Group 62 44:01.010b5:8609 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) Group 63 44:05.010b5:8609 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) Group 64 44:07.010b5:8609 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) Group 65 44:09.010b5:8609 PCI bridge: PLX Technology, Inc. PEX 8609 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch with DMA (rev ba) Group 66 45:00.01b21:1142 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller *USB devices attached to controllers bound to vfio are not visible to unRAID* Group 67 46:00.01b21:1142 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller *USB devices attached to controllers bound to vfio are not visible to unRAID* Group 68 47:00.01b21:1142 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller *USB devices attached to controllers bound to vfio are not visible to unRAID* Group 69 48:00.01b21:1142 USB controller: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller *USB devices attached to controllers bound to vfio are not visible to unRAID* Edited February 3, 20215 yr by Raza
