My router/ firewall is an untangle box and all the other systems on my network are pulling IPs from it just fine. The unraid server physical connection is fine tested it with two laptops. My switch is reporting the server is making the physical connection but when I log on to the unraid box I get a ip of 172.0.0.1



What should I try to fix this?

Have you tried setting a static IP on the server?  The option is on the 'settings' page.

Personally I always set a Static IP on a server.

Have you tried setting a static IP on the server?  The option is on the 'settings' page.

Ill give that a try

Well changed the ip and subnet to what ifconfig shows on my unraid server and can't get into the web interface. Any other ideas?

Now try to access the web interface at http://ipaddress



For example, http://192.168.0.100

Changed my pc to 172.0.0.1 sub 255.0.0.0

Ifconfig says unraid is 172.0.0.1 sub 255.0.0.0



I get a page not valid message



My linksys slm2024 reports the port is up

Dhcp server shows nothing for my unraid server.



Thinking I may have a bad nic. Its an onboard nic can I just add a new nic?

is there a way from the comand line to set the ip and ping test?

Put in a new network card, still not working.. i've attached a copy of the log syslog.



anyone have any advice?  Updating to the newest release. now.

syslog.txt

I could be wrong.....

Mar  9 18:44:48 NAS ifplugd(eth0)[1408]: Executing '/etc/ifplugd/ifplugd.action eth0 up'.

Mar  9 18:44:48 NAS ifplugd(eth0)[1408]: client: Polling for DHCP server on interface eth0:

Mar  9 18:44:49 NAS logger: /etc/rc.d/rc.inet1:  /sbin/dhcpcd -d -t 30 -h NAS eth0

Mar  9 18:44:49 NAS kernel: e1000e 0000:0d:00.0: irq 27 for MSI/MSI-X

Mar  9 18:44:49 NAS kernel: e1000e 0000:0d:00.0: irq 27 for MSI/MSI-X

Mar  9 18:44:49 NAS dhcpcd[1632]: broadcasting DHCP_DISCOVER

Mar  9 18:44:52 NAS kernel: e1000e: eth0 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: RX/TX

Mar  9 18:44:54 NAS dhcpcd[1632]: broadcastAddr option is missing in DHCP server response. Assuming 192.168.1.255

Mar  9 18:44:54 NAS dhcpcd[1632]: dhcpIPaddrLeaseTime=86400 in DHCP server response.

Mar  9 18:44:54 NAS dhcpcd[1632]: dhcpT1value is missing in DHCP server response. Assuming 43200 sec

Mar  9 18:44:54 NAS dhcpcd[1632]: dhcpT2value is missing in DHCP server response. Assuming 75600 sec

Mar  9 18:44:54 NAS dhcpcd[1632]: DHCP_OFFER received from  (192.168.1.1)

Mar  9 18:44:54 NAS dhcpcd[1632]: broadcasting DHCP_REQUEST for 192.168.1.103

Mar  9 18:44:54 NAS dhcpcd[1632]: dhcpIPaddrLeaseTime=86400 in DHCP server response.

Mar  9 18:44:54 NAS dhcpcd[1632]: dhcpT1value is missing in DHCP server response. Assuming 43200 sec

Mar  9 18:44:54 NAS dhcpcd[1632]: dhcpT2value is missing in DHCP server response. Assuming 75600 sec

Mar  9 18:44:54 NAS dhcpcd[1632]: DHCP_ACK received from  (192.168.1.1)

Mar  9 18:44:54 NAS ifplugd(eth0)[1408]: client: dhcpcd: MAC address = 00:30:48:b9:81:15

Mar  9 18:44:54 NAS ifplugd(eth0)[1408]: client: dhcpcd: your IP address = 192.168.1.103

Mar  9 18:44:54 NAS ifplugd(eth0)[1408]: client: dhcpcd: MAC address = 00:30:48:b9:81:15

Mar  9 18:44:54 NAS ifplugd(eth0)[1408]: client: dhcpcd: your IP address = 192.168.1.103

but isn't that saying that your server's ip is 192.168.1.103

hmm checking that now



when i put myself on the 192.168.1.177 ip i still cant get a ping from the server (192.168.1.103) or get the web interface to load.



So far i've jumpered out the on-board nic, put in a new nic, nothing.  Every time i restart the server it look like it goes into a parity check



is there a way from the console to set an ip, subnet, and default gateway?  or a way to check those settings?  maybe even ping?

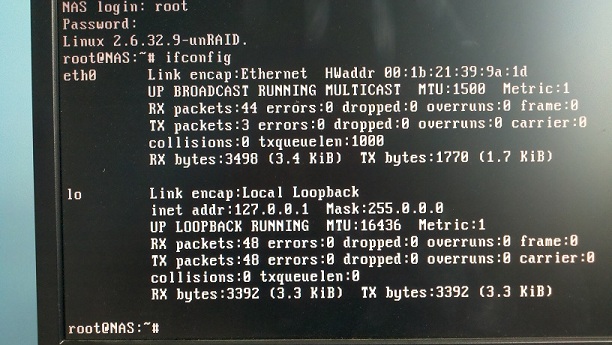

From the console type ifconfig and press enter



You should see eth0, confirm the inet addr and mask.  You can also try to ping your pc by typing ping 192.168.1.177



ethtool should allow you to set the IP address, but I doubt setting it there would survive a reboot - if you want to statically assign it outside of the webpage, you can put the flash drive in your pc, and modify the \config\network.cfg using a program like Notepad.





From the console type ifconfig and press enter



You should see eth0, confirm the inet addr and mask.  You can also try to ping your pc by typing ping 192.168.1.177



ethtool should allow you to set the IP address, but I doubt setting it there would survive a reboot - if you want to statically assign it outside of the webpage, you can put the flash drive in your pc, and modify the \config\network.cfg using a program like Notepad.







thanks, i checked in the network.cfg changed it to no on dhcp and assigned it a new ip.

Thanks editing that network file worked like a champ.
