Hello,

I have a new SAS drive i'm trying to install. my LSI firmware is upgraded to IT, I am able to show the device in the LSI Sas configuration utility so I know its there and showing. but when I hit unraid it doesn't show at all. From research I think the drive is 512, and not 520 but I could be wrong. I even did the third pin 3.3v mod to the drive, and still can't get it to show up. I've loaded my diagnostic file if someone could help me out!

undata-diagnostics-20190420-1246.zip

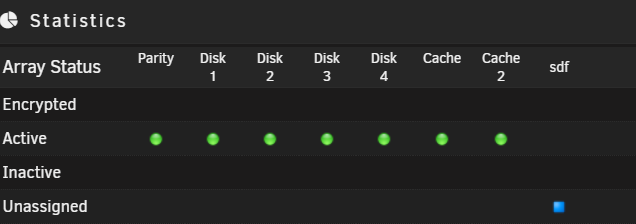

Also, I might add... I have discovered that "Dashboard" shows an unassigned device, but "Main" does not.

Looks like a disk problem, do you have a different controller/server you could try it on?



Apr 20 12:25:15 unData kernel: .................................................................................................not responding...
Apr 20 12:25:15 unData kernel: sd 7:0:4:0: [sdf] 7814037168 512-byte logical blocks: (4.00 TB/3.64 TiB)
Apr 20 12:25:15 unData kernel: sd 7:0:4:0: [sdf] Write Protect is off
Apr 20 12:25:15 unData kernel: sd 7:0:4:0: [sdf] Mode Sense: f7 00 10 08
Apr 20 12:25:15 unData kernel: sd 7:0:4:0: [sdf] Write cache: disabled, read cache: enabled, supports DPO and FUA
Apr 20 12:25:15 unData kernel: sd 7:0:4:0: [sdf] Spinning up disk...
Apr 20 12:26:55 unData kernel: ..................................................................................................not responding...
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 Sense Key : 0x3 [current] [descriptor]
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 ASC=0x31 ASCQ=0x0
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 CDB: opcode=0x88 88 00 00 00 00 00 00 00 00 00 00 00 00 08 00 00
Apr 20 12:26:55 unData kernel: print_req_error: I/O error, dev sdf, sector 0
Apr 20 12:26:55 unData kernel: Buffer I/O error on dev sdf, logical block 0, async page read
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 Sense Key : 0x3 [current] [descriptor]
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 ASC=0x31 ASCQ=0x0
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 CDB: opcode=0x88 88 00 00 00 00 00 00 00 00 00 00 00 00 08 00 00
Apr 20 12:26:55 unData kernel: print_req_error: I/O error, dev sdf, sector 0
Apr 20 12:26:55 unData kernel: Buffer I/O error on dev sdf, logical block 0, async page read
Apr 20 12:26:55 unData kernel: ldm_validate_partition_table(): Disk read failed.
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 Sense Key : 0x3 [current] [descriptor]
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 ASC=0x31 ASCQ=0x0
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 CDB: opcode=0x88 88 00 00 00 00 00 00 00 00 00 00 00 00 08 00 00
Apr 20 12:26:55 unData kernel: print_req_error: I/O error, dev sdf, sector 0
Apr 20 12:26:55 unData kernel: Buffer I/O error on dev sdf, logical block 0, async page read
Apr 20 12:26:55 unData kernel: sdf: unable to read partition table
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] Spinning up disk...
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 Sense Key : 0x3 [current] [descriptor]
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 ASC=0x31 ASCQ=0x0
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 CDB: opcode=0x88 88 00 00 00 00 01 d1 c0 be 00 00 00 00 08 00 00
Apr 20 12:26:55 unData kernel: print_req_error: I/O error, dev sdf, sector 7814036992
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 Sense Key : 0x3 [current] [descriptor]
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 ASC=0x31 ASCQ=0x0
Apr 20 12:26:55 unData kernel: sd 7:0:4:0: [sdf] tag#0 CDB: opcode=0x88 88 00 00 00 00 01 d1 c0 be 00 00 00 00 08 00 00
Apr 20 12:26:55 unData kernel: print_req_error: I/O error, dev sdf, sector 7814036992
Apr 20 12:26:55 unData kernel: Buffer I/O error on dev sdf, logical block 976754624, async page read
Apr 20 12:28:36 unData kernel: ..................................................................................................not responding...
Apr 20 12:28:36 unData kernel: sd 7:0:4:0: [sdf] Attached SCSI disk
