Good Afternoon,



So I recently purchased a dell poweredge R710 with a perc700 raid controller and I was migrating my old system to this new system when I ran into a drive problem.



Essentially my drives had to be created into virtual disks (raid controller) which were fine and then when in the unraid OS I had to create a new config in order for the original array to be recognised. The drives were then recognised, however, two of the data drives (which still have data on them) have an issue where they are Unmountable due to "Unsupported partition layout" with a file system type of auto.

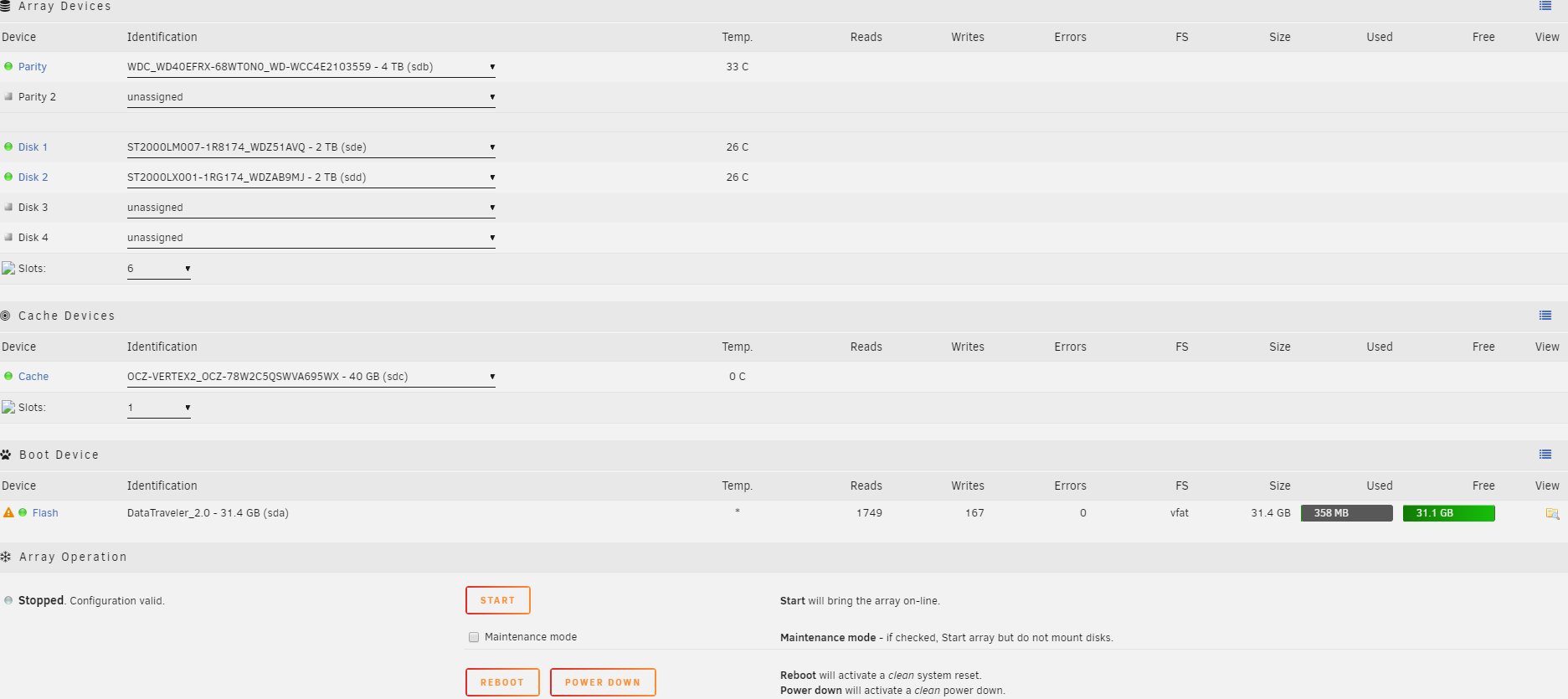

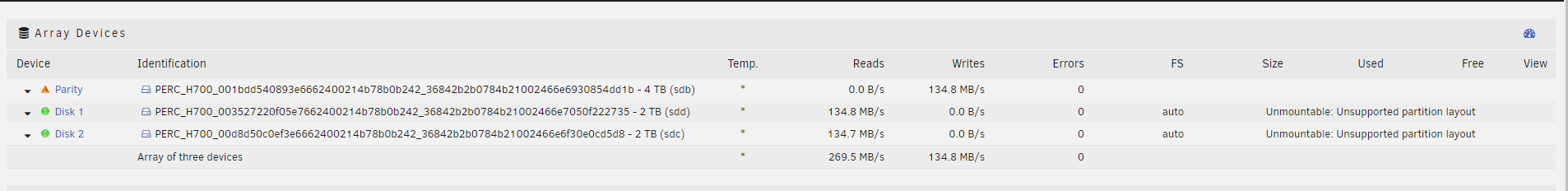

Attached are my diagnostics where a use option for smartctl is quoted. And images of my before and after disk layout.



Thanks for any help in advance.









server-diagnostics.zip

That's one of the reason RAID controllers are not recommended, only option is to reformat the disks, you can copy the data before mounting them with UD.

So if I format a new drive on the system I can copy the files to that drive? (From the two 2tb hard drives), Presuming the capacities line up?

If you mean copy from other drives yes, any data on the formatted disks will be deleted.

Awesome, is there an external link for this process?

Just mount the source disks with UD plugin and then use your favorite command/util to copy, you can use rsync, mc, krusader docker, etc

So another issue now, it is saying the superblock is invalid. That is when trying to mount the drive using UD.

Edited May 9, 20197 yr by edmoisaa

5 minutes ago, edmoisaa said:

saying the superblock is invalid.

That's more serious, you should try them on the same controller they were.
