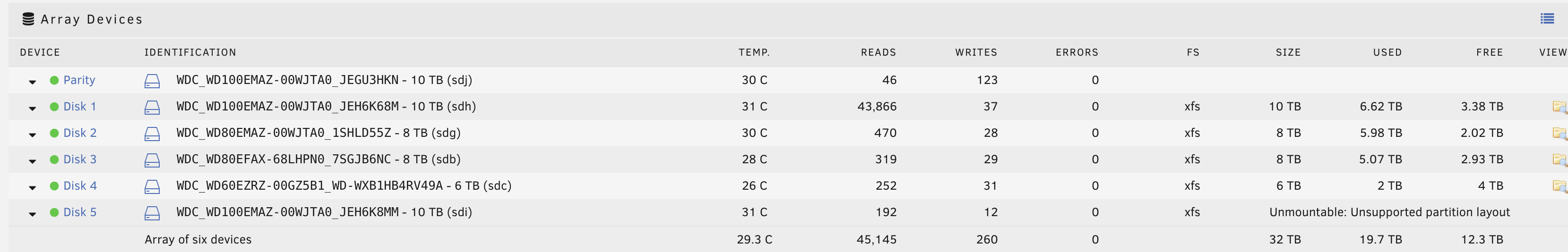

I am trying to add a brand new 10tb drive to my array and am getting the above error when I start the array (see image). When I try to format the drive I get the error:

Quote

May 16 21:50:00 unRAID emhttpd: req (14): startState=STARTED&file=&cmdFormat=Format&unmountable_mask=32&confirmFormat=OFF&optionCorrect=correct&csrf_token=****************
May 16 21:50:02 unRAID emhttpd: writing GPT on disk (sdi), with partition 1 byte offset 32K, erased: 0
May 16 21:50:02 unRAID emhttpd: shcmd (482): sgdisk -Z /dev/sdi
May 16 21:50:02 unRAID rc.diskinfo[7144]: SIGHUP received, forcing refresh of disks info.
May 16 21:50:03 unRAID root: Warning: The kernel is still using the old partition table.
May 16 21:50:03 unRAID root: The new table will be used at the next reboot or after you
May 16 21:50:03 unRAID root: run partprobe(8) or kpartx(8)
May 16 21:50:03 unRAID root: GPT data structures destroyed! You may now partition the disk using fdisk or
May 16 21:50:03 unRAID root: other utilities.
May 16 21:50:03 unRAID emhttpd: shcmd (483): sgdisk -o -a 8 -n 1:32K:0 /dev/sdi
May 16 21:50:04 unRAID rc.diskinfo[7144]: SIGHUP received, forcing refresh of disks info.
May 16 21:50:04 unRAID rc.diskinfo[7144]: SIGHUP ignored - already refreshing disk info.
May 16 21:50:04 unRAID root: Creating new GPT entries in memory.
May 16 21:50:04 unRAID root: Warning: The kernel is still using the old partition table.
May 16 21:50:04 unRAID root: The new table will be used at the next reboot or after you
May 16 21:50:04 unRAID root: run partprobe(8) or kpartx(8)
May 16 21:50:04 unRAID root: The operation has completed successfully.
May 16 21:50:04 unRAID emhttpd: shcmd (484): udevadm settle
May 16 21:50:04 unRAID emhttpd: shcmd (485): mkdir -p /mnt/disk5
May 16 21:50:04 unRAID emhttpd: /mnt/disk5 mount error: Unsupported partition layout





I have found other posts suggesting xfs_repair but am not familiar with this command and not 100% sure it applies to my situation.



Thanks in advance!





unraid-diagnostics-20190517-0452.zip

Reboot and you should be able to format it.

Wow that actually worked! What was the logic behind that suggestion?

On 5/17/2019 at 5:54 AM, tone said:

May 16 21:50:04 unRAID root: Warning: The kernel is still using the old partition table.
May 16 21:50:04 unRAID root: The new table will be used at the next reboot or after you
