Setting up traefik reverse proxy in docker container with static IP

[ChopFitzroy]

I am super new to Unraid and servers in general, I am trying to setup a traefik reverse proxy in docker.

I am following the instructions from this repo https://github.com/duhio/docker-compose-usenet but I don't want to have to move the Unraid webui to a custom port, instead I would like to setup the traefik docker container to have it's own IP and the port forward to the docker container IP on 80 and 443, then I can just access the unraid webui when I VPN onto my home network.

I have modified the docker-compose.yml to suit my needs and added a networks block like so:

---
version: '3'

services:

  traefik:
    image: traefik:latest
    command: --web --docker --docker.watch --docker.domain=${DOMAIN} \
             --docker.exposedbydefault=false --acme.domains=${DOMAIN}
    container_name: traefik
    hostname: traefik
    #ports:
      #- "80:80"
      #- "443:443"
    networks:
      local:
        ipv4_address: 10.0.0.1
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ${CONFIG}/traefik/acme.json:/acme.json
      - ${CONFIG}/traefik/traefik.toml:/etc/traefik/traefik.toml
      - ${CONFIG}/traefik/.htpasswd:/etc/traefik/.htpasswd:ro
    labels:
      traefik.enable: "true"
      traefik.frontend.rule: "Host:monitor.${DOMAIN}"
      traefik.port: "8080"
      traefik.frontend.auth.basic: "${HTPASSWD}"
      com.ouroboros.enable: "true"
    restart: unless-stopped

  ouroboros:
    image: pyouroboros/ouroboros
    container_name: ouroboros
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
    environment:
      - PGID
      - PUID
      - TZ
      - CLEANUP=true
      - INTERVAL=86400  # 24hrs
      - SELF_UPDATE=true
      - LABELS_ONLY=true
    restart: unless-stopped

  plex:
    image: linuxserver/plex
    container_name: plex
    hostname: plex
    ports:
      - "32400:32400"
      - "32400:32400/udp"
      - "32469:32469"
      - "32469:32469/udp"
      - "1900:1900/udp"
    volumes:
      - ${CONFIG}/plex:/config
      - ${DATA}/TV:/media/tv
      - ${DATA}/movies:/media/movies
      - ${DATA}/music:/media/music
      - ${DATA}/anime:/media/anime
    environment:
      - PGID
      - PUID
      - TZ
      - VERSION=latest
    labels:
      traefik.enable: "true"
      traefik.port: "32400"
      traefik.frontend.rule: "Host:plex.${DOMAIN}"
      com.ouroboros.enable: "true"
    restart: unless-stopped

  plexpy:
    image: linuxserver/tautulli:latest
    container_name: tautulli
    hostname: tautulli
    ports:
      - "8181:8181"
    volumes:
      - ${CONFIG}/plexpy:/config
      - ${CONFIG}/plex/Library/Application Support/Plex Media Server/Logs:/logs:ro
    environment:
      - PGID
      - PUID
      - TZ
    labels:
      traefik.enable: "true"
      traefik.port: "8181"
      traefik.frontend.rule: "Host:tautulli.${DOMAIN}"
      traefik.frontend.auth.basic: "${HTPASSWD}"
      com.ouroboros.enable: "true"
    restart: unless-stopped

  heimdall:
    image: duhio/heimdall-https:latest
    container_name: heimdall
    hostname: heimdall
    volumes:
      - ${CONFIG}/heimdall:/config
    environment:
      - PGID
      - PUID
      - TZ
    labels:
      traefik.enable: "true"
      traefik.port: "80"
      traefik.frontend.rule: "Host:${DOMAIN}"
      traefik.frontend.auth.basic: "${HTPASSWD}"
      com.ouroboros.enable: "true"
    restart: unless-stopped

  ombi:
    image: linuxserver/ombi
    container_name: ombi
    hostname: ombi
    ports:
      - "3579:3579"
    volumes:
      - ${CONFIG}/ombi:/config
    environment:
      - PGID
      - PUID
      - TZ
    labels:
      traefik.enable: "true"
      traefik.port: "3579"
      traefik.frontend.rule: "Host:ombi.${DOMAIN}"
      com.ouroboros.enable: "true"
    restart: unless-stopped

networks:
  local:
    ipam:
      driver: default
      config:
        - subnet: 10.0.0.0/24

However now when I run docker-compose up -d I get the following error:

tautulli is up-to-date
Starting traefik ...
plex is up-to-date
ombi is up-to-date
ouroboros is up-to-date
Starting traefik ... error

ERROR: for traefik  Cannot start service traefik: Address already in use

ERROR: for traefik  Cannot start service traefik: Address already in use
ERROR: Encountered errors while bringing up the project.

If anyone has any docker experience or traefik and knows the cause of the issue any help would be greatly appreciated.



UPDATE:

After a bit more digging I have figured out what I need to do I am just having trouble getting it to work with docker-compose, basically I want to assign a static IP on the bridge Unraid provisions automatically for docker containers (br0).

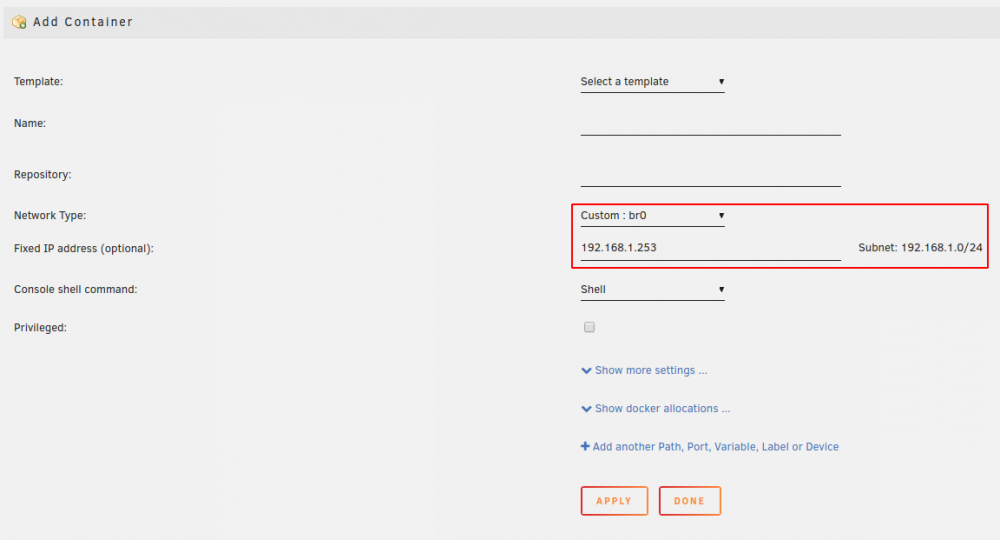

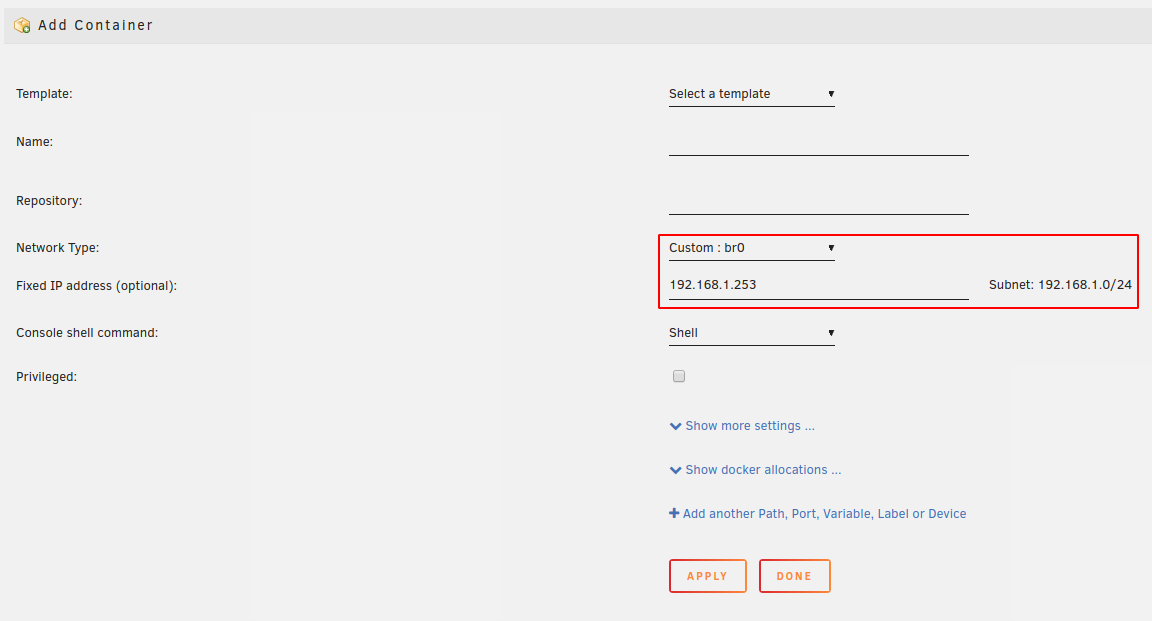

Essentially what I want to do is what I am doing in the below screenshot but via the docker-compose.yml



Edited May 19, 2019 by ChopFitzroy
Updates

[Timm]

I'm facing the same problem.

I want to asign a static IP on interface br0 with docker-compose.



Does anyone have a tip?

[cookiemonsters]

did you figure it out?
