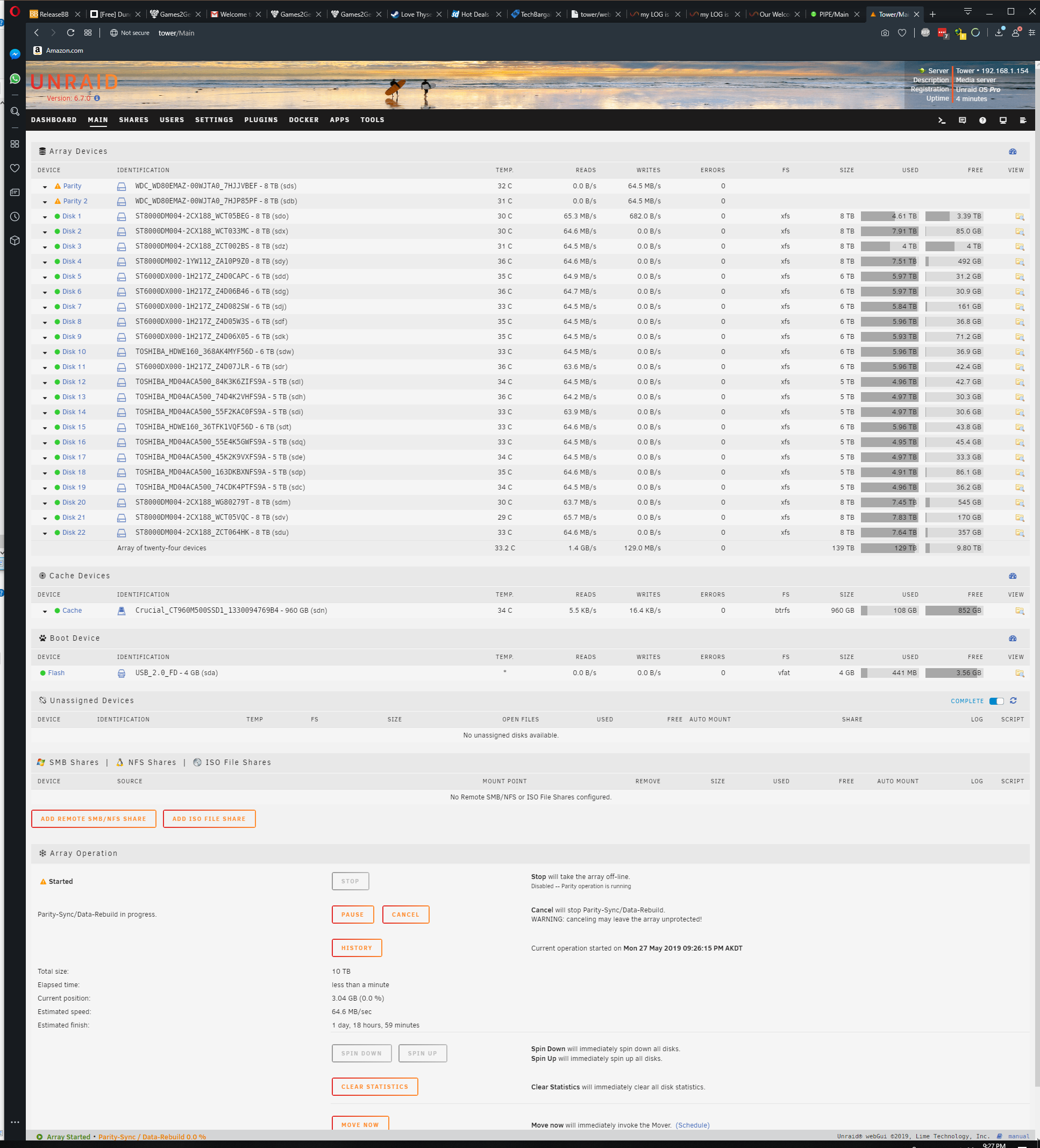

May 28, 20197 yr I changed 2 wd 8tb drives for 2 wd 10tb's which i shucked today (They were not precleared prior to swapping them out) After about a few hours i had errors everywhere and my log was full. I have 2 se3016 16 bay drive racks hooked up to a computer via 2 cables. I am guessing that a problem with one of the new drives brought all of the drives down, however it does look like i have a udma crc error in one of the 10tb's now. I rebooted and put the 8tb drives back in once i discovered the udma crc error and now my data rebuild of both parity disks shows "Size 10TB" instead of 8. Same thing after another reboot. just as a note I am currently trying to preclear the questionable 10tb in another machine to see if it continues to have errors. Am I ok with this rebuild of parity 1 and 2 (8tb drives) even though it says 10tb? Attaching diagnostics prior to shutting down the array with the 10tb parity build lockup. A screen shot of current rebuild with the 10 tb issue and also the smart from the 10tb with udma error. tower-smart-20190527-2113.zip tower-diagnostics-20190528-0456.zip Edited May 28, 20197 yr by FrozenGamer Mark Solved
May 28, 20197 yr Community Expert CRC errors are rarely a problem with a drive. They indicate connection problems, and are typically due to the SATA cabling to the drive.
May 28, 20197 yr Community Expert Looks more like an HBA problem, check it's well seated and sufficiently cooled and try again.
May 28, 20197 yr Similar error case have report for WD 10TB (He10) disk, I suspect some compatible problem happen when those disk running in 3Gbps. Edited May 28, 20197 yr by Benson
May 28, 20197 yr Author Should i be worried about the 10TB size in the parity rebuild even though drives are 8tb?
May 28, 20197 yr Community Expert When you start again it should say 8TB, if you use the 8TB disks, if it doesn't post new diags.
May 28, 20197 yr Author It didn't and it is 10 plus hours into the parity check, i also rebooted the server once to try and get it to go away. Here are the diagnostics.tower-diagnostics-20190528-1613.zip
May 28, 20197 yr Community Expert Can't see in the diags since there was a reboot since but likely you assigned the 8TB disks while parity was still invalid, you should stop the the array, unassign both parity disks, start the array, stop again, re-assign to begin rebuild, and now it will show correctly.
May 28, 20197 yr Author 7 minutes ago, johnnie.black said: Can't see in the diags since there was a reboot since but likely you assigned the 8TB disks while parity was still invalid, you should stop the the array, unassign both parity disks, start the array, stop again, re-assign to begin rebuild, and now it will show correctly. This solved the problem with 8tb/10tb. I will mark the question solved - however at this point i am concerned about using the shucked wd 10tb's again (I bought 5 of them)
May 28, 20197 yr Author 9 hours ago, Benson said: Similar error case have report for WD 10TB (He10) disk, I suspect some compatible problem happen when those disk running in 3Gbps. I am unable to find anything in searches about this, i will post a question soon about the wd 10tb success or failure in unraid. Do you have any more information?
May 28, 20197 yr 2 hours ago, FrozenGamer said: I am unable to find anything in searches about this, i will post a question soon about the wd 10tb success or failure in unraid. Do you have any more information? I have only one shuck 10TB, same firmware and model as you, no problem with Unraid (connect thr LSI and expander too - 6Gbps). But I remember some unsolve or no followup case quite simalir (disk drop). I am not provide solution, just wait for your founding. Edited May 28, 20197 yr by Benson
May 28, 20197 yr Author Yes, the 8tb wd have been really good and is currently rebuilding nicely. Also i am doing a preclear on 10Tb that crashed with another se3016 case (still doing preread) - so i can see if it has any problems on that machine.
May 28, 20197 yr You mean He10 reproduce crash again in another se3016 ? Edited May 28, 20197 yr by Benson
May 28, 20197 yr Author 1 minute ago, Benson said: You mean reproduce crash again in another se3016 ? Possibly reproduce, first crash was while building parity with 2 10tb drives, this is just a preclear of the drive, but its also in a se3016 case.
May 28, 20197 yr Note, is it possible make some more loading to that se3016, pls note, during parity check or build, se3016 bandwidth usage was 100% (congestion). Edited May 28, 20197 yr by Benson
June 1, 20197 yr Author The 10tb precleared fine, all indications are that i had a problem that doesn't have anything to do with the 10tb drive.
