Unmountable: Unsupported partition layout

[NLDer]

I recently acquired a Dell PowerEdge R720 with an Perc H710 mini RAID card.

I configured the RAID to be RAID 0 for each individual drive. (I read somewhere here that's what you have to do)

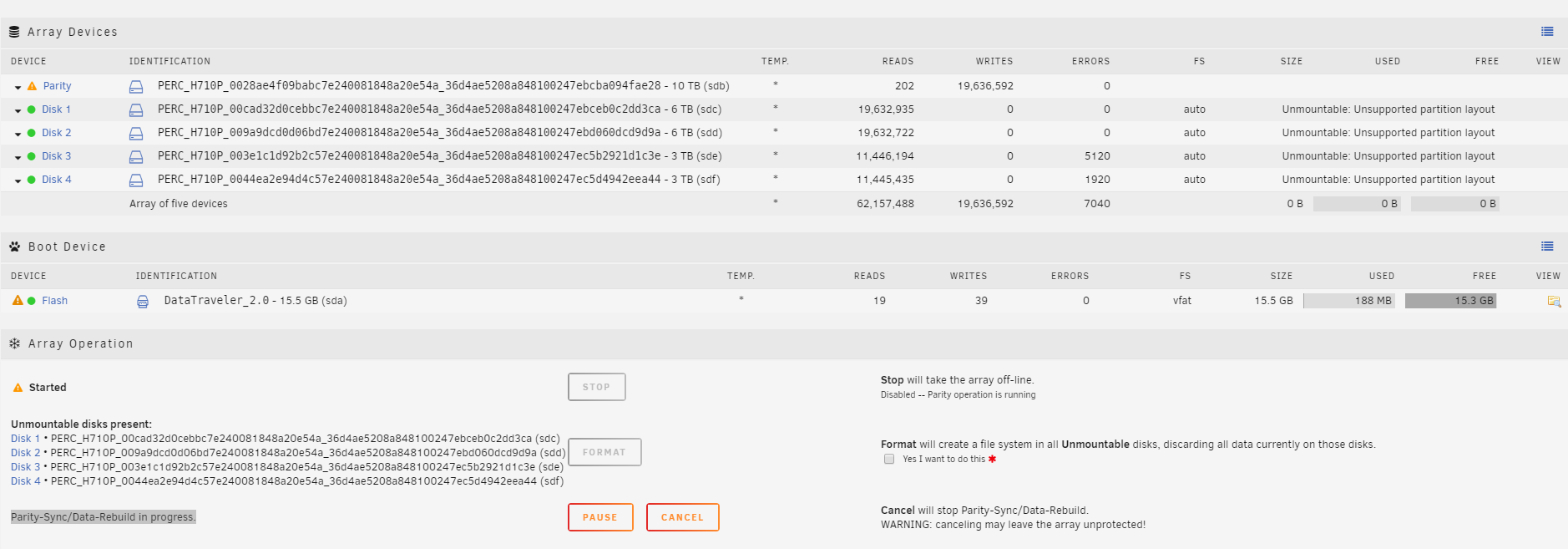

But now when I finally see the drives in unRAID it states that they are "Unmountable: Unsupported partition layout"



I have the ability to format the drive in unRAID, however I fear that if I do I will lose access to the drives in unRAID as I was not able to see them before I got the disks initialized via the PERC H710 mini RAID controller.



Also, Parity-Sync/Data-Rebuild in progress. This is still running (A 10TB HDD)



Including at the very bottom: Array started: Parity Sync / Data rebuild 52%



Is anyone able to provide some assistance as to what I should do here.. just wait?? I am still looking around for solutions, while I am writing this post.

Attached is the diagnostics info for those who are diagnostic savvy.



I am a newbie to unRAID, and would appreciate any insight from the forum members here.

tower-diagnostics-20190528-2114.zip

[JonathanM]

Formatting is what is needed here.



However... unraid doesn't work well with RAID controllers, the need to set the drives up as RAID 0 is only the tip of the iceberg. I STRONGLY recommend using a plain HBA that will allow unraid to fully manage the drives and their health.

[NLDer]

Thank you for your input.

I am going to look in to that...
