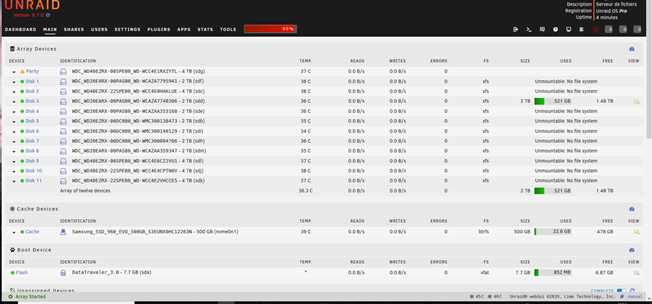

June 8, 20197 yr Hello everyone, I disabled 10 disks from my server to test In the disc of the discs With a message "Unmountable: No file system" «Unmountable disks present: with the list of 10 disks and me the formatting request My parity disk was not used during my tests The disks were in "xfs" format now declare in "auto" Messages in "System Log" bad option, bad superblock under / dev / md1, code page or auxiliary program missing or other error. What solution to adopt to recover data Thank you for your help in advance Ps I speak in French, I hope the google translation is correct
June 8, 20197 yr Community Expert Go to Tools >>> Diagnostics That will download the diagnostics file (*.zip) to your computer. Upload that file in a new post.
June 9, 20197 yr Author hello, attached the file thank you for your help berry-diagnostics-20190609-0731.zip
June 9, 20197 yr Community Expert 17 hours ago, n4152394 said: I disabled 10 disks from my server to test What does this mean exactly? Except for disk3 all disks appear to be missing a valid filesystem, but disk3 is the only one set to xfs, all the others are set to auto, auto should work fine but try changing all the other disks to xfs, with the array stopped click on each disk and change the filesystem to xfs, then start array and if post new diags.
June 9, 20197 yr Author I put the disc back in "xfs" then redemar it does not change anything berry-diagnostics-20190609-1052.zip
June 9, 20197 yr Community Expert 37 minutes ago, n4152394 said: it does not change anything Not unexpected, but at least now we see why they aren't mounting: Jun 9 12:51:24 berry kernel: XFS (md6): Invalid superblock magic number Superblock is damaged, and you didn't answer my question: 2 hours ago, johnnie.black said: 19 hours ago, n4152394 said: I disabled 10 disks from my server to test What does this mean exactly? In any case you can run xfs_repair on each disk, it will search the disk for a backup superblock, if those are not also damaged it should recover the filesystems. https://wiki.unraid.net/Check_Disk_Filesystems#Drives_formatted_with_XFS
June 9, 20197 yr Author after running "xfs_repair" all my disks are visible, I miss 11% of the data. I miss 22 shares and have created a "lost + found" shares how to put all that in order attached new diagnostic berry-diagnostics-20190609-1559.zip
June 10, 20197 yr Community Expert 17 hours ago, n4152394 said: how to put all that in order By manually browsing each lost+found folder and moving the contents, or if you have them by restoring from backups.
