Accessing a user share via FTP/SMB?


shire

Recommended Posts

Hi!



I generated a user share on my array called "movies". When I try to access it from my Mac I only see this folder using SMB. Via FTP it only shows me "disk1" and "Users".



Any hints?



Bye.



All user shares are under "users"



You'll see it as users/movies.



in ftp  you can change directory to it.



Joe L.

Link to comment

Hi!



No. I tried it with Transmit and FileZilla. When I connect to "192.168.1.67" via FTP this folder is empty. When I connect via SMB MacOSX shows me "movies" as volume on this IP and I can mount it.

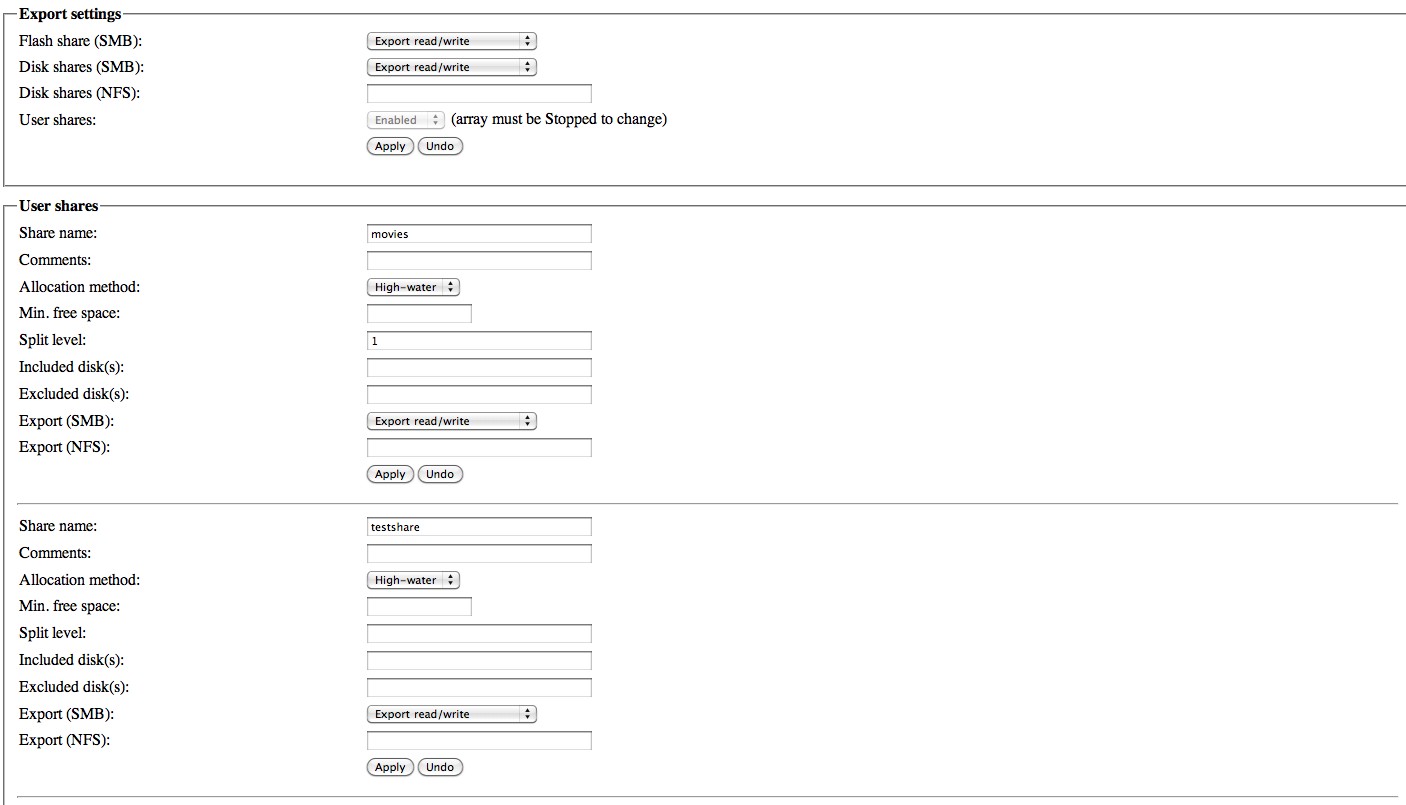

This is a picture of me share setup:



Bye.


Link to comment

Hi!



Can it be possible that user shares are not accessible in general using FTP?



I get access to the user share using SMB without problems:



smb://xxx.xxx.x.xxx/movies



Using FTP I don't find the share folder under



/disk1

/user



Bye.

Link to comment
  • 2 weeks later...

Hi!



The problem still persists. So far I could figure out, that unRAID is the problem. Here is the logfile of FileZilla trying to connect to the user share:



FileZilla wrote the logfile in German...but the important part is:



Antwort: 226 Transfer done (but failed to open directory).



Status: Verbinde mit 192.168.1.67:21...

Status: Verbindung hergestellt, warte auf Willkommensnachricht...

Antwort: 220 (vsFTPd 2.0.5)

Befehl: USER root

Antwort: 331 Please specify the password.

Befehl: PASS

Antwort: 230 Login successful.

Befehl: SYST

Antwort: 215 UNIX Type: L8

Befehl: FEAT

Antwort: 211-Features:

Antwort: EPRT

Antwort: EPSV

Antwort: MDTM

Antwort: PASV

Antwort: REST STREAM

Antwort: SIZE

Antwort: TVFS

Antwort: 211 End

Status: Verbunden

Status: Empfange Verzeichnisinhalt...

Befehl: PWD

Antwort: 257 "/"

Befehl: TYPE I

Antwort: 200 Switching to Binary mode.

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,244,251)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Directory send OK.

Status: Anzeigen des Verzeichnisinhalts abgeschlossen

Status: Empfange Verzeichnisinhalt...

Befehl: CWD user

Antwort: 250 Directory successfully changed.

Befehl: PWD

Antwort: 257 "/user"

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,68,144)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Transfer done (but failed to open directory).

Status: Anzeigen des Verzeichnisinhalts abgeschlossen

Status: Empfange Verzeichnisinhalt...

Befehl: CWD /user0

Antwort: 250 Directory successfully changed.

Befehl: PWD

Antwort: 257 "/user0"

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,137,4)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Transfer done (but failed to open directory).

Status: Anzeigen des Verzeichnisinhalts abgeschlossen

Status: Empfange Verzeichnisinhalt...

Befehl: CWD /disk1

Antwort: 250 Directory successfully changed.

Befehl: PWD

Antwort: 257 "/disk1"

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,251,183)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Transfer done (but failed to open directory).

Status: Anzeigen des Verzeichnisinhalts abgeschlossen

Status: Empfange Verzeichnisinhalt...

Befehl: CWD /cache

Antwort: 250 Directory successfully changed.

Befehl: PWD

Antwort: 257 "/cache"

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,114,225)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Transfer done (but failed to open directory).

Status: Anzeigen des Verzeichnisinhalts abgeschlossen



Which means that FileZilla failed to open the directory.



My best gues would be that unRAID don't allow me to see what is inside. But where can I change it??



Thanks.



Bye.

Link to comment

Hi!



Here we go:



drwx------ 5 root root 128 Nov  3 08:09 cache/

drwx------ 5 root root 104 Nov  2 10:28 disk1/

drwx------ 1 root root 128 Nov  3 08:09 user/

drwx------ 1 root root 104 Nov  2 10:28 user0/



drwx------ 1 root root 416 Nov  3 23:15 movies/



Whatever that means.;-)



Bye.

Link to comment

Hi!



I deactivated the firewall on my Mac and also LittleSnitch. Between the Mac and the unRAID-Server is just a switch. So nothing should block the connection.



Unfortunately I'm getting the same results.



Using root and FileZilla:



Status: Verbinde mit 192.168.1.67:21...

Status: Verbindung hergestellt, warte auf Willkommensnachricht...

Antwort: 220 (vsFTPd 2.0.5)

Befehl: USER root

Antwort: 331 Please specify the password.

Befehl: PASS ***********

Antwort: 230 Login successful.

Befehl: SYST

Antwort: 215 UNIX Type: L8

Befehl: FEAT

Antwort: 211-Features:

Antwort: EPRT

Antwort: EPSV

Antwort: MDTM

Antwort: PASV

Antwort: REST STREAM

Antwort: SIZE

Antwort: TVFS

Antwort: 211 End

Status: Verbunden

Status: Empfange Verzeichnisinhalt...

Befehl: PWD

Antwort: 257 "/"

Befehl: TYPE I

Antwort: 200 Switching to Binary mode.

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,191,168)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Directory send OK.

Status: Anzeigen des Verzeichnisinhalts abgeschlossen

Status: Empfange Verzeichnisinhalt...

Befehl: CWD user

Antwort: 250 Directory successfully changed.

Befehl: PWD

Antwort: 257 "/user"

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,75,184)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Transfer done (but failed to open directory).

Status: Anzeigen des Verzeichnisinhalts abgeschlossen



Using admin (another user with a name and password):



Status: Verbinde mit 192.168.1.67:21...

Status: Verbindung hergestellt, warte auf Willkommensnachricht...

Antwort: 220 (vsFTPd 2.0.5)

Befehl: USER admin

Antwort: 331 Please specify the password.

Befehl: PASS ***********

Antwort: 230 Login successful.

Befehl: SYST

Antwort: 215 UNIX Type: L8

Befehl: FEAT

Antwort: 211-Features:

Antwort: EPRT

Antwort: EPSV

Antwort: MDTM

Antwort: PASV

Antwort: REST STREAM

Antwort: SIZE

Antwort: TVFS

Antwort: 211 End

Status: Verbunden

Status: Empfange Verzeichnisinhalt...

Befehl: PWD

Antwort: 257 "/"

Befehl: TYPE I

Antwort: 200 Switching to Binary mode.

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,24,77)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Directory send OK.

Status: Anzeigen des Verzeichnisinhalts abgeschlossen

Status: Empfange Verzeichnisinhalt...

Befehl: CWD user

Antwort: 250 Directory successfully changed.

Befehl: PWD

Antwort: 257 "/user"

Befehl: PASV

Antwort: 227 Entering Passive Mode (192,168,1,67,58,62)

Befehl: LIST

Antwort: 150 Here comes the directory listing.

Antwort: 226 Transfer done (but failed to open directory).

Status: Anzeigen des Verzeichnisinhalts abgeschlossen



Getting a bit crazy.... ???



Bye.

Link to comment

Hi!



The vsftpd.conf:



root@unRAID:/etc# less vsftpd.conf

WARNING: terminal is not fully functional

# vsftpd.conf for unRAIDRN)

#

write_enable=YES

connect_from_port_20=YES

#

# No anonymous logins

anonymous_enable=NO

#

# Allow local users to log in.

local_enable=YES

local_umask=077

local_root=/mnt

check_shell=NO

#

# All file ownership will be 'root'

guest_enable=YES

guest_username=root

anon_upload_enable=YES

anon_other_write_enable=YES

anon_mkdir_write_enable=YES

#

# Logging to syslog

syslog_enable=YES

log_ftp_protocol=NO

xferlog_enable=NO

#

# Misc.

dirmessage_enable=NO

ls_recurse_enable=YES



Bye.

Link to comment

Is that the default vsftpd.conf file as supplied with unRAID? I don't have access to mine at the moment, but the vsftpd.conf file you have posted here is not very secure - I can post a sample of a more secure conf file in a bit.



If you make any changes to the vsftpd.conf you need to restart the vsftpd daemon to make them stick.

Link to comment

Hi!



Is that the default vsftpd.conf file as supplied with unRAID? I don't have access to mine at the moment, but the vsftpd.conf file you have posted here is not very secure - I can post a sample of a more secure conf file in a bit.



If you make any changes to the vsftpd.conf you need to restart the vsftpd daemon to make them stick.



This is the stock "vsftp.conf" of unRAID. Generally I have done nothing special to the setup. I installed unRAID onto my USB-Stick and plugged it into my server. That's it.



I only changed a few settings by the use of the standard GUI. Nothing more. That's why I can't understand that it works for everybody except ME. :(



Your "vsftp.conf-File" would be great! :D



Bye.

Link to comment

Copy of my vsftd.conf file.



May not work in your particular environment, use at your own risk, and read the man pages.



Things to note, I had slightly different requirements and this is reflected in the vsftd.conf file. I configured to be not anonymous, for my purpose I created a new ‘FTP’ user for each account, in other words, each person I wanted to allow access to the FTP server was given a unique username and password.



I was using CentOS, with just the bare essentials to run a FTP service; it has been running well for 6 years.



The users were locked into their home directory, and had no SSH/shell.



I used the ‘chroot xxx' to block/allow users.



I disabled root SSH access and changed the SHH port – always a good idea on a remote box – probably not relevant in your case.



At some point I had an issue that FTP accounts could not change to home directory they received the following error ‘500 OOPS: cannot change directory:/home/someuser’ – to fix this I did the following as root – ‘getsebool –a |grep ftp’ display the current vsftd.conf , then to change it ‘setsebool –P ftp_home_dir on’- this might be relevant in your case

I added min and max port ranges to allow it to work in conjunction with the firewall, might be worth checking this in your vsftd.conf file.



I changed the default logging, all log file were also SCP copied over to another server every 24hrs, along with other useful stuff.



• anonymous_enable=NO

• local_enable=YES

• write_enable=YES

• local_umask=002

• dirmessage_enable=YES

• connect_from_port_20=YES

• local_umask=002

• chroot_list_enable=YES

• chroot_local_user=YES

• chroot_list_file=/etc/vsftpd.chroot_list

• pam_service_name=vsftpd

• userlist_enable=YES

• listen=YES

• tcp_wrappers=YES

• background=YES

• xferlog_file=/var/log/vsftpd.log

• xferlog_enable=YES

• #xferlog_std_format=NO (or comment out)

• dual_log_enable=YES

• pasv_min_port=9000

• pasv_max_port=9999

• ftpd_banner=Welcome to the Mt_FTP FTP service.



Link to comment
