Unknown PCI header type '127' on Windows 10 VM

dodgypast
in VM Engine (KVM)

Featured Replies

As the title says I'm getting this error when trying to start the VM with a GTX 970 passed through, it works fine with VNC instead.



The most recent log from the VM is:

-uuid 7b590d1b-146d-f7c3-5c21-fd29a844e263 \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=26,server,nowait \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x4 \
-drive 'file=/mnt/user/domains/Windows 10/vdisk1.img,format=raw,if=none,id=drive-virtio-disk2,cache=writeback' \
-device virtio-blk-pci,scsi=off,bus=pci.0,addr=0x5,drive=drive-virtio-disk2,id=virtio-disk2,bootindex=1,write-cache=on \
-drive file=/mnt/user/isos/Windows.iso,format=raw,if=none,id=drive-ide0-0-0,readonly=on \
-device ide-cd,bus=ide.0,unit=0,drive=drive-ide0-0-0,id=ide0-0-0,bootindex=2 \
-drive file=/mnt/user/isos/virtio-win-0.1.160-1.iso,format=raw,if=none,id=drive-ide0-0-1,readonly=on \
-device ide-cd,bus=ide.0,unit=1,drive=drive-ide0-0-1,id=ide0-0-1 \
-netdev tap,fd=28,id=hostnet0,vhost=on,vhostfd=29 \
-device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:d2:4e:b2,bus=pci.0,addr=0x3 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=30,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-vnc 0.0.0.0:0,websocket=5700 \
-k en-us \
-device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pci.0,addr=0x2 \
-device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x6 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2019-06-25 05:36:42.928+0000: Domain id=7 is tainted: high-privileges
2019-06-25 05:36:42.928+0000: Domain id=7 is tainted: host-cpu
char device redirected to /dev/pts/0 (label charserial0)
2019-06-25T05:39:07.569031Z qemu-system-x86_64: warning: guest updated active QH
2019-06-25T05:57:37.890302Z qemu-system-x86_64: terminating on signal 15 from pid 10228 (/usr/sbin/libvirtd)
2019-06-25 05:57:38.229+0000: shutting down, reason=shutdown
2019-06-25 05:59:22.255+0000: shutting down, reason=failed

My system devices are:


PCI Devices and IOMMU Groups

IOMMU group 0:	[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
IOMMU group 1:	[1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 2:	[1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 3:	[1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
IOMMU group 4:	[1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
IOMMU group 5:	[1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 6:	[1022:1453] 00:03.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 7:	[1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
IOMMU group 8:	[1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
IOMMU group 9:	[1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 10:	[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge
IOMMU group 11:	[1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 12:	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
	[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 13:	[1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0
	[1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1
	[1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2
	[1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3
	[1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4
	[1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5
	[1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6
	[1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7
IOMMU group 14:	[144d:a808] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981
IOMMU group 15:	[1022:43b9] 02:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X370 Series Chipset USB 3.1 xHCI Controller (rev 02)
	[1022:43b5] 02:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X370 Series Chipset SATA Controller (rev 02)
	[1022:43b0] 02:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X370 Series Chipset PCIe Upstream Port (rev 02)
	[1022:43b4] 03:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
	[1022:43b4] 03:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
	[1022:43b4] 03:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
	[1022:43b4] 03:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
	[1b21:1343] 04:00.0 USB controller: ASMedia Technology Inc. ASM1143 USB 3.1 Host Controller
	[8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
	[1969:e0b1] 06:00.0 Ethernet controller: Qualcomm Atheros Killer E2500 Gigabit Ethernet Controller (rev 10)
IOMMU group 16:	[10de:13c2] 08:00.0 VGA compatible controller: NVIDIA Corporation GM204 [GeForce GTX 970] (rev ff)
	[10de:0fbb] 08:00.1 Audio device: NVIDIA Corporation GM204 High Definition Audio Controller (rev ff)
IOMMU group 17:	[10de:1d01] 09:00.0 VGA compatible controller: NVIDIA Corporation GP108 [GeForce GT 1030] (rev a1)
	[10de:0fb8] 09:00.1 Audio device: NVIDIA Corporation GP108 High Definition Audio Controller (rev a1)
IOMMU group 18:	[1022:145a] 0a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Raven/Raven2 PCIe Dummy Function
IOMMU group 19:	[1022:1456] 0a:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor
IOMMU group 20:	[1022:145c] 0a:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
IOMMU group 21:	[1022:1455] 0b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Renoir PCIe Dummy Function
IOMMU group 22:	[1022:7901] 0b:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 23:	[1022:1457] 0b:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller


CPU Thread Pairings

Pair 1:	cpu 0 / cpu 8
Pair 2:	cpu 1 / cpu 9
Pair 3:	cpu 2 / cpu 10
Pair 4:	cpu 3 / cpu 11
Pair 5:	cpu 4 / cpu 12
Pair 6:	cpu 5 / cpu 13
Pair 7:	cpu 6 / cpu 14
Pair 8:	cpu 7 / cpu 15


USB Devices

Bus 001 Device 001:	ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 002:	ID 0781:5590 SanDisk Corp. Ultra Dual
Bus 001 Device 003:	ID 0a12:0001 Cambridge Silicon Radio, Ltd Bluetooth Dongle (HCI mode)
Bus 001 Device 004:	ID 24ae:1005
Bus 001 Device 005:	ID 1532:006c Razer USA, Ltd
Bus 001 Device 006:	ID 0424:2512 Standard Microsystems Corp. USB 2.0 Hub
Bus 001 Device 007:	ID 264a:1fa5
Bus 002 Device 001:	ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 001:	ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 002:	ID 045e:02e6 Microsoft Corp. Wireless XBox Controller Dongle
Bus 004 Device 001:	ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 001:	ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 005 Device 002:	ID 046d:c223 Logitech, Inc. G11/G15 Keyboard / USB Hub
Bus 005 Device 003:	ID 046d:0826 Logitech, Inc. HD Webcam C525
Bus 005 Device 004:	ID 046d:c226 Logitech, Inc. G15 Refresh Keyboard
Bus 005 Device 005:	ID 28de:1142
Bus 005 Device 006:	ID 046d:c227 Logitech, Inc. G15 Refresh Keyboard
Bus 005 Device 007:	ID 045e:0719 Microsoft Corp. Xbox 360 Wireless Adapter
Bus 006 Device 001:	ID 1d6b:0003 Linux Foundation 3.0 root hub


SCSI Devices

[0:0:0:0]	disk    SanDisk  Ultra            1.00  /dev/sda   15.3GB
[1:0:0:0]	disk    ATA      ST8000AS0002-1NA AR17  /dev/sdb   8.00TB
[2:0:0:0]	disk    ATA      ST8000AS0002-1NA AR17  /dev/sdc   8.00TB
[3:0:0:0]	disk    ATA      C300-CTFDDAC128M 0002  /dev/sdd    128GB
[4:0:0:0]	disk    ATA      ST8000VX0022-2EJ AV01  /dev/sde   8.00TB
[5:0:0:0]	disk    ATA      Samsung SSD 850  2B6Q  /dev/sdf    250GB
[6:0:0:0]	disk    ATA      ST8000AS0002-1NA AR13  /dev/sdg   8.00TB
[7:0:0:0]	disk    ATA      ST8000AS0002-1NA AR17  /dev/sdh   8.00TB
[8:0:0:0]	disk    ATA      WDC WD60EZRZ-00G 0A80  /dev/sdi   6.00TB
[N:0:4:1]	disk    Samsung SSD 970 EVO Plus 1TB__1            /dev/nvme0n1  1.00TB

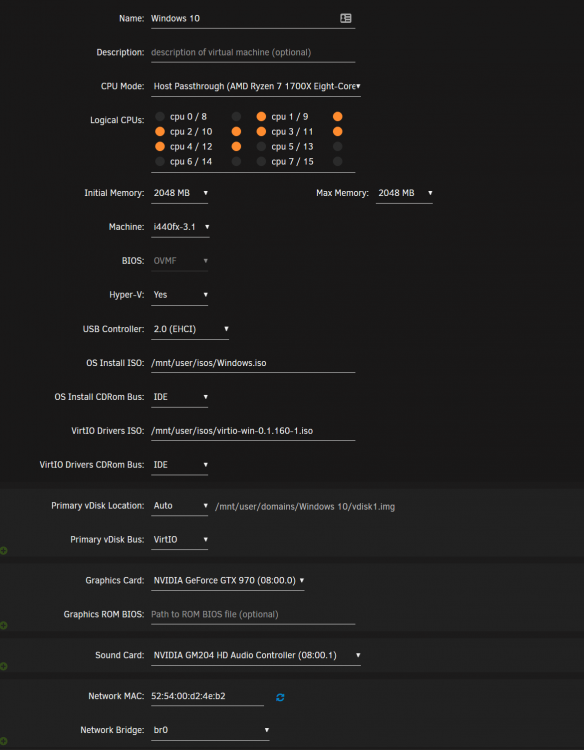

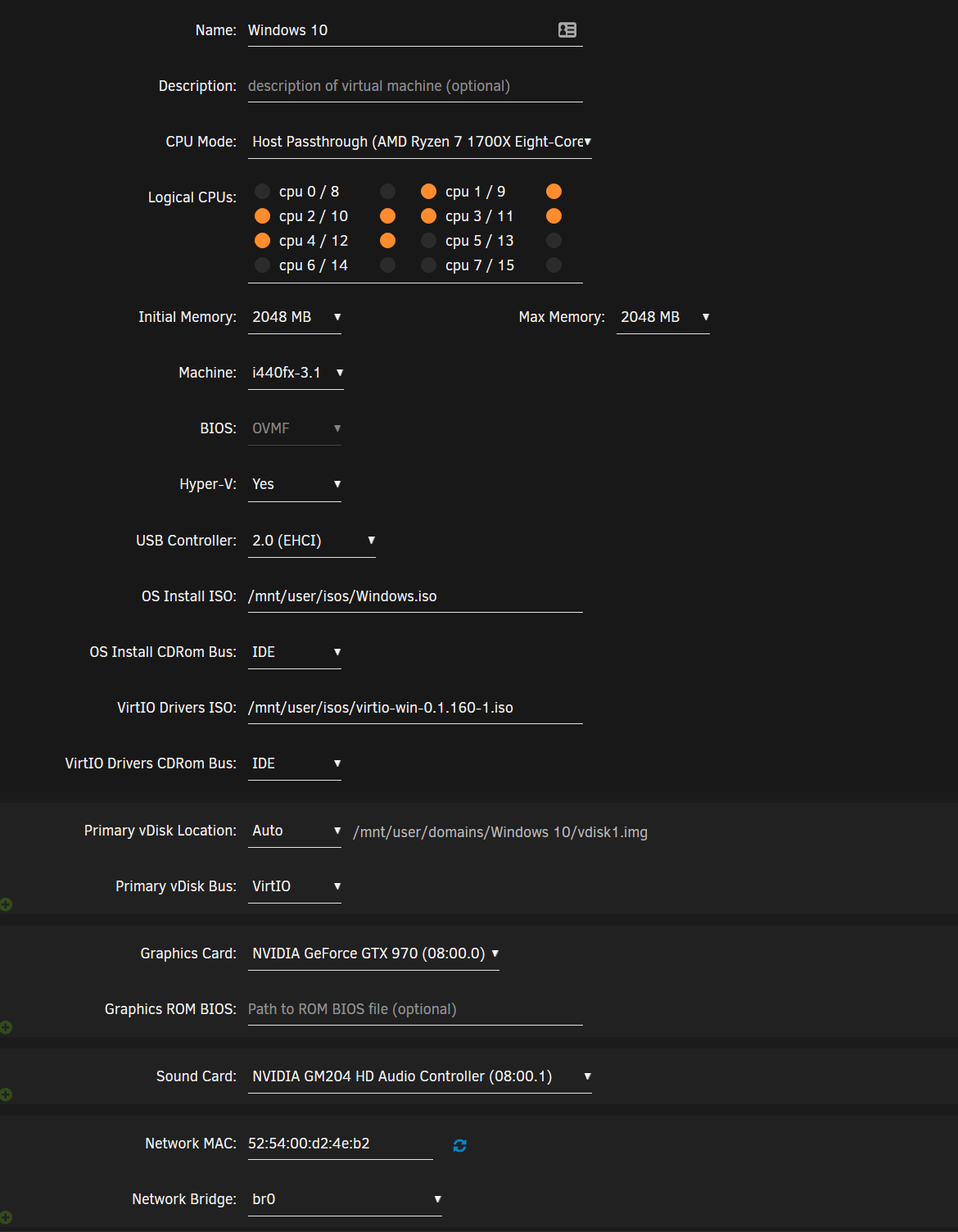

Unfortunately I don't know how to get the xml for the VM so I've included a picture ( no usb devices are currently passed through ). I have also included my diagnostics.zip




tower-diagnostics-20190625-0605.zip

  • Quote
    • Author

    to add some further debugging I tried;



    I installed a linux VM and got the same error.

    I then tried passing through my 1030 to the linux VM. The linux VM appeared to start but the monitor went blank ( my GUI was on the 1030 ).

    Then the linux VM would not stop when the command was sent.

    After trying to restart the VM on the 1030 graphics card I got the Unknown PCI header type '127' error again.

    tower-diagnostics-20190625-0732.zip

    Edited by dodgypast
    adding diagnostics

  • Quote
    • Author

    Downgrading to the gigabyte f 25 BIOS fixed it.

    Edited by dodgypast
