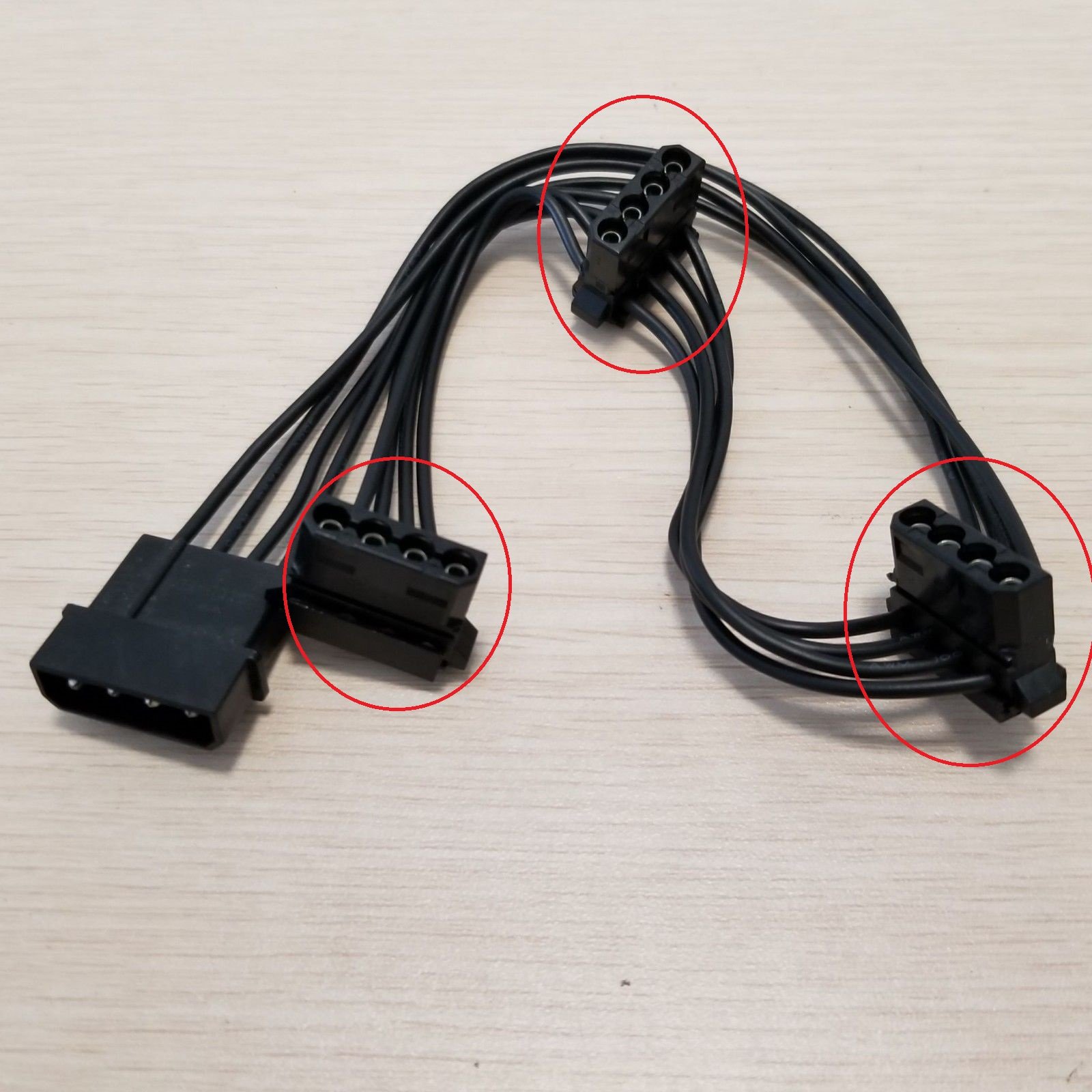

craigr Posted July 23, 2019 Share Posted July 23, 2019 (edited) So I want to build some custom cables for my server and can't find the power terminators I want. In the attached image below I have circled in red exactly what I want. Essentially I need IDE 8981 female plugs that allow the power cables to be passed through so that it is easy to daisy chain power plugs on the same cable lines (like SATA almost always has). I just bought a bunch of Norco SS-500 cages and only later realized they use the old power plugs... I need to hook them all up. I also want to use #16 or #14 wire instead of the cheap #18 wire that most power cables use. This pass though style is very common on SATA cables, but difficult to find on IDE power cables. I know they are out there, but I can't find them and really need a part number. Thanks for any help! craigr Edited July 23, 2019 by craigr Quote Link to comment
Michael_P Posted July 23, 2019 Share Posted July 23, 2019 Looks promising https://www.alibaba.com/product-detail/Color-Choosable-molex-8981-Crimp-5_60836935725.html?spm=a2700.7724857.normalList.178.76ee3775Qp44Iu Quote Link to comment
craigr Posted July 23, 2019 Author Share Posted July 23, 2019 5 minutes ago, Michael_P said: Looks promising https://www.alibaba.com/product-detail/Color-Choosable-molex-8981-Crimp-5_60836935725.html?spm=a2700.7724857.normalList.178.76ee3775Qp44Iu Thanks. Unfortunetally the minimum order quantity is 500 pieces... I don't think I need quite that many What exactly were your search words when you found those. I couldn't even get that far. Best, craigr Quote Link to comment
Michael_P Posted July 23, 2019 Share Posted July 23, 2019 (edited) Search for 4 pin molex connector, MOQs don't mean much, send them an email with an RFQ for 10 samples and see what they say. They're pretty capitalistic for being communists lol. This looks good too https://m.alibaba.com/product/62181053161/ZPT-Custom-big-4-pin-molex.html?spm=a2706.7843299.1998817009.52.759a71e9ZquQqD They look pinned, tho, thought they were spade capped Edited July 23, 2019 by Michael_P Quote Link to comment
HK-Steve Posted July 23, 2019 Share Posted July 23, 2019 (edited) Not sure if still running, but worth a look. Edited July 23, 2019 by HK-Steve Quote Link to comment
unevent Posted July 24, 2019 Share Posted July 24, 2019 http://www.frozencpu.com/ Look under Connectors - 4 Pin - Molex Never bought from them and not affiliated, but looks like they have what you are looking for. Quote Link to comment
Xaero Posted July 24, 2019 Share Posted July 24, 2019 Search term: "Molex Punch Down Power 4 pin"https://www.google.com/search?tbm=shop&psb=1&x=0&y=0&q=molex+punch+down+power+4+pin&oq=molex+punch+down+power+4+pin&aqs=products-cc.. 2 Quote Link to comment
craigr Posted July 29, 2019 Author Share Posted July 29, 2019 Thanks everyone. This has been most helpful! Kind regards, craigr Quote Link to comment
craigr Posted July 29, 2019 Author Share Posted July 29, 2019 Just for reference I Googled "Molex 4 pin Punch Down Power" and got good hits. I also checked out FrozenCPU and have bought from them in the past. All the connectors I found seem identical, but none have the part number. FrozenCPU calls them "low profile." Here are links for as long as they survive... https://www.ilavmodding.com/product-page/4pin-pass-though-punch-down-connector https://www.frozencpu.com/products/7616/ele-345/Standard_4_Pin_Low_Profile_Easy_Install_Connector_w_Cover_-_Black.html?tl=g51c387s1001#blank https://www.ebay.com/itm/20Pcs-Black-Molex-4-pin-Punch-Down-Power-Plug-Connector-Cover-Standard-IDE-PSU/261963671519?hash=item3cfe4067df:g:JCMAAOSw9N1VoSqn https://www.ebay.com/itm/5-set-Black-Molex-4-pin-Punch-Down-Power-Plug-Connector-with-Single-End-Cover/252305259520?hash=item3abe90bc00:g:1ZUAAOSwFNZW1br8 Quote Link to comment
Xaero Posted July 29, 2019 Share Posted July 29, 2019 Here's a bit of comical history; The "4-pin Molex" we all commonly refer to for IDE power connections is actually an AMP product (now owned by TE-Connectivity) from the "Mate-N-Lock" line (1-480424-0):https://www.mouser.com/ProductDetail/TE-Connectivity-AMP/1-480424-0 We refer to at as Molex as the legacy 4-pin connector which had a V shape to one side, is a Molex product. The below part appears to be the "punch down" style 4-pin connector in the "Mate-N-Lock" serieshttps://www.mouser.com/datasheet/2/418/NG_CD_794036_C-1259633.pdf This document has more information on that connector and it's associated parts:https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=82181_SOFTSHELL_STANDARD_DENSITY&DocType=Catalog+Section&DocLang=English&PartCntxt=794036-1 You are looking for both the Insulation Displacement Connector (IDC) and the Dust Cover for that same connector. They have them available in various colors. Note that the 794036 may not be the connector we actually want here - but this should point you in the correct direction. Page 29 I think is the correct page. Quote Link to comment
craigr Posted July 30, 2019 Author Share Posted July 30, 2019 I ordered these lat night and specified 17 pass through covers and 3 end covers: https://www.ebay.com/itm/20Pcs-Black-Molex-4-pin-Punch-Down-Power-Plug-Connector-Cover-Standard-IDE-PSU/261963671519?hash=item3cfe4067df:g:JCMAAOSw9N1VoSqn I'm hoping they can take #16 wire, but I did the calculations and #18 wire will work... but #18 is close to the limit for my current power requirements. craigr Quote Link to comment
JonathanM Posted July 30, 2019 Share Posted July 30, 2019 19 minutes ago, craigr said: I'm hoping they can take #16 wire, but I did the calculations and #18 wire will work... but #18 is close to the limit for my current power requirements. I don't think heating is the limiting factor here, rather voltage sag under load. Either way, keeping the runs as short as possible, and if you really have to have a super long single string, maybe putting a large filter capacitor across the end of the run wouldn't hurt. Quote Link to comment
