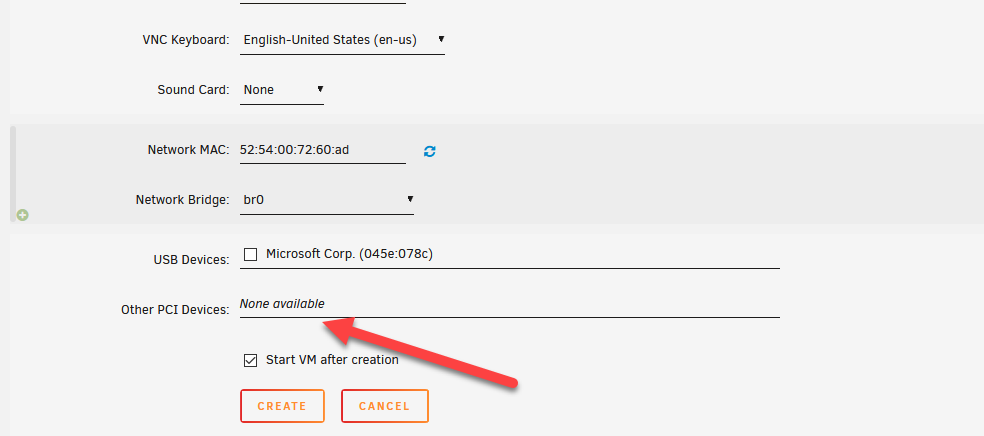

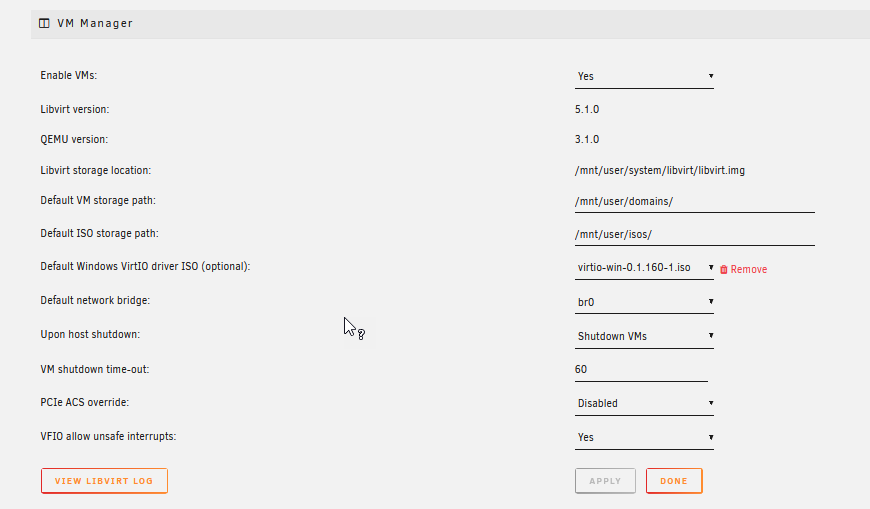

July 25, 20196 yr Hi fellow Unraid forum members, Recently I tried to install a pfSense VM on my server. No matter what I try I can't seems to add the 4 port intel gigabit card to my VM. I had a pfSense VM running until a few months back when I had to downgrade my server to an old desktop that was lacking the cores. Now I have 4 cores again but I can't set up the VM following Space invader's tutorial... I use the below settings. This is the screenshot of the nic and iommu grouping. And this is what I see when I try to set up the VM... This might be also helpful... 00:00.0 Host bridge: Intel Corporation Core Processor DMI (rev 11) Subsystem: Super Micro Computer Inc X8SIL 00:03.0 PCI bridge: Intel Corporation Core Processor PCI Express Root Port 1 (rev 11) Kernel driver in use: pcieport 00:05.0 PCI bridge: Intel Corporation Core Processor PCI Express Root Port 3 (rev 11) Kernel driver in use: pcieport 00:08.0 System peripheral: Intel Corporation Core Processor System Management Registers (rev 11) Subsystem: Device 00d9:0005 00:08.1 System peripheral: Intel Corporation Core Processor Semaphore and Scratchpad Registers (rev 11) Subsystem: Device 00d9:0005 00:08.2 System peripheral: Intel Corporation Core Processor System Control and Status Registers (rev 11) Subsystem: Device 00d9:0005 00:08.3 System peripheral: Intel Corporation Core Processor Miscellaneous Registers (rev 11) Subsystem: Device 00d9:0005 00:10.0 System peripheral: Intel Corporation Core Processor QPI Link (rev 11) Subsystem: Device 00d9:0005 00:10.1 System peripheral: Intel Corporation Core Processor QPI Routing and Protocol Registers (rev 11) Subsystem: Device 00d9:0005 00:1c.0 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1 (rev 05) Kernel driver in use: pcieport 00:1c.4 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 5 (rev 05) Kernel driver in use: pcieport 00:1c.5 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 6 (rev 05) Kernel driver in use: pcieport 00:1d.0 USB controller: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller (rev 05) Subsystem: Super Micro Computer Inc X8SIL Kernel driver in use: ehci-pci 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev a5) 00:1f.0 ISA bridge: Intel Corporation 3400 Series Chipset LPC Interface Controller (rev 05) Subsystem: Super Micro Computer Inc 3400 Series Chipset LPC Interface Controller 00:1f.2 IDE interface: Intel Corporation 5 Series/3400 Series Chipset 2 port SATA IDE Controller (rev 05) Subsystem: Super Micro Computer Inc 5 Series/3400 Series Chipset 2 port SATA IDE Controller Kernel driver in use: ata_piix Kernel modules: ata_piix 00:1f.3 SMBus: Intel Corporation 5 Series/3400 Series Chipset SMBus Controller (rev 05) Subsystem: Super Micro Computer Inc X8SIL Kernel driver in use: i801_smbus Kernel modules: i2c_i801 00:1f.5 IDE interface: Intel Corporation 5 Series/3400 Series Chipset 2 port SATA IDE Controller (rev 05) Subsystem: Super Micro Computer Inc 5 Series/3400 Series Chipset 2 port SATA IDE Controller Kernel driver in use: ata_piix Kernel modules: ata_piix 01:00.0 Ethernet controller: Intel Corporation 82580 Gigabit Network Connection (rev 01) Subsystem: Hewlett-Packard Company NC365T 4-port Ethernet Server Adapter Kernel driver in use: igb Kernel modules: igb 01:00.1 Ethernet controller: Intel Corporation 82580 Gigabit Network Connection (rev 01) Subsystem: Hewlett-Packard Company NC365T 4-port Ethernet Server Adapter Kernel driver in use: igb Kernel modules: igb 01:00.2 Ethernet controller: Intel Corporation 82580 Gigabit Network Connection (rev 01) Subsystem: Hewlett-Packard Company NC365T 4-port Ethernet Server Adapter Kernel driver in use: igb Kernel modules: igb 01:00.3 Ethernet controller: Intel Corporation 82580 Gigabit Network Connection (rev 01) Subsystem: Hewlett-Packard Company NC365T 4-port Ethernet Server Adapter Kernel driver in use: igb Kernel modules: igb 03:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] (rev 03) Subsystem: Dell 6Gbps SAS HBA Adapter Kernel driver in use: mpt3sas Kernel modules: mpt3sas 04:00.0 Ethernet controller: Intel Corporation 82574L Gigabit Network Connection Subsystem: Super Micro Computer Inc X8SIL Kernel driver in use: e1000e Kernel modules: e1000e 05:00.0 Ethernet controller: Intel Corporation 82574L Gigabit Network Connection Subsystem: Super Micro Computer Inc X8SIL Kernel driver in use: e1000e Kernel modules: e1000e 06:03.0 VGA compatible controller: Matrox Electronics Systems Ltd. MGA G200eW WPCM450 (rev 0a) Subsystem: Super Micro Computer Inc X8SIL ff:00.0 Host bridge: Intel Corporation Core Processor QuickPath Architecture Generic Non-Core Registers (rev 04) Subsystem: Intel Corporation Core Processor QuickPath Architecture Generic Non-Core Registers ff:00.1 Host bridge: Intel Corporation Core Processor QuickPath Architecture System Address Decoder (rev 04) Subsystem: Intel Corporation Core Processor QuickPath Architecture System Address Decoder ff:02.0 Host bridge: Intel Corporation Core Processor QPI Link 0 (rev 04) Subsystem: Intel Corporation Core Processor QPI Link 0 Kernel driver in use: i7core_edac Kernel modules: i7core_edac ff:02.1 Host bridge: Intel Corporation Core Processor QPI Physical 0 (rev 04) Subsystem: Intel Corporation Core Processor QPI Physical 0 ff:03.0 Host bridge: Intel Corporation Core Processor Integrated Memory Controller (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller ff:03.1 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Target Address Decoder (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Target Address Decoder ff:03.2 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Test Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Test Registers ff:03.4 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Test Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Test Registers ff:04.0 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Control Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Control Registers ff:04.1 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Address Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Address Registers ff:04.2 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Rank Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Rank Registers ff:04.3 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Thermal Control Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 0 Thermal Control Registers ff:05.0 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Control Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Control Registers ff:05.1 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Address Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Address Registers ff:05.2 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Rank Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Rank Registers ff:05.3 Host bridge: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Thermal Control Registers (rev 04) Subsystem: Intel Corporation Core Processor Integrated Memory Controller Channel 1 Thermal Control Registers Any help would be appreciated. Many thanks, F.
August 1, 20196 yr Author Addingtower-diagnostics-20190801-2021.zip the diagnostics.zip if anyone can help. Does anyone know where can I download earlier versions of Unraid? From late 2018...for testing.

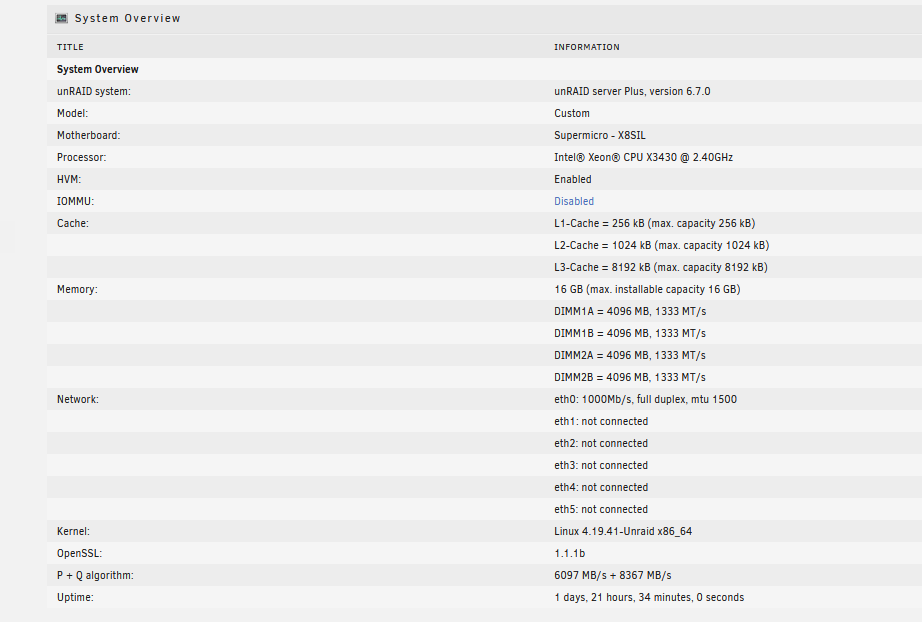

August 1, 20196 yr Looking at your diagnostics I found this in your syslog: Jul 31 00:25:42 Tower kernel: vfio-pci: probe of 0000:01:00.0 failed with error -22 Jul 31 00:25:42 Tower kernel: vfio-pci: probe of 0000:01:00.1 failed with error -22 Jul 31 00:25:42 Tower kernel: vfio-pci: probe of 0000:01:00.2 failed with error -22 Jul 31 00:25:42 Tower kernel: vfio-pci: probe of 0000:01:00.3 failed with error -22 I also can't find anything in the iommu_groups.txt in the diagnostics, so looks like you haven't enabled iommu (vt-d) in the bios. What does it says after iommu if you click the Info button in the webgui?
August 1, 20196 yr Author The problem with this that I'm having difficulties accessing the bios on the mobo... (sadface lvl99...) this is a know issue with some of the X8SIL boards. I need to figure this one out somehow.
August 1, 20196 yr Author The problem with this that I'm having difficulties accessing the bios on the mobo... (sadface lvl99...) this is a know issue with some of the X8SIL boards. I need to figure this one out somehow.
August 1, 20196 yr Author Indeed I do. The problem is now on the hardware layer. I think I need to order a new mobo...

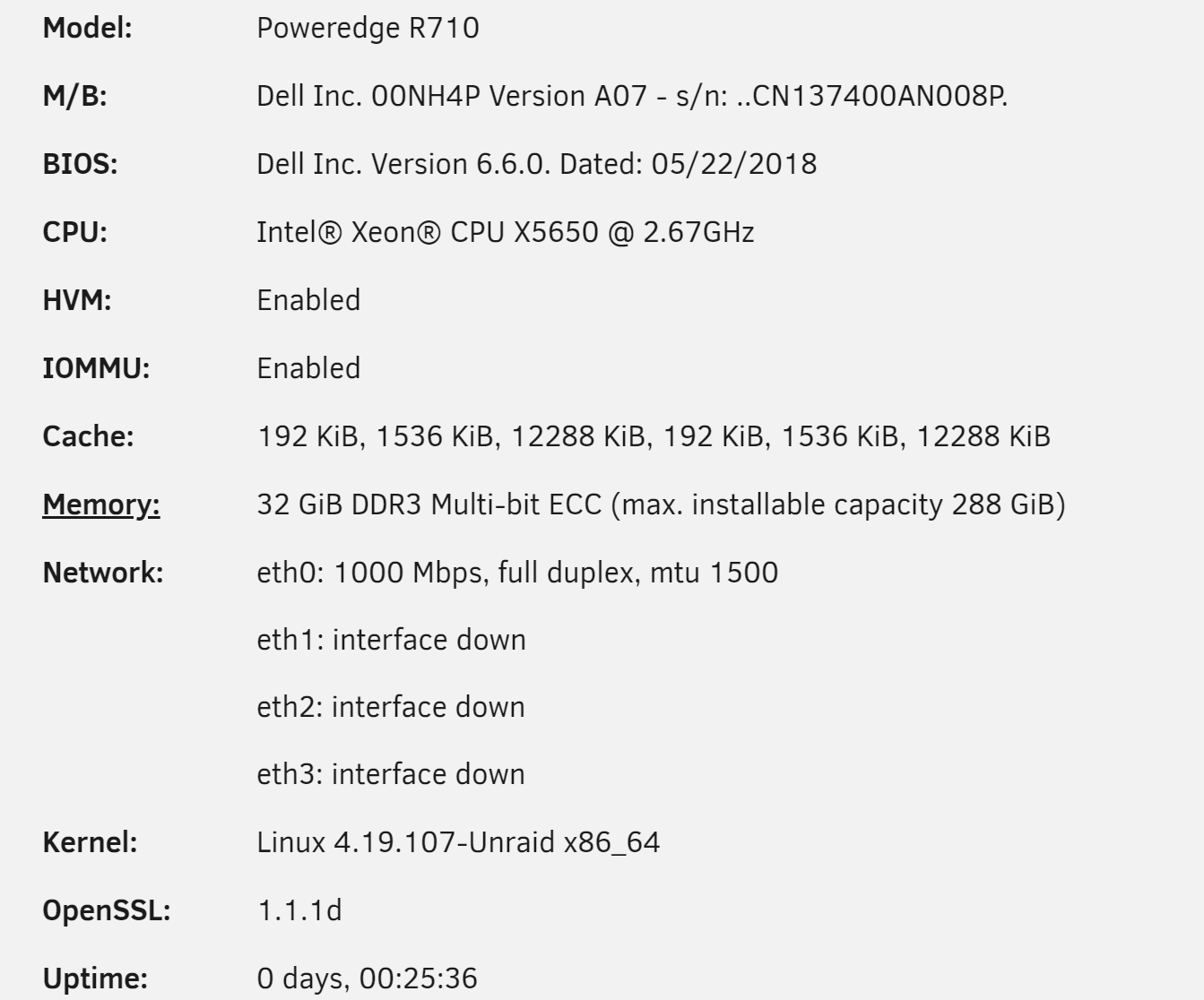

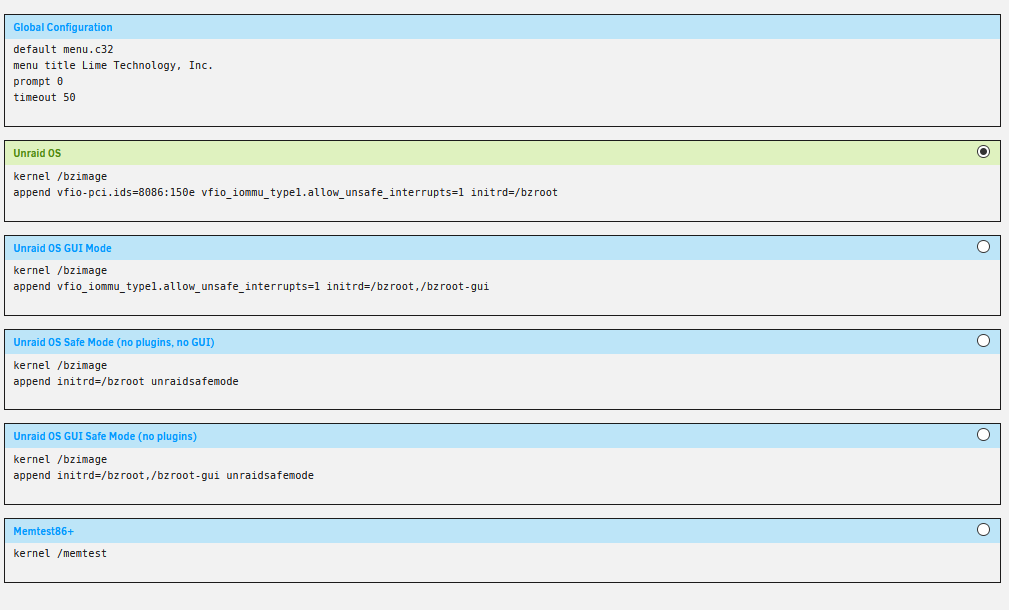

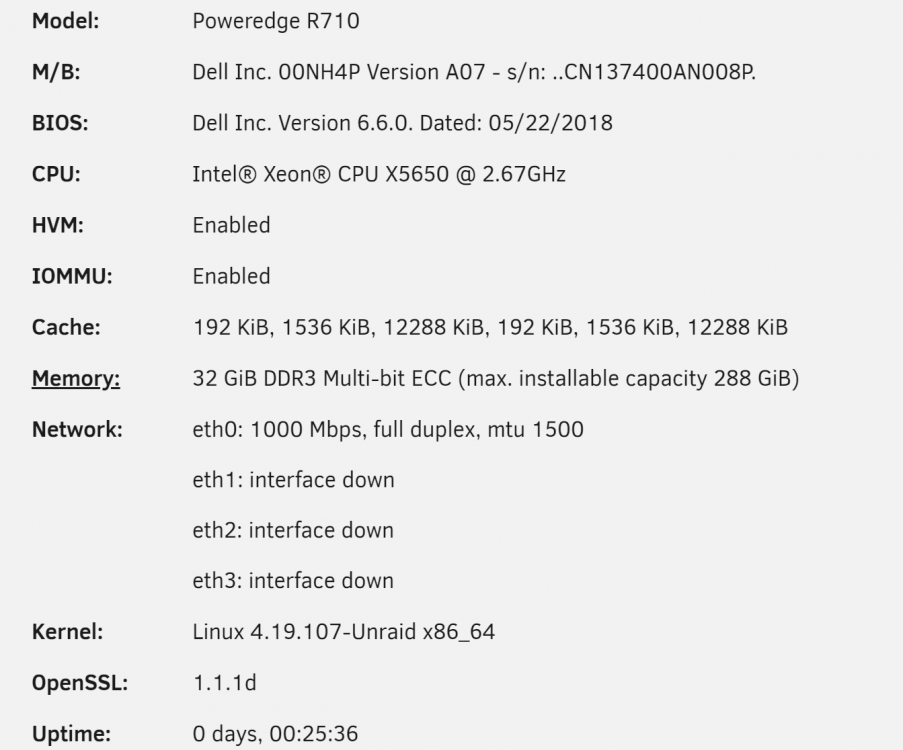

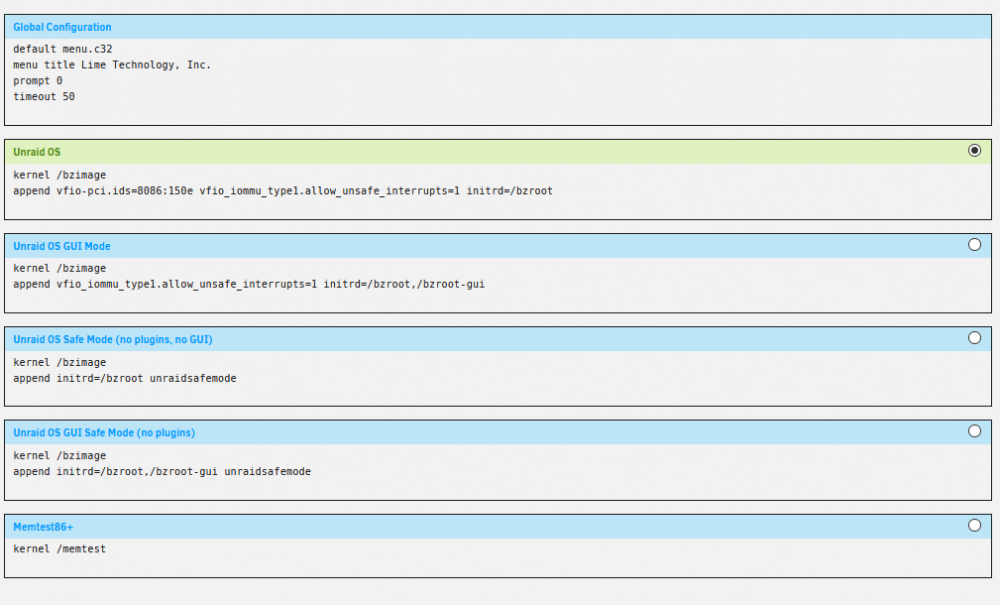

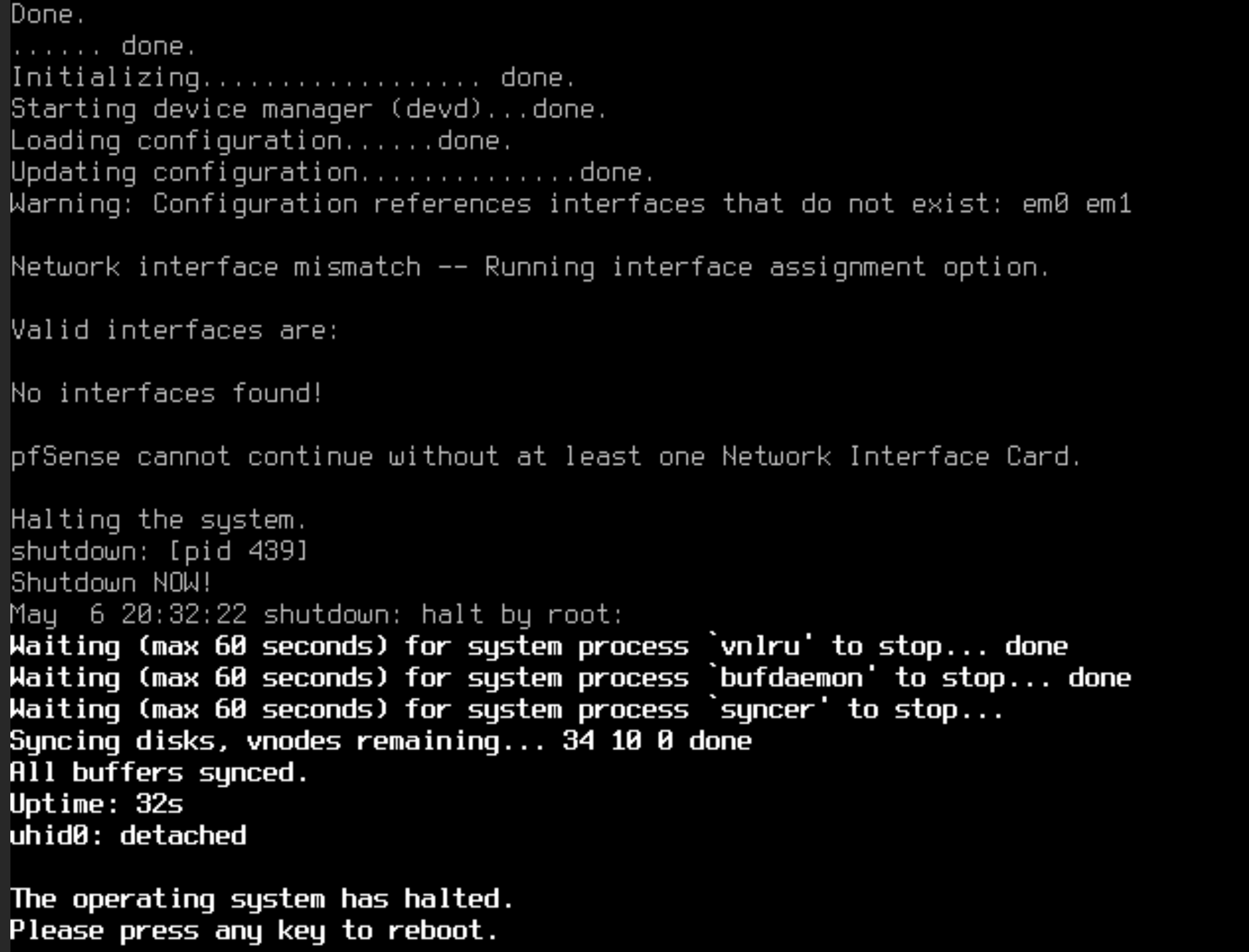

May 6, 20206 yr I got the same NIC in R710. I do have IOMMU enbled and i can get NIC added to the VM, but when i start pfsense it cannot find any NIC. I tried both with onboard broadcom NIC and this Intel nic, but still cannot make it work. Please help Edited May 6, 20206 yr by ajugland new error code
