thesmackdown Posted August 1, 2019 Share Posted August 1, 2019 Hi all, I added a new drive about a month ago and since then I have been having one of my older drives dropping out of the array and throwing errors. I just finished reenabling it and rebuilding and it disabled again during a SMART long test. I was suspecting the drive was ok and maybe a cabling issue when I must have bumped the cable to the new drive. The original drive is still disabled and now both are saying unmountable. Next steps? Thanks! Evan media-diagnostics-20190731-1855.zip Link to comment

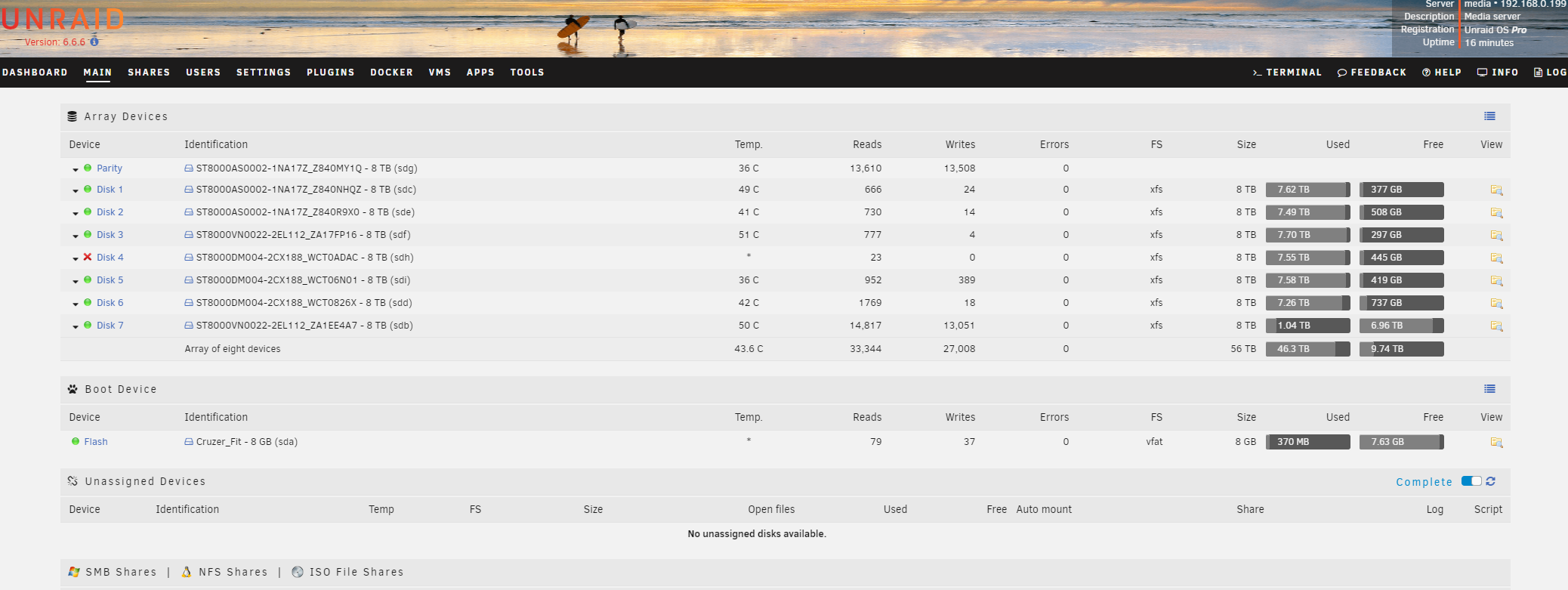

trurl Posted August 1, 2019 Share Posted August 1, 2019 49 minutes ago, thesmackdown said: The original drive is still disabled and now both are saying unmountable. Disk4 disabled and unmountable. Disk7 unmountable. Is it the new disk? Was it ever formatted? Post a screenshot of Main - Array Devices. Link to comment
itimpi Posted August 1, 2019 Share Posted August 1, 2019 6 hours ago, thesmackdown said: I just finished reenabling it and rebuilding and it disabled again during a SMART long test. The SMART long test is internal to the drive so should not be affected by cabling. If it failed (rather than being aborted) then the drive is definitely suspect! As a general rule passing a SMART test is not a definitive test of drive health, but failures almost always are. Link to comment
trurl Posted August 1, 2019 Share Posted August 1, 2019 Since we haven't had a reply, I just want to stress that you shouldn't do anything at all without further advice. Just trying things without knowing what to do is likely going to result in data loss. Do you have backups? Link to comment
thesmackdown Posted August 1, 2019 Author Share Posted August 1, 2019 I understand. Something else has happened and I can't get the server to boot. I am planning on getting a monitor to see what is going on today. Link to comment
jbartlett Posted August 1, 2019 Share Posted August 1, 2019 I'd recommend checking out the DiskSpeed docker in my sig once you're back up & running. It can help identify drives that are acting suspect but still reporting All Clear on the SMART report. A standard drive benchmark checking every 10% of the drive as a baseline, every 1% if you want to get down to the nitty gritty. Link to comment
JorgeB Posted August 1, 2019 Share Posted August 1, 2019 Disk7 looks like a cable problem and disk4 isn't mounting because of the errors on disk7, since it's being emulated. Power down, replace cables on disk7, power back on, check if both disks mount now, if not post new diags. Link to comment
thesmackdown Posted August 1, 2019 Author Share Posted August 1, 2019 Looks like Disk 7 "fixed" itself. Now how do I best solve the disk 4 problem? Link to comment
thesmackdown Posted August 1, 2019 Author Share Posted August 1, 2019 5 hours ago, johnnie.black said: Power down, replace cables on disk7, power back on, check if both disks mount now, if not post new diags. media-diagnostics-20190801-1748.zip Link to comment

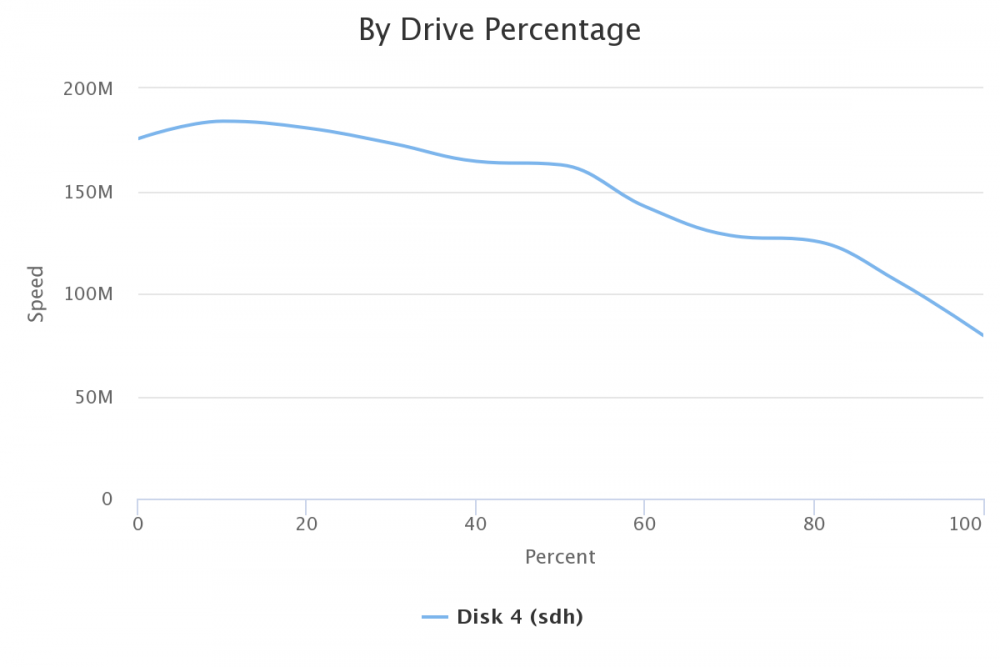

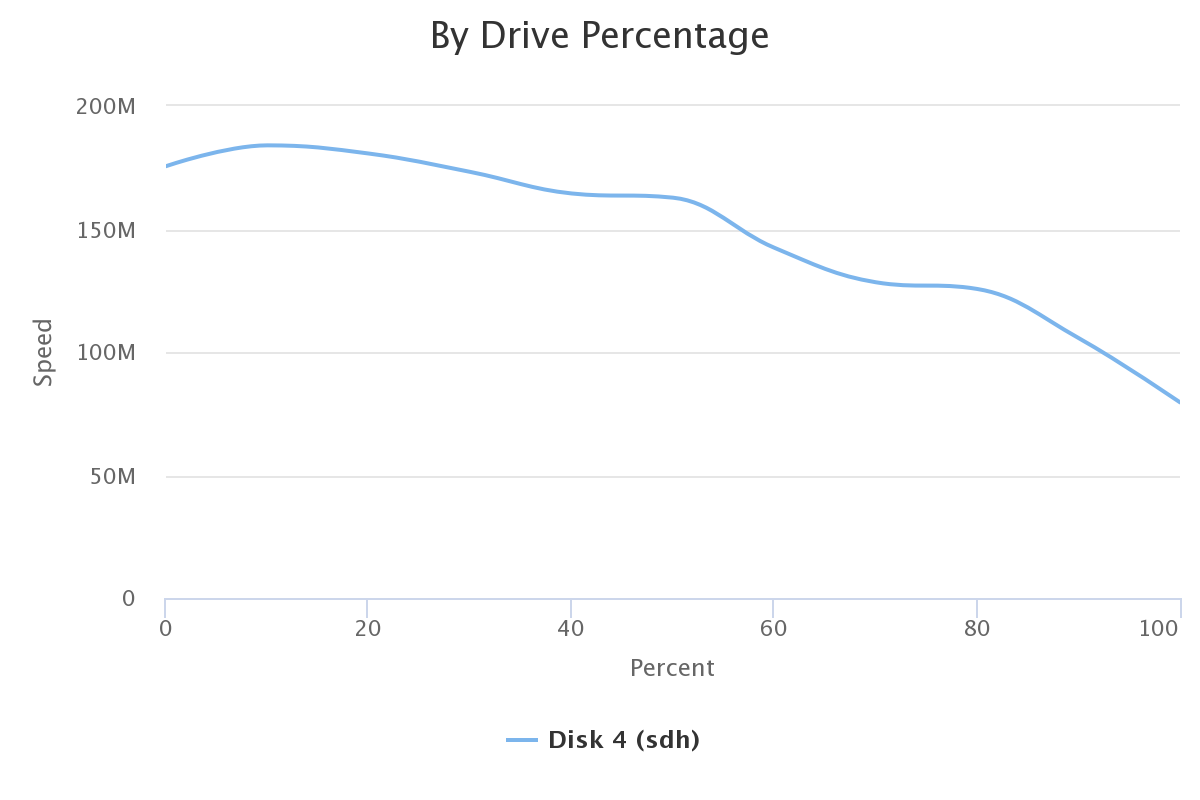

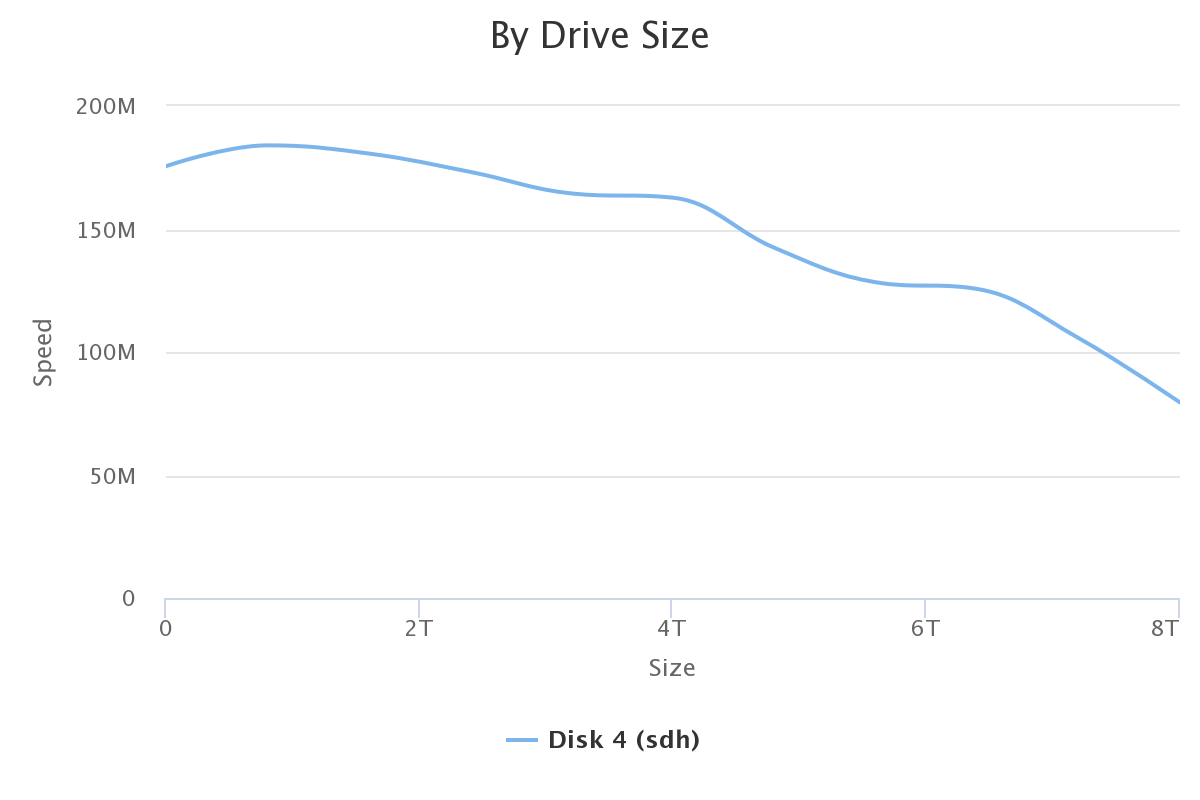

thesmackdown Posted August 2, 2019 Author Share Posted August 2, 2019 9 hours ago, jbartlett said: I'd recommend checking out the DiskSpeed docker in my sig once you're back up & running. It can help identify drives that are acting suspect but still reporting All Clear on the SMART report. A standard drive benchmark checking every 10% of the drive as a baseline, every 1% if you want to get down to the nitty gritty. Link to comment

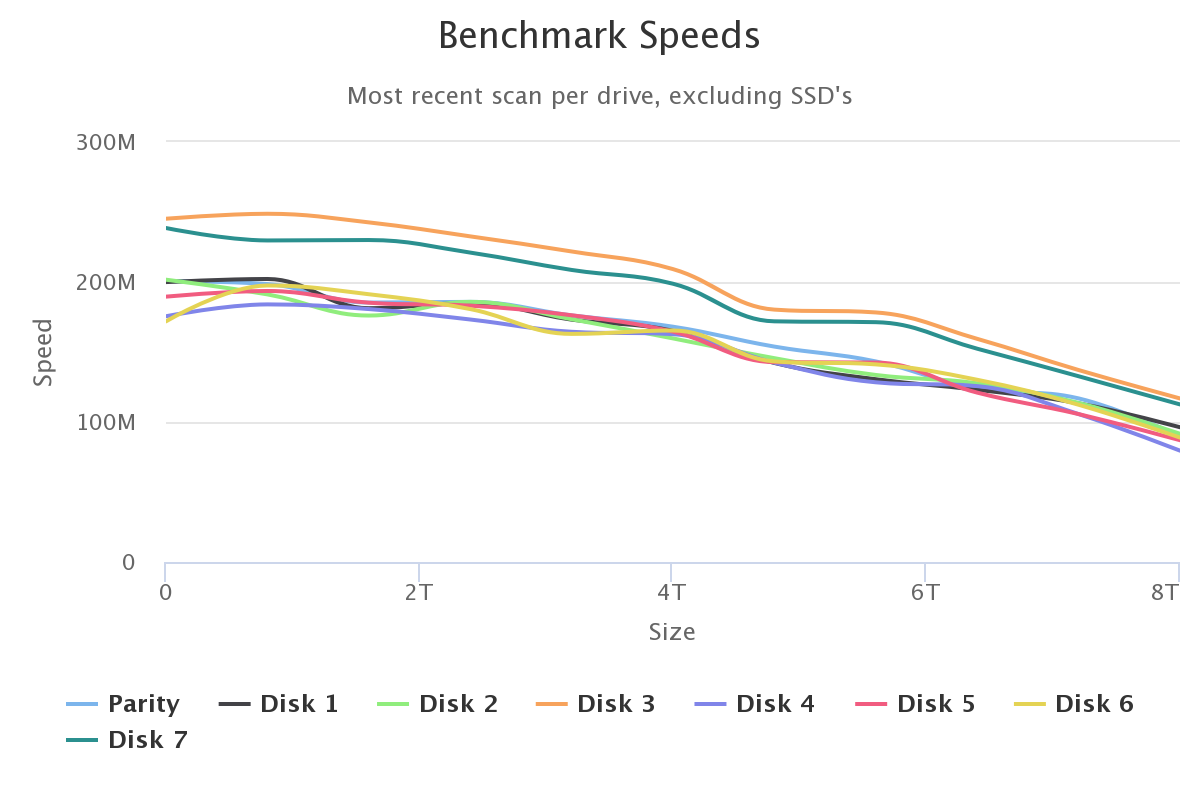

jbartlett Posted August 2, 2019 Share Posted August 2, 2019 That's a bit bumpy. Drives tend to gradually drop in speed. Seagate drives also tend to have a dip at the start of the drive. I'd compare it's benchmark with the same model drives in your system. Link to comment
JorgeB Posted August 2, 2019 Share Posted August 2, 2019 Since disk4 isn't being used Unraid isn't turning SMART on, you'll need to do it manually and then grab and post a SMART report, first: smartctl -s on /dev/sdh then post the output of: smartctl -x /dev/sdh Link to comment
thesmackdown Posted August 2, 2019 Author Share Posted August 2, 2019 smartctl 7.0 2018-12-30 r4883 [x86_64-linux-4.19.56-Unraid] (local build) Copyright (C) 2002-18, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Seagate Barracuda Compute Device Model: ST8000DM004-2CX188 Serial Number: LU WWN Device Id: 5 000c50 0ac4bfb41 Firmware Version: 0001 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5425 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Fri Aug 2 06:55:59 2019 CDT SMART support is: Available - device has SMART capability. SMART support is: Enabled AAM feature is: Unavailable APM feature is: Unavailable Rd look-ahead is: Enabled Write cache is: Enabled DSN feature is: Unavailable ATA Security is: Disabled, frozen [SEC2] Wt Cache Reorder: Unavailable === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 0) seconds. Offline data collection capabilities: (0x73) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. No Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: (1003) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x30a5) SCT Status supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE 1 Raw_Read_Error_Rate POSR-- 078 064 006 - 58399640 3 Spin_Up_Time PO---- 095 091 000 - 0 4 Start_Stop_Count -O--CK 098 098 020 - 2252 5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0 7 Seek_Error_Rate POSR-- 083 060 045 - 195598683 9 Power_On_Hours -O--CK 088 088 000 - 10821 (143 12 0) 10 Spin_Retry_Count PO--C- 100 100 097 - 0 12 Power_Cycle_Count -O--CK 100 100 020 - 97 183 Runtime_Bad_Block -O--CK 096 096 000 - 4 184 End-to-End_Error -O--CK 100 100 099 - 0 187 Reported_Uncorrect -O--CK 100 100 000 - 0 188 Command_Timeout -O--CK 100 100 000 - 0 189 High_Fly_Writes -O-RCK 100 100 000 - 0 190 Airflow_Temperature_Cel -O---K 065 044 040 - 35 (Min/Max 35/40) 191 G-Sense_Error_Rate -O--CK 100 100 000 - 0 192 Power-Off_Retract_Count -O--CK 100 100 000 - 55 193 Load_Cycle_Count -O--CK 095 095 000 - 10521 194 Temperature_Celsius -O---K 035 056 000 - 35 (0 2 0 0 0) 195 Hardware_ECC_Recovered -O-RC- 078 064 000 - 58399640 197 Current_Pending_Sector -O--C- 100 100 000 - 0 198 Offline_Uncorrectable ----C- 100 100 000 - 0 199 UDMA_CRC_Error_Count -OSRCK 200 200 000 - 0 240 Head_Flying_Hours ------ 100 253 000 - 3930 (216 161 0) 241 Total_LBAs_Written ------ 100 253 000 - 150173786938 242 Total_LBAs_Read ------ 100 253 000 - 397102190286 ||||||_ K auto-keep |||||__ C event count ||||___ R error rate |||____ S speed/performance ||_____ O updated online |______ P prefailure warning General Purpose Log Directory Version 1 SMART Log Directory Version 1 [multi-sector log support] Address Access R/W Size Description 0x00 GPL,SL R/O 1 Log Directory 0x01 SL R/O 1 Summary SMART error log 0x02 SL R/O 5 Comprehensive SMART error log 0x03 GPL R/O 5 Ext. Comprehensive SMART error log 0x04 GPL,SL R/O 8 Device Statistics log 0x06 SL R/O 1 SMART self-test log 0x07 GPL R/O 1 Extended self-test log 0x08 GPL R/O 2 Power Conditions log 0x09 SL R/W 1 Selective self-test log 0x0c GPL R/O 2048 Pending Defects log 0x10 GPL R/O 1 NCQ Command Error log 0x11 GPL R/O 1 SATA Phy Event Counters log 0x21 GPL R/O 1 Write stream error log 0x22 GPL R/O 1 Read stream error log 0x24 GPL R/O 512 Current Device Internal Status Data log 0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log 0x80-0x9f GPL,SL R/W 16 Host vendor specific log 0xa1 GPL,SL VS 24 Device vendor specific log 0xa2 GPL VS 8160 Device vendor specific log 0xa6 GPL VS 192 Device vendor specific log 0xa8-0xa9 GPL,SL VS 136 Device vendor specific log 0xab GPL VS 1 Device vendor specific log 0xb0 GPL VS 9048 Device vendor specific log 0xbd GPL VS 8 Device vendor specific log 0xbe-0xbf GPL VS 65535 Device vendor specific log 0xc0 GPL,SL VS 1 Device vendor specific log 0xc1 GPL,SL VS 16 Device vendor specific log 0xc3 GPL,SL VS 8 Device vendor specific log 0xc4 GPL,SL VS 24 Device vendor specific log 0xd1 GPL VS 264 Device vendor specific log 0xd3 GPL VS 1920 Device vendor specific log 0xe0 GPL,SL R/W 1 SCT Command/Status 0xe1 GPL,SL R/W 1 SCT Data Transfer SMART Extended Comprehensive Error Log Version: 1 (5 sectors) No Errors Logged SMART Extended Self-test Log Version: 1 (1 sectors) Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Interrupted (host reset) 00% 10775 - # 2 Short offline Completed without error 00% 10688 - # 3 Short offline Completed without error 00% 430 - # 4 Short offline Aborted by host 90% 430 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. SCT Status Version: 3 SCT Version (vendor specific): 522 (0x020a) Device State: Active (0) Current Temperature: 35 Celsius Power Cycle Min/Max Temperature: 29/42 Celsius Lifetime Min/Max Temperature: 2/56 Celsius Under/Over Temperature Limit Count: 0/0 SCT Temperature History Version: 2 Temperature Sampling Period: 3 minutes Temperature Logging Interval: 59 minutes Min/Max recommended Temperature: 14/55 Celsius Min/Max Temperature Limit: 10/60 Celsius Temperature History Size (Index): 128 (96) Index Estimated Time Temperature Celsius 97 2019-07-28 01:09 40 ********************* ... ..( 3 skipped). .. ********************* 101 2019-07-28 05:05 40 ********************* 102 2019-07-28 06:04 39 ******************** ... ..( 3 skipped). .. ******************** 106 2019-07-28 10:00 39 ******************** 107 2019-07-28 10:59 38 ******************* 108 2019-07-28 11:58 36 ***************** 109 2019-07-28 12:57 35 **************** 110 2019-07-28 13:56 29 ********** 111 2019-07-28 14:55 29 ********** 112 2019-07-28 15:54 28 ********* 113 2019-07-28 16:53 26 ******* 114 2019-07-28 17:52 26 ******* 115 2019-07-28 18:51 26 ******* 116 2019-07-28 19:50 33 ************** 117 2019-07-28 20:49 29 ********** 118 2019-07-28 21:48 27 ******** 119 2019-07-28 22:47 32 ************* 120 2019-07-28 23:46 35 **************** 121 2019-07-29 00:45 35 **************** 122 2019-07-29 01:44 ? - 123 2019-07-29 02:43 37 ****************** 124 2019-07-29 03:42 ? - 125 2019-07-29 04:41 37 ****************** 126 2019-07-29 05:40 ? - 127 2019-07-29 06:39 35 **************** 0 2019-07-29 07:38 38 ******************* 1 2019-07-29 08:37 40 ********************* 2 2019-07-29 09:36 39 ******************** 3 2019-07-29 10:35 39 ******************** 4 2019-07-29 11:34 39 ******************** 5 2019-07-29 12:33 38 ******************* 6 2019-07-29 13:32 38 ******************* 7 2019-07-29 14:31 38 ******************* 8 2019-07-29 15:30 37 ****************** 9 2019-07-29 16:29 38 ******************* 10 2019-07-29 17:28 39 ******************** 11 2019-07-29 18:27 39 ******************** 12 2019-07-29 19:26 39 ******************** 13 2019-07-29 20:25 40 ********************* 14 2019-07-29 21:24 40 ********************* 15 2019-07-29 22:23 40 ********************* 16 2019-07-29 23:22 41 ********************** ... ..( 4 skipped). .. ********************** 21 2019-07-30 04:17 41 ********************** 22 2019-07-30 05:16 38 ******************* 23 2019-07-30 06:15 36 ***************** 24 2019-07-30 07:14 35 **************** 25 2019-07-30 08:13 35 **************** 26 2019-07-30 09:12 27 ******** 27 2019-07-30 10:11 27 ******** 28 2019-07-30 11:10 24 ***** 29 2019-07-30 12:09 23 **** 30 2019-07-30 13:08 23 **** 31 2019-07-30 14:07 22 *** 32 2019-07-30 15:06 29 ********** 33 2019-07-30 16:05 37 ****************** 34 2019-07-30 17:04 ? - 35 2019-07-30 18:03 37 ****************** 36 2019-07-30 19:02 ? - 37 2019-07-30 20:01 37 ****************** 38 2019-07-30 21:00 ? - 39 2019-07-30 21:59 37 ****************** 40 2019-07-30 22:58 ? - 41 2019-07-30 23:57 35 **************** 42 2019-07-31 00:56 ? - 43 2019-07-31 01:55 34 *************** 44 2019-07-31 02:54 ? - 45 2019-07-31 03:53 35 **************** 46 2019-07-31 04:52 ? - 47 2019-07-31 05:51 35 **************** 48 2019-07-31 06:50 ? - 49 2019-07-31 07:49 36 ***************** 50 2019-07-31 08:48 ? - 51 2019-07-31 09:47 36 ***************** 52 2019-07-31 10:46 ? - 53 2019-07-31 11:45 36 ***************** 54 2019-07-31 12:44 ? - 55 2019-07-31 13:43 37 ****************** 56 2019-07-31 14:42 ? - 57 2019-07-31 15:41 37 ****************** 58 2019-07-31 16:40 ? - 59 2019-07-31 17:39 37 ****************** 60 2019-07-31 18:38 ? - 61 2019-07-31 19:37 37 ****************** 62 2019-07-31 20:36 ? - 63 2019-07-31 21:35 37 ****************** 64 2019-07-31 22:34 ? - 65 2019-07-31 23:33 37 ****************** 66 2019-08-01 00:32 ? - 67 2019-08-01 01:31 37 ****************** 68 2019-08-01 02:30 ? - 69 2019-08-01 03:29 37 ****************** 70 2019-08-01 04:28 ? - 71 2019-08-01 05:27 29 ********** 72 2019-08-01 06:26 33 ************** 73 2019-08-01 07:25 33 ************** 74 2019-08-01 08:24 34 *************** 75 2019-08-01 09:23 34 *************** 76 2019-08-01 10:22 35 **************** 77 2019-08-01 11:21 36 ***************** ... ..( 2 skipped). .. ***************** 80 2019-08-01 14:18 36 ***************** 81 2019-08-01 15:17 37 ****************** 82 2019-08-01 16:16 37 ****************** 83 2019-08-01 17:15 37 ****************** 84 2019-08-01 18:14 39 ******************** 85 2019-08-01 19:13 41 ********************** 86 2019-08-01 20:12 40 ********************* 87 2019-08-01 21:11 39 ******************** 88 2019-08-01 22:10 39 ******************** 89 2019-08-01 23:09 37 ****************** 90 2019-08-02 00:08 36 ***************** 91 2019-08-02 01:07 36 ***************** 92 2019-08-02 02:06 35 **************** ... ..( 3 skipped). .. **************** 96 2019-08-02 06:02 35 **************** SCT Error Recovery Control command not supported Device Statistics (GP Log 0x04) Page Offset Size Value Flags Description 0x01 ===== = = === == General Statistics (rev 1) == 0x01 0x008 4 97 --- Lifetime Power-On Resets 0x01 0x010 4 10821 --- Power-on Hours 0x01 0x018 6 150173676487 --- Logical Sectors Written 0x01 0x020 6 378052673 --- Number of Write Commands 0x01 0x028 6 397118137802 --- Logical Sectors Read 0x01 0x030 6 925595648 --- Number of Read Commands 0x01 0x038 6 - --- Date and Time TimeStamp 0x03 ===== = = === == Rotating Media Statistics (rev 1) == 0x03 0x008 4 2626891145 N-- Spindle Motor Power-on Hours 0x03 0x010 4 2626889764 N-- Head Flying Hours 0x03 0x018 4 10521 --- Head Load Events 0x03 0x020 4 0 --- Number of Reallocated Logical Sectors 0x03 0x028 4 0 --- Read Recovery Attempts 0x03 0x030 4 0 --- Number of Mechanical Start Failures 0x03 0x038 4 0 --- Number of Realloc. Candidate Logical Sectors 0x03 0x040 4 56 --- Number of High Priority Unload Events 0x04 ===== = = === == General Errors Statistics (rev 1) == 0x04 0x008 4 1 --- Number of Reported Uncorrectable Errors 0x04 0x010 4 0 --- Resets Between Cmd Acceptance and Completion 0x05 ===== = = === == Temperature Statistics (rev 1) == 0x05 0x008 1 35 --- Current Temperature 0x05 0x010 1 35 --- Average Short Term Temperature 0x05 0x018 1 31 --- Average Long Term Temperature 0x05 0x020 1 56 --- Highest Temperature 0x05 0x028 1 0 --- Lowest Temperature 0x05 0x030 1 55 --- Highest Average Short Term Temperature 0x05 0x038 1 8 --- Lowest Average Short Term Temperature 0x05 0x040 1 47 --- Highest Average Long Term Temperature 0x05 0x048 1 15 --- Lowest Average Long Term Temperature 0x05 0x050 4 1428 --- Time in Over-Temperature 0x05 0x058 1 55 --- Specified Maximum Operating Temperature 0x05 0x060 4 22102 --- Time in Under-Temperature 0x05 0x068 1 13 --- Specified Minimum Operating Temperature 0x06 ===== = = === == Transport Statistics (rev 1) == 0x06 0x008 4 55 --- Number of Hardware Resets 0x06 0x010 4 8 --- Number of ASR Events 0x06 0x018 4 0 --- Number of Interface CRC Errors |||_ C monitored condition met ||__ D supports DSN |___ N normalized value Pending Defects log (GP Log 0x0c) No Defects Logged SATA Phy Event Counters (GP Log 0x11) ID Size Value Description 0x000a 2 7 Device-to-host register FISes sent due to a COMRESET 0x0001 2 0 Command failed due to ICRC error 0x0003 2 0 R_ERR response for device-to-host data FIS 0x0004 2 0 R_ERR response for host-to-device data FIS 0x0006 2 0 R_ERR response for device-to-host non-data FIS 0x0007 2 0 R_ERR response for host-to-device non-data FIS Link to comment
JorgeB Posted August 2, 2019 Share Posted August 2, 2019 Assuming it's the correct disk, since you omitted the serial, looks mostly OK, suggest swapping cables with another disk just to rule them out and try rebuilding again, if it fails grab diags before rebooting. Link to comment

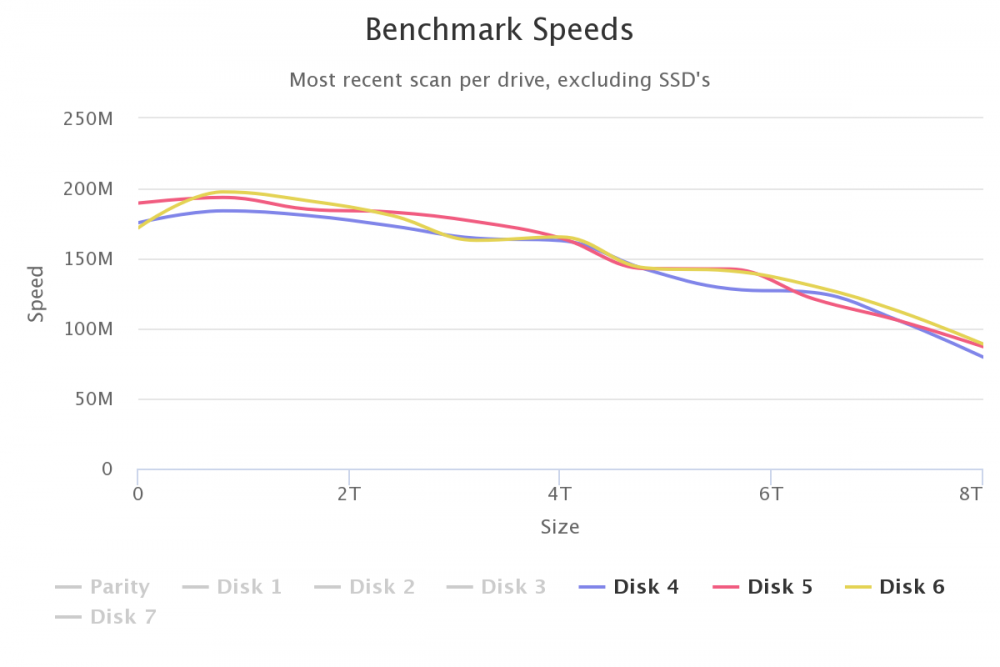

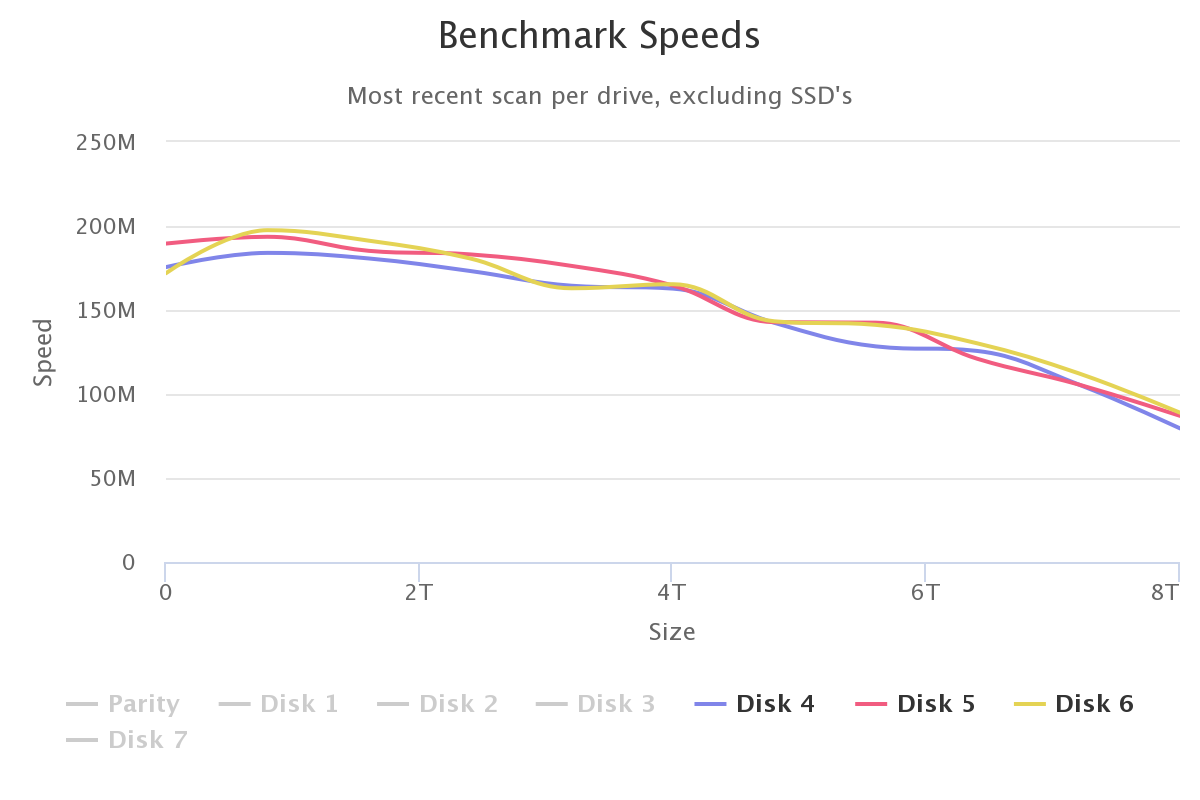

thesmackdown Posted August 2, 2019 Author Share Posted August 2, 2019 7 hours ago, jbartlett said: That's a bit bumpy. Drives tend to gradually drop in speed. Seagate drives also tend to have a dip at the start of the drive. I'd compare it's benchmark with the same model drives in your system. Disk 5 and 6 are the same models Link to comment
jbartlett Posted August 3, 2019 Share Posted August 3, 2019 It's hard to tell which is which. You can click on the drive labels on the other drives to hide them. Link to comment
thesmackdown Posted August 4, 2019 Author Share Posted August 4, 2019 On 8/2/2019 at 9:14 PM, jbartlett said: It's hard to tell which is which. You can click on the drive labels on the other drives to hide them. Great app BTW. Link to comment
thesmackdown Posted August 4, 2019 Author Share Posted August 4, 2019 On 8/2/2019 at 7:01 AM, johnnie.black said: Assuming it's the correct disk, since you omitted the serial, looks mostly OK, suggest swapping cables with another disk just to rule them out and try rebuilding again, if it fails grab diags before rebooting. Looks like this may have solved it....fingers-crossed. Link to comment
