I drew this basic Silverstone CS351 png to populate my dashboard, since there is not an existing image for that. I used a picture of the server front as a guide, and traced the outline over that.


I see others in this thread include 3 different copies for their png's. On my Unraid server (the way I use it), I didn't find a place to use those. So I searched this thread for a set of requirements, eg what is needed for a full set of images, and where those would be uploaded, but I couldn't find an explanation.

Someone who understands better what is needed and why/where it goes - it would have been helpful to have that so I could create a full set.

Anyway, here is what I have so far.


  • Like 1
Link to comment
  • 2 weeks later...
  • 4 weeks later...
On 10/5/2022 at 10:18 PM, dakara said:

Would appreciate the Jonsbo N1, just finished building it


On 12/10/2022 at 4:23 AM, Fahed said:

Any chance someone can help out with a case icon for the Jonsbo N1




On 12/10/2022 at 4:40 PM, k6law said:

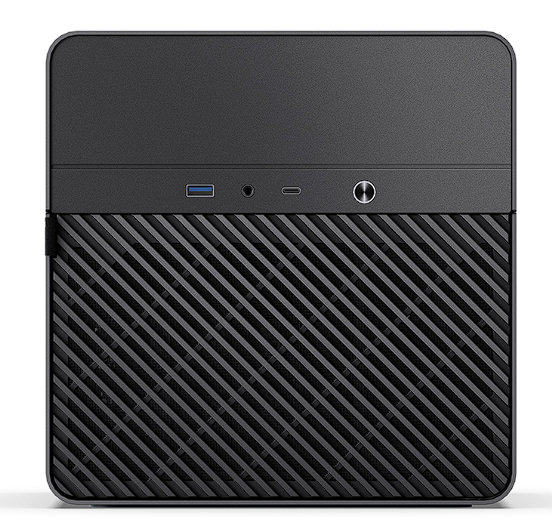

I'd like to add to the number of requests (mine would be the 4th since October) for the Jonsbo N1 case. Here's a picture of the front face:



I did a quick design. These are 512x522 pixels, basically 4x what the Web UI displays for high res/retina displays.



  • Like 5
Link to comment
  • 2 weeks later...

Stupid question but where are case icons stored? I used to have one of the generic case icons that I really liked in 6.7.2. I upgraded and boom it's gone. Kinda miss it ow lol. I have the 6.7.2 USB and system backups if needed to dig thru em!

Link to comment

I spent a little time tracing out my server and disk shelves in nanocad and I tried to make an icon out of it with inkscape but the finished product is hard to really see in the Unraid dashboard.


I don't know much about inkscape, just downloaded it yesterday to mess with this - can anyone help me out with this image so that it fills out a little better on the dashboard?

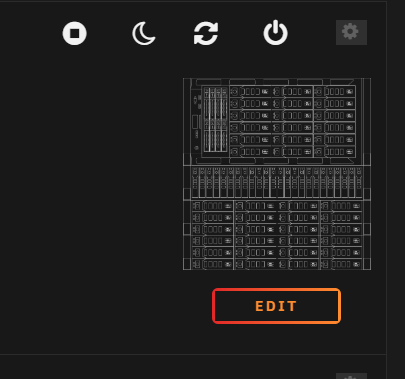

I'm attaching the DXF and a screen shot of how it looks now in Unraid.

Screenshot 2023-06-07 123912.png

T630 stack.dxf

Link to comment
