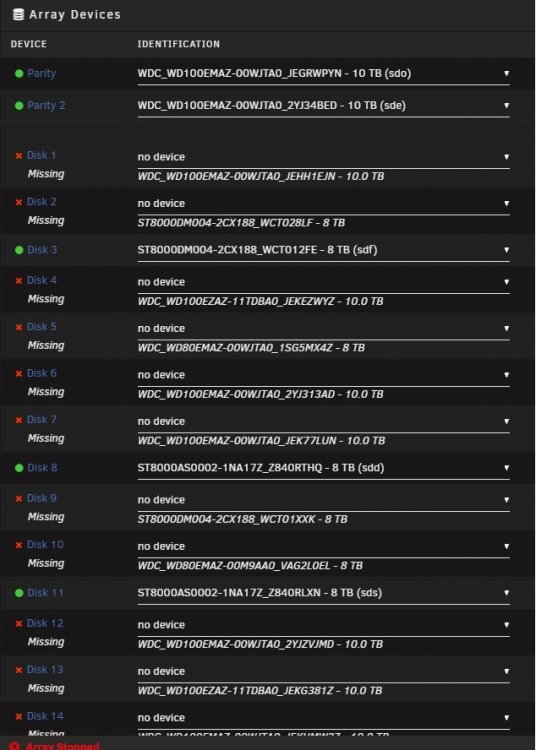

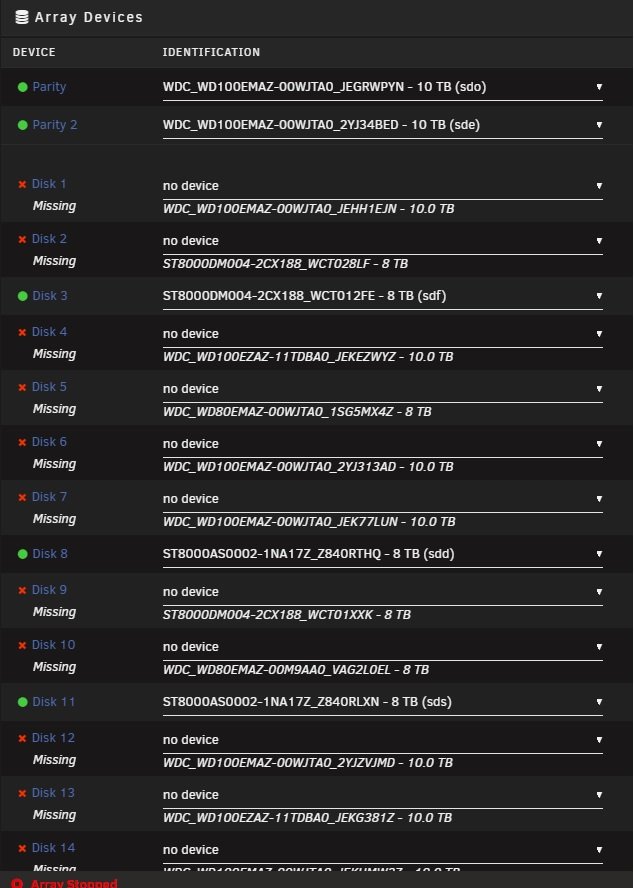

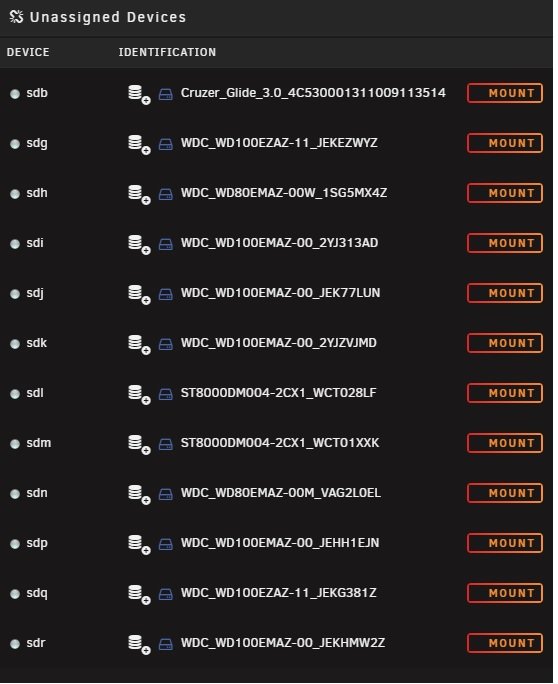

August 19, 20196 yr Just as the title states I replaced the HP controller with the lsi 16i and most disks are now missing.I do have a snap shot of my assignments before the replace. All disks are shown in the unassigned devices. My parity disks are ok and mounted. Should I mount all the disks and then unassign my parity drives, start array , stop array and then mount my parity disks back in and let parity rebuild. Or is there a better way? Edited August 19, 20196 yr by Harro Solved
August 19, 20196 yr Community Expert You could do a new config and trust parity, but please post diags first since I would expect the LSI to detect the disk as they were.

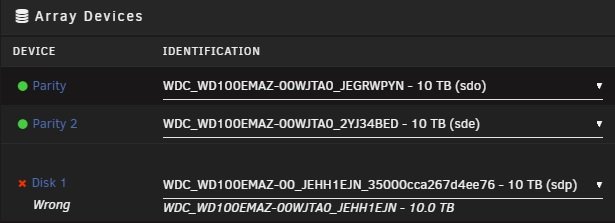

August 19, 20196 yr Author Thank you. I added a pic of when I choose from the drop down menu. Same disk but still states it as wrong. tower-diagnostics-20190819-1656.zip
August 19, 20196 yr Community Expert Try toggling Settings -> Display settings -> Display world-wide-name in device ID: You should also update the HBA firmware, it's very old.
August 19, 20196 yr Community Expert It looks as though the different controllers are reporting the disk serial in slightly different formats which is why Unraid is not realising they are the same drive.
August 19, 20196 yr Author 14 minutes ago, johnnie.black said: Try toggling Settings -> Display settings -> Display world-wide-name in device ID: You should also update the HBA firmware, it's very old. Toggled settings with no affects. I would guess I should flash the 9300 with the 9305 firmware. Correct. I haven't found any updates to the 9300.
August 19, 20196 yr Community Expert https://docs.broadcom.com/docs/9300_16i_Package_P16_IT_FW_BIOS_for_MSDOS_Windows.zip
August 19, 20196 yr Author Took a bit, had to take drives out and bring case out of attic, but got the controller firmware installed. Installed drives and Unraid saw them all. Thanks you all.
