xerces8

Any non-SMR external drives on the market?

6 posts in this topic Last Reply

Recommended Posts

Recently I bought (see other topic) an external USB drive from WD, hoping it would be not SMR, but it turned out to be such.



Are there any non-SMR USB drives on the market at the lower price range?

I'm loking at sizes of 5-6 TB.

Share this post


Link to post

AFAIK Toshiba doesn't have any 3.5" SMR drives, so any external 3.5" will be CMR, they do use SMR on 2.5" drives.

Share this post


Link to post

I got a WD My Book 8 TB (WDBBGB0080HBK-EESN) and after some testing it looks like a non-SMR drive.

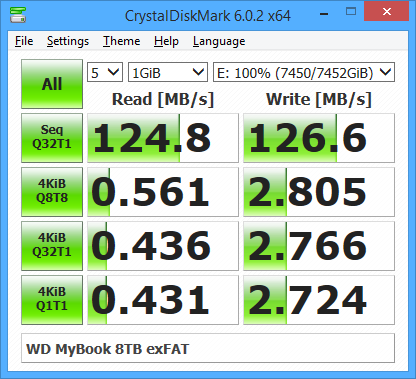

See CDM screenshot attached (the disk was 99.999% full, to make it "sweat", the test with 0% full is almost the same except the SEQ values being 199MB/s).



Also test with FIO as per this post suggests it is not SMR. The summary:


TEST: (groupid=0, jobs=1): err= 0: pid=4768: Tue Sep 10 22:24:49 2019
  write: IOPS=7, BW=73.2MiB/s (76.8MB/s)(85.8GiB/1200024msec)
    slat (usec): min=353, max=4294.0k, avg=2579.76, stdev=71064.79
    clat (usec): min=2, max=9319.4k, avg=69451.95, stdev=100307.35
     lat (msec): min=35, max=402895, avg=136.54, stdev=4401.42
    clat percentiles (msec):
     |  1.00th=[   41],  5.00th=[   47], 10.00th=[   51], 20.00th=[   57],
     | 30.00th=[   61], 40.00th=[   64], 50.00th=[   67], 60.00th=[   70],
     | 70.00th=[   74], 80.00th=[   80], 90.00th=[   87], 95.00th=[   93],
     | 99.00th=[  114], 99.50th=[  188], 99.90th=[  234], 99.95th=[  239],
     | 99.99th=[ 9329]
   bw (  KiB/s): min=19922, max=183585, per=100.00%, avg=144614.45, stdev=17834.58, samples=1226
   iops        : min=    1, max=   17, avg=13.38, stdev= 1.78, samples=1226
  lat (usec)   : 4=0.02%, 20=0.02%, 50=0.05%, 100=0.01%
  lat (msec)   : 50=9.84%, 100=87.85%, 250=2.17%, 500=0.02%
  cpu          : usr=0.33%, sys=0.42%, ctx=0, majf=0, minf=0
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,8788,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
  WRITE: bw=73.2MiB/s (76.8MB/s), 73.2MiB/s-73.2MiB/s (76.8MB/s-76.8MB/s), io=85.8GiB (92.1GB), run=1200024-1200024msec




Edited by xerces8

Share this post


Link to post
8 hours ago, xerces8 said:

I got a WD My Book 8 TB (WDBBGB0080HBK-EESN) and after some testing it looks like a non-SMR drive.

Like mentioned WD doesn't have any 8TB SMR drives, only 2 and 6TB, at least for now.

Share this post


Link to post
