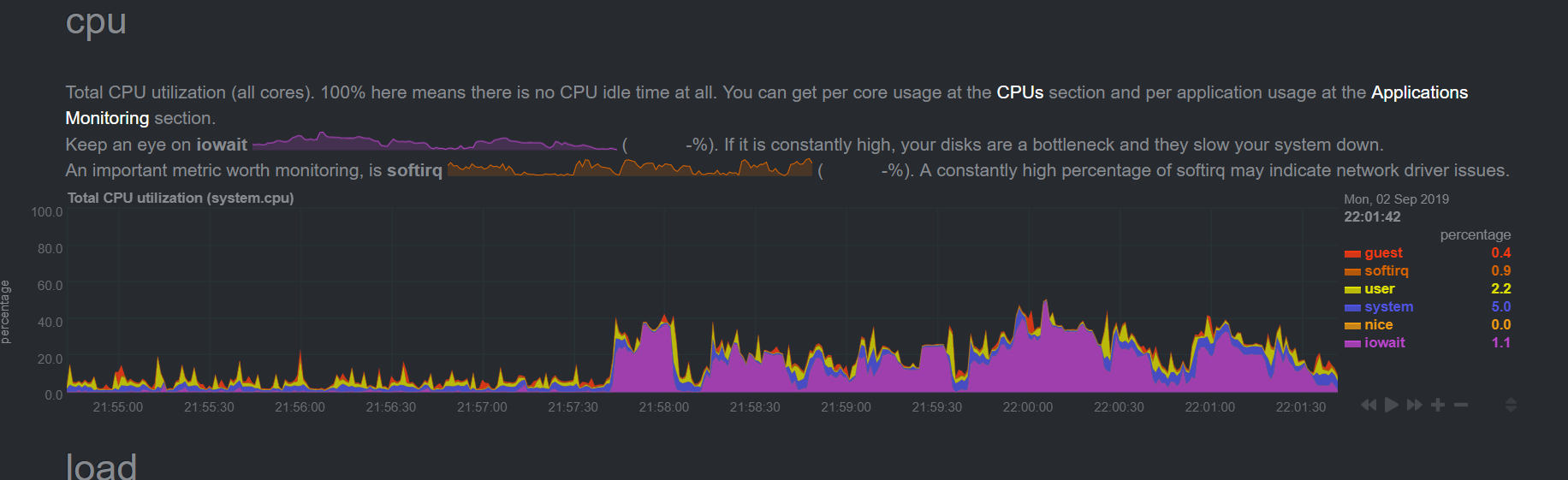

Starting today, I have noticed delays when transferring large files to my unraid server. I looked through the Syslog but found nothing highlighted at the times of the file transfers. When I copy files to the cache over the network, most recently at 2155 02/09/2019 in the logs, I can see high IOWait %s but nothing in the syslog.



I have balanced and scrubbed the cache today, before 2155.



I have experienced similar issues before and have now replaced (in the last year) the HBA, cables and SSDs and had 6+ months without an issue. Does anyone have any ideas?



Thanks in advance.

hydra-diagnostics-20190902-2101.zip

I am intermittently seeing issues like this in the syslog but so far not whilst I have been actively using the system.



Sep 3 12:16:20 Hydra kernel: print_req_error: I/O error, dev sdf, sector 196540536
Sep 3 12:16:22 Hydra kernel: BTRFS info (device sdf1): read error corrected: ino 968554 off 3047620608 (dev /dev/sdf1 sector 196540472)
Sep 3 12:16:22 Hydra kernel: BTRFS info (device sdf1): read error corrected: ino 515522 off 22855680 (dev /dev/sdf1 sector 637687392)
Sep 3 12:16:22 Hydra kernel: BTRFS info (device sdf1): read error corrected: ino 515522 off 58761216 (dev /dev/sdf1 sector 396601400)

Those are checksum errors on the cache pool, one of the devices is dropping, see her for better pool monitoring:

https://forums.unraid.net/topic/46802-faq-for-unraid-v6/?do=findComment&comment=700582



3 minutes ago, johnnie.black said:

Those are checksum errors on the cache pool, one of the devices is dropping, see her for better pool monitoring:

https://forums.unraid.net/topic/46802-faq-for-unraid-v6/?do=findComment&comment=700582



Thanks for this info and a helpful FAQ post, I have taken on board this and set up an alert.



This leaves me with two questions, what do I do with the 4 unrecoverable errors and is there a possible cause for this I should be running down?

8 minutes ago, EarthYak said:

This leaves me with two questions, what do I do with the 4 unrecoverable errors

Best way forward is to backup cache data, re-format and restore.



11 minutes ago, EarthYak said:

is there a possible cause for this I should be running down?

Those connection issues with SSDs are usually cable related, Samsung SSDs especially can be very picky with connection quality, also keep in mind that trim won't work when connected to that LSI, so if possible use the Intel SATA ports instead for both.



1 minute ago, johnnie.black said:

Best way forward is to backup cache data, re-format and restore.



Those connection issues with SSDs are usually cable related, Samsung SSDs especially can be very picky with connection quality, also keep in mind that trim won't work when connected to that LSI, so if possible use the Intel SATA ports instead for both.



Thank you, I will give that a go over the weekend.

On 9/3/2019 at 4:16 PM, johnnie.black said:

Best way forward is to backup cache data, re-format and restore.



Those connection issues with SSDs are usually cable related, Samsung SSDs especially can be very picky with connection quality, also keep in mind that trim won't work when connected to that LSI, so if possible use the Intel SATA ports instead for both.



This has worked, I have run the system for 4 days now without an error. I just need to find somewhere in the case to secure them now!



Thanks for the help.
