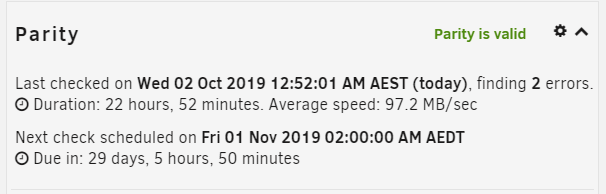

October 2, 20196 yr Hi there, as the title says, I have two separate consecutive parity checks that reported two errors each. I believe they may be the same errors. 1) Where do I find the errors and how do I correct this? I have appended the diagnostics.zip file for your analysis. 2) Separately, I get a log of errors relating to ata5: is this a SATA cable to Disk5? Thank you in advance for your advice. Regards. cL clnasty-diagnostics-20191002-0905.zip Edited November 22, 20196 yr by cliewmc typo

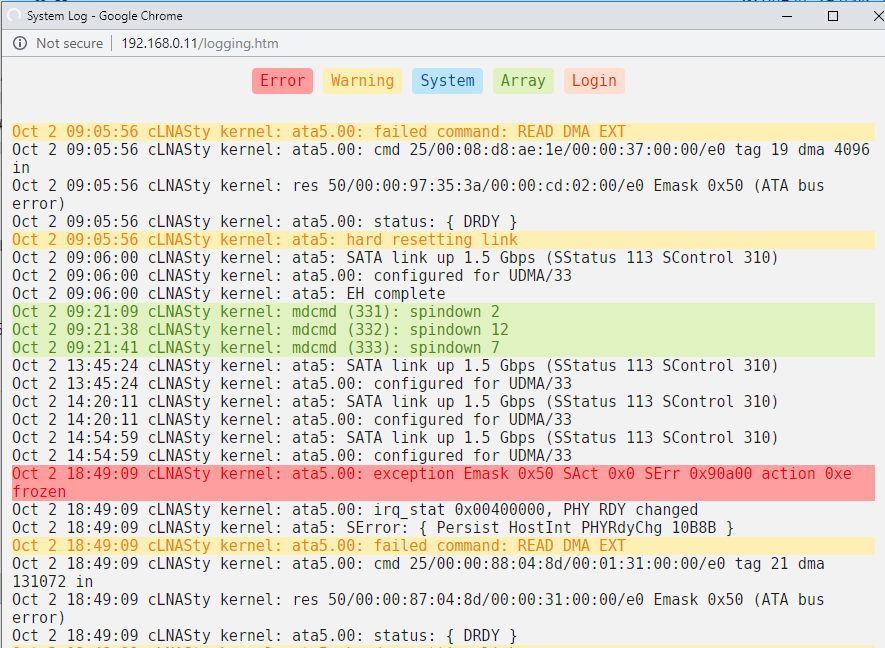

October 2, 20196 yr I would replace the cable for Disk 5, Log shows it resetting many times. Sep 28 13:32:27 cLNASty kernel: ata5.00: status: { DRDY } Sep 28 13:32:27 cLNASty kernel: ata5: hard resetting link Sep 28 13:32:31 cLNASty kernel: ata5: SATA link up 3.0 Gbps (SStatus 123 SControl 300) Sep 28 13:32:31 cLNASty kernel: ata5.00: configured for UDMA/100 Sep 28 13:32:31 cLNASty kernel: ata5: EH complete Sep 28 13:46:19 cLNASty kernel: ata5.00: exception Emask 0x50 SAct 0x0 SErr 0x90a02 action 0xe frozen Sep 28 13:46:19 cLNASty kernel: ata5.00: irq_stat 0x00400000, PHY RDY changed Sep 28 13:46:19 cLNASty kernel: ata5: SError: { RecovComm Persist HostInt PHYRdyChg 10B8B } Sep 28 13:46:19 cLNASty kernel: ata5.00: failed command: READ DMA EXT Sep 28 13:46:19 cLNASty kernel: ata5.00: cmd 25/00:00:80:9c:db/00:04:10:00:00/e0 tag 10 dma 524288 in Sep 28 13:46:19 cLNASty kernel: res 50/00:00:7f:9c:db/00:00:10:00:00/e0 Emask 0x50 (ATA bus error)
October 2, 20196 yr Author Thanks - I checked and it turned out to be a faulty SATA port with a history. The entire port was dislodged from the mobo. I had to patch it back and it looks like it was not patched properly. Such a shame, I may have to change the mobo & entire system just because of a single SATA port!!! Edited October 2, 20196 yr by cliewmc extended answer
October 2, 20196 yr Author Upon reboot, there were no errors so I am hopeful it will stay that way. 😥
October 2, 20196 yr You could buy a LSI controller, 9211-8i in IT mode..just a thought Cheaper than replacing the mobo etc. Edited October 2, 20196 yr by HK-Steve
October 2, 20196 yr Author It's got one already. I am all out of SATA ports. What's a recommended server case, mobo & CPU configuration? A link to any current posting is appreciated. I did a quick search but came up zilch. Regards. cL
October 2, 20196 yr I just ordered a 9201-16i, would give you enough also... Arrives in a couple of days... Still cheaper than replacing your current Tower gear.
October 2, 20196 yr This is the ebay seller I bought off, https://www.ebay.com/itm/9205-8I-9207-8I-9201-16I-9201-8I-9211-8I-9340-8I-IT-Mode-for-ZFS-FreeNAS-unRAID/132902519120?ssPageName=STRK%3AMEBIDX%3AIT&var=432201158266&_trksid=p2057872.m2749.l2649
October 2, 20196 yr 16 minutes ago, HK-Steve said: This is the ebay seller I bought off, https://www.ebay.com/itm/9205-8I-9207-8I-9201-16I-9201-8I-9211-8I-9340-8I-IT-Mode-for-ZFS-FreeNAS-unRAID/132902519120?ssPageName=STRK%3AMEBIDX%3AIT&var=432201158266&_trksid=p2057872.m2749.l2649 When it arrives, I would contact LSI to verify authenticity. I suspect it's a counterfeit card.
October 2, 20196 yr 16 minutes ago, jonathanm said: When it arrives, I would contact LSI to verify authenticity. I suspect it's a counterfeit card. Why do you say that? I have bought my 9211-8i's off this seller and were OEM cards.
October 2, 20196 yr 32 minutes ago, HK-Steve said: Why do you say that? I have bought my 9211-8i's off this seller and were OEM cards. Shipped direct from china, marketed as new stock.
October 2, 20196 yr Author 21 hours ago, jonathanm said: When it arrives, I would contact LSI to verify authenticity. I suspect it's a counterfeit card. Thanks. Purchased mine already. [emoji1696] keeping my fingers crossed this will solve my problems. Sent from my iPhone using Tapatalk Pro Edited October 3, 20196 yr by cliewmc grammar
October 4, 20196 yr Controller arrived, installed and booted no worries, This is a headless Tower, so did not see the Firmware version. Will do that later today. UnRaid in Tools, System Devices listed as Serial Attached SCSI controller: Broadcom / LSI SAS2116 PCI-Express Fusion-MPT SAS-2 [Meteor] (rev 02)
October 4, 20196 yr Author Haha, happy days! Can’t wait for mine to arrive. Cheers. Sent from my iPhone using Tapatalk Pro
