[SOLVED] unRAID Server - Can't connect to Internet

[HNGamingUK]

Hello,



UPDATE: So it seems that as I am unable to set static routes within the ISP provided router I would be unable to get this working. As a temporary measure I have put the server back into the working VLAN. I have contacted my ISP to confirm if there is actually a way to set static routes on it and if not then I will need to see if I can set it into modem mode and get a separate wireless router (such as TP Link) which will support static routes.



I recently got a new Ubiquiti EdgeSwitch 48 Lite and it seems that other subnets are unable to access the internet.



Example:



My unRAID server is on VLAN 3 with the IP of 10.0.0.2 with the Switch being 10.0.0.1



My ISP provided router is 192.168.0.1 and connected to port 1 of the switch, which is part of VLAN 2 and has an IP of 192.168.0.2



I have routing on the switch and setup routing for each VLAN however it is still not working. Unsure if someone from here can help?



unRAID network page:

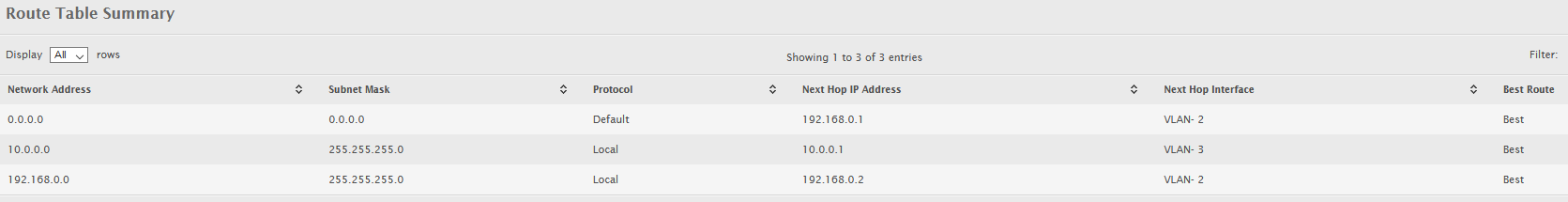

EdgeSwitch Route Table:

Edited October 24, 2019 by Conmyster
