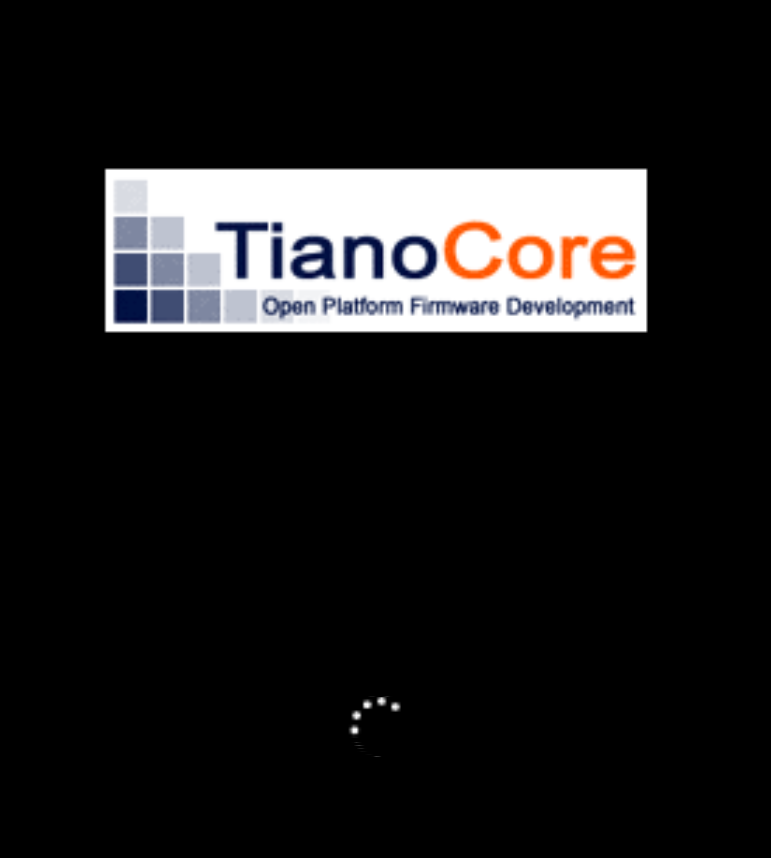

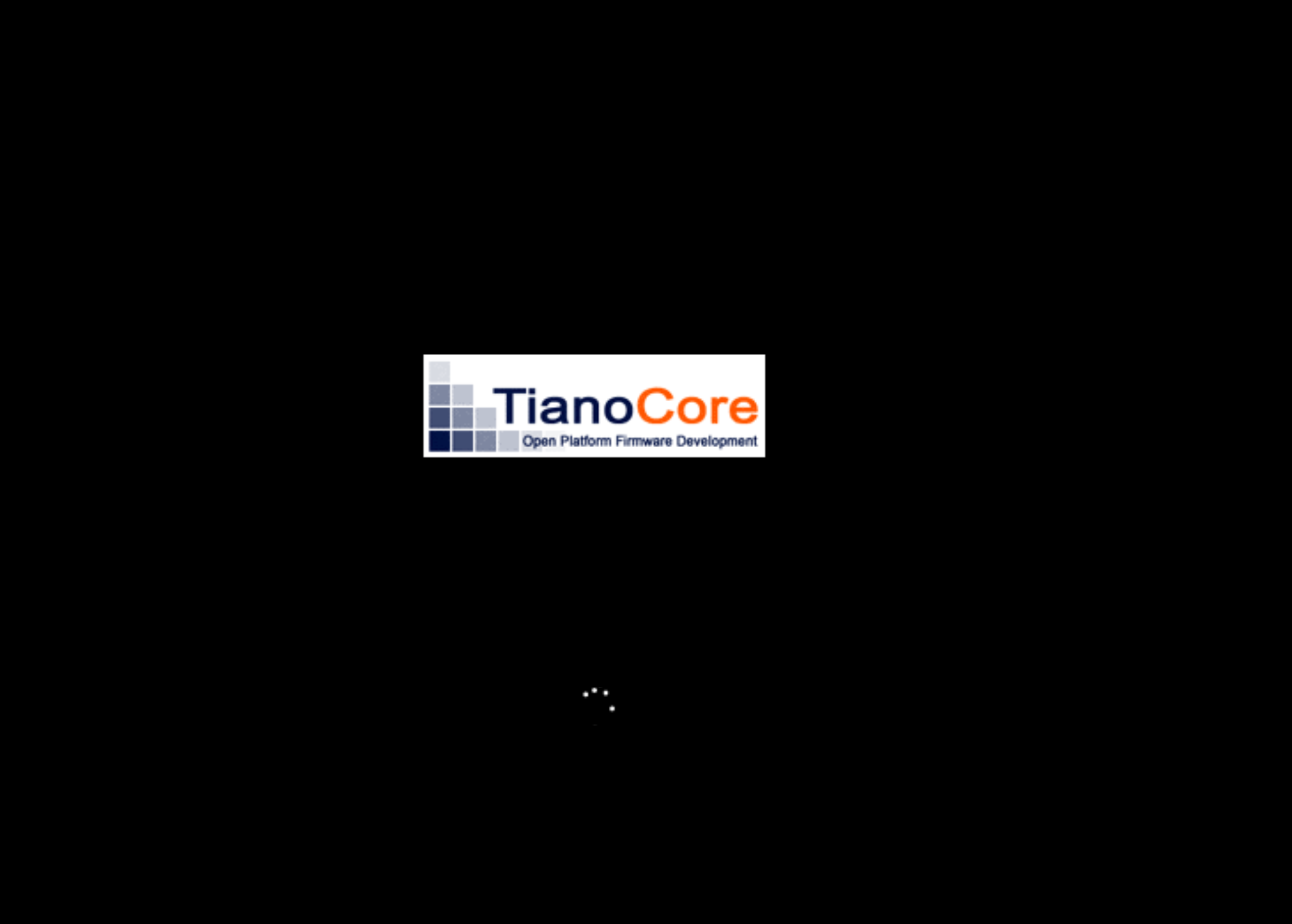

January 20, 20206 yr Author I tried this method from the one post... <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source dev='/dev/sda'/> <target dev='hdd' bus='sata'/> </disk> ...and it took it, but when it boots, it's not seeing the drive...windoze isn't booting. I'm still messing with it.
January 20, 20206 yr Author HA!! I said, "f this xml nonsense", switched back to the normal view, punched in "manual, /dev/sde" and... Boom. lol Now, let's see if it actually boots...

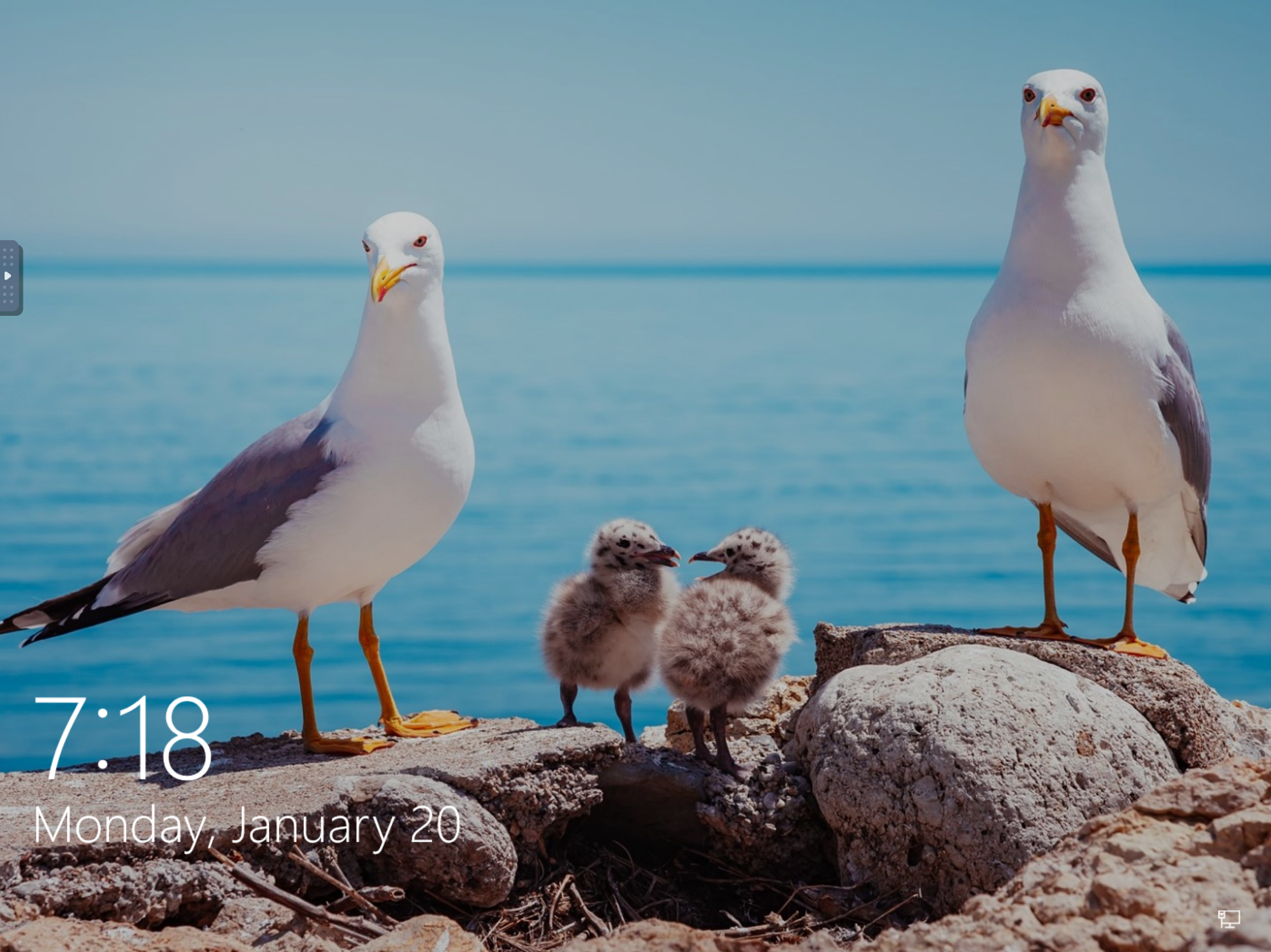

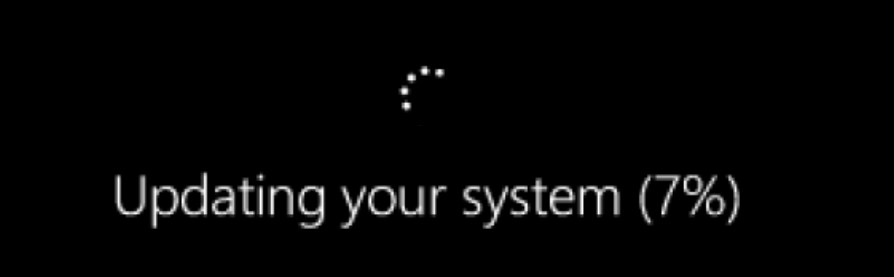

January 20, 20206 yr Author WE HAVE BOOTAGE, EVERYONE!!! Thank you ALL for the TREMENDOUS amount of assistance everyone provided. Next post will be the last post of the thread with a final recap of what worked. Thank you all...you're the best. 😄

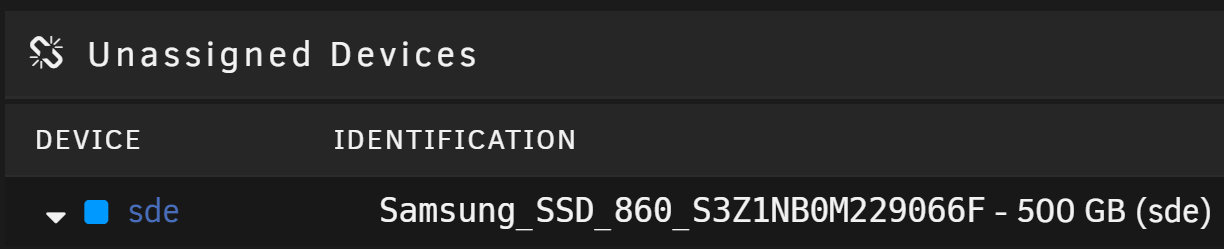

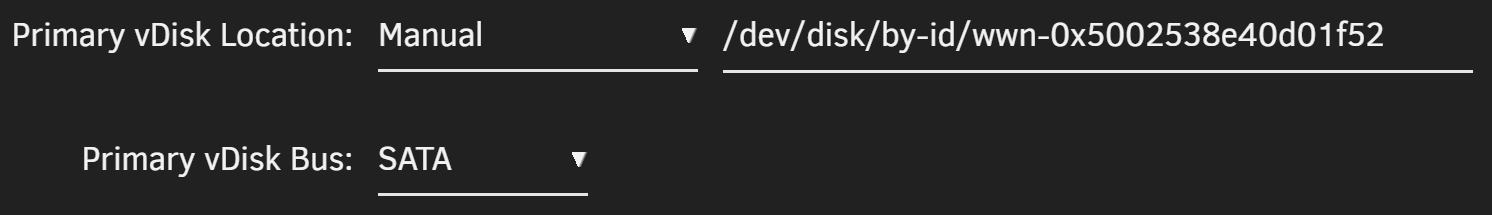

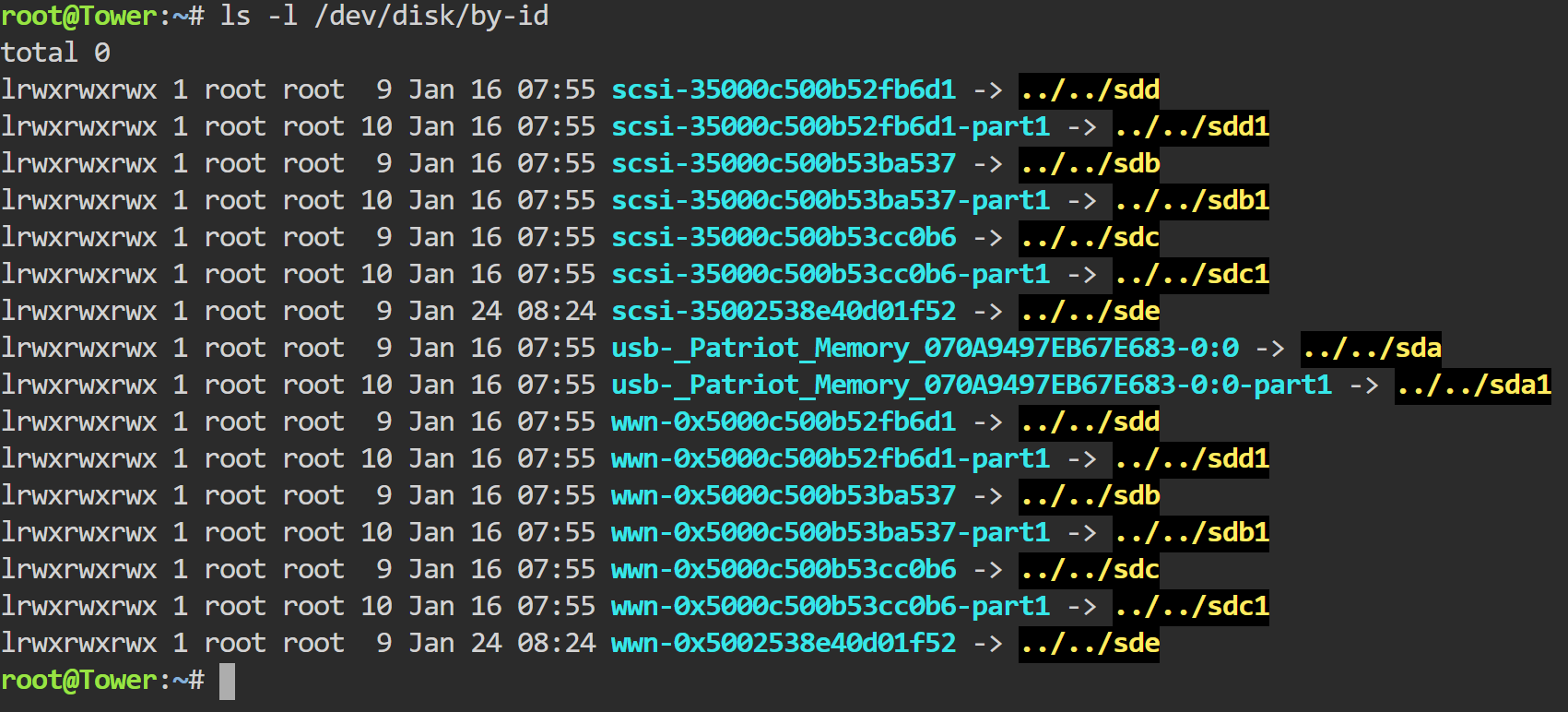

January 20, 20206 yr Author So, to go from a vdisk to a physical disk (v to p, as it were), first you must dd (copy) your vdisk to the physical disk: dd if="location/of/vdisk" of=/dev/sdX Details can be found in this video. My command was... dd if='/mnt/user/domains/Adobe/vdisk1.img' of=/dev/sde **EDIT: Thank you, John_M!!** When that's done, open up the terminal (top right corner under your server stats) and run... ls -l /dev/disk/by-id ...to get all your disk associations. This is what I was trying to do earlier but, without the "-l" flag, it just comes out as a bunch of random nonsense. With the flag, it shows which ID is tied to which device. So, you run that command and you get something like this: We know that the drive that we want is SDE from the "Main" tab: That means we can use either scsi-35002538e40d01f52 or wwn-0x5002538e40d01f52 to tell the VM which disk to use. So, go edit the VM and hand jam either \dev\disk\by-id\scsi-35002538e40d01f52 or \dev\disk\by-id\wwn-0x5002538e40d01f52 into the disk location: ...and boom...Bob's your auntie. It's that easy. Seriously. Thank you again, everyone. YOU ROCK!! Edited January 24, 20206 yr by rmp5s
January 21, 20206 yr 1 hour ago, rmp5s said: So, to go from a vdisk to a physical disk (v to p, as it were), first you must dd (copy) your vdisk to the physical disk: dd if="location/of/vdisk" of=/dev/sdX Details can be found in this video. Then you simply point the VM to the new disk. Look on your "Main" page and find the disk you copied the vdisk to. In my case it's sde: Then you edit the VM, change vdisk to "manual" and set the location to /dev/YOURDISK: It's that easy. Seriously. Thank you again, everyone. YOU ROCK!! Not good to use sdx because on reboots drive letters can change, should use drives unique ID that does not change.
January 21, 20206 yr Author 6 minutes ago, jpowell8672 said: Not good to use sdx because on reboots drive letters can change, should use drives unique ID that does not change. Yes. I know. But, after spending HOURS trying to get the drive ID method working, I'm STOKED to just have it working. If you'd like to look at my previous posts and see if you could figure out the correct drive ID, have at it.
January 21, 20206 yr 15 hours ago, rmp5s said: Yes. I know. But, after spending HOURS trying to get the drive ID method working, I'm STOKED to just have it working. If you'd like to look at my previous posts and see if you could figure out the correct drive ID, have at it. If you type ls -l /dev/disk/by-id you will see what the symlinks actually point to. Instead of using /dev/sdX in your configuration, use /dev/disk/by-id/Y where Y is the symlink (shown in light blue/cyan) that points to your /dev/sdX. If what I wrote doesn't make sense then post a screenshot of the ls -l command, above and confirm which sdX you are currently using (from your screenshot above it looks like you're using /dev/sde).
January 21, 20206 yr Here's what I get when I type the command above: root@Mandaue:~# ls -l /dev/disk/by-id total 0 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D9584LHA -> ../../sde lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D9584LHA-part1 -> ../../sde1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D9584PUZ -> ../../sdk lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D9584PUZ-part1 -> ../../sdk1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D95HZ0ZF -> ../../sdb lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D95HZ0ZF-part1 -> ../../sdb1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D95HZARZ -> ../../sdi lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX31D95HZARZ-part1 -> ../../sdi1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX41D758N0YV -> ../../sdf lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68L0BN1_WD-WX41D758N0YV-part1 -> ../../sdf1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX11D557YUDV -> ../../sdh lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX11D557YUDV-part1 -> ../../sdh1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX11D55PXTHV -> ../../sdd lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX11D55PXTHV-part1 -> ../../sdd1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX31D55A4939 -> ../../sdg lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX31D55A4939-part1 -> ../../sdg1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX31D55DFK4P -> ../../sdj lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX31D55DFK4P-part1 -> ../../sdj1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX31D55DFLZ4 -> ../../sdc lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WX31D55DFLZ4-part1 -> ../../sdc1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WXA1D65E3TJ9 -> ../../sdl lrwxrwxrwx 1 root root 10 Jan 21 15:29 ata-WDC_WD60EFRX-68MYMN1_WD-WXA1D65E3TJ9-part1 -> ../../sdl1 lrwxrwxrwx 1 root root 9 Jan 21 15:28 usb-Verbatim_STORE_N_GO_12460000000001D9-0:0 -> ../../sda lrwxrwxrwx 1 root root 10 Jan 21 15:28 usb-Verbatim_STORE_N_GO_12460000000001D9-0:0-part1 -> ../../sda1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee0596ecc4b -> ../../sdk lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee0596ecc4b-part1 -> ../../sdk1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee0596f1e3c -> ../../sde lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee0596f1e3c-part1 -> ../../sde1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee0596f39f4 -> ../../sdi lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee0596f39f4-part1 -> ../../sdi1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee0596f3b40 -> ../../sdb lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee0596f3b40-part1 -> ../../sdb1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee20c3bba5c -> ../../sdd lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee20c3bba5c-part1 -> ../../sdd1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee20c455c3c -> ../../sdj lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee20c455c3c-part1 -> ../../sdj1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee20c975d80 -> ../../sdl lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee20c975d80-part1 -> ../../sdl1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee26196c7df -> ../../sdc lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee26196c7df-part1 -> ../../sdc1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee2b6ec2587 -> ../../sdg lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee2b6ec2587-part1 -> ../../sdg1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee2b6f065b4 -> ../../sdh lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee2b6f065b4-part1 -> ../../sdh1 lrwxrwxrwx 1 root root 9 Jan 21 15:29 wwn-0x50014ee2b7564f5f -> ../../sdf lrwxrwxrwx 1 root root 10 Jan 21 15:29 wwn-0x50014ee2b7564f5f-part1 -> ../../sdf1 root@Mandaue:~# So if I wanted to pass through /dev/sde (and it wasn't already in use as an array disk) I could use either /dev/disk/by-id/ata-WDC_WD60EFRX-68L0BN1_WD-WX31D9584LHA or /dev/disk/by-id/wwn-0x50014ee0596f1e3c because both point to ../../sde (i.e. to /dev/sde).
January 24, 20206 yr Author On 1/21/2020 at 9:28 AM, John_M said: If you type ls -l /dev/disk/by-id you will see what the symlinks actually point to. Instead of using /dev/sdX in your configuration, use /dev/disk/by-id/Y where Y is the symlink (shown in light blue/cyan) that points to your /dev/sdX. If what I wrote doesn't make sense then post a screenshot of the ls -l command, above and confirm which sdX you are currently using (from your screenshot above it looks like you're using /dev/sde). That -l makes all the difference. That's how to correlate everything. Beautiful. I'll update my post. Thanks.
