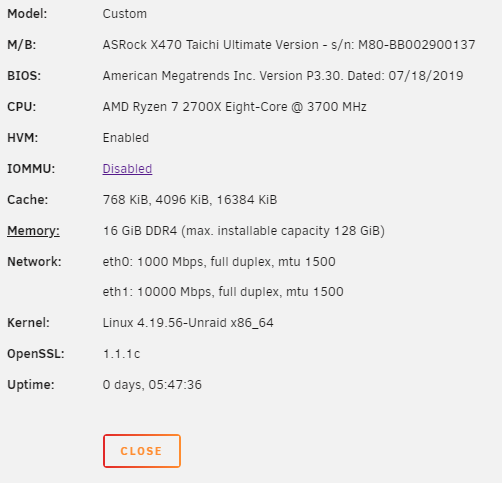

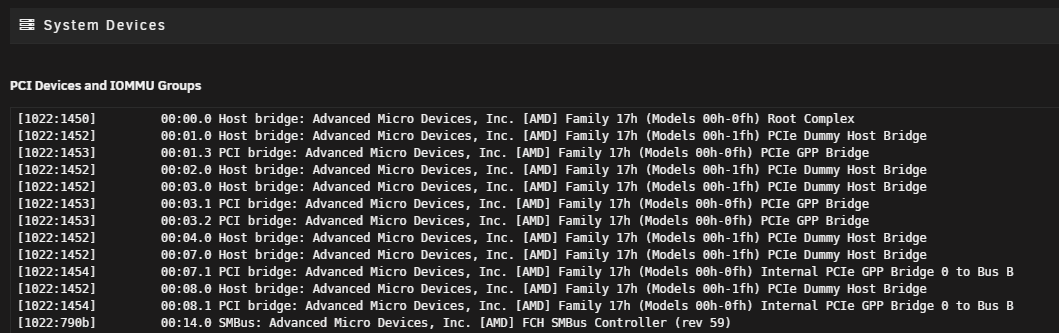

November 21, 20196 yr Hi all, Unfortunately I don't know any further and google could not help... In the bios I have enabled SVM Mode (CPU configuration) as well as SR-IOV (Onboard device configuration) but Unraid still gives me an IOMMU disabled: Is there an option called "IOMMU" I have to enable additionally? If yes where? I have also noticed that there are no IOMMU groups shown in system devices (this may happen after unraid recognize IOMMU as enabled?) Thank you for helping in advance! Georg Edited November 22, 20196 yr by Georg
November 22, 20196 yr Author Thanks for your reply! I had a look again and after searching every single f...... folder I have finally found it: Advanced / AMD CBS / NBIO Common Options / MB Configuration / IOMMU --> enable AsRock did a good job in hiding it!
September 17, 20205 yr On 11/23/2019 at 8:23 AM, Georg said: Thanks for your reply! I had a look again and after searching every single f...... folder I have finally found it: Advanced / AMD CBS / NBIO Common Options / MB Configuration / IOMMU --> enable AsRock did a good job in hiding it! You are a legend, I was pulling my hair out trying to find this option after a bios flash
October 10, 20205 yr On 11/22/2019 at 3:23 PM, Georg said: Thanks for your reply! I had a look again and after searching every single f...... folder I have finally found it: Advanced / AMD CBS / NBIO Common Options / MB Configuration / IOMMU --> enable AsRock did a good job in hiding it! Thanks i spent five days trying to get to this dam point... Your are the only person who knows out there. Even tech store didnt help. I dont know you man but I wish you the best take care ... lol Finally! And now to see if android studio will freaking install after "HAXM" error. SMH!!! Edited October 10, 20205 yr by immortalmonsterhybrid
December 28, 20205 yr Has anyone had luck with PCI passthrough and IOMMU groups on these new BIOS's? I head there were issues. I have a Win10 VM with multiple PCI passthrough devices, including NVMe, NVIDIA GPU, and onboard USB controller (with ACS patch).
May 1, 20215 yr Many Many thanks to Georg for the location of the iommu settings. I just loaded up the newest 4.7 bios on an x470 Taichi Ultimate and I'm further than I was before with the prior iterations of bios. Trying to pass through an NVIDIA gpu - thanks for the settings Georg!
