[KERNEL]unraid kernel update 5.10rc4 - zenpower|it87|corefeq|amdgpu|jmb575|dvb|r8125|openrgb|reset AMD GPU|zfs|dax|exfat|ntfs3|nvidia driver


73 posts in this topic Last Reply

Recommended Posts

Hi, I'm new around here made a kernel for myself thought I would share it.... that's it...

here it is source included:

https://github.com/thor2002ro/unraid_kernel/releases

includes:
based on 5.10rc4 kernel release
unraid patches from 6.9b30 final (separate versions for stable and beta versions)
zenpower 0.1.12 from https://github.com/ocerman/zenpower
latest it87 from https://github.com/hannesha/it87
added support for CoreFreq from https://github.com/cyring/CoreFreq
amdgpu driver(don't forget to blacklist if passing amd gpu to VM)
updated linux firmware including dvb firmware(5.8.1-20200814 release)
my own fix for JMB575 1 to 5 sata3 port multiplier(added a scr timeout timer)
added DVB tuner support
added realtek r8125 driver 9.003.05
added NCT6775 driver(OpenRGB patches) from manjaro git
added navi v2 patch from https://forum.level1techs.com/t/navi-reset-kernel-patch/147547/47
added vega patch from https://forum.level1techs.com/t/vega-10-and-12-reset-application/145666

5.8 includes AMD onboard audio/usb controller flr patch
added zfs v2.0.0-rc5 - https://github.com/openzfs/zfs
added RR272x_1x driver https://highpoint-tech.com/BIOS_Driver/rr272x_1x/Linux/RR272x_1x_Linux_Src_v1.10.7_2020_08_07.tar
added dax patches(very big improvements in virtio performance) from https://www.phoronix.com/scan.php?page=news_item&px=VirtIO-FS-FUSE-DAX-Linux-5.10
added builtin exfat driver
added builtin paragon ntfs3 v12 driver https://lore.kernel.org/lkml/20200828143938.102889-1-almaz.alexandrovich@paragon-software.com/
added nvidia driver
455.45.01(requires utils to function properly) includes nvidia docker and all requirements
added zfs utils

updated corefreq kernel module(added utils for corefreq module run corefreq-cli-run)

removed all old AMD GPU reset quirks
add support for new AMD GPU reset module vendor_reset(auto resets all AMD GPUS when it needs to please dont run any other reset methods, to use add in /config/go file "modprobe vendor_reset")

supports:
AMD | Polaris 10 |
AMD | Polaris 11 |
AMD | Polaris 12 |
AMD | Vega 10 | Vega 56/64
AMD | Vega 20 | Radeon VII
AMD | Navi 10 | 5600XT, 5700, 5700XT
AMD | Navi 12 | Pro 5600M
AMD | Navi 14 | Pro 5300, RX 5300, 5500XT





IMPORTAT NOTICE:
*) utils need to be installed at boot I do it with the /boot/config/go file and placed the downloaded utils packages in a packages folder on root of the usb drive after that add "installpkg /boot/packages/*.tgz" in the go file first after "#!/bin/bash" in a new line
*) dont try to install the utils packages on any modified rootfs .... they need to be installed on stock unraid rootfs



There are 2 versions:
version for 6.9beta30 or 6.8.x version



removed cachy versions they have some issues I need to investigate



for zenpower needs "modprobe.blacklist=k10temp" in syslinux file because of module conflict
it87 needs to be loaded manually if needed no auto-detection



any suggestions are accepted.



PS: this is made for myself and running on my own server

I'm not responsible if you kill your server with this!!!!



Edited by thor2002ro
5.10rc4-20201118
Link to post
  • 2 months later...
  • Replies 72
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Hi, I'm new around here made a kernel for myself thought I would share it.... that's it... here it is source included: https://github.com/thor2002ro/unraid_kernel/releases includes: base

5.9RC8-20201005   update to 5.9RC8 updated paragon ntfs3 v7 updated dax virtio improvements update iommu amd improvements to pcie aer  nvidia driver Persistence mode enabled at boo

I'll add latest git zfs in the next version.... probably today release... 5.8.5   as for buildscript.... why do you need one there just some easy commands to build kernel copy current c

Posted Images

I'll add latest git zfs in the next version.... probably today release... 5.8.5



as for buildscript.... why do you need one there just some easy commands to build kernel

copy current config to .config

then make -j$(nproc)

then make INSTALL_MOD_PATH=../modules modules_install to extract modules to a separate directory

then mksquashfs modules/lib/modules/*/ bzmodules -keep-as-directory -noappend -root-owned -no-xattrs makes the bzmodules

and bzimage is in arch/x86/boot/



this is all run on a linux system not on unraid itself....



but my advice if you are not familiar with kernel building and configuration to not do it and do some research first, you can get some funky results... your choice :)



Link to post

Hello,



I have been using stable builds for about a yr now. Never installed custom kernel. I tried looking online, but couldn't really find a definitive way that I felt comfortable with. Is there a process you can outline that can help me install your kernel? Currently, my server is running on 3960x and would really help with temp monitoring with the updated kernel.



Thank you

Link to post

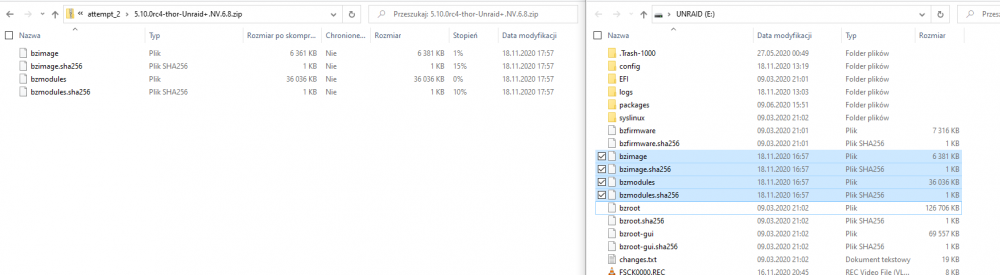

you have 4 files in the archive.... bzimage, bzimage.sha256, bzmodules, bzmodules.sha256

you have the same 4 files on the unraid flash drive....

just move those files into a different folder if you ever want to undo the install and copy the 4 files that are in the zip into the root of the flash driver

and reboot that's it....

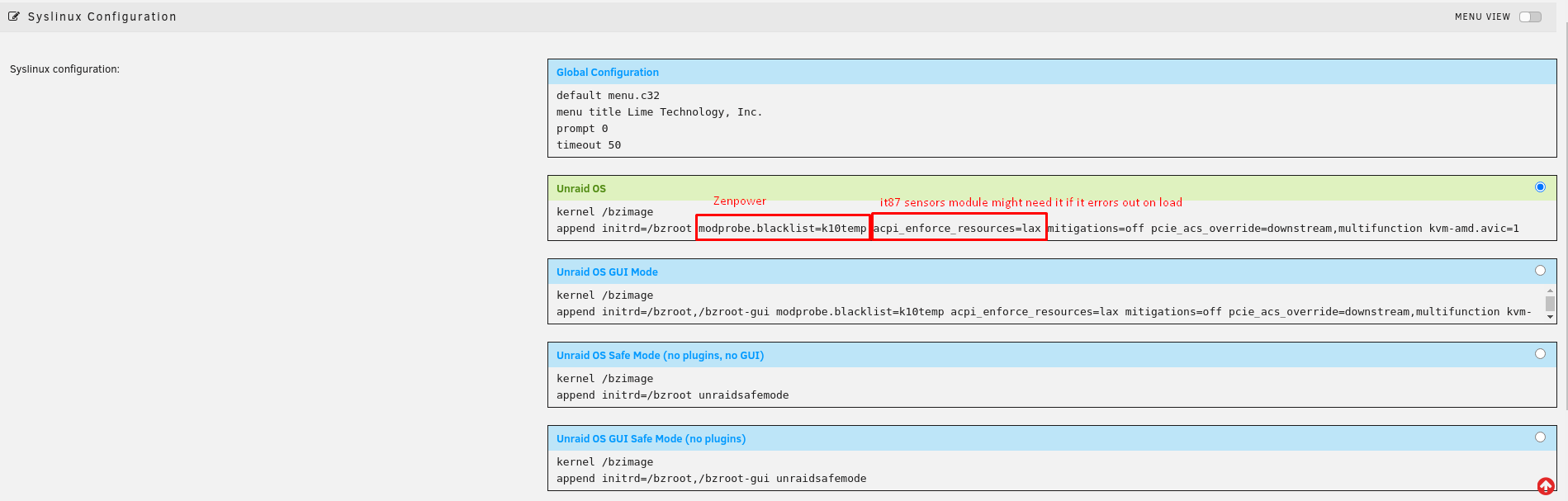

don't forget to add modprobe.blacklist=k10temp to syslinux config into syslinux config  on the flash drive

depending on the motherboard sensors chip you might need to load it87 module

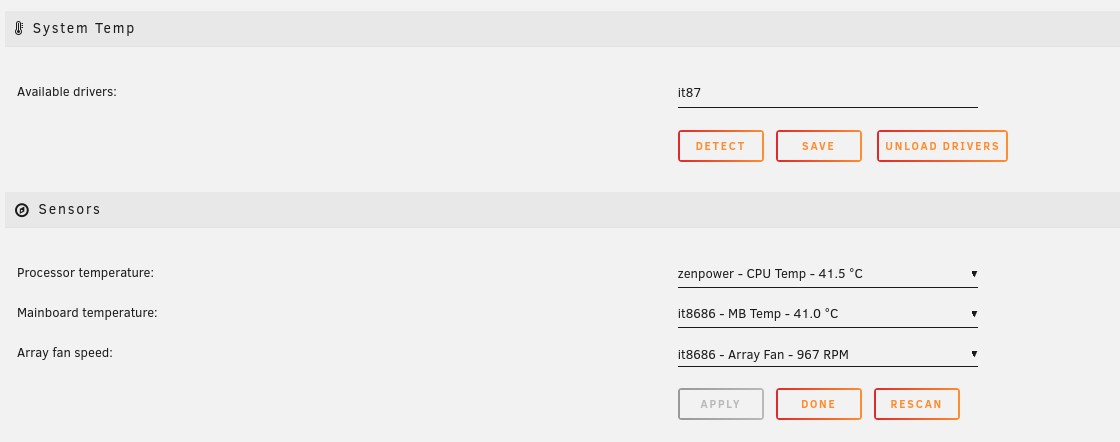

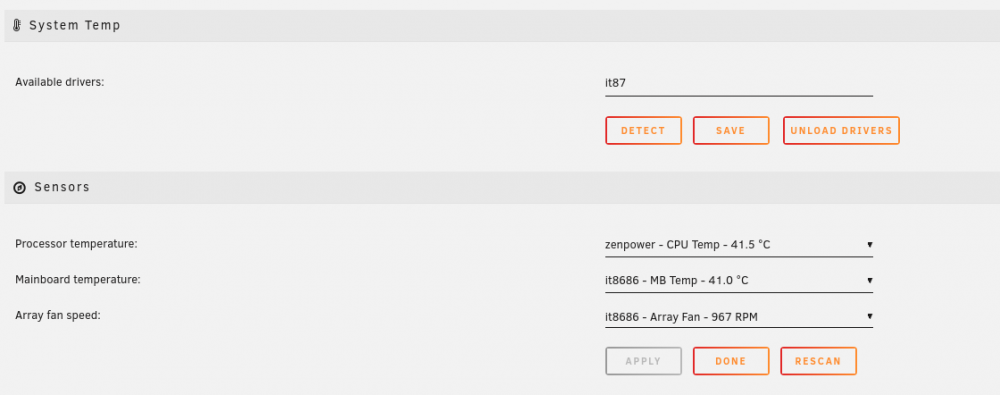

you can use the Dynamix System Temp plugin to load the it87 modules every boot and how temps you have a picture of mine below



you can check with command sensors whats detected...

I'm not very good at explaining things so home you understand





Edited by thor2002ro
Link to post

release 5.9RC3-20200914(I know I know RC5 is out.....)



same as 20200831

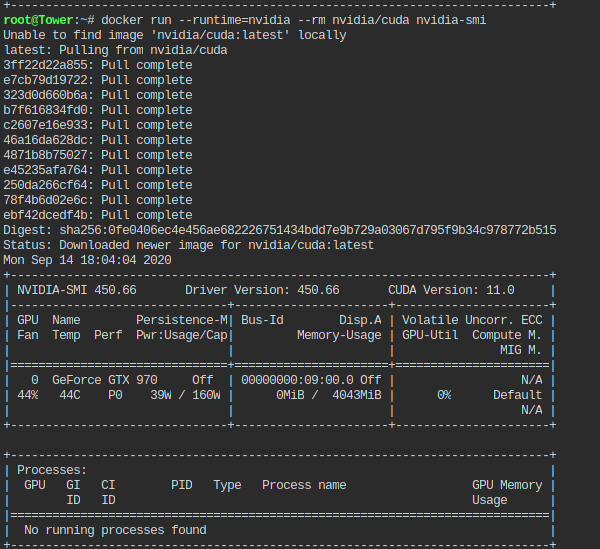

added nvidia driver 450.66(requires utils to function properly) includes nvidia docker and all requirements
added zfs utils



IMPORTAT NOTICE:
*) utils need to be installed at boot I do it with the /boot/config/go file and placed the downloaded utils packages in a packages folder on root of the usb drive after that add "installpkg /boot/packages/*.tgz" in the go file first after "#!/bin/bash" in a new line
*) dont try to install the utils packages on any modified rootfs .... they need to be installed on stock unraid rootfs1706364532_Screenshotfrom2020-09-1421-08-26.png.f952b22c2a94bf036fc60bab0bbd2af2.png

Edited by thor2002ro
Link to post

Using 5.9RC5-20200915 with zfs-2.0.0-rc1-x86_64-thor.tgz, zfs utils installed via go file. But the /dev/zvol/zvol-names/ are not created but /dev/zdN does exist and are useable - but always have to check via fdisk -l which one belongs to which one.



Any ideas?

Link to post

5.9.0RC7-20200929 release



update to 5.9RC7

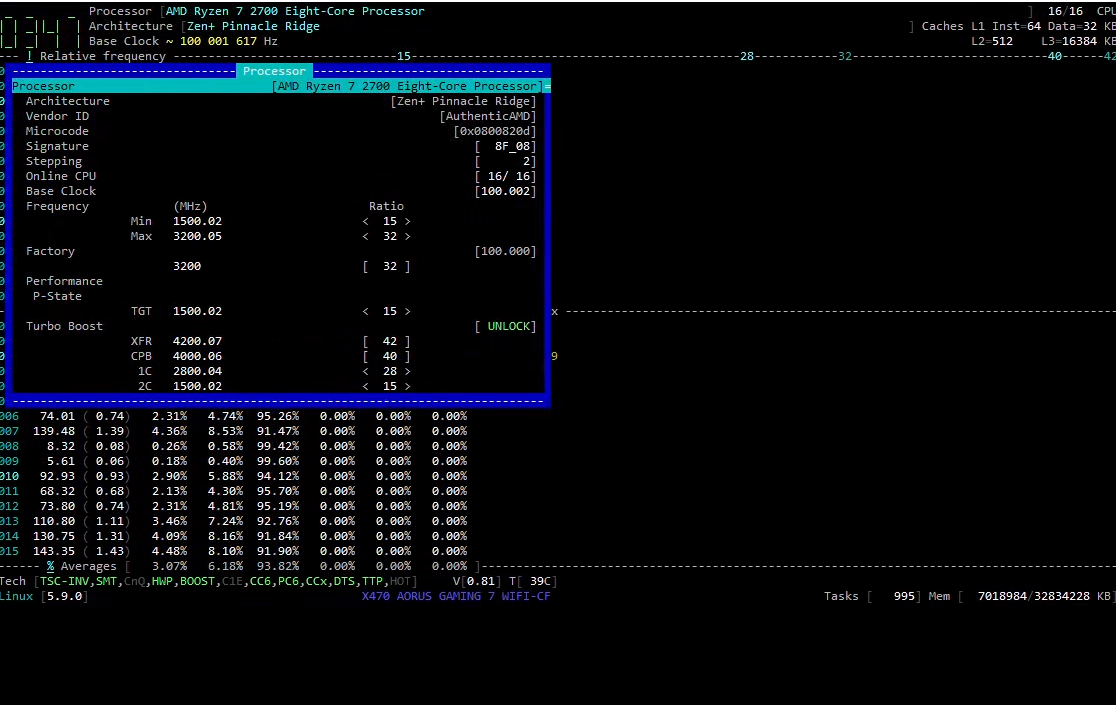

updated corefreq kernel module(added utils for corefreq module run corefreq-cli-run)
updated paragon ntfs3 v6
updated dax virtio improvements
update zfs to 2.0 rc2
fix zfs startup script
fix amd gpu reset(still needs utility for vega reset)
update nvidia driver to 455.23.04

Link to post
On 9/29/2020 at 5:47 PM, thor2002ro said:

5.9.0RC7-20200929 release



Thank you very much.



One Question is it possible to make it compatible to Version: 6.9.0-beta29 ?



Different Version of MD so the Array would not Start :-(



Best Regards
Hannes

Link to post

5.9RC8-20201005



update to 5.9RC8
updated paragon ntfs3 v7
updated dax virtio improvements
update iommu amd
improvements to pcie aer
nvidia driver Persistence mode enabled at boot for lower idle power



update/add drivers out of tree:
corefreq kernel module(added utils for corefreq module run corefreq-cli-run) 5da83ae
zfs drivers a76e4e6
tbsecp3 drivers 3cdeaee
asus-wmi-sensors driver 3
r8125 driver 9.003.05
r8152 driver 2.13.0
ryzen_smu driver 44a0f687
tn40xx driver 0.3.6.17.3
zenpower driver 0.1.12




version for 6.8.3 and 6.9 beta30


Edited by thor2002ro
  • Like 1
  • Thanks 1
Link to post
