Hello all,



I have a weird problem with my docker applications, after I enabled IPv6 in the network settings, I cannot choose static (custom br0) anymore in the dropdown list next to Network Type.



My IP setup:





Docker settings:





Any docker app setup:





When I put it on bridge or host it works but I need it to be a static ip.



I do have to mention that I didn't restart the server yet because of a parity rebuild going on, but just in case a restart won't help and maybe someone knows what the problem is could help me.

The link local address (fe80) is not accepted by Docker and hence the network is not created.

Docker wants a gateway address in the same subnet as the interface address. This is normally the first address, e.g. 2a02:12xx:xxx::1

You need to configure this ::1 address on your router too, if not already existing.

Thank you for your reply, i'm very new to ipv6 so i'm sorry if I say something stupid.



My ISP has given me a /48 subnet (the 2a02: one) and I configured this in my router with DHCPv6 and now it is distributing ipv6 adress using prefix delegation (I don't have a single other option I can change, but ill post that problem in the forums of my router if that is the problem).



All my other devices do work with the ipv6 from dhcp. Is this a limitation in unraid docker settings that the gateway has to be in the same subnet or am I being stupid?

It is a Docker limitation, not specific to Unraid.

Perhaps your router allows adding an IPv6 address to the LAN interface.

I use Ubiquiti and can add an address which acts as the IPv6 gateway address for Docker containers.

Thank you for the clarification, i'm also using ubiquiti (USG3P).



If it's not too much trouble could you explain how you added an address to act as the gateway, or should I ask this in the ubiquiti forums?

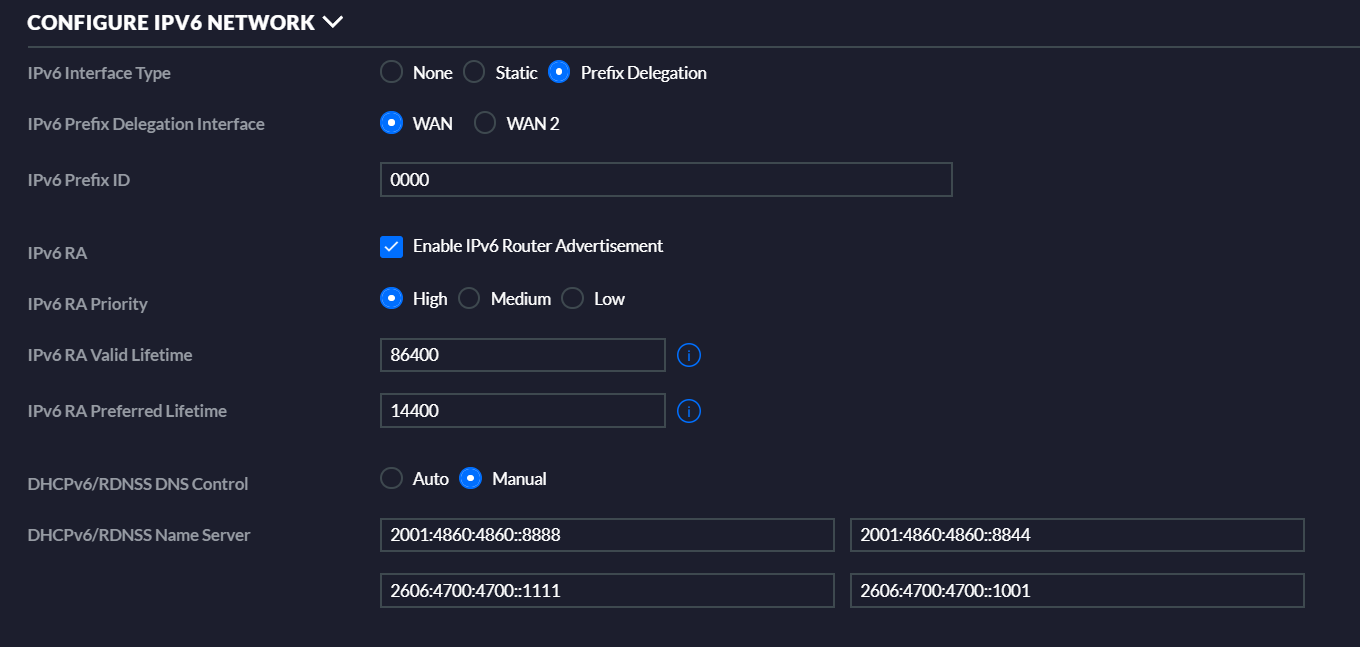

This is because in the LAN interface I have set it to prefix delegation (I can't save it when I choose static but that is a problem for the other forums) and do not have an option for gateway (I assume you have it on static?).

There is a couple of things needed to make this work.



1. On your Unraid server you need to assign static IPv6 settings.

2. Unfortunately IPv6 host addresses are not supported via the GUI, you need to create a config.gateway.json file (look in the Ubuiqiti forums for how and what)



I have several things configured in my config.gateway.json file (I do a lot of specialties), but below is the part which is needed for IPv6 assignment using PD.

Note: make absolutely sure the syntax is correct, it may hang your router if not.

{
  "interfaces": {
    "ethernet": {
      "eth2": {
        "dhcpv6-pd": {
          "pd": {
            "0": {
              "interface": {
                "eth0": {
                  "host-address": "::1",
                  "service": "slaac"
                }
              }
            }
          }
        }
      }
    }
  }
}



Edited December 27, 20196 yr by bonienl

Thank you for your help, looks like I will have to postpone this a bit because I also have a configured config.gateway.json (ipv4 subnet and firewall rules) and because my dhcpv6-pd process uses 50% cpu already (opened a ticket for this because the current solution closes my pppoe connection and also has to be put in the config.gateway.json  ). Oh and my server is still busy with a a parity rebuild.



When most of my problems are fixed I will come back to this thread and apply your settings, again thank you for helping me and have a nice day and happy new year.

One thing I forgot to mention. I have a USG4P, and eth0 / eth2 are reversed from a USG3P

Hey,



I forgot about this but I recently managed to fix the high cpu usage with ipv6 so I decided to try this again, I wanted to make a ticket in the ubiquiti forums but considering I made a few tickets and all of them took months for a proper reply I decided to ask it here again so I hope you guys can help me.



I tried adding the host address and slaac service with a command first to test it:



set interfaces ethernet eth0 vif 128 pppoe 2 dhcpv6-pd pd 0 interface eth1.50 host-address '::1'

set interfaces ethernet eth0 vif 128 pppoe 2 dhcpv6-pd pd 0 interface eth1.50 service slaac



Also I'm not sure if this matters but I have set prefix-only option on dhcpv6-pd (to fix the high cpu usage)



The unraid server is connected with vlan 50 native and others, including 1, are tagged.



But I still get a link-local address as gateway





And even when I have no internet I still get the link-local address as gateway



In unraid I have set up a Static IP with the gateway (using 2a02 address) with metric 1, however in the routing table the fe80 address still comes back even after I delete it and in the docker settings it keeps using that as gateway address.



Does anyone know what I might be doing wrong?



I also have 2 nics (which are bonded), is it better if I just use 1 for ipv4 and 1 for ipv6?



Edited May 21, 20206 yr by Inenting
typo

I tried this out without DHCP and somehow it still didn't work. I set it up with a static IP and there was no local link address but I still couldn't use custom interfaces.
