August 16, 20241 yr 22 minutes ago, giganode said: Maybe other devices interfere your psu. Open Terminal and type in ls /dev/hid* For every hidraw entry type in corsairmi /dev/hidraw* Here is an example from my system: root@Node:/# corsairmi /dev/hidraw1 name: 'HX750i' vendor: 'CORSAIR' product: 'HX750i' powered: 46357097 (536d. 12h) uptime: 2321897 (26d. 20h) temp1: 40.8 temp2: 35.2 fan rpm: 0.0 supply volts: 230.0 total watts: 32.0 output0 volts: 12.0 output0 amps: 1.8 output0 watts: 20.0 output1 volts: 5.1 output1 amps: 2.2 output1 watts: 11.0 output2 volts: 3.3 output2 amps: 0.8 output2 watts: 2.5 So i did this and figured out that hidraw1 is my power supply. But is says "unexpected device". corsairmi /dev/hidraw1 unexpected device: 1b1c:1c1f So maybe i should change the usb header on the mainboard? Or any other ideas? (I have currently no access to the server, so i will change the usb header tomorrow.)
August 16, 20241 yr 18 minutes ago, chrissl said: So i did this and figured out that hidraw1 is my power supply. But is says "unexpected device". corsairmi /dev/hidraw1 unexpected device: 1b1c:1c1f So maybe i should change the usb header on the mainboard? Or any other ideas? (I have currently no access to the server, so i will change the usb header tomorrow.) Strange.. Here is a list of supported RMi/HXi series PSUs: 0x1c0a, /* RM650i */ 0x1c0b, /* RM750i */ 0x1c0c, /* RM850i */ 0x1c0d, /* RM1000i */ 0x1c04, /* HX650i */ 0x1c05, /* HX750i */ 0x1c06, /* HX850i */ 0x1c07, /* HX1000i */ 0x1c1e, /* HX1000i with USB-C */ 0x1c08, /* HX1200i */ 0x1c1f, /* HX1500i */ I guess you should try another usb header. Maybe you should also try to debug with unplugging other devices. Keep me informed! But I may be busy tomorrow..
August 17, 20241 yr So i changed the port multiple times but it doesn't changed anything. I hope that i have next week a free day so i can go deeper into this topic. I will then disassemble and test everything step by step. Thanks for your help so far.
August 17, 20241 yr 21 minutes ago, chrissl said: So i changed the port multiple times but it doesn't changed anything. I hope that i have next week a free day so i can go deeper into this topic. I will then disassemble and test everything step by step. Thanks for your help so far. You can also upload the Diagnostics in the meantime
August 19, 20241 yr So, I've now looked at the hardware again and couldn't find any errors. So I took another look at the software and after running the diagnostics, I realized that I have an outdated version of this plugin installed... This was completely my fault and it's quite embarrassing... I have now installed the latest version from https://github.com/giganode/corsairpsu-unraid/ and now it is working completely fine 🎉 Thank you, it's not a given that you get help like this. Now everything works. 🙂 Thanks again @giganode 😄
August 19, 20241 yr 2 hours ago, chrissl said: So, I've now looked at the hardware again and couldn't find any errors. So I took another look at the software and after running the diagnostics, I realized that I have an outdated version of this plugin installed... This was completely my fault and it's quite embarrassing... I have now installed the latest version from https://github.com/giganode/corsairpsu-unraid/ and now it is working completely fine 🎉 Thank you, it's not a given that you get help like this. Now everything works. 🙂 Thanks again @giganode 😄 Good to hear! But... is that Idle consumption? 😃 Edited August 19, 20241 yr by giganode
August 19, 20241 yr 37 minutes ago, giganode said: Good to hear! But... is that Idle consumption? 😃 Not always, sometimes it is only around 70W 😅 I use this Workstation mainly for testing and machine learning. So the idle is quiet high. 🙂
September 4, 20241 yr Does it work with rm1000 ? (not rm1000i). I have the Link cable and I have the connector on the power supply, I will try to do the test very soon. Do you think it would be possible to update the plugin so that it supports the RM1000 in your compatibility list? (On Windows with Corsair Link 4, I had all the information that came back on the interface) Edited September 4, 20241 yr by iDrink more infos
September 5, 20241 yr 20 hours ago, iDrink said: Does it work with rm1000 ? (not rm1000i). I have the Link cable and I have the connector on the power supply, I will try to do the test very soon. Do you think it would be possible to update the plugin so that it supports the RM1000 in your compatibility list? (On Windows with Corsair Link 4, I had all the information that came back on the interface) hey, it does not work but maybe we can make it work. please upload Diagnostics, I will then take a look at it 😇
September 5, 20241 yr Here is the diagnosis, I do not have the Corsair Unraid app installed, I hope that this will not interfere with the diagnosis? lab-diagnostics-20240905-1818.zip Edited September 5, 20241 yr by iDrink
September 30, 20241 yr Is anyone else having trouble running both this and the System Temp plugin? I'm having the exact same problem as this post: If my Corsair is plugged in and this plugin is running, it gets added to /etc/sensors.d/sensors.conf But System Temp chokes if the following lines are in that config file chip "corsairpsu-hid-3-1" ignore "fan1" I can remove the lines and everything works correctly, both this plugin and System Temp, but unfortunately the lines return after every reboot or power cycle. I'm out of ideas on how to fix this without modifying files every reboot.
September 30, 20241 yr On 9/30/2024 at 7:36 AM, Gizmotoy said: Is anyone else having trouble running both this and the System Temp plugin? I'm having the exact same problem as this post: If my Corsair is plugged in and this plugin is running, it gets added to /etc/sensors.d/sensors.conf But System Temp chokes if the following lines are in that config file chip "corsairpsu-hid-3-1" ignore "fan1" I can remove the lines and everything works correctly, both this plugin and System Temp, but unfortunately the lines return after every reboot or power cycle. I'm out of ideas on how to fix this without modifying files every reboot. Hey, to fix this issue automatically, you can use my following bash script. You can just set it up to run on Array Startup and you won't recognize any more: #!/bin/bash FILE="/etc/sensors.d/sensors.conf" if [ -f "$FILE" ]; then sed -i '/chip "corsairpsu-hid[^"]*"/,+1d' "$FILE" echo "Entries have been removed." else echo "$FILE doesn't exist." fi Edited October 5, 20241 yr by giganode
January 4, 20251 yr Hi @giganode, Could you add support for the corsair HX1200i (usb-c)? I installed the plugin but its not working and there is no /dev/ttyUSB0. root@TheARK:~# ls /dev/ttyUSB* /bin/ls: cannot access '/dev/ttyUSB*': No such file or directory root@TheARK:~# corsairmi No compatible devices found. root@TheARK:~# lsusb Bus 003 Device 003: ID 1b1c:1c23 Corsair HX1200i Power Supply Attaching the diagnostics. Please let me know if anything else is needed. Thanks in advance. theark-diagnostics-20250105-0730.zip Edited January 4, 20251 yr by noobdev grammer/typo
January 5, 20251 yr 14 hours ago, noobdev said: Hi @giganode, Could you add support for the corsair HX1200i (usb-c)? I installed the plugin but its not working and there is no /dev/ttyUSB0. root@TheARK:~# ls /dev/ttyUSB* /bin/ls: cannot access '/dev/ttyUSB*': No such file or directory root@TheARK:~# corsairmi No compatible devices found. root@TheARK:~# lsusb Bus 003 Device 003: ID 1b1c:1c23 Corsair HX1200i Power Supply Attaching the diagnostics. Please let me know if anything else is needed. Thanks in advance. theark-diagnostics-20250105-0730.zip 201.75 kB · 0 downloads I'll publish a new release this evening Please, give me short feedback after testing. Edited January 5, 20251 yr by giganode
January 5, 20251 yr 8 hours ago, giganode said: I'll publish a new release this evening Please, give me short feedback after testing. Thanks @giganode. It's working now. Appreciate the work you are doing. 😄
January 19, 20251 yr I have been happily using this for some time, but it no longer shows any stats. I think it stopped showing when I upgraded to Unraid 7 EDIT I have the HXi 1000 with a type c connection Edited January 19, 20251 yr by mayberts
January 20, 20251 yr On 1/19/2025 at 3:40 PM, mayberts said: I have been happily using this for some time, but it no longer shows any stats. I think it stopped showing when I upgraded to Unraid 7 EDIT I have the HXi 1000 with a type c connection Whats the ouput of corsairmi? Please upload Diagnostics.
February 2, 20251 yr Author Nice to see this continuing to be maintained, i came back to Unraid recently.... just to add my 2 cents. The following patch to expose the temperature sensors and corsair stats still works on Unraid 7.0 On 9/3/2021 at 2:27 PM, Fma965 said: 6.10-rc1 breaks the above code work around, is there any plans to enable basic auth or a "Bearer Token" ? for now i have worked around it with this # Add Un-Authenticated access to Unraid 6.10-RC1+ for SystemTemp.php and Status.php (Corsair Plugin) echo -e "# Fma965 Un-Authenticated Access\nlocation ~ /plugins\/corsairpsu\/status.php {\nallow all;\ninclude fastcgi_params;\n}\n\nlocation ~ /plugins\/dynamix.system.temp\/include\/SystemTemp.php {\nallow all;\ninclude fastcgi_params;\n}\n# End Fma965 Un-Authenticated Access\n\n$(cat /etc/nginx/conf.d/locations.conf)" > /etc/nginx/conf.d/locations.conf; nginx -s reload # End Nginx Basic Auth Patch I chose to use a user script instead of the modified go file, i set it to the following and set it to run on first array start # Add Un-Authenticated access to Unraid 6.10-RC1+ for SystemTemp.php and Status.php (Corsair Plugin) echo -e "# Fma965 Un-Authenticated Access\nlocation ~ /plugins\/corsairpsu\/status.php {\nallow all;\ninclude fastcgi_params;\n}\n\nlocation ~ /plugins\/dynamix.system.temp\/include\/SystemTemp.php {\nallow all;\ninclude fastcgi_params;\n}\n# End Fma965 Un-Authenticated Access\n\n$(cat /etc/nginx/conf.d/locations.conf)" > /etc/nginx/conf.d/locations.conf; nginx -s reload # End Nginx Basic Auth Patch And this template code for Home Assistant also sensor: - platform: rest name: unraid_psu json_attributes: - temp1 - temp2 - fan_rpm - capacity - 12v_watts - 5v_watts - 3v_watts - watts - load - uptime_raw - poweredon_raw - efficiency resource: http://192.168.1.3/plugins/corsairpsu/status.php value_template: '{{ value_json.product }}' headers: User-Agent: Home Assistant Content-Type: application/json - platform: template sensors: unraid_psu_temp1: friendly_name: 'Unraid PSU Temperature 1' unit_of_measurement: 'C' unique_id: 'unraid_psu_temp1' value_template: '{{ states.sensor.unraid_psu.attributes["temp1"] }}' unraid_psu_temp2: friendly_name: 'Unraid PSU Temperature 2' unit_of_measurement: 'C' unique_id: 'unraid_psu_temp2' value_template: '{{ states.sensor.unraid_psu.attributes["temp2"] }}' unraid_psu_fan_rpm: friendly_name: 'Unraid PSU Fan Speed' unit_of_measurement: 'RPM' unique_id: 'unraid_psu_fan_rpm' value_template: '{{ states.sensor.unraid_psu.attributes["fan_rpm"] }}' unraid_psu_capactiy: friendly_name: 'Unraid PSU Capacity' unit_of_measurement: 'W' unique_id: 'unraid_psu_capacity' value_template: '{{ states.sensor.unraid_psu.attributes["capacity"] }}' unraid_psu_12v_watts: friendly_name: 'Unraid PSU 12v Watts' unit_of_measurement: 'W' unique_id: 'unraid_psu_12v_watts' value_template: '{{ states.sensor.unraid_psu.attributes["12v_watts"] }}' unraid_psu_5v_watts: friendly_name: 'Unraid PSU 5v Watts' unit_of_measurement: 'W' unique_id: 'unraid_psu_5v_watts' value_template: '{{ states.sensor.unraid_psu.attributes["5v_watts"] }}' unraid_psu_3v_watts: friendly_name: 'Unraid PSU 3v Watts' unit_of_measurement: 'W' unique_id: 'unraid_psu_3v_watts' value_template: '{{ states.sensor.unraid_psu.attributes["3v_watts"] }}' unraid_psu_watts: friendly_name: 'Unraid PSU Current Load' unit_of_measurement: 'W' unique_id: 'unraid_psu_watts' value_template: '{{ states.sensor.unraid_psu.attributes["watts"] }}' unraid_psu_load: friendly_name: 'Unraid PSU Current Load Percentage' unit_of_measurement: '%' unique_id: 'unraid_psu_load' value_template: '{{ states.sensor.unraid_psu.attributes["load"] }}' unraid_psu_uptime: friendly_name: 'Unraid PSU Uptime' unique_id: 'unraid_psu_uptime' value_template: '{{ timedelta(0, states.sensor.unraid_psu.attributes["uptime_raw"] | int(0)) }}' unraid_psu_poweredon: friendly_name: 'Unraid PSU Total Power On Time' unique_id: 'unraid_psu_poweredon' value_template: '{{ timedelta(0, states.sensor.unraid_psu.attributes["poweredon_raw"] | int(0)) }}' unraid_psu_efficiency: friendly_name: 'Unraid PSU Efficiency' unit_of_measurement: '%' unique_id: 'unraid_psu_efficiency' value_template: '{{ states.sensor.unraid_psu.attributes["efficiency"] }}' # This can be used for Dynamix System Temp also scrape: - resource: "http://192.168.1.3/plugins/dynamix.system.temp/include/SystemTemp.php" verify_ssl: false scan_interval: 5 sensor: - name: Unraid CPU Temp select: "#temp" value_template: '{{ value.split(" ")[0]|replace("rpm","")|replace("°C","") }}' unit_of_measurement: 'C' unique_id: 'unraid_cpu_temp' - name: Unraid Motherboard Temp select: "#temp" value_template: '{{ value.split(" ")[1]|replace("rpm","")|replace("°C","") }}' unit_of_measurement: 'C' unique_id: 'unraid_motherboard_temp' - name: Unraid Fan 1 Speed select: "#temp" value_template: '{{ value.split(" ")[2]|replace("rpm","")|replace("°C","") }}' unit_of_measurement: 'RPM' unique_id: 'unraid_fan1_speed' - name: Unraid Fan 2 Speed select: "#temp" value_template: '{{ value.split(" ")[3]|replace("rpm","")|replace("°C","") }}' unit_of_measurement: 'RPM' unique_id: 'unraid_fan2_speed' Edited February 3, 20251 yr by Fma965
March 6, 20251 yr On 2/4/2025 at 5:58 PM, AT123454321 said: Just another timid cry for ax1600i I still didn't have enough time to fork and rewrite https://github.com/Jon0/ax1600i. If someone wants to do that, go ahead! I also have an ax1600i so contact me for testing and implementation afterwards 😃

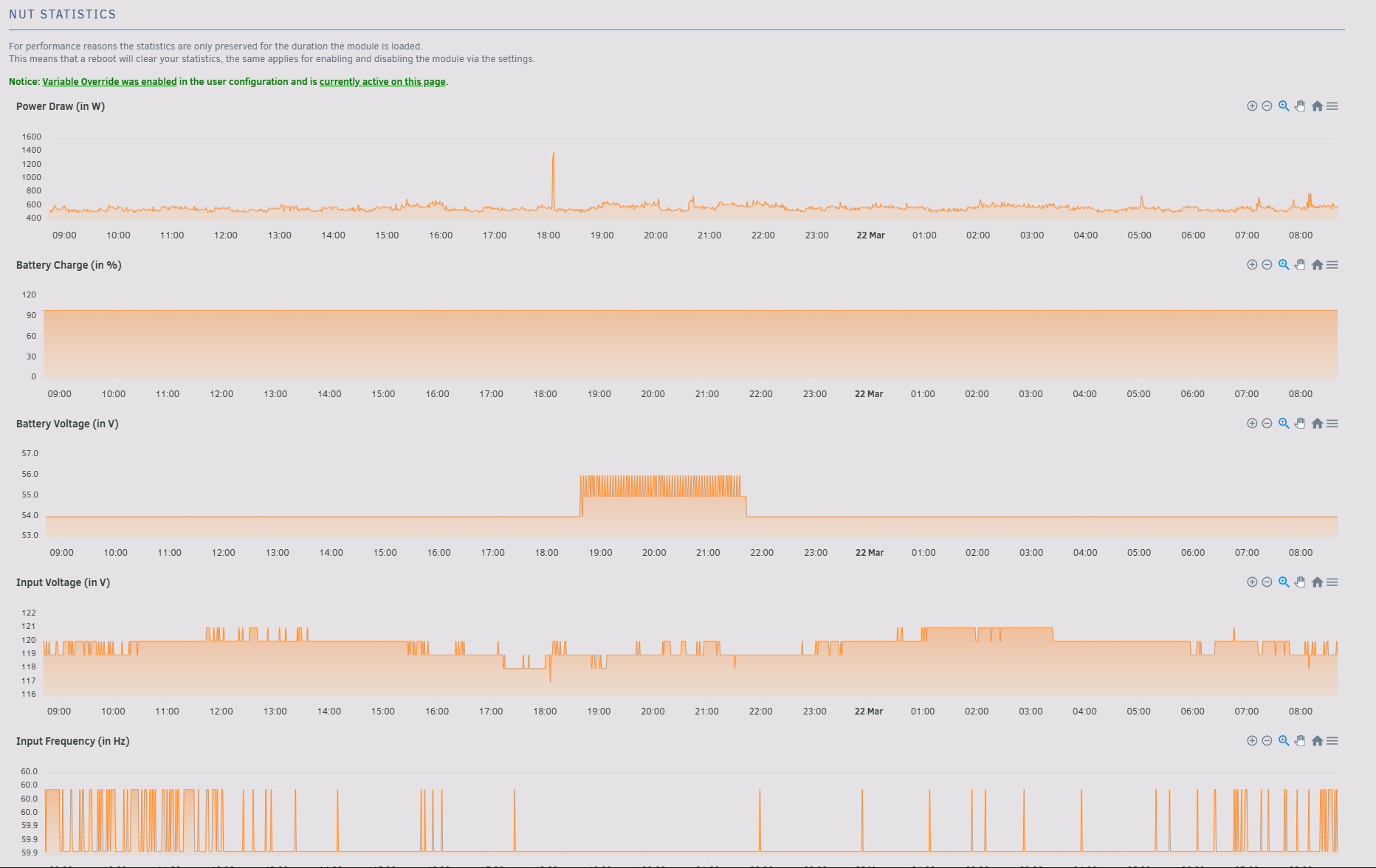

March 22, 20251 yr It would be great to see historical stats similar to the NUT statistics page My server has been turning itself off and I think it's because everything is drawing too much power because there's nothing in logs which indicates issues.
April 17, 20251 yr On 3/22/2025 at 1:43 PM, Reptar said: It would be great to see historical stats similar to the NUT statistics page My server has been turning itself off and I think it's because everything is drawing too much power because there's nothing in logs which indicates issues. What PSU are you using and what is your system capable of drawing from a psu?
August 8, 2025Aug 8 I have used your plugin for year without problem, but just upgraded my PSU to HX1000i with usb-C. It shows up but missing some info? Its says 115V but I got 230V. 12V does not work?Any idea?
September 15, 2025Sep 15 I cannot get this plugin to show my PSU, I am using Corsair 1200HXi. It shows up under Tools/SysDevs, but on my dashboard nothing shows up. I also attached diagnostics. capsulecorp-diagnostics-20250915-1446.zip
