Unraid device sdh SMART health [9]Warning [CUBE] - power on hours is 50375



I hate to ask, as i'm sure it's obvious, but I can't find the setting to tweak that'll tell unRAID to stop telling me about high power on hours?



Also I'm not sure if it's related, but SMART attributes aren't showing correctly at this point for this disk.

Note it's an Unassigned device also.  It's on the same controller as all the other disks in the system, and they're all showing up with attributes just fine.



Thanks!





cube-diagnostics-20191230-2333.zip

If its sdh, then the problem looks to be more that unRaid can't read the attributes and needs to smart controller type to be hp cciss.  Since it appears to be an unassigned device, I'd try setting that globally in Disk settings, and then set all the normal disks to be ATA

Did that on day one.

unRAID is clearly able to read the attributes, as I've gotten 13 more warnings overnight for the same issue, each time the hour number has incremented by 1.

Please post SMART report of that drive

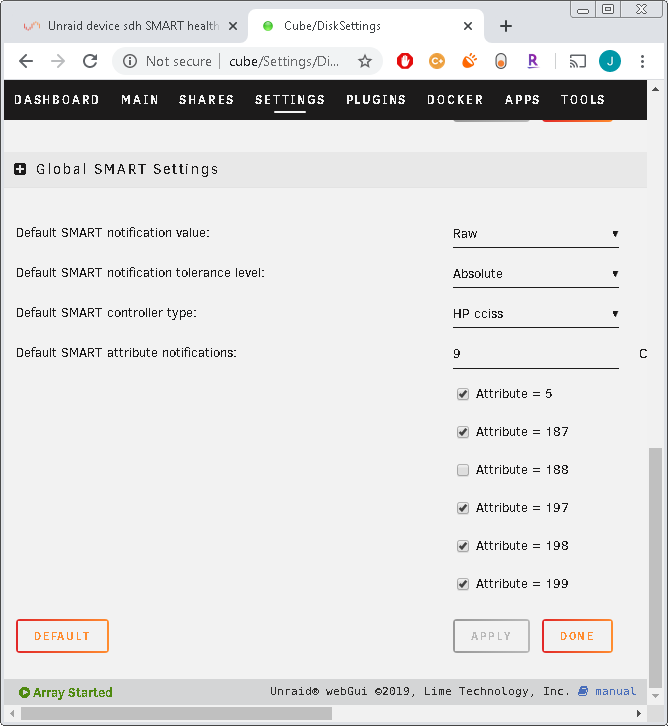

Remove attribute ‘9’ in the list of default smart notifications. This causes a notification to send when power on hours change value (each hour)

@bonienl Done.  Curious that it all of the sudden started doing it though, as I've had '9' listed there since I put the H240 controller in the machine, and I only started getting warnings last night.

@johnnie.black neither short or extended will run; clicking the button(s) does nothing.

1 minute ago, sota said:

neither short or extended will run; clicking the button(s) does nothing.

You can get a smart report on the console with smartctl, but Bonienl already told you what the problem is, no point in monitoring the power on hours attribute.

understood, but i'm still curious as to why now all of the sudden it's decided to "warn" me, and why there isn't a threshold someplace I can alter.

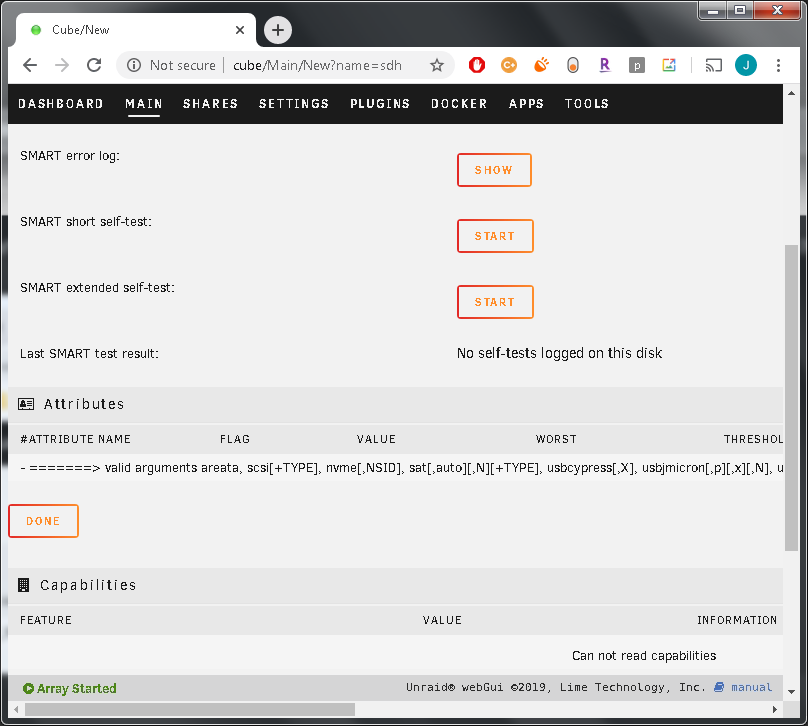

also why the Attributes box isn't populating like all the other drives.  to be fair I don't know for a fact it was before.

3 minutes ago, sota said:

and why there isn't a threshold someplace I can alter.

There might be a threshold on the disk's SMART attribute, hence why I wanted to see the report.

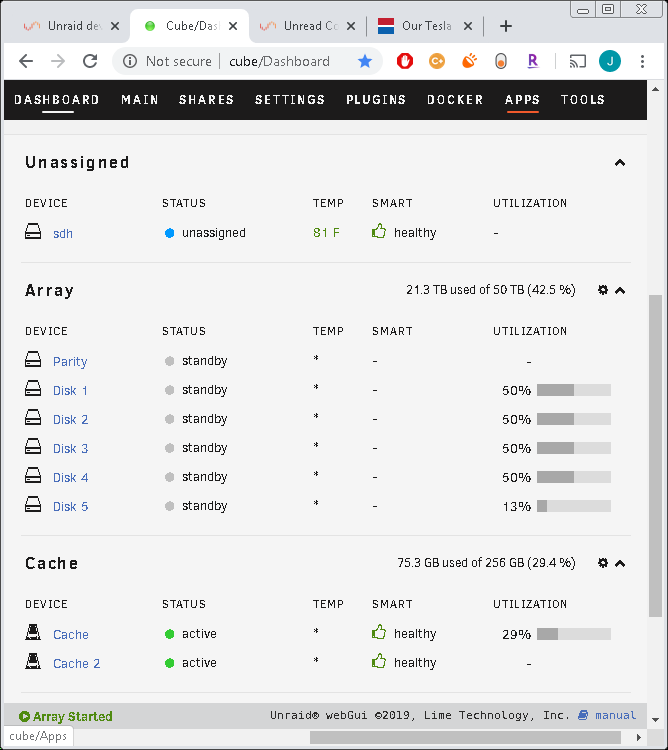

and to add another conundrum to the pile... that drive is now showing a temperature in the dashboard, and ONLY that drive, and ONLY in the dashboard! Main doesn't show any drive temps at all.





did someone slip my unRAID box some kind of roofie or something?



@johnnie.black

Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   167   152   021    Pre-fail  Always       -       6616
  4 Start_Stop_Count        0x0032   094   094   000    Old_age   Always       -       6470
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   100   253   051    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   031   031   000    Old_age   Always       -       50393
 10 Spin_Retry_Count        0x0032   100   100   051    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   051    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       57
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       2
193 Load_Cycle_Count        0x0032   198   198   000    Old_age   Always       -       6424
194 Temperature_Celsius     0x0022   123   086   000    Old_age   Always       -       27
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   200   200   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   051    Old_age   Offline      -       0



Attribute 9 value is 31, threshold is 00, so no SMART alarm, you were only getting warning because the attribute was changing with each additional hour, no idea why you only start getting notified recently, possibly because Unraid was not reading the attributes correctly before.

... gonna drive me to drink...
