USB 3.1 Pass-through question

JWMutant
in Motherboards and CPUs

Featured Replies

I have a question in regards passing through USB 3.1 on the X399 DESIGNARE EX.

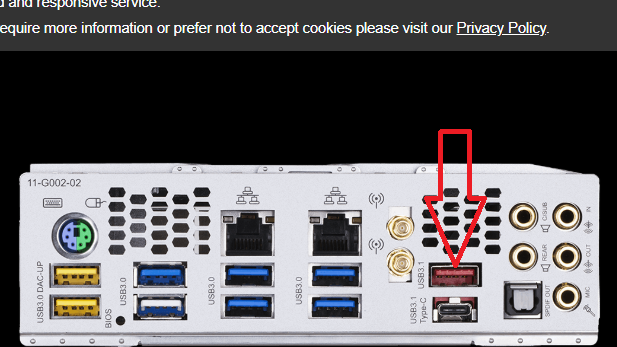

As per the below image the red USB 3.1 port and the USB 3.1 type C are the only USB 3.1 on the rear I/O

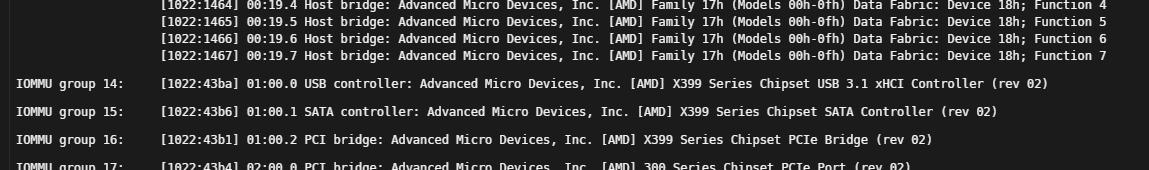

The only reference in System Devices on Unraid that makes mention of USB 3.1 is below.






So if I isolate 1022:43ba with vfio-pci.ids=1022:43ba I should be able to pass-through USB 3.1 to my VM.



Does that sound about right?

  • Quote

    That sounds right. As your USB 3.1 controller is isolated in its own IOMMU group, that should work for you.



  • Quote

    • Archived

    This topic is now archived and is closed to further replies.
