Hello all,



I am using Unraid 6.8.0

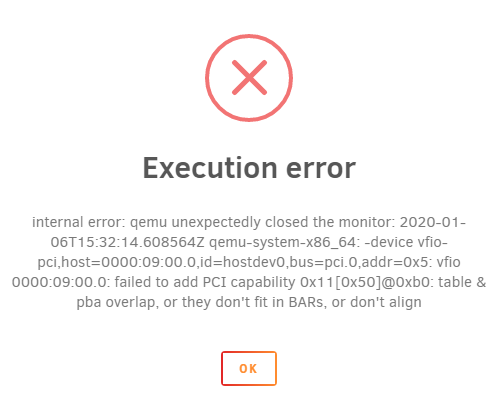

I have been trying for weeks to get my barebone windows server 2016 OS install to work as a VM off of my unassigned NVMe drive. (also using unassigned drives plugin).  When I start the VM, this is the error I see.





I have already watched videos on how to do VM's and passing through an NVMe drive with no luck.  Per the instructions given, I used these 2 settings in VM settings:





The syslinux config has this:

pcie_acs_override=downstream,multifunction vfio_iommu_type1.allow_unsafe_interrupts=1 vfio-pci.ids=c0a9:2263

and system devices does show the controller to be separate (although i do understand that may not necessarily be the actual case).

IOMMU group 26:[c0a9:2263] 09:00.0 Non-Volatile memory controller: Micron/Crucial Technology P1 NVMe PCIe SSD (rev 03)

I have 2 NVMe drive.  One for VM's, and one for cache.



Please help lol --Im not sure what else to do



Many thanks!

I get a similar error with existing VM's and now I cannot even create a new VM either, the 'Create' button does nothing.

On 1/10/2020 at 7:16 AM, gsayer said:

I get a similar error with existing VM's and now I cannot even create a new VM either, the 'Create' button does nothing.

you find a solution?  My VMs are now dead in the water.

Hi,

I 'think' my solution was that my vdisk path was not set to: /mnt/user/domains/

After I changed it from whatever I had to this the 'Create' button worked again.



Hope that helps 👍
